1-Channel POTS to Fiber Rackmount Installation Kit | ST, MM

Extend POTS Telephone Service Over Fiber

The PK1M-RM POTS-to-fiber converter installation kit provides a practical solution for extending analog telephone service over multimode fiber. It is designed for applications where telephone equipment needs to be connected across a fiber optic link rather than directly over copper telephone cabling.

The FXO unit is installed at the exchange or PBX side, while the FXS unit is installed at the subscriber or telephone side of the connection.

FXO and FXS POTS Interfaces

The PK1M-RM provides one FXO interface and one FXS interface for a single POTS telephone connection.

• FXO: Exchange/PBX side
• FXS: Subscriber/telephone side
• Function: POTS
• Channels: 1

This configuration provides a point-to-point analog telephone connection over fiber.

Multimode Fiber Transmission

The PK1M-RM uses multimode duplex fiber with a fiber transmission capability of up to 2 km. This makes it suitable for extending POTS service between separated buildings, facilities, equipment rooms, or other locations where fiber is used for communications infrastructure.

All units in the 1-channel POTS converter family use LC optical connectors.

Rack-Mount POTS Fiber Installation

The PK1M-RM is designed for rack-mount installation. According to the VERSITRON selector guide, rack-mount kits include one 2-slot chassis and one standalone enclosure, providing flexibility for deploying the telephone converters in a centralized equipment location.

1-Channel POTS to Fiber Applications

The PK1M-RM can be used for:

• PBX-to-remote telephone connections
• Building-to-building telephone links
• Centralized telephone equipment installations
• Remote POTS extensions
• Commercial and industrial facilities
• Fiber-based communications infrastructure
• Applications requiring rack-mounted telephone fiber converters

Technical Specifications

These specifications are based on the VERSITRON 1-Channel POTS 2-Wire FXO/FXS to Fiber Converter Installation Kits Selector Guide.

Why Choose the VERSITRON PK1M-RM?

The PK1M-RM combines POTS telephone connectivity, multimode fiber transmission, FXO/FXS interfaces, and rack-mount installation in a single installation kit. Its 2 km multimode fiber capability makes it suitable for centralized or distributed telephone systems requiring a fiber-based connection.

VERSITRON — Safeguarding Communications Since 1958

VERSITRON has been providing fiber optic communication solutions since 1958. Our product portfolio includes fiber optic solutions for voice, video, data, and network communications.

For assistance selecting the appropriate POTS-to-fiber converter, fiber type, or rack-mount configuration, contact VERSITRON for technical support and application guidance.

Technical Specifications:

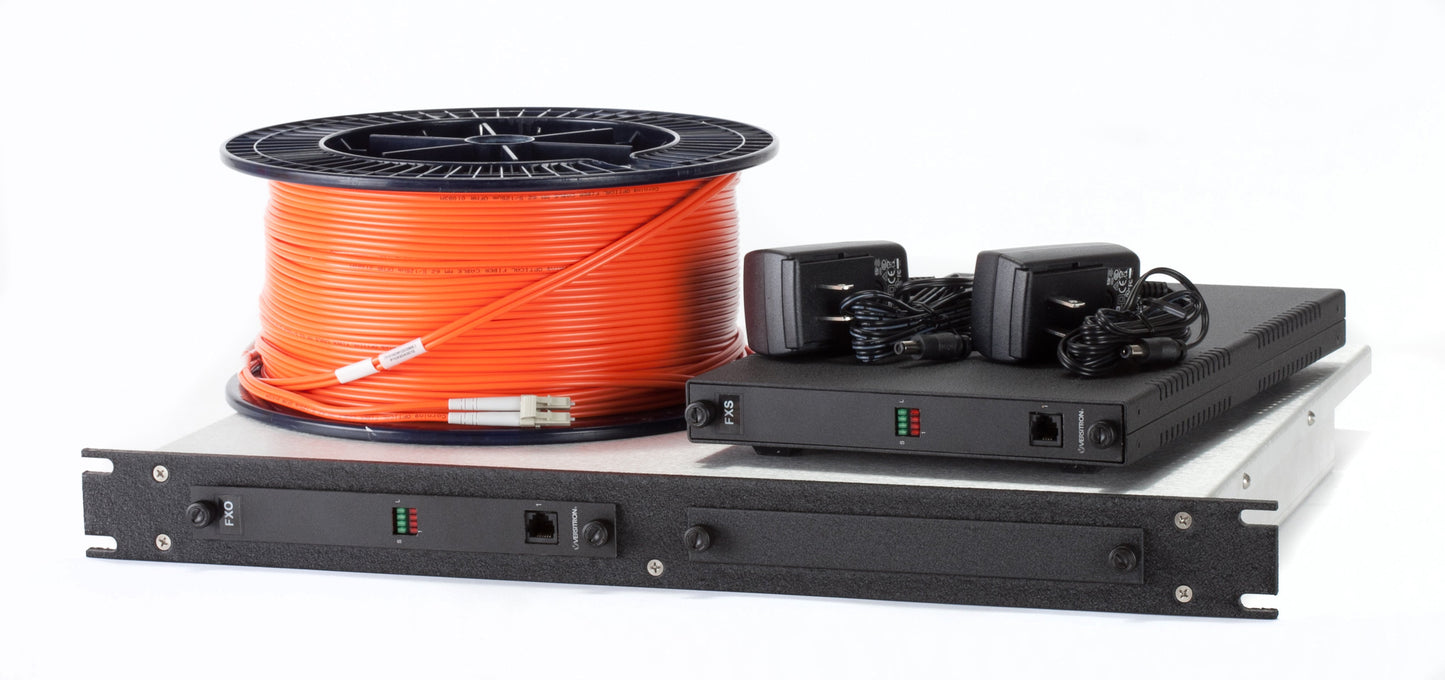

Each 2 POTS FXO/FXS Converter with Rackmount Kit Includes:

• FXO Unit
• FXS Unit
• External Power Supplies (90-240VAC)
• 100 Meters (328 ft) of Multimode Cable - Duplex

As a complete package, you get everything you need in a plug & play solution for your phone-to-fiber requirements and you receive a Lifetime Warranty from a trusted manufacturer since 1958! Contact us for assistance by calling (1-800-537-2296) or opening a chat. We are here to help!

Additional Installation Kits Are Available For:

• 1-Channel Phone
• 4-Channel Phone Multiplexer
• 4-Channel Phone Mux With RS-485 Data
• 8-Channel Phone Mux

2 POTS FXO/FXS converter with rackmount

• RJ11
• 600 Ohms Impedance
• LED Indicators
• SFP Module Technology
• 300Hz to 3.4KHz
• Rackmount Options Manuals for 2-Wire Products
  (See Bottom of Page)
