GB20SFB SFP Module | 1000Base, Tx: 1550nm, Rx: 1310nm, LC, SM, 20km

1000Base SFP Module for 20km Singlemode Fiber

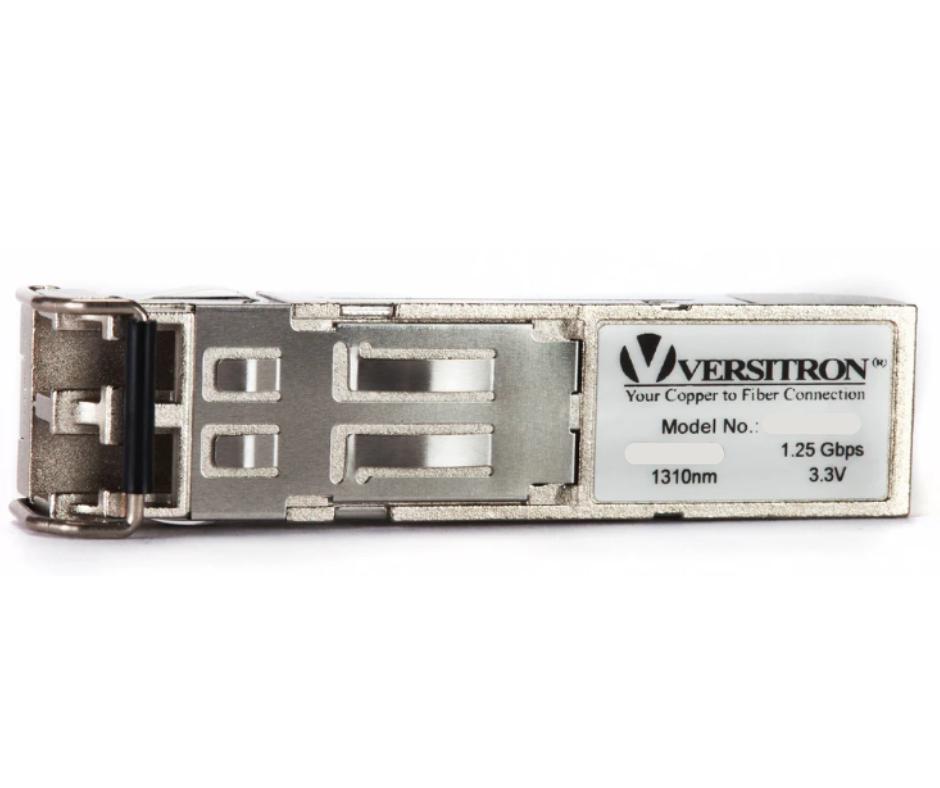

The VERSITRON GB20SFB is a 1000Base SFP module designed to extend Gigabit Ethernet connectivity over singlemode fiber distances up to 20 kilometers.

The module uses 1550nm for transmission and 1310nm for reception, providing complementary wavelength operation with the GB20SFA. This makes the GB20SFB an effective choice for long-distance Gigabit Ethernet links where a singlemode fiber connection is required.

According to the VERSITRON Fiber Optic SFP Modules datasheet, the GB20SFB provides 1000Mbps operation over 20km of singlemode fiber with an LC connector and is rated for operation from 0°C to 70°C.

Long-Distance 1Gbps Fiber Connectivity

The GB20SFB combines Gigabit Ethernet performance with a 20km singlemode fiber reach, allowing network designers to extend network connectivity beyond the limitations of copper Ethernet.

Its compact LC fiber interface makes the module suitable for compatible SFP-enabled network switches, media converters, and other fiber networking equipment.

The industry-standard SFP form factor also allows the module to be installed or replaced without requiring changes to the entire networking device. VERSITRON's SFP modules feature hot-pluggable operation, a 3.3V power supply, and TTL signal detection.

GB20SFB and GB20SFA: Complementary 20km SFP Modules

The GB20SFA and GB20SFB are complementary wavelength SFP modules designed to work together for long-distance Gigabit Ethernet fiber links.

The VERSITRON datasheet lists both modules as 1000Mbps, 20km singlemode SFPs with LC connectors, with their transmit and receive wavelengths reversed.

For a complementary wavelength connection, install the GB20SFA at one end and GB20SFB at the opposite end of the fiber link.

GB20SFB Technical Specifications

These specifications are based on the VERSITRON Fiber Optic SFP Modules datasheet.

Typical Applications

The GB20SFB is well suited for network applications requiring 1Gbps connectivity over extended singlemode fiber distances.

• Enterprise Network Backbones – Extend Gigabit Ethernet between buildings and network locations.
• Campus Networks – Connect buildings and facilities across a campus using singlemode fiber.
• Telecommunications Networks – Support long-distance fiber optic infrastructure.
• Industrial Networks – Connect remote network equipment over fiber while avoiding copper distance limitations.
• Government Networks – Extend network connectivity between facilities.
• Security and Surveillance Networks – Connect remote IP-based security infrastructure over long-distance fiber.
• Data Center Connectivity – Provide fiber connectivity between compatible network equipment.
• Remote Site Connectivity – Extend Gigabit Ethernet to remote locations.

Industry-Standard SFP Design

The GB20SFB uses an industry-standard Small Form Pluggable (SFP) design with an LC fiber connector. VERSITRON SFP modules incorporate differential LVPECL inputs and outputs, a single 3.3V power supply, TTL signal detection, and hot-pluggable operation.

The modules also use a Class 1 laser compliant with EN 60825-1.

Selecting the Right 1000Base SFP Module

VERSITRON offers Gigabit SFP modules for different fiber types, wavelengths, and transmission distances. The product family includes multimode and singlemode modules, along with complementary wavelength SFPs for single-fiber long-distance connections.

When selecting an SFP module, consider:

• Data rate – 100Mbps, 1000Mbps, or 10Gbps
• Fiber type – Multimode or singlemode
• Transmission distance – Select the appropriate distance rating
• Wavelength – Match the wavelength requirements at both ends
• Connector type – VERSITRON SFP modules use LC fiber connectors
• Complementary module – For bidirectional single-fiber links, verify that the transmit wavelength of one module matches the receive wavelength of the other

For the 20km complementary wavelength pair:

• GB20SFA: 1310nm Tx / 1550nm Rx
• GB20SFB: 1550nm Tx / 1310nm Rx

Why Choose VERSITRON?

VERSITRON provides fiber optic communication products designed for demanding commercial, industrial, government, military, transportation, telecommunications, and infrastructure applications.

Our SFP portfolio provides multiple combinations of data rate, fiber type, wavelength, connector, and transmission distance, giving network designers flexibility when building or expanding fiber optic networks. VERSITRON also offers CWDM, DWDM, and DDM modules for specialized fiber optic networking requirements.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for applications where reliable connectivity matters. Our product line includes fiber optic media converters, network switches, SFP modules, and other communication equipment designed for demanding network environments.

Need help selecting a 1000Base SFP module? Contact VERSITRON for assistance selecting the appropriate wavelength, fiber type, transmission distance, and complementary SFP for your application.
