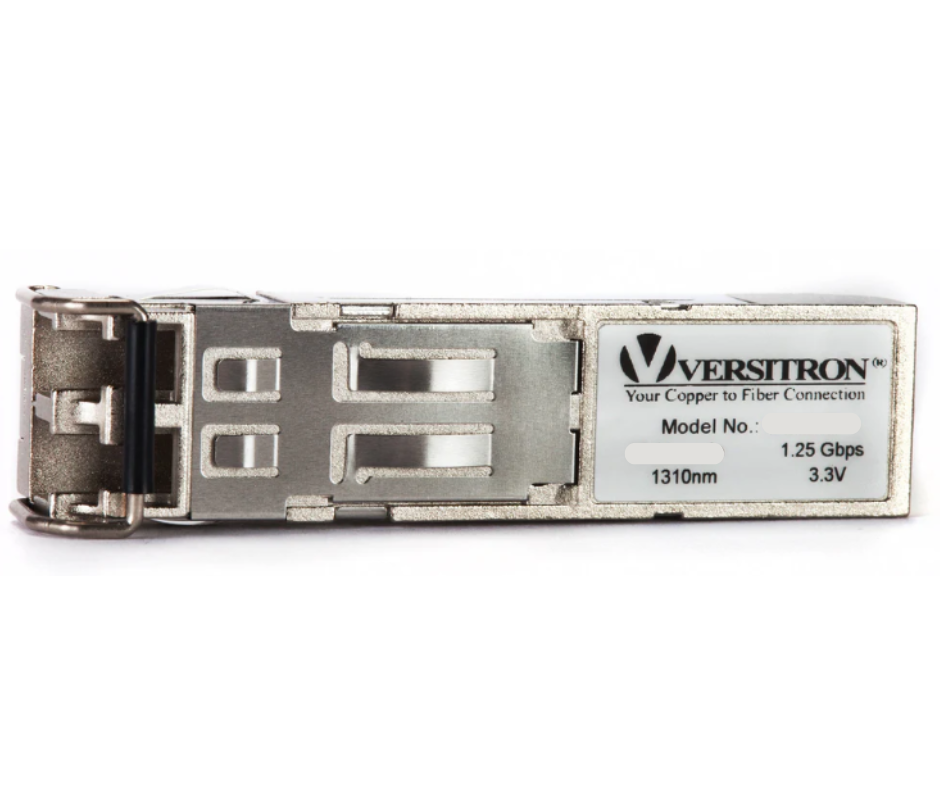

GB10SFA SFP Module | 1000Base, Tx- 1310nm, Rx- 1550nm, LC, SM, 10km

1000Base SFP Module for 10km Singlemode Fiber

The VERSITRON GB10SFA is a 1000Base SFP module designed to extend Gigabit Ethernet connectivity over singlemode fiber distances up to 10 kilometers.

The module uses 1310nm for transmission and 1550nm for reception, providing complementary wavelength operation with the GB10SFB. This makes the GB10SFA an effective solution for long-distance Gigabit Ethernet links where singlemode fiber connectivity is required.

According to the VERSITRON Fiber Optic SFP Modules datasheet, the GB10SFA provides 1000Mbps operation over 10km of singlemode fiber with an LC connector and is rated for operation from 0°C to 70°C.

Long-Distance 1Gbps Fiber Connectivity

The GB10SFA combines Gigabit Ethernet performance with a 10km singlemode fiber reach, allowing network designers to extend Ethernet connectivity well beyond the distance limitations of copper cabling.

Its LC fiber interface provides straightforward integration with compatible SFP-enabled network switches, media converters, and other fiber networking equipment.

The industry-standard SFP form factor also provides flexibility when configuring or expanding fiber networks. VERSITRON SFP modules feature hot-pluggable operation, a 3.3V power supply, and TTL signal detection.

GB10SFA and GB10SFB: Complementary 10km SFP Modules

The GB10SFA and GB10SFB are complementary wavelength SFP modules designed to work together for long-distance Gigabit Ethernet fiber links.

The VERSITRON datasheet lists both modules as 1000Mbps, 10km singlemode SFPs with LC connectors, with their transmit and receive wavelengths reversed.

For a complementary wavelength connection, install the GB10SFA at one end and GB10SFB at the opposite end of the fiber link.

GB10SFA Technical Specifications

These specifications are based on the VERSITRON Fiber Optic SFP Modules datasheet.

Typical Applications

The GB10SFA is well suited for network applications requiring 1Gbps connectivity over extended singlemode fiber distances.

• Enterprise Networks – Extend Gigabit Ethernet between network locations and facilities.
• Campus Networks – Connect buildings and remote network equipment over singlemode fiber.
• Telecommunications Networks – Support reliable fiber connectivity within telecom infrastructure.
• Industrial Networks – Connect remote network equipment while avoiding the distance limitations of copper Ethernet.
• Government Networks – Extend network connectivity between buildings and facilities.
• Security and Surveillance Networks – Connect IP-based security equipment over fiber.
• Network Backbones – Provide Gigabit fiber connectivity between compatible switches and networking equipment.
• Remote Site Connectivity – Extend Ethernet service to locations up to 10km away.

Industry-Standard SFP Design

The GB10SFA uses an industry-standard Small Form Pluggable (SFP) design with an LC fiber connector. VERSITRON SFP modules incorporate differential LVPECL inputs and outputs, a single 3.3V power supply, a TTL signal detect indicator, and hot-pluggable operation.

The modules also use a Class 1 laser compliant with EN 60825-1.

Selecting the Right 1000Base SFP Module

VERSITRON offers Gigabit SFP modules for different fiber types, wavelengths, and transmission distances, including multimode, singlemode, and complementary wavelength options. The datasheet lists Gigabit SFP configurations extending from short-distance multimode applications through singlemode distances of up to 100km.

When selecting an SFP module, consider:

• Data rate – Select the module required for your network speed.
• Fiber type – Determine whether the network uses multimode or singlemode fiber.
• Transmission distance – Select an SFP rated for the required fiber link.
• Wavelength – Match the transmit and receive wavelength requirements at each end.
• Connector type – VERSITRON fiber SFP modules use LC connectors.
• Complementary module – Make sure the transmit wavelength at one end corresponds with the receive wavelength at the opposite end.

For the 10km complementary wavelength pair:

• GB10SFA: 1310nm Tx / 1550nm Rx
• GB10SFB: 1550nm Tx / 1310nm Rx

Why Choose VERSITRON?

VERSITRON provides fiber optic communication products designed for demanding commercial, industrial, government, military, transportation, telecommunications, and infrastructure applications.

Our SFP portfolio provides multiple combinations of data rate, fiber type, wavelength, and transmission distance, giving network designers flexibility when building or expanding fiber optic networks. VERSITRON also offers CWDM, DWDM, and DDM modules for specialized fiber networking requirements.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for applications where reliable connectivity matters. Our product line includes fiber optic media converters, network switches, SFP modules, and other communication equipment designed for demanding network environments.

Need help selecting a 1000Base SFP module? Contact VERSITRON for assistance selecting the appropriate wavelength, fiber type, transmission distance, and complementary SFP for your application.
