2-Channel Video Installation Kit | Data, Audio, ST, SM
2-Channel Video Installation Kit | Data, Audio, ST, SM
SKU:FVMTR2BB5A
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The VersiVision system provides 8-bit digitally encoded, broadcast-quality video, RS-485 bidirectional data, and 24-bit digitally encoded bidirectional audio. It is directly compatible with NTSC, PAL, and SECAM camera systems, and the singlemode configuration supports transmission distances up to 30 km.
Product Highlights
- 2-channel digital video + 2-channel bidirectional data + 2-channel bidirectional audio

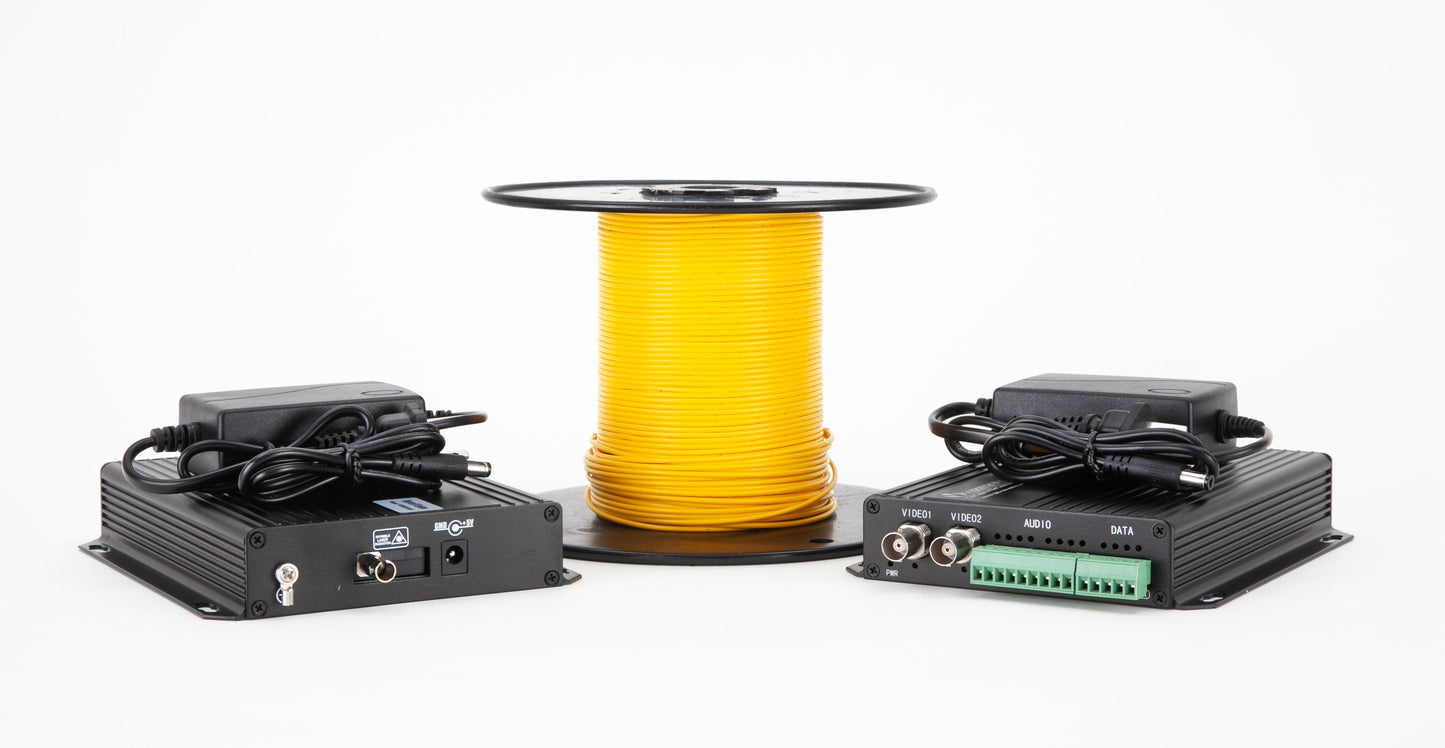

- Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber
- 8-bit uncompressed video
- Compatible with NTSC, PAL, and SECAM
- 2 channels of bidirectional RS-485 data
- RS-232 or RS-422 optional
- Data rates up to 300 Kbps
- 2 channels of bidirectional digital audio
- 24-bit audio encoding
- Transmission up to 30 km over singlemode fiber
- 1310/1550 nm optical wavelength
- All signals transmitted over one optical fiber
- Standard ST simplex optical connector
- BNC video connections
- Screw-terminal connections for data and audio
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Hot-pluggable into the FVC18 chassis
Complete 2-Channel Video, Data, and Audio Fiber Optic Installation Kit
The FVMTR2BB5A combines two video channels, two bidirectional data channels, and two bidirectional audio channels into one fiber optic transmission system. The installation kit includes a 2-channel video transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing the primary components needed to establish a complete video, data, and audio link.
A typical installation places the transmitter at the camera or field equipment location and the receiver at the monitoring or control location. A single fiber optic cable connects the two units, allowing all of the video, data, and audio channels to travel between locations.
Two Video Channels Over One Fiber
The VersiVision FVMTR2BB5A provides two channels of 8-bit digitally encoded video over one singlemode optical fiber. The system is directly compatible with NTSC, PAL, and SECAM camera systems.
Each unit provides two BNC video connections for the two video channels. The wiring diagram on page 3 of the datasheet illustrates the two video connections between the camera/source equipment and monitoring equipment.
Two Channels of Bidirectional Data
The FVMTR2BB5A provides two channels of bidirectional RS-485 data. Data transmission supports rates up to 300 Kbps, while RS-232 or RS-422 are available as optional configurations.
This allows serial data and control signals to travel alongside the two video channels over the same fiber connection.
Two Channels of Bidirectional Digital Audio
The FVMTR2BB5A provides two channels of bidirectional audio in addition to the video and data channels. Audio is digitally encoded at 24 bits, with a 600-ohm impedance, 2.0 Vp-p input/output level, and a frequency response of 10 Hz–20 kHz.
This makes the system useful for installations requiring audio communication in both directions along with video and data.
Multiple Signals Over One Singlemode Fiber
The FVMTR2BB5A consolidates multiple communication functions onto a single fiber:
- 2 channels of video
- 2 channels of bidirectional data
- 2 channels of bidirectional audio
The product uses one optical fiber and incorporates WDM technology for higher reliability.
This approach can simplify fiber cabling for installations where multiple communication signals need to be transmitted between remote locations.
8-Bit Digital Video Transmission
The video system provides 8-bit uncompressed video transmission with a bandwidth of 5 Hz–8 MHz and a specified video S/N ratio of 60 dB weighted.
The system supports NTSC, PAL, and SECAM video formats, making it compatible with a range of analog CCTV camera systems.
Singlemode Fiber Transmission Up to 30 km
The FVMTR2BB5A uses the FVTM2BB5A transmitter and FVRM2BB5A receiver, which are specified for singlemode transmission up to 30 km using 1310/1550 nm optics.
This makes the FVMTR2BB5A particularly useful when two-channel video, bidirectional data, and bidirectional audio must be extended over longer distances.
WDM Technology for Higher Reliability
The VersiVision system incorporates WDM technology for higher reliability while transmitting the video, data, and audio channels over a single optical fiber.
Fiber optic transmission also avoids the EMI, RFI, crosstalk, and video distortion identified in the product datasheet.
Plug-and-Play Installation
The FVMTR2BB5A is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide immediate visibility into system operating status.
Standard ST, BNC, and Screw-Terminal Connections
The FVMTR2BB5A uses:
- ST simplex optical connector
- BNC video connectors
- Screw-terminal connections for data and audio
- One singlemode optical fiber
ST-SC adapters are available for applications using SC fiber connectors.
LED Indicators for System Monitoring
LED indicators provide immediate visibility into system operating status. The wiring diagram on page 3 shows the video, data, audio, and power connections on both the transmitter and receiver.
Standalone or Rack-Mount Installation
The FVTM2BB5A transmitter and FVRM2BB5A receiver are available for standalone or rack-mount installation with the FVC18 18-slot chassis. The units are also hot-pluggable into the FVC18 chassis.
2-Channel Video, Data, and Audio Applications
The FVMTR2BB5A is suited for applications requiring multiple video, serial data, and audio channels over long-distance singlemode fiber, including:
- CCTV video surveillance
- PTZ camera systems
- Remote video monitoring
- Security monitoring
- Industrial video monitoring
- Camera control and serial communications
- Remote audio monitoring
- Control rooms with multiple video sources
- Remote surveillance locations
- Long-distance video transmission
- Fiber optic systems requiring multiple bidirectional communication channels
Technical Specifications
| Specification | FVMTR2BB5A |
|---|---|
| Video Channels | 2 |
| Video Format | 8-bit uncompressed |
| Video Compatibility | NTSC, PAL, SECAM |
| Fiber Type | Singlemode |
| Wavelength | 1310/1550 nm |
| Maximum Distance | 30 km |
| Number of Fibers | 1 |
| Optical Connector | ST |
| Video Connector | BNC |
| Data Interface | RS-485 |
| Data Channels | 2 bidirectional |
| Data Rate | Up to 300 Kbps |
| RS-232 / RS-422 | Optional |
| Audio Channels | 2 bidirectional |
| Audio Resolution | 24-bit |
| Audio Impedance | 600Ω |
| Audio Input/Output | 2.0 Vp-p |
| Audio Frequency Response | 10 Hz–20 kHz |
| Audio S/N Ratio | >95 dB weighted |
| Data/Audio Connector | Screw terminal strip |
| Video Input | 2 Vp-p, 75Ω |
| Video Bandwidth | 5 Hz–8 MHz |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | <1% |
| Video S/N Ratio | 60 dB weighted |
| Optical Emitter | Laser diode |
| Power Supply | 5VDC, 2A |
| Dimensions | 5.98 × 5.12 × 1.13 inches |
| MTBF | >100,000 hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| Bit Error Rate | 10⁻⁹ |
Why Choose the VERSITRON FVMTR2BB5A?
The FVMTR2BB5A provides a complete long-distance fiber optic transmission solution when an installation requires more than video alone. It combines two digital video channels, two bidirectional data channels, and two bidirectional audio channels over a single singlemode optical fiber.
With 8-bit uncompressed video, 24-bit digital audio, two RS-485 data channels, 30 km singlemode transmission, plug-and-play operation, and ST optical connections, the FVMTR2BB5A provides an efficient way to consolidate video, audio, and data communications over one long-distance fiber link.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR2BB5A continues that tradition by combining two-channel digital video, two channels of bidirectional data, and two channels of bidirectional audio transmission into a complete singlemode fiber optic installation kit.
For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video, audio, and data solution, contact VERSITRON for technical support.
Technical Specifications of FVMTR2BB5A: 2-Channel Digital Fiber Optic Video Converter
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
2
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength - SM
1310/1550nm
Number of Fibers
1
Audio Channels
Two Bi-directional
Audio Impedance
600 Ohms
Input/Output Voltage
2.0Vp-p
Frequency Response
10Hz – 20KHz
Bit Resolution
24-bit
S/N Ratio
>95dB (Weighted)
Video Connector
BNC
Optical Connector
ST
Power Supply
5VDC, 2A
Data Interface
RS-485 (RS-422, RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
Two Bi-Directional
Bit Error Rate
10⁻⁹
Data/Audio/CC Connector
Screw Terminal Strip
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. These products are currently in use in some states for monitoring traffic. All the advantages of fiber apply – protection from lightning strikes, greater distances supported for less cost, immunity to EMI & RFI, increased bandwidth to handle more data, voice and video transmission.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Key Features of FVMTR2BB5A: 2-Channel Digital Fiber Optic Video Converter
- 8-Bit Uncompressed Video Transmission
- 24-Bit Digitally Encoded Audio
- NTSC, PAL, or SECAM Camera System Compatible
- RS-485 Data Protocol
- RS-232 and RS-422 data protocols optional
- Transmit up to 30km without Optical Attenuation WDM Technology for Higher Reliability No EMI, RFI, Cross Talk, or Video Distortion No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Hot-Pluggable Standalone or Rackmount in FVC18 Chassis VersiVision Chassis
2-Channel Video Installation Kit (FVMTR2BB5A) is used across the following Industries:
Remote Security Command Centers
- Video monitoring with two-way audio communication
- Operator-to-field coordination
- Long-distance fiber surveillance links
- Centralized command integration
Tunnel & Highway Safety Systems
- Tunnel surveillance cameras
- Emergency roadside communication audio
- Incident monitoring systems
- Extended-distance fiber transmission
Border Security & Remote Monitoring
- Perimeter surveillance installations
- Guard communication channels
- PTZ camera control signaling
- Singlemode long-range connectivity
Mining & Extraction Operations
- Remote equipment monitoring
- Operator safety communication
- Harsh-environment video systems
- Fiber-based monitoring networks
Pipeline Monitoring Stations
- Remote pipeline inspection cameras
- Two-way maintenance communication
- Long-distance surveillance transmission
- Secure fiber infrastructure
Broadcast & Media Transmission Facilities
- Studio-to-control room video feeds
- Audio monitoring channels
- Signal transport over fiber
- Noise-free digital video delivery
Emergency Response Coordination Centers
- Live incident video monitoring
- Two-way communication support
- Remote camera deployment
- Reliable long-distance fiber links
Industrial Plant Control Rooms
- Video monitoring of production zones
- Operator communication audio
- Process observation systems
- EMI-resistant fiber connectivity
Parking Guidance & Assistance Systems
- Entry assistance audio systems
- Vehicle monitoring cameras
- Remote help-point communication
- Fiber-connected monitoring stations
Campus Emergency Call Networks
- Blue-light emergency stations
- Video verification with audio communication
- Security response coordination
- Building-to-building fiber links
Maritime Vessel Monitoring Systems
- Port-to-vessel surveillance links
- Dock communication audio channels
- Cargo operation monitoring
- Long-range fiber transmission
Energy Generation Facilities
- Plant monitoring cameras
- Operator coordination audio
- Remote equipment observation
- High-reliability fiber networking
Data Center Operations Monitoring
- Secure facility surveillance
- Operations communication channels
- Access monitoring systems
- Fiber backbone connectivity
Large Event & Venue Operations
- Crowd monitoring cameras
- Security team communication audio
- Central operations monitoring
- Real-time surveillance coordination
Remote Research & Scientific Facilities
- Observation camera monitoring
- Research staff communication
- Long-distance fiber connectivity
- Secure monitoring infrastructure
Smart Perimeter Defense Systems
- Integrated surveillance monitoring
- Two-way security communication
- Remote camera positioning
- Mission-critical fiber networks
Utility Field Operations Monitoring
- Remote maintenance camera feeds
- Technician communication channels
- Infrastructure inspection systems
- Extended-distance fiber links
Integrated Building Management Systems (BMS)
- Security and operations monitoring
- Audio-enabled supervision systems
- Centralized facility oversight
- Fiber-connected monitoring infrastructure
VERSITRON delivers advanced fiber optic video transmission solutions supporting broadcast-quality video, bi-directional data, and audio communication for long-distance monitoring, coordination, and security applications. If your industry or installation requirement is not listed above, our technical experts are ready to assist.
