Complete 2-Channel Video, Data, and Audio Fiber Optic Installation Kit

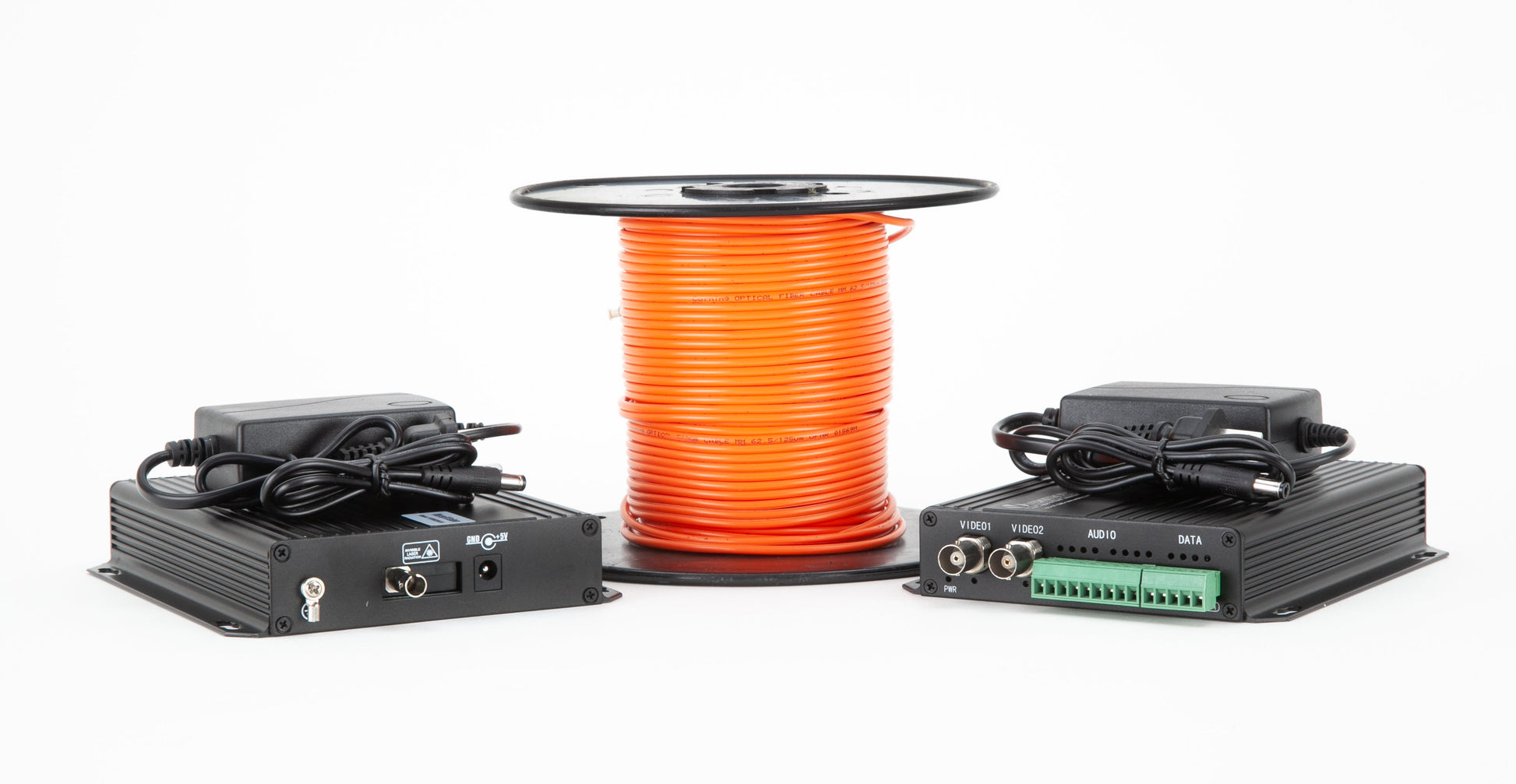

The FVMTR2BB3A combines two video channels, two bidirectional data channels, and two bidirectional audio channels into one fiber optic transmission system. The installation kit includes a 2-channel video transmitter, receiver, power supplies, and 100 meters of multimode fiber, providing the primary components needed to establish a complete video, data, and audio link.

A typical installation places the transmitter at the camera or field equipment location and the receiver at the monitoring or control location. The transmitter and receiver are connected by a single fiber optic cable, allowing all six communication channels to travel between locations.

Two Video Channels Over One Fiber

The VersiVision FVMTR2BB3A provides two channels of 8-bit digitally encoded video over one multimode optical fiber. The system is directly compatible with NTSC, PAL, and SECAM camera systems.

Each unit provides two BNC video connections for the two video channels. The wiring diagram on page 3 of the datasheet illustrates the two video sources connected to the transmitter and the corresponding two video outputs at the receiver.

Two Channels of Bidirectional Data

Unlike the FVMTR2A03A, which provides one bidirectional data channel, the FVMTR2BB3A provides two channels of bidirectional RS-485 data.

The data interface supports rates up to 300 Kbps, while RS-232 or RS-422 are available as optional configurations.

This makes the FVMTR2BB3A well suited for installations requiring multiple serial control or communication channels alongside video.

Two Channels of Bidirectional Digital Audio

The FVMTR2BB3A also provides two channels of bidirectional audio. Audio is digitally encoded at 24 bits, with a 600-ohm impedance, 2.0 Vp-p input/output level, and a frequency response of 10 Hz–20 kHz.

The two audio channels can travel in both directions over the same fiber link as the video and data channels.

Multiple Signals Over One Optical Fiber

The FVMTR2BB3A is designed to consolidate multiple communication functions onto a single fiber:

• 2 channels of video
• 2 channels of bidirectional data
• 2 channels of bidirectional audio

The datasheet specifies one optical fiber for the system and identifies WDM technology as a feature for higher reliability.

This can simplify fiber cabling when a camera or remote monitoring installation requires video, control data, and audio communications.

8-Bit Digital Video Transmission

The video system provides 8-bit uncompressed video transmission with a bandwidth of 5 Hz–8 MHz and a specified video S/N ratio of 60 dB weighted.

The system is compatible with NTSC, PAL, and SECAM video formats, providing a straightforward fiber optic connection for compatible analog camera systems.

Multimode Fiber Transmission up to 3 km

The FVMTR2BB3A uses the FVTM2BB3A transmitter and FVRM2BB3A receiver, which are specified for multimode fiber transmission up to 3 km at 850/1310 nm.

The same product family includes singlemode models rated for up to 30 km, but the FVMTR2BB3A is specifically the ST multimode 3 km configuration.

WDM Technology for Reliable Transmission

The VersiVision system uses WDM technology to support transmission of the multiple video, data, and audio signals over a single optical fiber. The datasheet identifies WDM technology as a feature for higher reliability.

The datasheet also specifies no EMI, RFI, crosstalk, or video distortion as product characteristics.

Plug-and-Play Installation

The FVMTR2BB3A is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.

This simplifies deployment when multiple video, audio, and data signals need to be extended over fiber.

Standard ST, BNC, and Screw-Terminal Connections

The FVMTR2BB3A uses:

• ST simplex optical connector
• BNC video connectors
• Screw-terminal connections for data and audio
• One multimode optical fiber

The datasheet also specifies ST-SC adapters for applications using SC fiber connectors.

LED Indicators for System Monitoring

LED indicators provide immediate visibility into system operating status. The wiring diagram on page 3 shows the power, video, data, and audio connections and their associated indicators.

The video indicators identify video presence at the BNC inputs, while the power indicator confirms that power has been applied.

Standalone or Rack-Mount Installation

The FVTM2BB3A transmitter and FVRM2BB3A receiver can be used as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are hot-pluggable into the FVC18 chassis, providing a scalable option for installations requiring multiple fiber optic video, data, and audio channels.

2-Channel Video, Data, and Audio Applications

The FVMTR2BB3A is suited for applications requiring multiple video, serial data, and audio channels over one fiber connection, including:

• CCTV video surveillance
• PTZ camera systems
• Remote video monitoring
• Security monitoring
• Industrial video monitoring
• Camera control and serial communications
• Remote audio monitoring
• Control rooms with multiple video sources
• Industrial and transportation monitoring
• Remote surveillance locations
• Video systems requiring multiple bidirectional communication channels

Technical Specifications

Why Choose the VERSITRON FVMTR2BB3A?

The FVMTR2BB3A provides a complete multi-function fiber optic transmission solution for installations that require more than video alone. It combines two digital video channels, two bidirectional data channels, and two bidirectional audio channels over a single multimode optical fiber.

With 8-bit uncompressed video, 24-bit digital audio, two RS-485 data channels, 3 km multimode transmission, plug-and-play operation, and ST optical connections, the FVMTR2BB3A provides an efficient way to consolidate video, audio, and data communications onto one fiber link.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR2BB3A continues that tradition by combining two-channel digital video, bidirectional data, and bidirectional audio transmission into a complete multimode fiber optic installation kit.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video, audio, and data solution, contact VERSITRON for technical support.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. These products are currently in use in some states for monitoring traffic. All the advantages of fiber apply – protection from lightning strikes, greater distances supported for less cost, immunity to EMI & RFI, increased bandwidth to handle more data, voice and video transmission.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
