2-Channel Video Installation Kit | ST, SM

Complete 2-Channel Fiber Optic Video Installation Kit

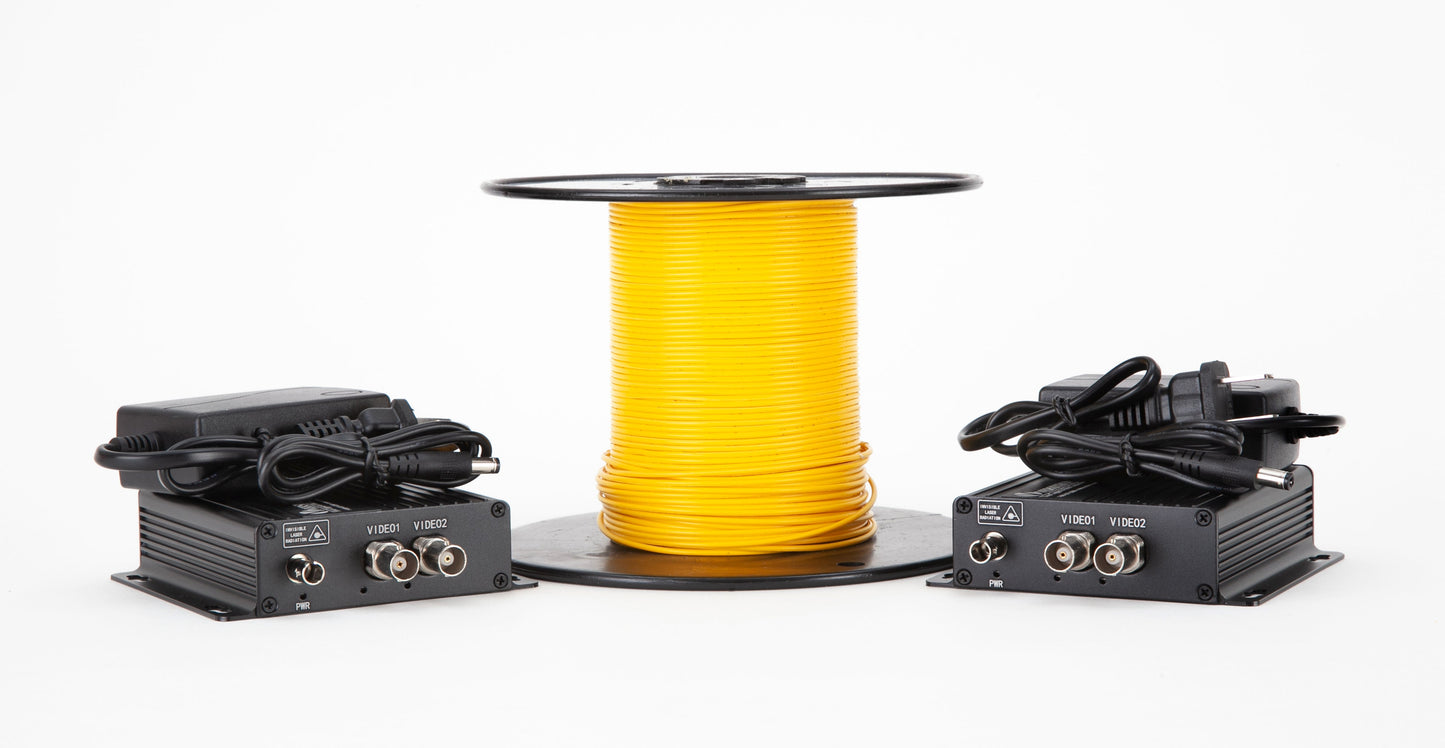

The FVMTR2005A provides the essential components needed to establish a two-channel analog video link over singlemode fiber. The installation kit includes a 2-channel video transmitter, receiver, power supplies, and 100 meters of singlemode fiber cable.

A typical installation places the transmitter at the camera or video source location and the receiver at the monitoring location. A single fiber optic cable connects the two units, allowing both video channels to be transmitted to the remote location. The wiring diagram on page 3 of the datasheet illustrates two video sources connected to the transmitter and two video monitors connected to the receiver over a single simplex fiber connection.

Two Video Channels Over One Fiber

The VersiVision FVTM2005A transmitter and FVRM2005A receiver support two channels of 8-bit digitally encoded video over one singlemode optical fiber. This allows two separate camera signals to share a single fiber connection between the camera location and monitoring equipment.

The system is directly compatible with NTSC, PAL, and SECAM camera systems.

8-Bit Digital Video Transmission

The FVMTR2005A provides 8-bit uncompressed digital video transmission for both video channels. The system is designed for broadcast-quality video transmission over fiber while maintaining the integrity of the transmitted video signal.

Each unit provides two BNC video connections, allowing two video sources to connect to the transmitter and two corresponding video outputs to connect to the receiver.

Singlemode Fiber Transmission up to 30 km

The FVMTR2005A uses the FVTM2005A transmitter and FVRM2005A receiver, which are specified for singlemode fiber transmission up to 30 km at 1310 nm.

This makes the FVMTR2005A the long-distance version of the two-channel installation kit, providing substantially greater reach than the multimode FVMTR2003A.

WDM Technology for Reliable Fiber Transmission

The VersiVision two-channel video system uses WDM technology and is designed to transmit both video channels over a single optical fiber. The datasheet identifies WDM technology as a feature for higher reliability.

The fiber optic connection also eliminates concerns associated with electrical transmission over copper, with the datasheet specifying no EMI, RFI, crosstalk, or video distortion.

Plug-and-Play Installation

The FVMTR2005A is designed for simple, adjustment-free installation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.

This makes the system practical for installations where two fixed-camera video signals need to be extended over long-distance singlemode fiber.

Standard ST and BNC Connections

The FVMTR2005A uses:

• ST simplex optical connectors
• BNC video connectors
• One singlemode optical fiber for the two-channel video link

ST-SC adapters are available for applications using SC fiber connectors.

LED Indicators for System Monitoring

LED indicators provide immediate visibility into system operation. The transmitter and receiver include power and video indicators.

The wiring diagram on page 3 shows the video indicators associated with each channel. A video indicator illuminates when video is present on the corresponding BNC input, while the power indicator confirms that the unit is receiving power.

Standalone or Rack-Mount Installation

The FVTM2005A transmitter and FVRM2005A receiver can be used as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are hot-pluggable into the FVC18 chassis, providing a flexible option for installations requiring multiple fiber optic video channels.

2-Channel Video Installation Kit Applications

The FVMTR2005A is suited for applications requiring two analog video signals to be transmitted over one long-distance singlemode fiber connection, including:

• CCTV video surveillance
• Fixed-camera installations
• Remote video monitoring
• Security monitoring systems
• Industrial video monitoring
• Camera-to-monitor fiber optic links
• Control rooms with multiple video sources
• Video systems requiring two remote monitoring channels
• Long-distance video transmission between facilities
• Remote security and surveillance locations

Technical Specifications

Why Choose the VERSITRON FVMTR2005A?

The FVMTR2005A provides a complete two-channel fiber optic video installation solution for long-distance applications. By combining the transmitter, receiver, power supplies, and 100 meters of singlemode fiber in one kit, it simplifies the installation of a two-camera or two-video-source fiber link.

With 8-bit uncompressed video, NTSC/PAL/SECAM compatibility, 30 km singlemode transmission, plug-and-play operation, ST optical connections, and two BNC video channels, the FVMTR2005A provides a practical solution for extending multiple analog video signals over long-distance fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR2005A continues that tradition by providing reliable two-channel digital video transmission in a complete singlemode fiber optic installation kit.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video solution, contact VERSITRON for technical support.

Technical Specifications of FVMTR2005A: 2-Channel Digital Fiber Optic Video Converter

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
