FVMTR2003A: 2-Channel Digital Fiber Optic Video Converter Installation Kit
VERSITRON’S VersiVision Product Series
Everything you need in a complete package for connecting your analog camera to your monitoring equipment. The FVMTR2003A supports 8-bit digitally encoded broadcast quality video over one multimode optical fiber. The multimode ST transmitter and receiver modules are directly compatible with NTSC, PAL, and SECAM camera systems. These devices are typically used in applications with a fixed camera.

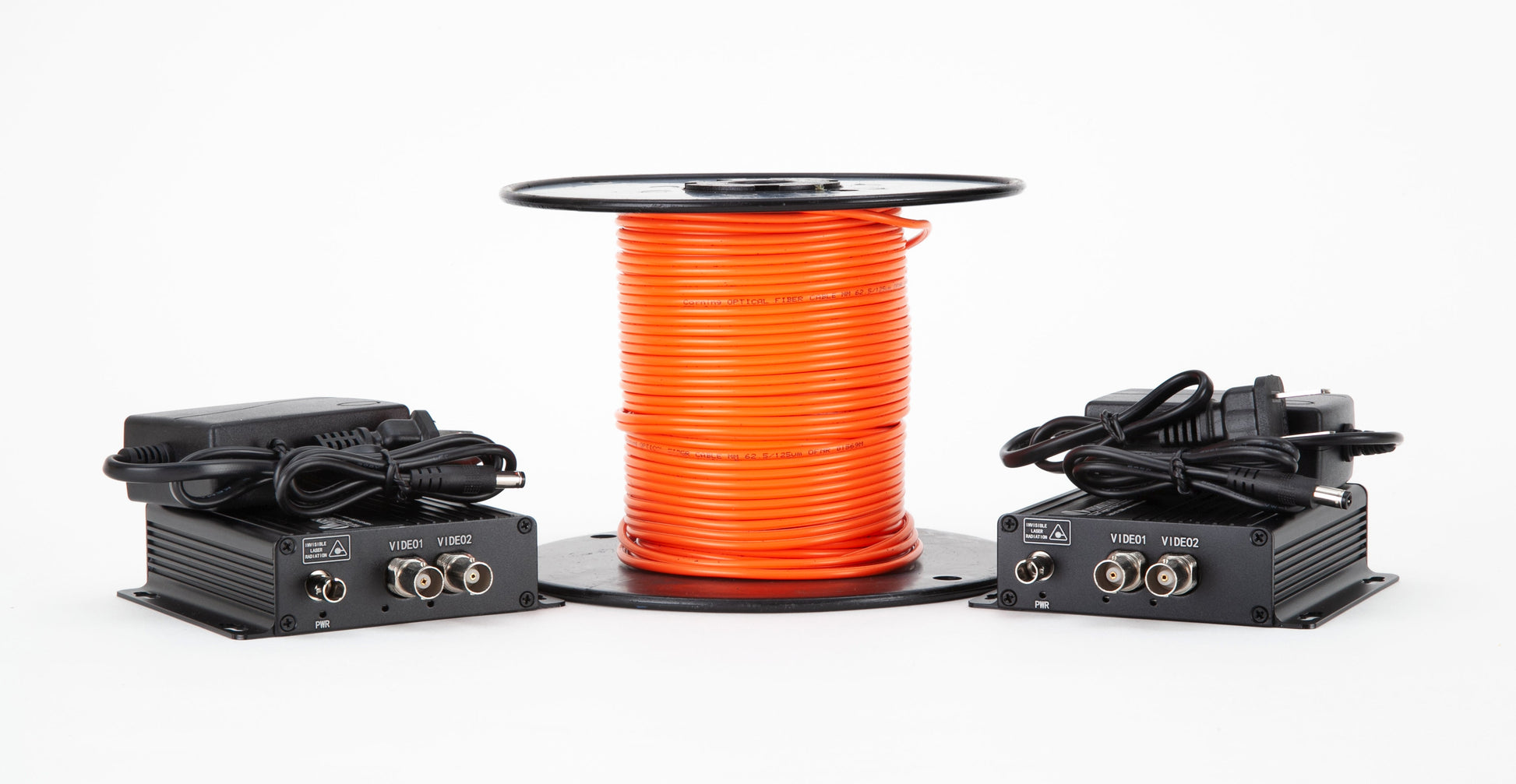

*All VersiVision Installation Kits include: Transmitter, Receiver, Power Supplies & 100 Meters of Fiber.
Multimode ST optical connectors are standard for both standalone and rackmount versions. For applications requiring several receiver units at your monitoring site, we offer an 18-Slot rackmount chassis that fits a standard 19" rack.
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
2
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8 – Bit
Differential Gain
< ±1%
Differential Phase
< ±1°
Tilt
< 1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Video Connector
BNC
Optical Connector
ST
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Key Features of FVMTR2003A: 2-Channel Digital Fiber Optic Video Converter
8-Bit Digitally Encoded Video Transmission
Compatible with NTSC, PAL, or SECAM CCTV
Transmit up to 30km without Optical Attenuation
No EMI, RFI Cross Talk, and Video Distortion
LED Indicators for Instant System Monitoring
No Electrical or Optical Adjustments Required Hot-Pluggable Standalone or Rackmount VersiVision Chassis
2-Channel Video Installation Kit (FVMTR2003A) is used across the following Industries:
Transportation Infrastructure
Roadway surveillance systems
Intersection monitoring cameras
Dual fixed camera transmission
Fiber-based traffic monitoring
Industrial Automation Facilities
Assembly line monitoring
Equipment safety surveillance
Factory floor video transmission
EMI-resistant fiber connectivity
Oil Refineries & Petrochemical Plants
Process area monitoring
Hazardous zone surveillance
Reliable fiber video links
Long-distance camera connectivity
Electric Utility & Power Distribution
Substation monitoring cameras
Remote facility surveillance
Dual-channel video monitoring
Interference-free transmission
Airport Ground Operations
Runway surveillance systems
Baggage handling monitoring
Terminal perimeter security
Fiber-based monitoring networks
Railway Infrastructure
Platform surveillance cameras
Trackside monitoring systems
Station security video links
Central monitoring integration
Commercial Building Security
Entrance and exit monitoring
Lobby surveillance cameras
Dual fixed camera installations
Centralized monitoring systems
Warehouse & Distribution Centers
Loading dock surveillance
Inventory monitoring cameras
Perimeter security systems
Fiber-connected monitoring zones
Educational Institutions
Campus surveillance networks
Building security monitoring
Parking area cameras
Central security control rooms
Healthcare Facilities
Hospital security monitoring
Restricted area surveillance
Facility perimeter cameras
Reliable fiber video transmission
Government & Municipal Buildings
Public building surveillance
Security monitoring systems
Dual-channel video feeds
Central monitoring stations
Correctional Facilities
Cell block monitoring
Perimeter surveillance cameras
Secure monitoring infrastructure
Continuous video transmission
Retail Complexes & Shopping Centers
Storefront surveillance
Parking lot monitoring
Security camera integration
Centralized video management
Seaport & Harbor Operations
Dockside surveillance systems
Cargo handling monitoring
Port security cameras
Fiber backbone video transmission
Mining Operations
Site safety monitoring
Equipment surveillance cameras
Remote monitoring stations
Industrial-grade fiber connectivity
Parking Management Facilities
Entry and exit surveillance
Vehicle monitoring systems
Security enforcement cameras
Reliable fiber video links
Data Centers & Critical Facilities
Perimeter security cameras
Access monitoring systems
Dual video monitoring channels
High-reliability fiber networks
Sports Complexes & Event Venues
Crowd monitoring cameras
Entrance surveillance systems
Security monitoring integration
Centralized video control rooms
VERSITRON provides dependable fiber optic video transmission solutions designed for high-quality dual-channel surveillance across commercial, industrial, and infrastructure environments. If your industry or installation requirement is not listed above, our team is ready to assist.
