1-Channel Video Installation Kit | Data, ST, MM

Complete Video and Data Fiber Optic Installation Kit

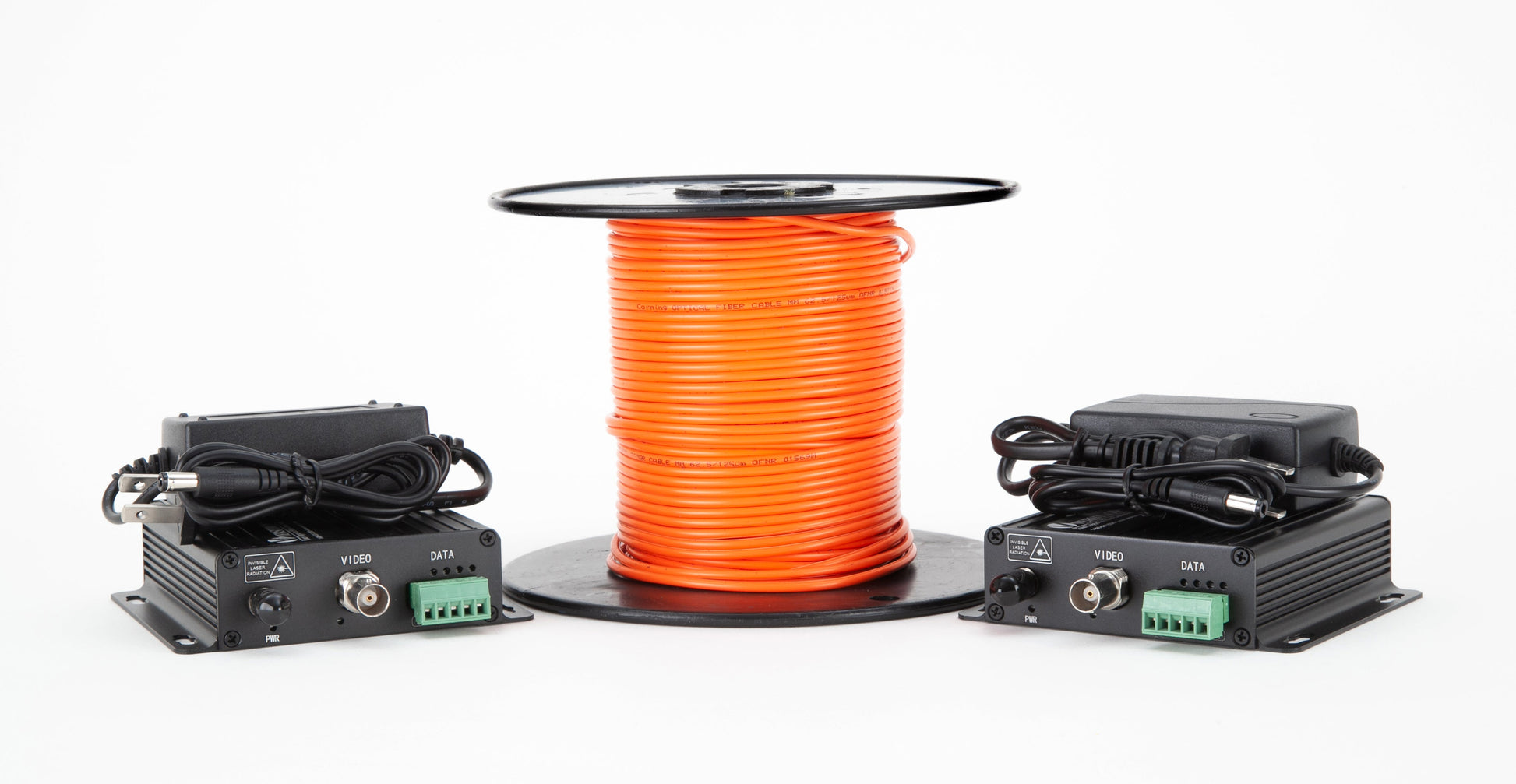

The FDVTR1A03A combines video and bidirectional data transmission in one fiber optic installation kit. It includes a video transmitter, video receiver, power supplies, and 100 meters of multimode fiber, providing the primary components required to establish a video and data connection between a camera location and a remote monitoring location.

A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring end, with both units connected by a single fiber optic cable.

Video and Bidirectional Data Over One Fiber

The FDVTR1A03A supports one channel of 8-bit digitally encoded video plus one channel of bidirectional data over a single optical fiber.

This configuration is particularly useful for camera systems that require data to travel back to the camera location in addition to sending video to a monitoring location.

PTZ Camera and Control Data Applications

The bidirectional data channel allows the FDVTR1A03A to be used with camera systems requiring return data. The standard data interface is RS-485, with RS-232 or RS-422 available as optional configurations.

This makes the system suitable for video installations where a camera or other field device requires a bidirectional serial data connection in addition to the video signal.

RS-485 Data Transmission up to 300 Kbps

The data interface supports transmission rates of up to 300 Kbps and provides one bidirectional data channel. The specified bit error rate is 10⁻⁹.

The data connection uses a screw terminal strip, while video is connected through BNC and the optical connection uses an ST connector.

8-Bit Digital Video Over Multimode Fiber

The FDVTR1A03A provides 8-bit uncompressed video transmission and is compatible with NTSC, PAL, and SECAM camera systems. The multimode version uses 850/1310 nm optical wavelengths and supports transmission up to 3 km over one multimode fiber.

WDM Technology for Combined Video and Data

The VersiVision video and data system uses WDM technology to transmit the video and bidirectional data signals over a single optical fiber. The datasheet identifies WDM as a feature intended for higher reliability.

This single-fiber architecture simplifies the connection between the camera location and monitoring equipment while providing both video and data communication.

Plug-and-Play Installation

The FDVTR1A03A is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide immediate system operating status.

The wiring diagram on page 3 of the datasheet illustrates the typical installation, showing video connected through BNC, bidirectional RS-485 data through the screw-terminal interface, and the transmitter and receiver connected by a simplex singlemode/multimode fiber link.

Standard ST and BNC Connections

The FDVTR1A03A uses:

• ST optical connector
• BNC video connector
• Screw-terminal data connector

The system uses one optical fiber for the video and data link. ST-SC adapters are also available for applications using SC fiber connectors.

Multimode Fiber Transmission up to 3 km

The FDVTR1A03A uses the FDVT1A03A transmitter and FDVR1A03A receiver, which are specified for 3 km multimode transmission at 850/1310 nm.

For installations requiring longer transmission distances, the same VersiVision product family includes singlemode configurations capable of up to 30 km; however, the FDVTR1A03A kit is specifically the multimode 3 km configuration.

Video Performance

The video portion of the FDVTR1A03A provides:

• 1 video input/output channel
• 8-bit resolution
• 5 Hz–8 MHz bandwidth
• Differential gain: < ±1%
• Differential phase: < ±1°
• Tilt: <1%
• Signal-to-noise ratio: 60 dB weighted
• Video input: 2 V peak-to-peak, 75Ω

Standalone or Rack-Mount Installation

The FDVT1A03A transmitter and FDVR1A03A receiver can be used as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are hot-pluggable into the FVC18 chassis, making the platform suitable for installations requiring multiple fiber optic video and data channels.

Video and Data Installation Kit Applications

The FDVTR1A03A is suited for applications requiring both video transmission and bidirectional serial data, including:

• PTZ camera systems
• CCTV video surveillance
• Remote camera monitoring
• Security monitoring
• Industrial video monitoring
• Camera control and data communication
• Remote video systems requiring RS-485 data
• Video links requiring bidirectional serial communication

Technical Specifications

Why Choose the VERSITRON FDVTR1A03A?

The FDVTR1A03A provides a complete fiber optic installation solution for one analog video channel and one bidirectional data channel. By combining the transmitter, receiver, power supplies, and 100 meters of multimode fiber, the kit simplifies the installation of video and camera-control communications over fiber.

With 8-bit uncompressed video, RS-485 bidirectional data, up to 300 Kbps data transmission, NTSC/PAL/SECAM compatibility, plug-and-play operation, and transmission up to 3 km over multimode fiber, the FDVTR1A03A is well suited for CCTV and camera systems requiring both video and return data.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FDVTR1A03A continues that tradition by combining digital video and bidirectional serial data transmission in a complete fiber optic installation kit.

For assistance selecting the appropriate VersiVision video and data transmitter, receiver, installation kit, or fiber optic video solution, contact VERSITRON for technical support.

Technical Specifications of 1-Channel Digital Fiber Optic Video Converter

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!

Key Features of FDVTR1A03A: 1-Channel Digital Fiber Optic Video Converter

• 8-Bit Uncompressed Video Transmission
• Compatible with NTSC, PAL, or SECAM CCTV
• Supports RS-485 Data Protocol
• RS-232 and RS-422 Data Protocols Optional
• WDM for Highest Quality Video Transmission
• No EMI, RFI, Cross Talk, and Ground Loop No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Standalone or Rackmount Transmit up to 30 km without Optical Attenuation Simultaneous Transmission of Video and Data VersiVision Chassis
