1-Channel Video Installation Kit | Data, Audio, CC, ST, SM
1-Channel Video Installation Kit | Data, Audio, CC, ST, SM
SKU:FDVTR1AA5A-AE
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The VersiVision system provides 8-bit digitally encoded video, 24-bit digitally encoded audio, RS-485 bidirectional data, bidirectional contact closure, and 10/100Base Ethernet in one integrated fiber optic link. It supports NTSC, PAL, and SECAM video systems and provides transmission distances up to 30 km over singlemode fiber.
Product Highlights
- Complete 1-channel video, data, audio, contact closure, and Ethernet kit

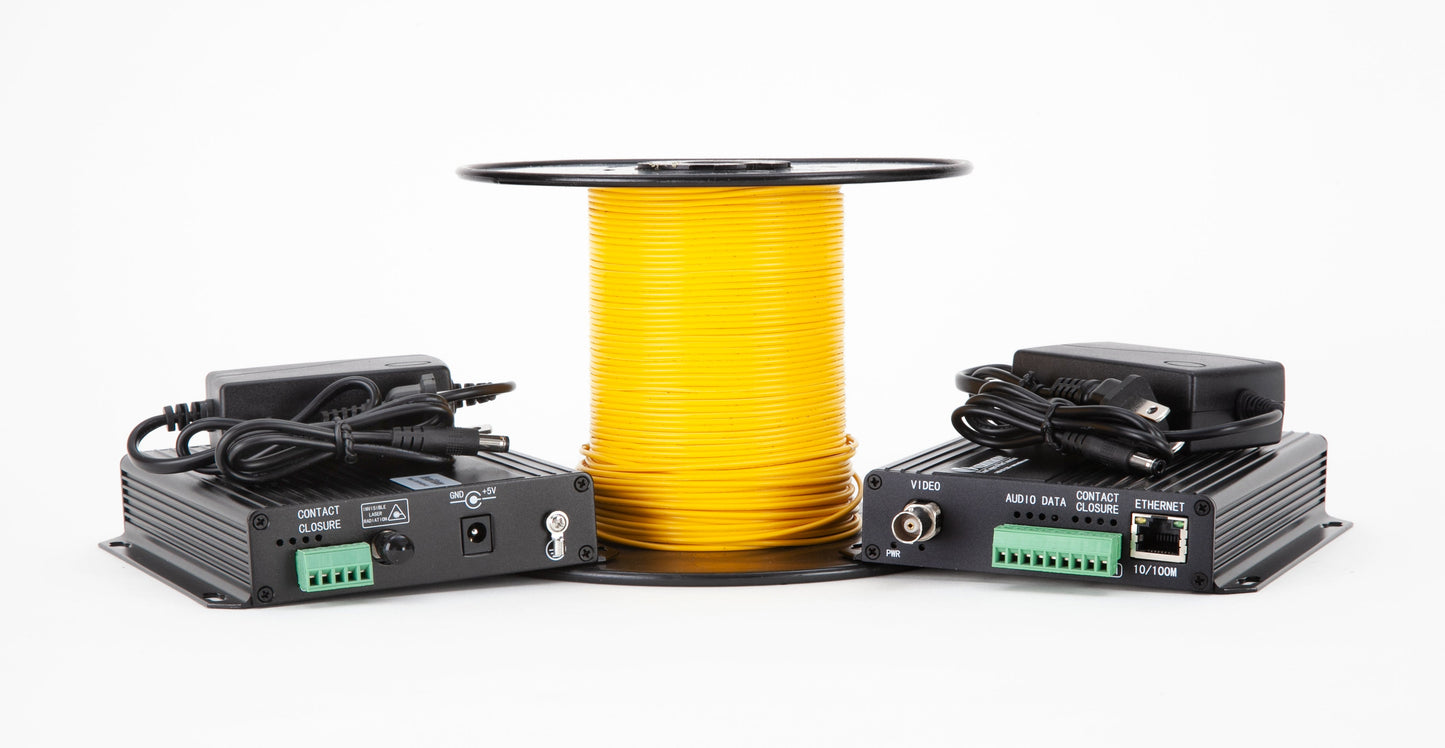

- Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber
- 8-bit uncompressed digital video
- 24-bit digitally encoded audio
- 1-channel bidirectional data
- RS-485 data standard
- RS-232 or RS-422 optional
- 1-channel bidirectional audio
- 1-channel bidirectional contact closure
- 10/100 Mbps Ethernet
- Transmission up to 30 km over singlemode fiber
- Single-fiber transmission
- Standard ST optical connectors
- BNC video connection
- Screw-terminal connections for data, audio, and contact closure
- Shielded RJ-45 Ethernet connection
Complete Video, Data, Audio, and Ethernet Fiber Optic Installation Kit
The FDVTR1AA5A-AE combines multiple communication functions into a single fiber optic transmission system. The installation kit includes a video transmitter, video receiver, power supplies, and 100 meters of singlemode fiber, providing the primary components needed to establish a complete fiber optic connection.
A typical installation places the transmitter at the camera or field equipment location and the receiver at the remote monitoring or control location. The two units are connected by a single fiber optic cable.
Five Communication Functions Over One Fiber
The FDVTR1AA5A-AE is designed to carry multiple communication functions simultaneously over one optical fiber:
- 1-channel 8-bit digitally encoded video
- 1-channel bidirectional data
- 1-channel bidirectional audio
- 1-channel bidirectional contact closure
- 1-channel 10/100Base Ethernet
This integrated architecture allows video, control, audio, contact-closure, and Ethernet communications to share one fiber connection between locations.
8-Bit Digital Video Transmission
The video portion of the FDVTR1AA5A-AE provides 8-bit uncompressed digital video and is directly compatible with NTSC, PAL, and SECAM camera systems. The system is designed for broadcast-quality video transmission over a single optical fiber.
The video interface uses a standard BNC connector, making the system straightforward to integrate with compatible analog video equipment.
Bidirectional Data for Camera Control
The FDVTR1AA5A-AE provides one channel of bidirectional data using RS-485 as the standard interface. RS-232 or RS-422 configurations are available as options. Data transmission supports rates up to 300 Kbps.
The bidirectional data channel makes the system suitable for video installations where serial control or other data must travel between the camera or field equipment and the remote monitoring location.
24-Bit Bidirectional Digital Audio
The system provides one channel of bidirectional audio using 24-bit digital encoding. The audio interface has a 600-ohm impedance, 2.0 Vp-p input/output level, and a frequency response of 10 Hz–20 kHz.
This provides an additional communication channel for installations requiring audio transmission along with video and control signals.
Bidirectional Contact Closure
The FDVTR1AA5A-AE provides one channel of bidirectional contact closure, allowing contact-based control signals to be transmitted across the fiber link.
The contact-closure interface is specified for 24 VDC at 0.5 A or 125 VAC at 0.1 A, normally open.
Integrated 10/100 Ethernet
The FDVTR1AA5A-AE also provides one 10/100 Mbps Ethernet channel. The Ethernet interface uses a shielded RJ-45 connector.
This allows Ethernet connectivity to be incorporated into the same fiber optic link rather than requiring a separate fiber connection for each function.
Singlemode Fiber Transmission up to 30 km
The FDVTR1AA5A-AE is the singlemode, long-distance configuration of this VersiVision product family. It uses 1310/1550 nm optics and supports transmission distances up to 30 km over one singlemode optical fiber.
The product-model table in the datasheet identifies the FDVT1AA5A-AE transmitter and FDVR1AA5A-AE receiver as the singlemode versions, each rated for 30 km.
WDM Technology for Multi-Signal Transmission
The VersiVision system uses WDM technology to support transmission of the multiple communication functions over a single optical fiber. The datasheet identifies WDM technology as a feature for higher reliability.
Using one fiber for video, data, audio, contact closure, and Ethernet can simplify cabling between the field and monitoring locations.
Plug-and-Play Installation
The FDVTR1AA5A-AE is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.
Standard ST, BNC, and RJ-45 Connections
The FDVTR1AA5A-AE provides dedicated interfaces for each communication function:
- ST optical connector
- BNC video connector
- Screw-terminal strip for data, audio, and contact closure
- Shielded RJ-45 for Ethernet
The system uses one optical fiber for transmission between the transmitter and receiver. ST-SC adapters are available for applications using SC fiber connectors.
LED Indicators for System Monitoring
LED indicators provide immediate visibility into system operating status. The wiring diagram on page 3 of the datasheet shows the transmitter and receiver connections for video, audio, data, contact closure, Ethernet, power, and the simplex fiber link.
Standalone or Rack-Mount Installation
The FDVTR1AA5A-AE transmitter and receiver can be deployed as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are hot-pluggable into the FVC18 chassis, providing a flexible platform for installations requiring multiple fiber optic video and communication channels.
Video, Data, Audio, and Ethernet Applications
The FDVTR1AA5A-AE is suited for applications requiring multiple communication functions over a single long-distance fiber connection, including:
- CCTV surveillance
- PTZ camera systems
- Remote video monitoring
- Security and access control
- Industrial monitoring
- Remote equipment control
- Video systems requiring bidirectional audio
- Systems requiring contact-closure control
- Remote Ethernet connectivity
- Long-distance camera communications
- Industrial and transportation monitoring
Technical Specifications
| Specification | FDVTR1AA5A-AE |
|---|---|
| Video Channels | 1 |
| Video Format | 8-bit uncompressed |
| Video Compatibility | NTSC, PAL, SECAM |
| Fiber Type | Singlemode |
| Wavelength | 1310/1550 nm |
| Maximum Distance | 30 km |
| Number of Fibers | 1 |
| Optical Connector | ST |
| Video Connector | BNC |
| Data Interface | RS-485 |
| Data Channels | 1 bidirectional |
| Data Rate | Up to 300 Kbps |
| RS-232 / RS-422 | Optional |
| Audio Channels | 1 bidirectional |
| Audio Resolution | 24-bit |
| Audio Impedance | 600Ω |
| Audio Input/Output | 2.0 Vp-p |
| Audio Frequency Response | 10 Hz–20 kHz |
| Contact Closure | 24 VDC, 0.5A or 125 VAC, 0.1A |
| Ethernet | 1 channel, 10/100 Mbps |
| Data/Audio/CC Connector | Screw terminal strip |
| Ethernet Connector | Shielded RJ-45 |
| Video Input | 2 Vp-p, 75Ω |
| Video Bandwidth | 5 Hz–8 MHz |
| Video S/N Ratio | 60 dB weighted |
| Power Supply | 5VDC, 2A |
| Dimensions | 5.98 × 5.12 × 1.13 inches |
| MTBF | >100,000 hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| Audio S/N Ratio | >95 dB weighted |
Why Choose the VERSITRON FDVTR1AA5A-AE?
The FDVTR1AA5A-AE provides a complete multi-function fiber optic transmission solution for long-distance applications. It combines one channel of digital video, bidirectional data, bidirectional audio, bidirectional contact closure, and 10/100 Ethernet over a single singlemode optical fiber.
With 8-bit uncompressed video, 24-bit digital audio, RS-485 data up to 300 Kbps, contact-closure capability, 10/100 Ethernet, plug-and-play operation, and transmission up to 30 km, the FDVTR1AA5A-AE provides a versatile way to consolidate multiple communication functions onto one long-distance fiber link.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication solutions for demanding applications. The VersiVision FDVTR1AA5A-AE continues that tradition by combining video, data, audio, contact closure, and Ethernet transmission into a single fiber optic platform.
For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or multi-function fiber optic communication solution, contact VERSITRON for technical support.
Technical Specifications of FDVTR1AA5A-AE: 1-Channel Digital Fiber Optic Video Converter
Video Input
2 Volt pk-pk (75 Ohms)
Input/Output Channels
1
Bandwidth
5 Hz ~ 8 MHz
Bit Resolution
8-Bit
Differential Gain
< ±1%
Differential Phase
< ±1°
Tilt
< 1%
S/N Ratio
60dB (Weighted)
Wavelength - SM
1310nm/1550nm
Number of Fibers
1
Audio Channels
One Bi-directional
Audio Impedance
600 Ohms
Input/Output Voltage
2.0Vp-p
Frequency Response
10Hz ~ 20KHz
Bit Resolution
24-bit
S/N Ratio
>95db (Weighted)
Video Connector
BNC
Optical Connector
ST
Power Supply
5VDC, 2A
Data Interface
RS-485 (RS-422, RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
One Bi-Directional
Bit Error Rate
10⁻⁹
Data/Audio/CC Connector
Screw Terminal Strip
Ethernet Data Rate
10/100 Mbps
Ethernet Connector
Shielded RJ-45
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.
These products are currently in use in some states for monitoring traffic. All the advantages of fiber apply – protection from lightning strikes, greater distances supported for less cost, immunity to EMI & RFI, increased bandwidth to handle more data, voice and video transmission.
As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!
Key Features of FDVTR1AA5A-AE: 1-Channel Digital Fiber Optic Video Converter
- 8-Bit Uncompressed Video Transmission
- 24-Bit Digitally Encoded Audio
- 10/100 Ethernet
- NTSC, PAL, or SECAM Camera System Compatible
- RS-485 Data Protocol
- RS-232, RS-422 upon request Transmit up to 30km without Optical Attenuation WDM Technology for Higher Reliability No EMI, RFI, Cross Talk, or Video Distortion No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Standalone or Rackmount in FVC18 Chassis VersiVision Chassis
Perfect Video Installation Kit for My Needs
This 1-Channel Video Installation Kit with Data, Audio, CC, ST, and SM capabilities has fulfilled my video transmission requirements. With its simplicity and high performance, this kit has become an essential tool in our video and audio setup.
The audio channel operates bidirectionally and features a single input/output channel. Streamlined connectivity is achieved through one fiber. Setting up this kit was a breeze, and my team still praises its user-friendly design and straightforward installation process. The thoughtful integration of video, audio, and data channels has significantly reduced the complexity in our installations. I and my team highly recommend it for its ease of use and reliable performance.
March 26, 2023
4.0 out of 5 stars
1-Channel Video Installation Kit (FDVTR1AA5A-AE) is used across the following Industries:
CCTV Surveillance Systems
- Analog camera signal transmission
- Long-distance fiber connectivity
- High-quality video transport
- Noise-free signal delivery
Critical Infrastructure Security
- Secure perimeter monitoring
- Fiber-isolated video links
- Bi-directional control signaling
- Reliable video integrity
Transportation Surveillance
- Roadway and tunnel monitoring
- Railway CCTV systems
- Remote camera connectivity
- Long-haul fiber transmission
Airports & Aviation Facilities
- Runway surveillance cameras
- Terminal security systems
- Fiber-based video backhaul
- Control room integration
Correctional Facilities
- Perimeter and cell monitoring
- Interference-free video links
- Secure data communication
- Centralized monitoring rooms
Military & Defense Installations
- Base security surveillance
- EMI-resistant fiber links
- Data and access control
- Mission-critical reliability
Oil & Gas Facilities
- Remote site video monitoring
- Hazardous area surveillance
- Long-distance camera deployment
- Electrical isolation via fiber
Power Generation Plants
- Substation video monitoring
- Fiber-secured video signals
- Control room integration
- Noise-immune transmission
Water & Wastewater Facilities
- Pump station surveillance
- Remote facility monitoring
- Fiber-based video transport
- Reliable analog camera support
Industrial Facilities
- Process monitoring cameras
- Factory security systems
- Electrical noise immunity
- Extended fiber reach
Commercial Buildings
- Building security cameras
- Central monitoring rooms
- Reliable video transmission
- Data and audio support
Campus Security Systems
- Multi-building surveillance
- Long-distance camera links
- Fiber backbone integration
- Centralized monitoring
Ports & Maritime Facilities
- Dockside surveillance
- Harsh environment deployment
- Long fiber runs
- Secure video backhaul
Municipal Surveillance Networks
- Citywide CCTV deployments
- Traffic and street monitoring
- Fiber-based signal transport
- Reliable analog camera support
System Integrator Installations
- Turnkey CCTV projects
- Analog-to-fiber solutions
- Multi-signal integration
- Simplified deployment kits
