1-Channel Video Installation Kit | ST, SM

Complete Fiber Optic Video Installation Kit

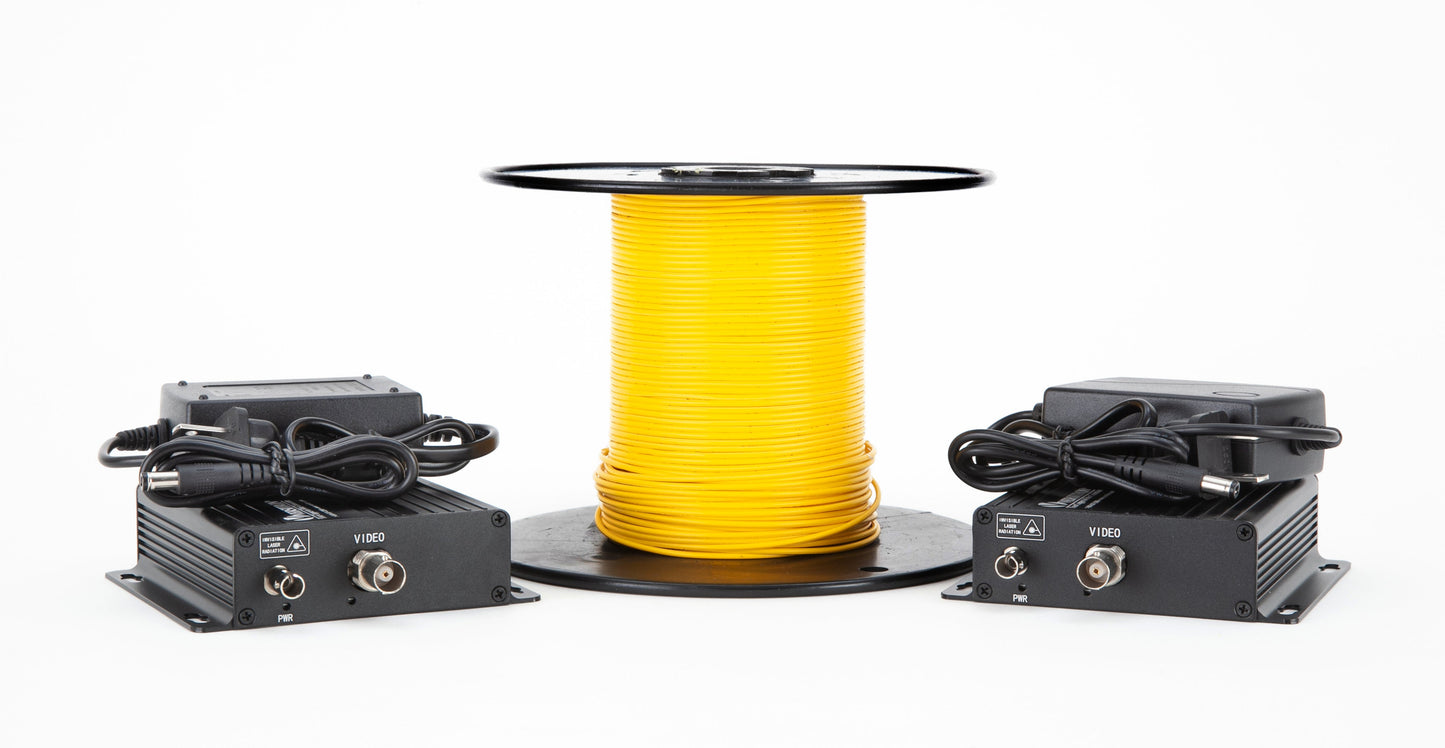

The FDVTR1005A provides the primary components needed to establish a one-channel analog video link over singlemode fiber. The installation kit includes a video transmitter, video receiver, power supplies, and 100 meters of singlemode fiber cable, simplifying installation when a complete fiber optic video package is required.

A typical installation places the transmitter at the camera or video source and the receiver at the remote monitoring location. The two units are connected by a single fiber optic cable to provide the video link.

8-Bit Digital Video Over Singlemode Fiber

The VersiVision FDVT1005A transmitter and FDVR1005A receiver provide 1-channel of 8-bit digitally encoded video over one singlemode optical fiber. The system is designed for broadcast-quality video transmission and is directly compatible with NTSC, PAL, and SECAM camera systems.

The singlemode configuration operates at 1310 nm and supports a maximum transmission distance of 30 km.

Long-Distance Analog Video Transmission

With a 30 km maximum transmission distance, the FDVTR1005A is designed for applications where the camera and monitoring equipment are separated by significant distances.

The singlemode fiber configuration provides an extended-reach alternative to the multimode FDVTR1003A installation kit, which is specified for transmission up to 3 km.

Plug-and-Play Fiber Optic Video Transmission

The FDVTR1005A is designed for straightforward installation. Its plug-and-play architecture requires no electrical or optical adjustments, eliminating the need for field optical calibration. LED indicators provide immediate visibility into system operating status.

A typical point-to-point installation uses the transmitter at the camera end and the receiver at the monitoring end, connected by one singlemode fiber. The wiring diagram on page 3 of the datasheet illustrates this transmitter-to-receiver configuration.

Standard BNC and ST Fiber Connections

The FDVTR1005A uses standard BNC video connections and ST optical connectors. The system transmits video over a single fiber.

For applications using SC fiber connectors, ST-SC adapters are available.

LED Indicators for Easy System Monitoring

LED indicators provide an immediate indication of system operating status. The transmitter and receiver each provide power and video indicators.

The video indicator shows when video is present on the BNC input, while the power indicator confirms that the correct power has been applied.

Singlemode Fiber Transmission Up to 30 km

The FDVTR1005A uses the FDVT1005A transmitter and FDVR1005A receiver, both specified for singlemode fiber transmission up to 30 km at 1310 nm.

This makes the FDVTR1005A installation kit particularly appropriate for long-distance analog video links where singlemode fiber is required.

Video Performance

The FDVTR1005A system provides:

• 1 video input/output channel
• 8-bit resolution
• 5 Hz–8 MHz bandwidth
• Differential gain: < ±1%
• Differential phase: < ±1°
• Tilt: <1%
• Signal-to-noise ratio: 60 dB weighted
• Video input: 2 V peak-to-peak, 75Ω

Standalone or Rack-Mount Installation

The FDVT100xA transmitter and FDVR100xA receiver can be deployed as standalone units or installed in the VERSITRON FVC18 18-slot rack-mount chassis. The datasheet identifies the units as hot-pluggable into the FVC18 chassis, providing flexibility for installations requiring multiple fiber optic video channels.

1-Channel Analog Video Installation Kit Applications

The FDVTR1005A is suited for applications requiring a fixed analog video source to be transmitted over long distances using singlemode fiber, including:

• CCTV video surveillance
• Fixed-camera installations
• Long-distance remote video monitoring
• Security monitoring systems
• Camera-to-monitor fiber optic links
• Industrial video monitoring
• Video transmission between remote locations
• Video systems requiring a point-to-point fiber optic connection

Technical Specifications

Why Choose the VERSITRON FDVTR1005A?

The FDVTR1005A provides a complete fiber optic video installation solution for transmitting one analog CCTV channel over singlemode fiber. By combining the transmitter, receiver, power supplies, and 100 meters of singlemode fiber in one kit, it simplifies the installation of a long-distance video link.

With 8-bit digital video transmission, NTSC/PAL/SECAM compatibility, plug-and-play operation, ST fiber connections, and transmission up to 30 km, the FDVTR1005A provides an extended-distance solution for fixed-camera video applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FDVTR1005A continues that tradition by providing a complete fiber optic installation solution for transmitting analog video over singlemode fiber.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video solution, contact VERSITRON for technical support.

Technical Specifications of 1-Channel Digital Fiber Optic Video Converter

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link. These VersiVision  products are currently being used to monitor furnaces in the manufacturing of automobiles.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!

Key Features of FDVTR1005A: 1-Channel Digital Fiber Optic Video Converter

• 8-Bit Uncompressed Video Transmission
• NTSC, PAL, or SECAM CCTV
• WDM for Highest Quality Video Transmission
• No EMI, RFI, Cross Talk, and Ground Loop
• No Electrical or Optical Adjustments Required
• LED Indicators for Instant System Monitoring Standalone or Rackmount Transmit up to 30 km without Optical Attenuation Show Me Special Pricing VersiVision Chassis

1-Channel Video Installation Kit (FDVTR1005A) is used across the following Industries:

Versitron is one of the leading fiber optic video transmission solution providers in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
