1-Channel Video Installation Kit | ST, MM

Complete Fiber Optic Video Installation Kit

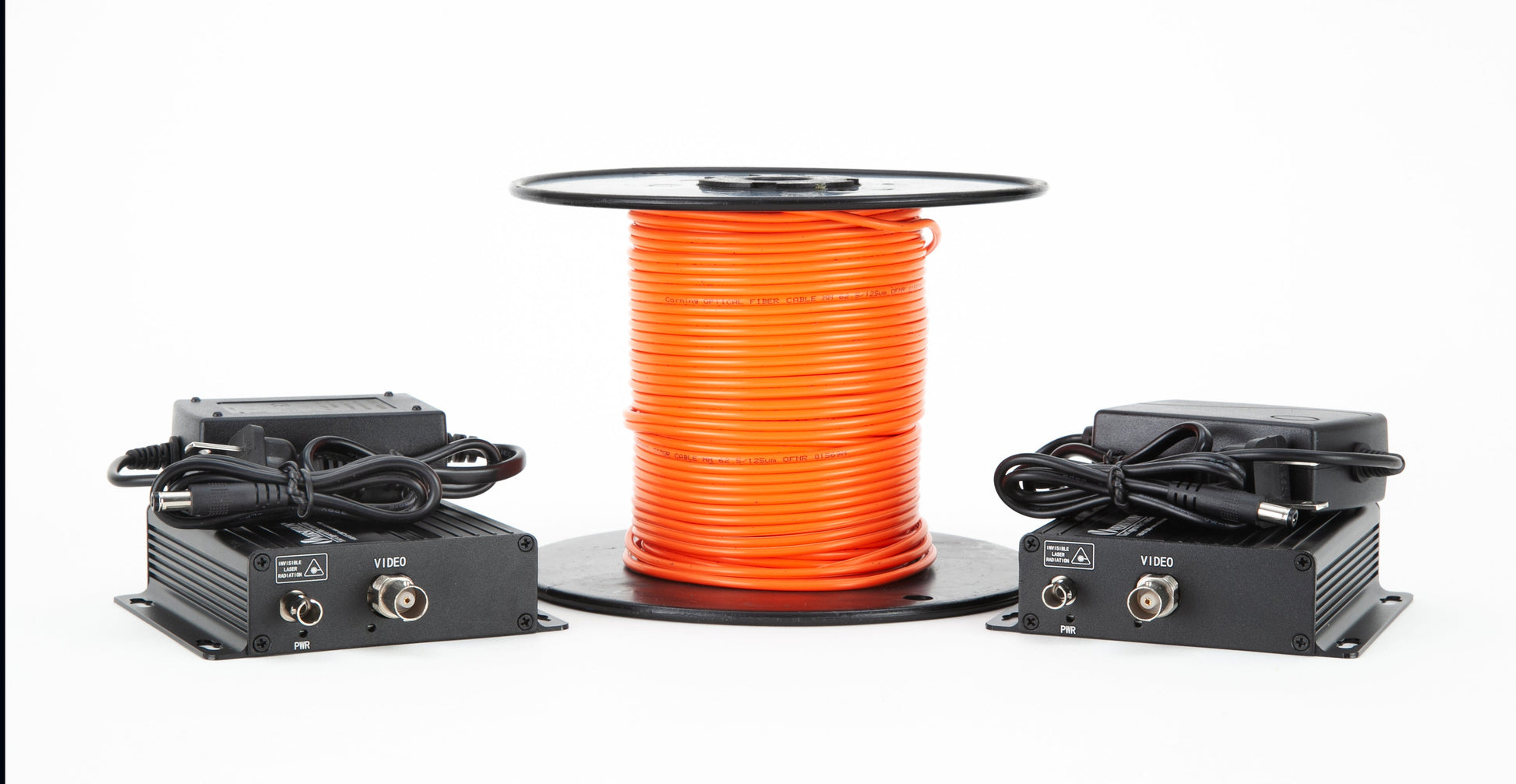

The FDVTR1003A provides the primary components needed to establish a one-channel analog video link over multimode fiber. The installation kit includes a video transmitter, video receiver, power supplies, and 100 meters of multimode fiber cable, simplifying installation for applications where a complete video-to-fiber package is required.

A typical installation places the transmitter at the camera or video source and the receiver at the remote monitoring location, with the two units connected by a single fiber optic cable.

8-Bit Digital Video Over Multimode Fiber

The VersiVision FDVT1003A transmitter and FDVR1003A receiver provide 1-channel of 8-bit digitally encoded video over one multimode optical fiber. The system is designed for broadcast-quality video transmission and is directly compatible with NTSC, PAL, and SECAM camera systems.

The multimode configuration uses 1310 nm optics and supports a maximum transmission distance of 3 km.

Plug-and-Play Fiber Optic Video Transmission

The FDVTR1003A is designed for straightforward installation. Its plug-and-play architecture requires no electrical or optical adjustments, allowing the transmitter and receiver to be installed without field optical calibration.

This makes the kit a practical choice for fixed-camera installations where a simple point-to-point fiber optic video connection is needed.

Standard BNC and ST Fiber Connections

The video interface uses a standard BNC connector, while the optical interface uses an ST connector. The system transmits video over a single multimode fiber.

For installations using SC fiber connectors, ST-SC adapters are available.

LED Indicators for Easy System Monitoring

LED indicators provide an immediate indication of system operating status. The wiring diagram on page 3 of the datasheet shows separate power and video indicators on the transmitter and receiver.

The video indicator shows when video is present on the BNC input, while the power indicator confirms that the appropriate power has been applied.

Multimode Fiber Transmission Up to 3 km

The FDVTR1003A uses the FDVT1003A transmitter and FDVR1003A receiver, both specified for multimode fiber transmission up to 3 km at 1310 nm.

For applications requiring greater distance, the VersiVision FDVT1005A/FDVR1005A singlemode versions support transmission up to 30 km. However, the FDVTR1003A installation kit itself is the multimode 3 km configuration.

Video Performance

The FDVTR1003A system provides:

• 1 video input/output channel
• 8-bit resolution
• 5 Hz–8 MHz bandwidth
• Differential gain: < ±1%
• Differential phase: < ±1°
• Tilt: <1%
• Signal-to-noise ratio: 60 dB weighted
• Video input: 2 V peak-to-peak, 75Ω

Standalone or Rack-Mount Installation

The FDVT100xA transmitter and FDVR100xA receiver can be deployed as standalone units or installed in the VERSITRON FVC18 18-slot rack-mount chassis. The datasheet identifies the units as hot-pluggable into the FVC18 chassis, providing flexibility for installations requiring multiple fiber optic video channels.

1-Channel Analog Video Installation Kit Applications

The FDVTR1003A is suited for applications requiring a fixed analog video source to be transmitted over multimode fiber, including:

• CCTV video surveillance
• Fixed-camera installations
• Remote video monitoring
• Security monitoring systems
• Camera-to-monitor fiber optic links
• Video transmission between electrically separated locations
• Video systems requiring a point-to-point fiber optic connection
• Industrial video monitoring

The kit is also well suited for installations where the camera and monitoring equipment are separated by distance or where fiber optic transmission is preferred over copper video cabling.

Technical Specifications

Why Choose the VERSITRON FDVTR1003A?

The FDVTR1003A provides a complete, ready-to-install fiber optic video solution for one analog CCTV channel. By combining the transmitter, receiver, power supplies, and 100 meters of multimode fiber in one installation kit, it simplifies the process of establishing a fiber-based video link.

With 8-bit digital video transmission, NTSC/PAL/SECAM compatibility, plug-and-play operation, ST fiber connections, and transmission up to 3 km over multimode fiber, the FDVTR1003A provides a practical solution for fixed-camera video applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FDVTR1003A continues that tradition by providing a complete fiber optic installation solution for transmitting analog video over multimode fiber.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video solution, contact VERSITRON for technical support.

Technical Specifications of FDVTR1003A: 1-Channel Digital Fiber Optic Video Converter

Key Features of FDVTR1003A: 1-Channel Digital Fiber Video Converter

• 8-Bit Uncompressed Video Transmission
• NTSC, PAL, or SECAM CCTV
• WDM for Highest Quality Video Transmission
• No EMI, RFI, Cross Talk, and Ground Loop
• No Electrical or Optical Adjustments Required
• LED Indicators for Instant System Monitoring
• Transmit up to 30 km without Optical Attenuation
• Standalone or Rackmount in FVC18 Chassis
• Hot-Pluggable into the FVC18 Chassis

1-Channel Video Installation Kit (FDVTR1003A) is used across the following Industries:

Versitron is one of the leading 1-Channel Video Installation Kit providers in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 1-Channel Video Installation Kit from VERSITRON at a Competitive Price!!
