Rugged 10-Port Managed Industrial Ethernet Switch

The SF71053M2 is designed to connect Ethernet devices over copper and multimode fiber in industrial environments where reliable network connectivity and rugged hardware are important.

The switch provides eight 10/100Mbps copper ports and two 100Mbps multimode fiber ports with ST connectors, allowing Ethernet devices to be connected to fiber-based network segments while maintaining managed Layer 2 network functionality.

The SF71053M2 is specifically configured with ST fiber interfaces and a 2 km multimode fiber transmission distance, making it a suitable choice for existing fiber networks that use ST connectors.

100Mbps Multimode Fiber with ST Connectors

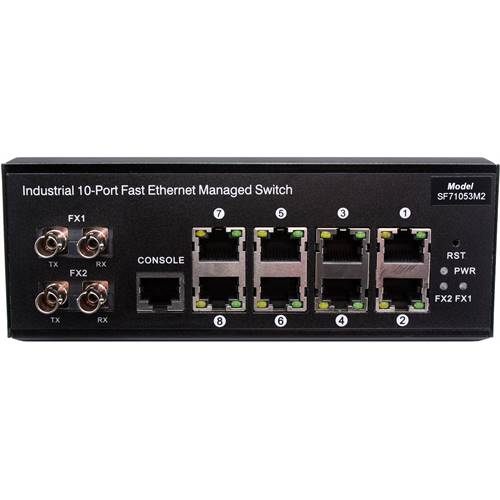

The SF71053M2 provides two 100Mbps multimode fiber ports using ST connectors.

The fiber interface specifications include:

• 100Mbps fiber transmission
• Multimode fiber
• ST connectors
• 1310nm wavelength
• Up to 2 km transmission distance
• Class 1 laser compliant with IEC 60825-1

This configuration makes the SF71053M2 particularly useful when integrating legacy or existing ST-terminated multimode fiber infrastructure with managed Ethernet networks.

26Gbps Non-Blocking Switching

The SF71053M2 uses a non-blocking store-and-forward switching architecture with 26Gbps switching capacity. The switch also supports an 8K MAC address table and jumbo frames up to 9.6K bytes.

Flow-control functions include IEEE 802.3x pause frames for full-duplex operation and back-pressure flow control for half-duplex operation.

Layer 2 Managed Network Functions

The SF71053M2 provides multiple management interfaces, including:

• Console
• CLI
• Telnet
• Web management
• SSH/SSL
• SNMP v1, v2c, and v3

Port configuration allows administrators to enable or disable ports, configure auto-negotiation, select full- or half-duplex operation, and manage flow control.

VLAN Support and Network Segmentation

The SF71053M2 supports multiple VLAN configurations for network segmentation and traffic management.

Supported VLAN functions include:

• IEEE 802.1Q tag-based VLAN
• Up to 256 VLAN groups
• 4094 VLAN IDs
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN
• MVR (Multiple VLAN Registration)
• Q-in-Q tunneling

These capabilities allow administrators to separate network traffic and manage different devices or network functions within the same physical infrastructure.

QoS and Traffic Management

The switch supports Quality of Service functions with eight priority queues and traffic classification using IEEE 802.1p and IP DSCP.

Bandwidth control provides ingress and egress rate management, while port mirroring supports Tx/Rx many-to-one monitoring for network troubleshooting and diagnostics.

Link Aggregation and Network Redundancy

The SF71053M2 supports IEEE 802.3ad LACP and static trunking, with up to five link aggregation groups.

The switch also supports Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP), providing network administrators with options for redundant network architectures and recovery from topology changes.

The product supports both point-to-point and ring configurations.

Multicast and Access Control

The SF71053M2 supports IGMP/MLD snooping v1, v2, and v3 with query support for managed multicast traffic.

Access control includes both IP-based and MAC-based ACLs, with support for up to 256 ACL entries.

Industrial Design for Harsh Environments

The SF71053M2 is built specifically for industrial deployment. Its enclosure is an IP44 metal case with DIN-rail mounting, and the design provides corrosion resistance and industrial-rated emission and immunity performance.

The switch operates across an extended temperature range of -40°C to +80°C, with the same -40°C to +80°C storage temperature specification. Relative humidity is rated at 0% to 95%, non-condensing.

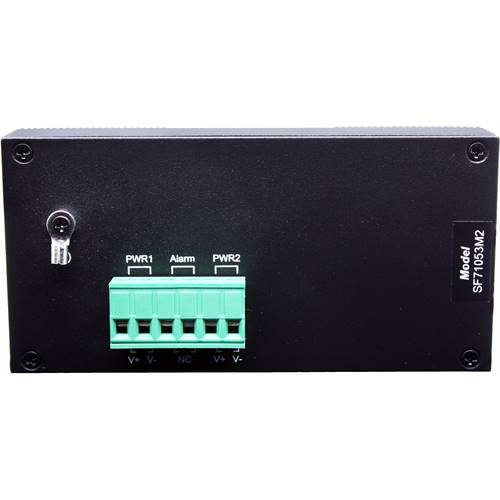

Redundant DC Power

The SF71053M2 accepts dual 9–52VDC power inputs with auto-sensing capability. The redundant power configuration helps maintain network operation where continuous availability is important.

The switch consumes approximately 9 watts at full load.

4KV Ethernet Surge Protection

The SF71053M2 incorporates 4KV Ethernet surge protection as part of its industrial protection features.

Combined with the redundant DC power architecture, rugged metal enclosure, and extended temperature range, these features make the switch appropriate for installations where network equipment may be exposed to demanding electrical and environmental conditions.

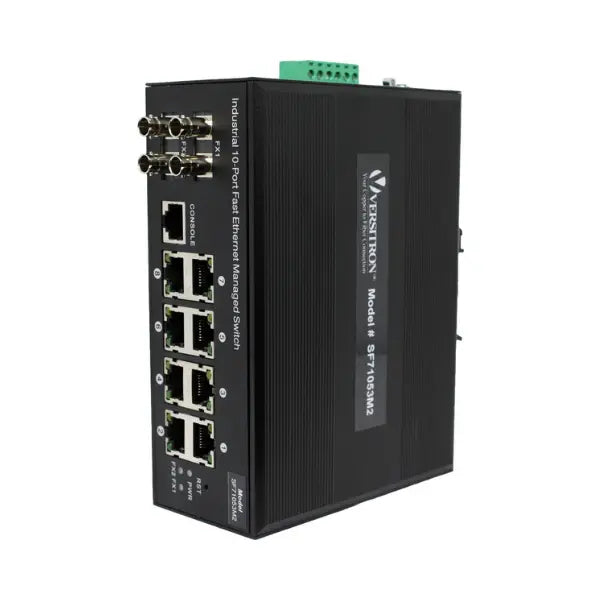

Compact DIN-Rail Design

The SF71053M2 measures approximately 6.14 × 4.52 × 2.36 inches and is designed for DIN-rail mounting.

Its compact industrial enclosure makes it suitable for control cabinets, equipment enclosures, transportation infrastructure, industrial facilities, and other installations where available space is limited.

Typical Applications

The SF71053M2 is designed for industrial Ethernet networks requiring managed copper and ST-terminated multimode fiber connectivity.

Typical applications include:

• Industrial automation
• Industrial Ethernet networks
• Factory communication systems
• Transportation infrastructure
• Intelligent transportation systems
• Industrial security systems
• Surveillance networks
• Access control systems
• Remote Ethernet connectivity
• Utility and infrastructure networks
• Control cabinets and equipment enclosures
• Networks using existing ST multimode fiber

Technical Capabilities

The SF71053M2 supports:

• 8 × 10/100Mbps RJ-45 copper ports
• 2 × 100Mbps multimode fiber ports
• ST fiber connectors
• 2 km multimode fiber transmission
• 1310nm fiber wavelength
• Auto-negotiation
• Auto-MDI/MDI-X
• Non-blocking store-and-forward switching
• 26Gbps switching capacity
• 8K MAC address table
• 9.6K-byte jumbo frames
• IEEE 802.3x flow control
• Half-duplex back-pressure flow control
• STP and RSTP
• Point-to-point and ring configurations
• Real-time monitoring
• Port mirroring
• Ingress/egress bandwidth control
• Up to 256 VLAN groups
• 4094 VLAN IDs
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN
• MVR
• Q-in-Q tunneling
• IEEE 802.3ad LACP/static trunking
• Up to 5 aggregation groups
• Eight QoS priority queues
• IEEE 802.1p and IP DSCP traffic classification
• IGMP/MLD Snooping v1/v2/v3
• IP-based ACL
• MAC-based ACL
• Up to 256 ACL entries
• Console, CLI, Telnet, and web management
• SSH/SSL
• SNMP v1/v2c/v3

Electrical, Mechanical, and Environmental Specifications

These specifications are taken directly from the SF7105xM2 datasheet, including the model-specific SF71053M2 fiber configuration.

Why Choose the VERSITRON SF71053M2?

The SF71053M2 combines managed Layer 2 Ethernet functionality with ST-terminated 100Mbps multimode fiber connectivity in a compact industrial enclosure. Its redundant DC power inputs, 4KV Ethernet surge protection, IP44 metal housing, DIN-rail mounting, and -40°C to +80°C operating range make it well suited for demanding industrial installations.

For networks that still use ST multimode fiber, the SF71053M2 provides a practical way to integrate that infrastructure with managed 10/100 Ethernet equipment while retaining VLAN, QoS, redundancy, monitoring, and access-control capabilities.

VERSITRON Fiber Optic and Ethernet Solutions Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for demanding network applications.

The SF71053M2 continues that tradition with a rugged managed industrial switch designed for reliable copper-to-fiber connectivity, redundant power, and operation in challenging environments.

For pricing, availability, or assistance determining the appropriate fiber configuration for your network, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• 8-10/100Mbps Copper Ports
• 2-100Mbps Multimode Fiber Ports
• Non-blocking store-and-forward switching
• Supports flow control for full duplex operation
• Supports back-pressure flow control for half-duplex operation
• Supports Spanning Tree (STP, RSTP)
• Supports Point-to-Point or Ring configurations
• Supports real-time monitoring
• Redundant DC power
• 4KV Ethernet surge protection
• Extended temperature range
• Corrosion resistant
• Industrial rated Emission and Immunity performance
• Supports DIN rail mounting
