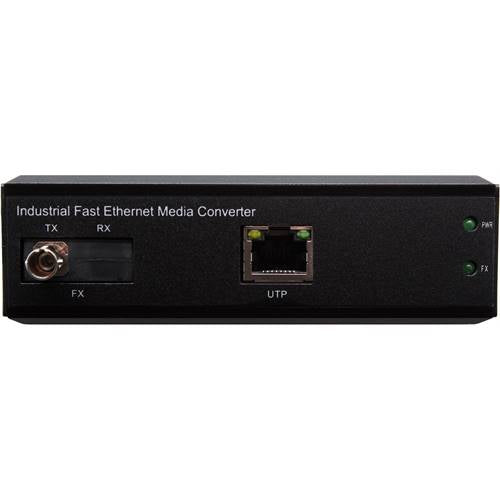

10/100TX-FX Single Fiber Industrial Media Converter | 1-RJ45 Ethernet Port, 1-ST Fiber Port

Industrial 10/100Mbps Ethernet-to-Fiber Conversion

The MF7275-2SFA provides dependable copper-to-fiber conversion for industrial Ethernet networks. It features one 10/100Mbps RJ45 copper port and one 100Mbps ST fiber port, allowing Ethernet devices to communicate over single-mode fiber while extending network reach beyond the limitations of standard copper cabling.

The converter uses a non-blocking store-and-forward switching architecture for efficient packet processing and supports a 2K MAC address table with frame sizes up to 1536 bytes.

Single-Fiber Connectivity Over 20km

The MF7275-2SFA is designed for applications where only one strand of single-mode fiber is available.

Using wavelength-division multiplexing, the converter transmits and receives data over the same fiber strand. The MF7275-2SFA uses 1310nm for transmission and 1550nm for reception and is paired with the MF7275-2SFB, which uses the reverse wavelength configuration. Both models support transmission distances up to 20km.

This single-fiber configuration can help:

• Extend Ethernet networks over existing fiber infrastructure
• Connect remote industrial equipment
• Reduce the number of fiber strands required
• Connect facilities where fiber availability is limited
• Extend surveillance and control networks over long distances

Reliable Ethernet Performance

The MF7275-2SFA's RJ45 copper port supports 10/100Mbps auto-negotiation and auto MDI/MDI-X, simplifying installation with a variety of Ethernet devices. It supports both full- and half-duplex operation.

Flow control includes IEEE 802.3x pause frames for full-duplex operation and back pressure for half-duplex operation, helping maintain reliable data transmission during periods of increased network traffic.

Built for Harsh Industrial Environments

Unlike standard commercial media converters, the MF7275-2SFA is designed for industrial installations where temperature, electrical interference, and power reliability can be concerns.

The converter features:

• Dual 9–52VDC power inputs for redundant power
• 4KV Ethernet surge protection
• IP44 metal housing
• DIN rail mounting
• -40°C to +80°C operating temperature
• Greater than 100,000-hour MTBF
• Industrial-rated emission and immunity performance

These features make the MF7275-2SFA well suited for control cabinets, industrial equipment rooms, transportation infrastructure, and other demanding network environments.

Easy Installation and Network Monitoring

The MF7275-2SFA is designed for straightforward installation and network troubleshooting. LED indicators provide local visibility into power, copper link/activity, and fiber link/activity status.

The RJ45 interface automatically detects connected Ethernet devices and cable configuration, reducing the need for manual network setup.

Its compact industrial enclosure and DIN rail mounting make it suitable for installation inside control panels and network cabinets where space is limited.

20km Single-Mode Fiber Transmission

The MF7275-2SFA provides a 20km single-mode fiber connection using an ST connector. Its wavelength configuration is specifically designed to work with the complementary MF7275-2SFB.

The MF727x datasheet identifies the MF7275-2SFA specifically as the SM, ST, 20km single-fiber model with 1310nm TX and 1550nm RX.

Typical Applications

The MF7275-2SFA is well suited for industrial networks that require reliable Ethernet connectivity over long-distance single-mode fiber.

• Industrial automation and control
• IP camera and video surveillance networks
• Intelligent transportation systems
• Traffic monitoring and control
• Oil and gas facilities
• Mining operations
• Power and utility networks
• Factory and manufacturing networks
• Remote monitoring and control
• Industrial security systems
• Networks with limited fiber availability

Why Choose the MF7275-2SFA?

The MF7275-2SFA combines long-distance single-fiber connectivity with the rugged construction required for industrial network deployments. Its 20km single-mode fiber capability, ST connector, redundant DC power, 4KV surge protection, DIN rail mounting, and -40°C to +80°C operating temperature make it a strong choice for extending Ethernet into demanding environments.

For single-fiber communication, the MF7275-2SFA is paired with the complementary MF7275-2SFB, which uses the opposite transmit and receive wavelengths.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for commercial, industrial, government, security, transportation, and telecommunications applications.

Our decades of experience in fiber optic communications are reflected in products designed for dependable network connectivity in demanding environments. The MF7275-2SFA Single Fiber Industrial Media Converter continues that tradition by combining copper-to-fiber conversion, single-fiber WDM technology, long-distance transmission, and rugged industrial construction in a compact DIN rail-mountable platform.

For assistance selecting the correct single-fiber converter pair, fiber type, or transmission distance, contact VERSITRON at 1-800-537-2296.

Electrical, Mechanical, Environmental

• (1) 10/100Mbps Copper Port for seamless Ethernet connectivity
• (1) 100Mbps Fiber Port for long-distance, high-speed data transmission
• Non-blocking store-and-forward switching ensures efficient data transfer
• Auto-negotiation (10/100Mbps) for adaptive network performance
• Auto MDI/MDI-X crossover eliminates the need for crossover cables
• Supports Full-Duplex and Half-Duplex for flexible communication modes
• Low power consumption for energy-efficient operation
• Redundant DC Power input (9-52V) for uninterrupted performance
• 4KV Ethernet surge protection enhances network reliability
• Extended temperature range (-40°C to 80°C) for harsh environments
• Corrosion-resistant IP44-rated metal casing for durability
• Industrial-rated EMI/EMC performance for stable operation
• DIN rail mounting support for easy installation in industrial setups
