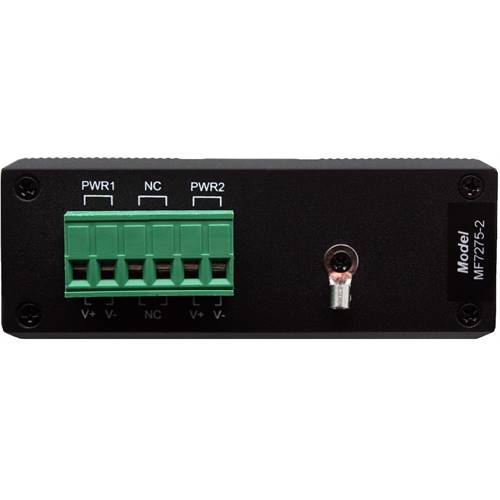

10/100TX-FX Industrial Media Converter | 1-RJ45 Ethernet Port, 1-SC Fiber Port, SM
10/100TX-FX Industrial Media Converter | 1-RJ45 Ethernet Port, 1-SC Fiber Port, SM
SKU:MF7275-2
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
VERSITRON's MF7275-2 Industrial Media Converter is a high-performance solution designed for converting 10/100Base electrical input into 100BaseFX optical output. Built for demanding industrial environments, it features a rugged, corrosion-resistant design and can withstand extreme temperatures, making it ideal for applications like industrial security, system automation, and intelligent transportation systems (ITS). This industrial media converter offers a 10/100Mbps copper port and a 100Mbps fiber port, with auto-negotiation and MDI/MDI-X crossover support. Its low power consumption, redundant DC power, and 4KV Ethernet surge protection ensure reliable performance. With easy plug-and-play installation, this fast Ethernet media converter is perfect for harsh industrial settings.
Product Highlights
- 10/100Mbps Copper Port: Provides a standard Ethernet connection through an RJ45 port, offering flexible integration with various networking equipment for copper-based data transmission.
- 100Mbps Fiber Port: Supports high-speed, long-distance fiber optic connections, ideal for expanding network reach in industrial settings.
- Supports auto-negotiation 10/100Mbps: Automatically adjusts connection speeds between 10 and 100Mbps, optimizing performance based on network conditions without manual configuration.
- Supports auto MDI/MDI-X crossover on the copper port: Automatically detects and adjusts for different Ethernet cable types, eliminating the need for specific crossover cables and simplifying installation.
- Supports full-duplex and half-duplex: Offers flexibility in data communication, supporting both full-duplex (simultaneous send and receive) and half-duplex (send or receive at any given time) modes for different network environments.
- 4KV Ethernet surge protection: Safeguards the converter and connected equipment from electrical surges, providing robust protection against voltage spikes and ensuring long-term durability in industrial environments.
Product Highlights
- 10/100Mbps Copper Port: Provides a standard Ethernet connection through an RJ45 port, offering flexible integration with various networking equipment for copper-based data transmission.
- 100Mbps Fiber Port: Supports high-speed, long-distance fiber optic connections, ideal for expanding network reach in industrial settings.
- Supports auto-negotiation 10/100Mbps: Automatically adjusts connection speeds between 10 and 100Mbps, optimizing performance based on network conditions without manual configuration.
- Supports auto MDI/MDI-X crossover on the copper port: Automatically detects and adjusts for different Ethernet cable types, eliminating the need for specific crossover cables and simplifying installation.
- Supports full-duplex and half-duplex: Offers flexibility in data communication, supporting both full-duplex (simultaneous send and receive) and half-duplex (send or receive at any given time) modes for different network environments.
- 4KV Ethernet surge protection: Safeguards the converter and connected equipment from electrical surges, providing robust protection against voltage spikes and ensuring long-term durability in industrial environments.
VERSITRON's MF7275-2 Industrial Media Converter offers a reliable solution for converting 10/100Base-TX Ethernet signals to 100Base-FX fiber signals. Featuring a 10/100Mbps copper port and a 100Mbps fiber port with single-mode (SM) fiber, this 10/100 media converter is designed to meet the demands of industrial environments. The fast Ethernet media converter supports non-blocking store-and-forward switching and features auto-negotiation for seamless 10/100Mbps operation, along with auto MDI/MDI-X crossover on the copper port. It supports both full-duplex and half-duplex communication for enhanced performance and flexibility.
Built to withstand harsh conditions, the MF7275-2 is corrosion-resistant and offers an extended temperature range. It includes 4KV Ethernet surge protection, ensuring the device remains operational in challenging electrical environments. The redundant DC power input provides additional reliability, while low power consumption ensures energy efficiency. Industrial-rated emission and immunity performance make this device suitable for use in demanding applications such as industrial security, automation, and transportation systems. The MF7275-2 also supports DIN rail mounting for easy installation in control panels and cabinets, ensuring a secure and organized setup. With its rugged design and advanced features, the MF7275-2 is an ideal choice for high-performance connectivity in harsh industrial settings.
Typical Applications
- Industrial Automation Systems: Enables reliable Ethernet-to-fiber conversion in automated manufacturing environments, connecting remote machinery and control systems over long distances.
- Surveillance Networks: Allows seamless integration of IP cameras and other monitoring devices over fiber optic networks, ensuring stable and high-quality video transmission.
- Intelligent Transportation Systems (ITS): Supports connectivity for transportation management systems, enabling robust communication between traffic management devices and central control stations.
- Telecommunications Networks: Extends Ethernet connectivity across fiber optic networks, ensuring reliable data transmission in telecom infrastructure.
- Energy and Power Industry: Connects remote monitoring and control systems to central servers, helping to optimize operations and ensure continuous monitoring.
- Remote Site Connectivity: Provides stable Ethernet connectivity to isolated sites using fiber optics for long-distance communication.
Copper Ports
1 x 10/100Base-T
Optical Ports
1 x 100Base-FX
Port Configuration
Auto MDI/MDI-X
Port Speed
Auto-negotiate
Switch Architecture
Store-and-forward
Switch Bandwidth
0.4Gbps (non-blocking)
MAC Address
2K entries
Maximum Frame Size
1536 Bytes (Jumbo Frames)
Flow Control
Back pressure (Half-Duplex)
IEEE 802.3x Pause Frame (Full-Duplex)
Optical Wavelength
1310nm
Singlemode
20KM
Optical Emitter
Laser Diode
Number of Fibers
2
Connector
SC
LED Indicators
Power: On/Green
Ethernet: Link/Activity – Green
SFP Port: On/Blink – Green
DC Power Input Voltage
DC 9~52V, Auto-sensing
Full Load Power Consumption
9 Watts
Dimensions
112.7 x 94 x 36mm
Case
IP44 Metal Case
Housing
DIN Rail Mounting
MTBF
>100,000 hours
Operating Temperature
-40°C ~ +80°C
Storage Temperature
-40°C ~ +80°C
Relative Humidity
0% to 95% (non-condensing)
- (1) 10/100Mbps Copper Port
- (1) 100Mbps Fiber Port
- Supports non-blocking store-and-forward switching
- Supports auto-negotiation 10/100Mbps
- Supports auto MDI/MDI-X crossover on the copper port
- Supports Full-Duplex and Half-Duplex
- Low power consumption
- Redundant DC Power
- Supports DIN rail mounting
- 4KV Ethernet surge protection
- Extended temperature range
- Corrosion resistant
- Industrial rated Emission and Immunity performance
Available Product Models
| Model | Fiber Port | Wavelength | Tx Power (dBm) | Rx Sens. (dBm) | Rx Max. (dBm) | RFQ |
|---|---|---|---|---|---|---|
| MF7273 | MM, ST, 2km | 1310nm | -19 ~ -14 | -31 | -14 | Request a Quote |
| MF7274 | MM, SC, 2km | 1310nm | -19 ~ -14 | -31 | -14 | Request a Quote |
| MF7275-2 | SM, SC, 20km | 1310nm | -15 ~ -8 | -30 | -7 | Request a Quote |
| MF7275-2SFA | SM, ST, 20km (Single Fiber) | Tx: 1310nm / Rx: 1550nm | -14 ~ 8 | -31 | 0 | Request a Quote |
| MF7275-2SFB | SM, ST, 20km (Single Fiber) | Tx: 1550nm / Rx: 1310nm | -14 ~ 8 | -31 | 0 | Request a Quote |
