4-Channel Video Installation Kit | ST, MM

SKU:FVMTR4003A

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON FVMTR4003A 4-Channel Video Installation Kit provides a complete fiber optic solution for transmitting four analog CCTV video signals over a single multimode optical fiber. The kit includes a 4-channel video transmitter and receiver, power supplies, and 100 meters of multimode fiber cable.

The VersiVision system provides 8-bit digitally encoded, broadcast-quality video and is directly compatible with NTSC, PAL, and SECAM camera systems. The multimode configuration operates at 1310 nm and supports transmission distances up to 3 km, making it well suited for multi-camera surveillance and remote video monitoring applications.

Product Highlights

4-channel digital video transmission

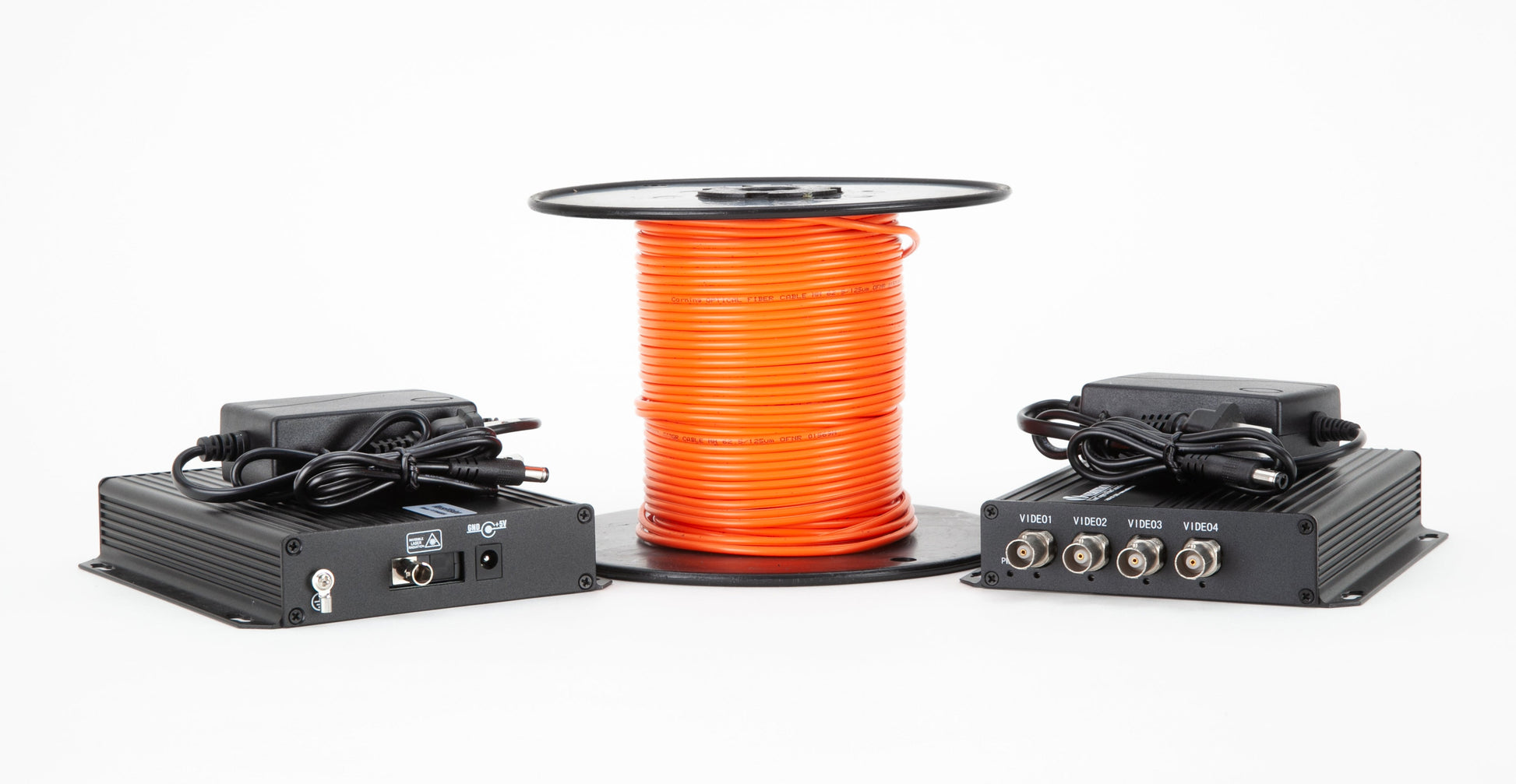

Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
8-bit uncompressed video
Compatible with NTSC, PAL, and SECAM
Transmits up to 3 km over multimode fiber
1310 nm optical wavelength
Four video channels over one optical fiber
Standard ST simplex optical connector
BNC video connections
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Hot-pluggable into the FVC18 chassis

View full details

Complete 4-Channel Fiber Optic Video Installation Kit

The FVMTR4003A provides the essential components needed to establish a four-channel analog video link over multimode fiber. The installation kit includes a 4-channel video transmitter, receiver, power supplies, and 100 meters of multimode fiber cable.

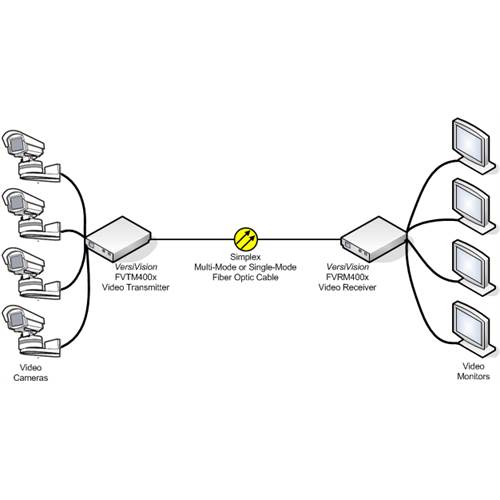

A typical installation places the transmitter at the camera or video source location and the receiver at the monitoring location. A single fiber optic cable connects the two units, allowing four separate video signals to be transmitted to the remote location. The wiring diagram on page 3 of the datasheet illustrates four video sources connected to the transmitter and four corresponding video monitors connected to the receiver.

Four Video Channels Over One Fiber

The VersiVision FVTM4003A transmitter and FVRM4003A receiver support four channels of 8-bit digitally encoded video over one multimode optical fiber. This allows four separate camera signals to share a single fiber connection between the camera location and monitoring equipment.

The system is directly compatible with NTSC, PAL, and SECAM camera systems.

8-Bit Digital Video Transmission

The FVMTR4003A provides 8-bit uncompressed digital video transmission for all four video channels. The system is designed for broadcast-quality video transmission over fiber while maintaining the integrity of the video signal.

Each transmitter and receiver provides four BNC video connections, allowing four video sources to connect at the transmitter and four corresponding video outputs at the receiver.

Multimode Fiber Transmission up to 3 km

The FVMTR4003A uses the FVTM4003A transmitter and FVRM4003A receiver, which are specified for multimode fiber transmission up to 3 km at 1310 nm.

This makes the FVMTR4003A a practical choice for multi-camera installations where several analog video signals need to be transported between locations over a single multimode fiber.

WDM Technology for Reliable Transmission

The VersiVision four-channel video system incorporates WDM technology and transmits all four video channels over a single optical fiber. The datasheet identifies WDM technology as a feature for higher reliability.

Fiber optic transmission also avoids the EMI, RFI, crosstalk, and video distortion identified in the product datasheet.

Plug-and-Play Installation

The FVMTR4003A is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.

This makes the system straightforward to deploy when multiple fixed-camera video signals need to be extended over fiber.

Standard ST and BNC Connections

The FVMTR4003A uses:

ST simplex optical connector
BNC video connectors
One multimode optical fiber for all four video channels

ST-SC adapters are available for applications using SC fiber connectors.

LED Indicators for System Monitoring

LED indicators provide immediate visibility into system operation. The wiring diagram on page 3 shows the power and individual video indicators for the four video channels. The video indicators illuminate when video is present on the corresponding BNC input.

Standalone or Rack-Mount Installation

The FVTM4003A transmitter and FVRM4003A receiver can be used as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are hot-pluggable into the FVC18 chassis, providing a flexible option for installations requiring multiple fiber optic video channels.

4-Channel Video Installation Kit Applications

The FVMTR4003A is suited for applications requiring four analog video signals to be transmitted over one multimode fiber connection, including:

CCTV video surveillance
Multi-camera security systems
Fixed-camera installations
Remote video monitoring
Security control rooms
Industrial video monitoring
Manufacturing facilities
Transportation monitoring
Multi-camera fiber optic video links
Remote surveillance locations

Technical Specifications

Specification	FVMTR4003A
Video Channels	4
Video Format	8-bit uncompressed
Video Compatibility	NTSC, PAL, SECAM
Fiber Type	Multimode
Wavelength	1310 nm
Maximum Distance	3 km
Number of Fibers	1
Optical Connector	ST
Video Connector	BNC
Video Input	2 V p-p, 75Ω
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	<1%
S/N Ratio	60 dB weighted
Optical Emitter	Laser diode
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 inches
MTBF	>100,000 hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0–95%, non-condensing

Why Choose the VERSITRON FVMTR4003A?

The FVMTR4003A provides a complete four-channel fiber optic video installation solution for applications that need to transmit multiple analog video signals over a single multimode fiber. By combining the transmitter, receiver, power supplies, and 100 meters of multimode fiber in one kit, it simplifies the installation of a four-camera or four-video-source fiber link.

With four channels of 8-bit uncompressed video, NTSC/PAL/SECAM compatibility, 3 km multimode transmission, plug-and-play operation, ST optical connections, and four BNC video channels, the FVMTR4003A provides a practical solution for extending multiple analog video signals over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR4003A continues that tradition by providing reliable four-channel digital video transmission in a complete multimode fiber optic installation kit.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video solution, contact VERSITRON for technical support.

Technical Specifications of FVMTR4003A: 4-Channel Digital Fiber Optic Video Converter

Video Input

2 Volt pk-pk (75 Ohms)

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

Video Connector

BNC

Optical Connector

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

4-Channel Digital Fiber Optic Video Converter Installation

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!

Key Features of FVMTR4003A: 4-Channel Digital Fiber Optic Video Converter

8-Bit Uncompressed Video Transmission
Compatible with NTSC, PAL, or SECAM CCTV
Transmit up to 30 Km without Optical Attenuation
Wide Optical Dynamic Range
No EMI, RFI Cross Talk or Video Distortion
LED Indicators for Instant System Monitoring No Electrical or Optical Adjustments Required Hot-Pluggable Standalone or Rackmount VersiVision Chassis WATCH VIDEO
