4-Channel Video Installation Kit | ST, SM

Complete 4-Channel Fiber Optic Video Installation Kit

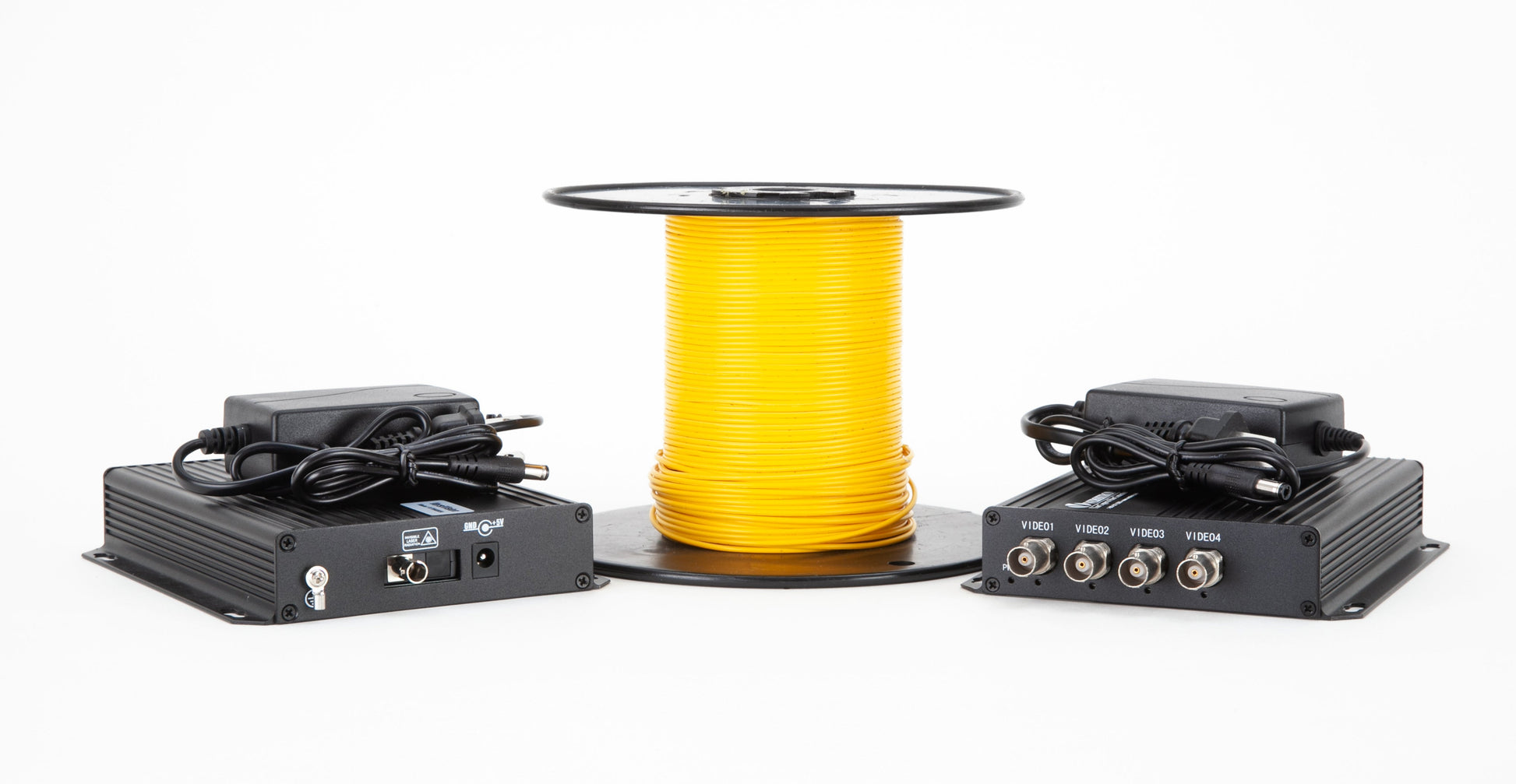

The FVMTR4005A provides the essential components needed to establish a four-channel analog video link over singlemode fiber. The installation kit includes a 4-channel video transmitter, receiver, power supplies, and 100 meters of singlemode fiber cable.

A typical installation places the transmitter at the camera or video source location and the receiver at the monitoring location. A single fiber optic cable connects the two units, allowing four separate video signals to be transmitted between locations. The wiring diagram on page 3 of the datasheet illustrates four video sources connected to the transmitter and four corresponding video monitors connected to the receiver.

Four Video Channels Over One Fiber

The VersiVision FVTM4005A transmitter and FVRM4005A receiver support four channels of 8-bit digitally encoded video over one singlemode optical fiber. This allows four separate camera signals to share a single fiber connection between the camera location and monitoring equipment.

The system is directly compatible with NTSC, PAL, and SECAM camera systems.

8-Bit Digital Video Transmission

The FVMTR4005A provides 8-bit uncompressed digital video transmission for all four video channels. The system is designed to provide broadcast-quality video transmission over fiber while maintaining video signal integrity.

Each transmitter and receiver provides four BNC video connections, allowing four video sources to connect at the transmitter and four corresponding video outputs at the receiver.

Singlemode Fiber Transmission Up to 30 km

The FVMTR4005A uses the FVTM4005A transmitter and FVRM4005A receiver, which are specified for singlemode fiber transmission up to 30 km at 1310 nm.

This makes the FVMTR4005A a strong choice for multi-camera installations where video signals must be transported over longer distances between remote camera locations and monitoring facilities.

WDM Technology for Reliable Transmission

The VersiVision four-channel video system incorporates WDM technology and transmits all four video channels over a single optical fiber. The datasheet identifies WDM technology as a feature for higher reliability.

Fiber optic transmission also avoids EMI, RFI, crosstalk, and video distortion identified in the product datasheet.

Plug-and-Play Installation

The FVMTR4005A is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate visibility into system operating status.

This makes the system straightforward to deploy when multiple fixed-camera video signals need to be extended over long-distance singlemode fiber.

Standard ST and BNC Connections

The FVMTR4005A uses:

• ST simplex optical connector
• BNC video connectors
• One singlemode optical fiber for all four video channels

ST-SC adapters are available for applications using SC fiber connectors.

LED Indicators for System Monitoring

LED indicators provide immediate visibility into system operation. The wiring diagram on page 3 shows the power and individual video indicators for the four video channels. The video indicators identify when video is present on the corresponding BNC input.

Standalone or Rack-Mount Installation

The FVTM4005A transmitter and FVRM4005A receiver can be used as standalone units or installed in the VERSITRON FVC18 18-slot chassis. The units are hot-pluggable into the FVC18 chassis, providing a flexible option for installations requiring multiple fiber optic video channels.

4-Channel Video Installation Kit Applications

The FVMTR4005A is suited for applications requiring four analog video signals to be transmitted over one long-distance singlemode fiber connection, including:

• CCTV video surveillance
• Multi-camera security systems
• Fixed-camera installations
• Remote video monitoring
• Security control rooms
• Industrial video monitoring
• Manufacturing facilities
• Transportation monitoring
• Remote surveillance locations
• Long-distance fiber optic video links

Technical Specifications

Why Choose the VERSITRON FVMTR4005A?

The FVMTR4005A provides a complete four-channel fiber optic video installation solution for applications that need to transmit multiple analog video signals over a single long-distance singlemode fiber. By combining the transmitter, receiver, power supplies, and 100 meters of singlemode fiber in one kit, it simplifies the installation of a four-camera or four-video-source fiber link.

With four channels of 8-bit uncompressed video, NTSC/PAL/SECAM compatibility, 30 km singlemode transmission, plug-and-play operation, ST optical connections, and four BNC video channels, the FVMTR4005A provides a practical solution for extending multiple analog video signals over long-distance fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and video transmission solutions for demanding applications. The VersiVision FVMTR4005A continues that tradition by providing reliable four-channel digital video transmission in a complete singlemode fiber optic installation kit.

For assistance selecting the appropriate VersiVision video transmitter, receiver, installation kit, or fiber optic video solution, contact VERSITRON for technical support.

Technical Specifications of FVMTR4005A: 4-Channel Digital Fiber Optic Video Converter

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status. A typical installation utilizes a transmitter unit at the camera end of the link, connected via a single fiber optic cable, to a receiver unit at the monitoring end of the link.

As with all VERSITRON products, these video converters carry a lifetime warranty. Please give us a call (1-800-537-2296) or open a chat with any questions. We would be delighted to speak with you!

Key Features of FVMTR4005A: 4-Channel Digital Fiber Optic Video Converter

• 8-Bit Uncompressed Video Transmission
• Compatible with NTSC, PAL, or SECAM CCTV
• Transmit up to 30 Km without Optical Attenuation
• Wide Optical Dynamic Range
• No EMI, RFI Cross Talk or Video Distortion
• LED Indicators for Instant System Monitoring No Electrical or Optical Adjustments Required Hot-Pluggable Standalone or Rackmount VersiVision Chassis WATCH VIDEO

4-Channel Video Installation Kit (FVMTR4005A) is used across the following Industries:

VERSITRON delivers advanced fiber optic video transmission solutions supporting broadcast-quality video transport for long-distance fixed-camera surveillance and monitoring applications. If your industry or installation requirement is not listed above, our technical experts are ready to assist.

Buy the Best 4-Channel Video Installation Kit from VERSITRON at a Competitive Price!
