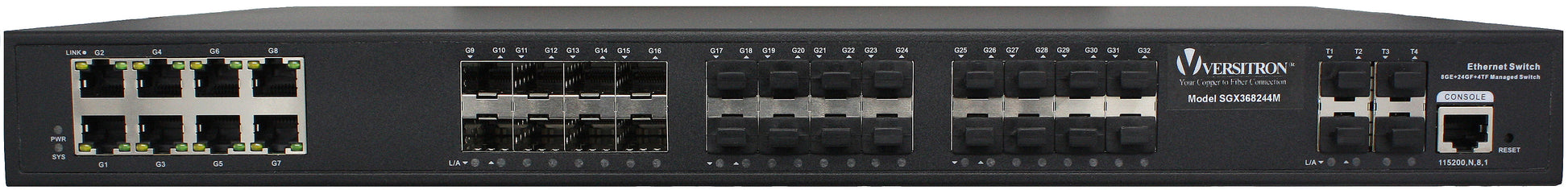

36-Port Managed Switch | 8-RJ45 Ethernet Ports, 28-SFP Fiber Ports

High-Density Fiber Connectivity for Large Networks

The SGX368244M is designed for network environments where a high number of fiber connections must be consolidated into a single managed switching platform.

The switch provides 24 dedicated 100/1G SFP slots for fiber connectivity, along with four SFP/SFP+ slots supporting 1G and 10G modules. Eight additional copper Ethernet ports provide 10/100/1000Base-T connectivity for network devices that require traditional RJ45 connections.

This combination makes the SGX368244M particularly well suited for fiber-rich network aggregation, backbone, telecommunications, surveillance, and other high-density networking applications.

1G and 10G Fiber Uplinks

The four 1G/10G SFP/SFP+ slots provide a flexible path for high-speed backbone connections and future network expansion. The switch supports multimode and single-mode fiber using LC connectors, allowing the fiber infrastructure to be configured according to distance and bandwidth requirements.

VERSITRON offers compatible fiber transceivers for a range of distances. Available Gigabit SFP modules support multimode connections as well as single-mode links extending to 100 km, while available 10G SFP+ modules support distances up to 80 km, depending on the selected module.

598Gbps Switching Capacity

The SGX368244M provides 598Gbps switching capacity and 107.14Mpps forwarding performance, allowing the switch to handle substantial volumes of network traffic across its copper and fiber interfaces.

The switch supports both store-and-forward and cut-through transfer modes, along with a 32MB packet buffer and 32K MAC address table. Jumbo frames up to 9.6K further support efficient transmission of large data packets across high-throughput networks.

Advanced Layer 2+ Network Management

The SGX368244M provides comprehensive management capabilities for administrators who require detailed control over network traffic, connected devices, and network performance.

Management functions include:

• Web management through HTTPS
• Console and CLI management
• Telnet
• SSH 2.0
• SNMP V1/V2C/V3
• NTP
• System work log
• Ping testing
• Cable diagnosis
• LLDP
• CPU utilization monitoring
• SFP diagnostic monitoring
• NMS smart network management support

The switch also supports network configuration and file management through FTP, TFTP, Xmodem, and SFTP.

Advanced VLAN and Network Segmentation

The SGX368244M supports multiple VLAN technologies for organizing and segmenting network traffic.

Supported VLAN functions include:

• Port-based VLAN
• 802.1Q tag-based VLAN
• MAC-based VLAN
• Protocol-based VLAN
• Voice VLAN
• Q-in-Q configuration
• Access ports
• Trunk ports
• Hybrid ports

The switch supports up to 4,000 active VLANs, providing substantial flexibility for larger and more complex network environments.

Quality of Service and Traffic Management

The SGX368244M provides advanced Quality of Service capabilities for managing traffic priorities and bandwidth.

Features include:

• Diff-Serv QoS
• Priority marking and remarking
• Eight output queues per port
• 802.1p/DSCP priority mapping
• SP queue scheduling
• WRR queue scheduling
• SP+WRR scheduling
• Flow-based packet filtering
• Flow-based rate limiting

These capabilities allow network administrators to prioritize important traffic and manage bandwidth across different applications and network services.

Advanced Network Security

The SGX368244M includes multiple security and access-control features designed to help protect network infrastructure.

Security functions include:

• IEEE 802.1X authentication
• MAC address authentication
• AAA and RADIUS
• SSH 2.0
• SSL
• Port isolation
• Broadcast storm control
• MAC black holes
• IP source protection
• MAC learning limits
• ARP inspection
• Anti-DOS attack protection
• IP-MAC-VLAN-Port binding

The switch also supports Layer 2 through Layer 4 packet filtering and multiple ACL options for controlling network traffic.

Multicast Support

The SGX368244M supports IGMP Snooping V1/V2, MLD Snooping V1/V2, and Multicast VLAN, making it suitable for networks that carry multicast traffic. The switch can support up to 1,024 multicast groups.

Network Redundancy and Port Aggregation

For networks requiring redundancy and resilient connections, the SGX368244M supports STP, RSTP, and MSTP.

The switch also supports LACP and static port aggregation, with up to 18 aggregation groups and up to eight ports per group. Port-based bidirectional data mirroring provides additional network monitoring and troubleshooting capabilities.

L3 Routing Capabilities

In addition to its Layer 2+ management functions, the SGX368244M provides selected Layer 3 capabilities, including:

• IPv4/IPv6 management
• L3 soft routing forwarding
• Static routing
• DHCP client
• DHCP snooping
• DHCP server
• DHCP relay

These capabilities provide additional flexibility when integrating the switch into larger managed network architectures.

Flexible Installation

The SGX368244M can be installed in a 19-inch 1U rack, on a desktop, or on a shelf, allowing it to fit a variety of network infrastructure environments.

The switch operates from 100–240VAC, 50/60Hz, with power consumption of ≤45W. The specified operating temperature range is -20°C to +55°C.

Available Fiber Transceiver Options

The SGX368244M is compatible with a broad selection of VERSITRON SFP and SFP+ modules.

Available options include:

• 100Mbps multimode fiber
• 100Mbps single-mode fiber
• 1Gbps multimode fiber
• 1Gbps single-mode fiber
• 1Gbps single-fiber BiDi
• 10Gbps multimode fiber
• 10Gbps single-mode fiber
• CWDM and DWDM modules

The available transceiver options allow network designers to select fiber type, connector, wavelength, and transmission distance according to the requirements of each link.

Typical Applications

The SGX368244M is suited for applications requiring high port density, extensive fiber connectivity, and high-speed network aggregation.

Typical applications include:

• Enterprise network infrastructure
• Fiber optic backbone networks
• Network aggregation
• Data centers
• Telecommunications
• Large-scale surveillance networks
• Campus networks
• High-bandwidth applications
• Converged networks
• Government and institutional networks
• Fiber-rich network deployments

Technical Specifications

Specifications are based on the SGX368244M datasheet.

VERSITRON Fiber Optic Networking Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for demanding network environments.

The SGX368244M combines 36 network ports, extensive SFP connectivity, 1G/10G uplink capability, 598Gbps switching capacity, advanced Layer 2+ management, Layer 3 routing functions, network security, VLAN support, and port aggregation in a single high-density platform.

For pricing, fiber transceiver selection, configuration assistance, or technical support, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• 8-10/100/1000Base Copper Ports
• 24-100/1G SFP Slots
• 4-1G/10G SFP/SFP+ Slots
• 598Gbps Switching Capacity
• 107.14Mpps Forwarding Performance
• Supports Jumbo Frames up to 9.6K
• High Bandwidth
• Low Latency
• Supports Multiple VLAN Protocols
• Advanced Security
• Web/CLI/Telnet/SNMP Management
