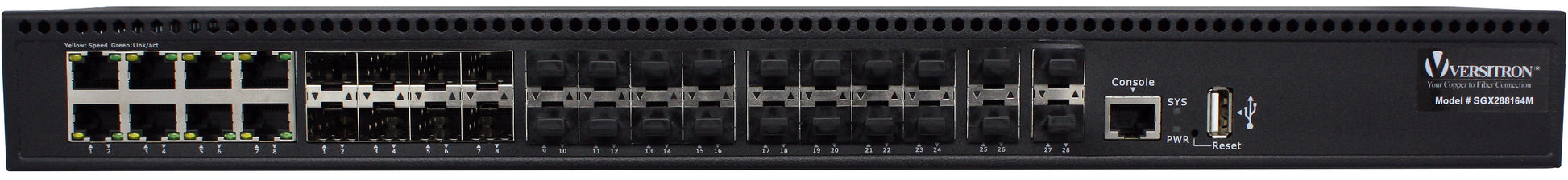

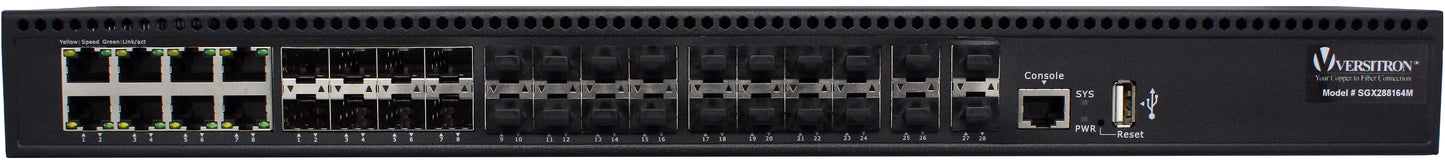

28-Port Managed Switch | 8-RJ45 Ethernet Ports, 20-SFP Fiber Ports

High-Density Copper and Fiber Network Connectivity

The SGX288164M provides a flexible combination of copper Ethernet and fiber optic connectivity for networks that require high port density and scalable uplink options.

Eight combo ports can operate as either 10/100/1000Base copper ports or 100/1G SFP slots, while sixteen additional slots provide 100/1G SFP connectivity. Four dedicated SFP/SFP+ slots support 1G or 10G connections, making the switch suitable for high-speed backbone and aggregation applications.

This architecture allows network administrators to connect conventional copper Ethernet devices while maintaining extensive fiber connectivity within the same switch.

Flexible Fiber Connectivity

The SGX288164M is designed for networks where fiber connectivity is a primary requirement.

The sixteen 100/1G SFP slots can accommodate compatible VERSITRON fiber transceivers, while the four 1G/10G SFP/SFP+ slots provide higher-speed connectivity for network backbones, aggregation links, and data-intensive applications.

Supported fiber options include multimode and single-mode configurations using LC connectors. Available VERSITRON SFP modules support a range of transmission distances, including Gigabit single-mode connections extending to 100 km, as well as single-fiber BiDi options up to 80 km.

The switch also supports 10G SFP+ modules for high-speed fiber connections, including multimode options up to 300 meters and single-mode options up to 80 km, depending on the selected transceiver.

128Gbps Switching Capacity

The SGX288164M provides 128Gbps switching capacity and 95Mpps forwarding performance, supporting high-volume data transmission across copper and fiber interfaces.

The switch supports both store-and-forward and cut-through transfer modes, along with a 12MB packet buffer and 16K MAC address table. Jumbo frames up to 9.6K further support networks handling large data transfers.

Advanced Layer 2+ Network Management

The SGX288164M provides extensive management capabilities for administrators who need detailed control over network traffic, connected devices, and network performance.

Management functions include:

• Web management through HTTP/HTTPS
• Console management
• CLI
• Telnet
• SSH 2.0
• SNMP V1/V2C/V3
• Syslog
• RMON
• NTP
• LLDP
• Temperature monitoring
• Ping and Traceroute
• SFP Digital Diagnostic Monitoring (DDM)

The switch also supports management through FTP, TFTP, Xmodem, and SFTP.

VLAN and Network Segmentation

The SGX288164M supports multiple VLAN technologies to help administrators organize and segment network traffic.

Supported VLAN functions include:

• MAC-based VLAN
• IP-based VLAN
• Protocol-based VLAN
• Q-in-Q configuration
• Access port configuration
• Trunk port configuration
• Hybrid port configuration

These capabilities allow different types of network traffic to be separated and managed according to application or network requirements.

Quality of Service and Traffic Control

The SGX288164M includes several QoS functions for prioritizing important network traffic.

Features include:

• QoS classification
• Traffic remarking
• Ingress port-based rate limiting
• Egress port-based rate limiting
• Policy-based QoS
• SP queue scheduling
• WRR queue scheduling

These functions allow administrators to manage bandwidth and prioritize traffic across the network.

Network Security

The SGX288164M provides multiple security mechanisms designed to control access and protect network resources.

Security functions include:

• IEEE 802.1X authentication
• MAC address authentication
• RADIUS
• Port security
• IP source protection
• IP-MAC-Port binding
• ARP inspection
• ARP packet filtering
• Port isolation

The switch also supports IP standard, IP extended, and MAC extended access control lists (ACLs).

Network Redundancy and Port Aggregation

For networks requiring redundancy and resilient connectivity, the SGX288164M supports STP, RSTP, MSTP, and G.8032 ERPS.

The ERPS implementation supports single-ring, sub-ring, and other ring configurations. Port aggregation is supported at 1G, 2.5G, and 10G, with both static and dynamic configurations.

These capabilities allow the SGX288164M to be integrated into network architectures designed for redundancy, aggregation, and efficient use of available bandwidth.

Multicast Network Support

The switch supports IGMP V1, V2, and V3 along with IGMP Snooping, providing management capabilities for multicast traffic.

This makes the switch suitable for network environments where multicast traffic is used alongside conventional data communications.

Port Monitoring and Network Visibility

The SGX288164M provides traffic monitoring and diagnostic functions including many-to-one port mirroring, traffic statistics, network storm suppression, and port isolation.

SFP DDM functionality also provides diagnostic information from compatible optical transceivers, helping administrators monitor fiber link conditions.

Available Fiber Transceiver Options

The SGX288164M supports a broad selection of VERSITRON SFP and SFP+ modules.

Available options include:

• 100Mbps multimode fiber
• 100Mbps single-mode fiber
• Gigabit multimode fiber
• Gigabit single-mode fiber
• Gigabit single-fiber BiDi
• 10G multimode fiber
• 10G single-mode fiber
• CWDM and DWDM modules

Gigabit SFP options range from short-distance multimode links through 100 km single-mode connections, while 10G SFP+ options are available for distances up to 80 km, depending on the selected module.

Installation and Power

The SGX288164M is designed for flexible installation and can be mounted in a 19-inch 1U rack, on a desktop, or on a shelf. It operates from 100–240VAC, 50/60Hz and has a maximum specified power consumption of 40W.

The switch operates from 0°C to +50°C with 10–90% working humidity and 5–95% storage humidity.

Typical Applications

The SGX288164M is well suited for networks requiring a high concentration of fiber ports, flexible copper connectivity, and high-speed 10G uplinks.

Typical applications include:

• Enterprise network aggregation
• Fiber backbone networks
• Data center connectivity
• High-bandwidth network infrastructure
• Surveillance and security networks
• Telecommunications
• Campus networks
• Converged networks
• Large-scale network deployments
• Networks requiring 10G fiber uplinks

Technical Specifications

Specifications are based on the SGX288164M datasheet.

VERSITRON Fiber Optic Networking Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for demanding network environments.

The SGX288164M combines high-density fiber connectivity, flexible copper interfaces, 10G SFP+ capability, advanced Layer 2+ management, network security, VLAN support, and redundant network protocols in a single 28-port platform.

For pricing, SFP selection, configuration assistance, or technical support, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• 8 Combo Ports: 10/100/1000Base Copper or 100/1G SFP Slots
• 16-100/1G SFP Slots
• 4-1G/10G SFP/SFP+ Slots
• L2+ Management
• 128Gbps Switching Capacity
• 95Mpps Forwarding Performance
• Supports Jumbo Frames up to 9.6K
• High Bandwidth
• Low Latency
• Supports Multiple VLAN Protocols
• Advanced Security Features
• Web/CLI/Telnet/SNMP Management
