18-Slot Rackmount Chassis: The Essential Solution for High-Performance Surveillance Systems

18-Slot Rackmount Chassis

As video surveillance systems expand, the equipment supporting them becomes increasingly complex. Large installations may include dozens of video-over-fiber converter modules serving cameras, control rooms, remote monitoring stations, and other critical infrastructure. Installing each converter as a separate standalone device can quickly consume valuable rack space, increase cable clutter, and complicate maintenance.

A rackmount chassis provides a centralized solution by housing multiple compatible video-over-fiber converter modules within a single enclosure.

The VERSITRON VersiVision FVC18 is a 19-inch rackmount chassis designed to accommodate up to eighteen compatible one-, two-, four-, or eight-channel video modules and video/data modules. By combining high module density, centralized power, hot-pluggable modules, and dual auto-switching power supplies, the chassis simplifies the deployment and long-term management of larger fiber optic video systems.

What Is an 18-Slot Rackmount Chassis?

An 18-slot rackmount chassis is a centralized enclosure designed to hold multiple compatible video-over-fiber converter modules within a standard equipment rack.

Rather than installing numerous individual converter units throughout a cabinet, the converter modules are installed into a common chassis that supplies power while organizing the equipment into a single location.

The FVC18 supports combinations of compatible:

• One-channel video modules
• Two-channel video modules
• Four-channel video modules
• Eight-channel video modules
• Video/data modules

This modular approach allows surveillance systems to be configured according to project requirements while keeping the equipment organized and accessible.

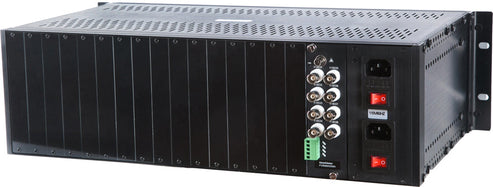

VersiVision 18-Slot Rackmount Chassis

Why Centralize Video-over-Fiber Converter Modules?

Many surveillance systems begin with only a few cameras.

As additional cameras are added, installers often end up with numerous standalone converter units, multiple power supplies, and increasing amounts of rack wiring.

Over time this can make equipment rooms difficult to maintain.

Centralizing compatible converter modules within a rackmount chassis provides a more organized approach.

Instead of managing many separate converter boxes, technicians can install the required modules within a single powered enclosure.

Potential benefits include:

• Centralized equipment installation
• Improved rack organization
• Simplified cable management
• Reduced external power adapters
• Easier maintenance
• Straightforward system expansion

These advantages become increasingly valuable as surveillance systems continue to grow.

Supporting Multiple Video Channel Configurations

Every surveillance installation has different requirements.

Some applications may only require a few video channels, while others support dozens of cameras distributed across multiple buildings or facilities.

The FVC18 chassis accommodates combinations of compatible one-, two-, four-, and eight-channel video converter modules, allowing system designers to configure the chassis according to the needs of the installation.

For example, one project might require several high-density multi-channel modules, while another may combine different module types to support various surveillance locations.

Because the modules are installed individually, organizations can build systems that match their operational requirements instead of purchasing fixed-capacity hardware.

Simplifying Equipment Room Organization

Equipment rooms often contain communication hardware from multiple systems.

Without careful planning, racks can become crowded with standalone devices, individual power supplies, and numerous interconnecting cables.

Using a centralized rackmount chassis helps organize compatible video-over-fiber modules into a single location.

Potential advantages include:

• Cleaner rack layouts
• Easier cable identification
• Simplified servicing
• Improved accessibility
• More efficient use of rack space

A well-organized equipment rack also makes future expansion and troubleshooting easier as surveillance systems evolve.

Dual Power Supplies for Improved System Reliability

Continuous video operation is important for many surveillance applications.

The VersiVision FVC18 incorporates dual auto-switching 100–240 VAC power supplies that help improve overall system reliability.

According to the product specifications, the dual power supply design reduces the possibility that the failure of a single module will affect the operation of other installed modules.

This architecture helps support continuous operation by allowing the remaining modules within the chassis to continue functioning independently if one module experiences a fault.

As with any surveillance system, overall reliability also depends on the installed modules, connected equipment, power infrastructure, and system design.

Hot-Pluggable Modules Simplify Maintenance

One of the primary advantages of a modular chassis is simplified maintenance.

The FVC18 supports hot-pluggable modules, allowing compatible modules to be installed or replaced without powering down the entire chassis.

For maintenance personnel, this can reduce service interruptions during routine replacement or system upgrades.

In larger surveillance systems where continuous operation is important, minimizing downtime can simplify maintenance scheduling and reduce disruption to other installed modules.

Built for Continuous Operation

Communication equipment installed in centralized equipment rooms often operates continuously.

The FVC18 incorporates two internal cooling fans that help maintain system performance while eliminating the need for periodic maintenance associated with the cooling system.

The chassis is also specified for:

• Operating temperatures from –35°C to +50°C
• Storage temperatures from –40°C to +85°C
• Relative humidity up to 95% non-condensing
• Mean Time Between Failures (MTBF) greater than 100,000 hours

These specifications make the chassis suitable for installation in a wide range of controlled equipment-room environments.

LED Status Indicators Support System Monitoring

Routine maintenance becomes easier when technicians can quickly determine the operating status of installed equipment.

The FVC18 uses the LED indicators located on the installed modules to provide status information for system monitoring and troubleshooting.

Rather than removing equipment during routine inspections, personnel can use these indicators as part of normal maintenance procedures to verify module operation.

Typical Surveillance Applications

Rackmount video-over-fiber chassis are commonly used wherever multiple fiber optic video links are brought together within a centralized equipment room.

Potential applications include:

Commercial Facilities

Large office buildings, corporate campuses, warehouses, and manufacturing facilities often use centralized equipment racks to manage surveillance infrastructure.

Transportation Systems

Airports, rail systems, ports, and traffic management centers may require numerous video transmission links that terminate within a central operations room.

Government Facilities

Government campuses and municipal surveillance installations can benefit from centralized management of multiple video-over-fiber converter modules.

Utilities and Critical Infrastructure

Power generation facilities, substations, water treatment plants, and other infrastructure sites often deploy fiber optic video transmission to monitor remote locations while maintaining centralized equipment rooms.

Campus Security

Universities, hospitals, correctional facilities, and large institutional campuses frequently use centralized surveillance systems where rack organization and future expansion are important considerations.

Regardless of the application, the rackmount chassis serves as the common platform that organizes compatible video-over-fiber modules into a single, easily managed installation.

Why Modular Systems Support Future Growth

Surveillance requirements rarely remain static.

New cameras may be added, additional buildings may be connected, or expanded monitoring areas may require more video transmission capacity.

Because the chassis supports multiple compatible module configurations, organizations can expand their systems by installing additional modules as requirements grow, provided slots remain available.

This modular approach allows surveillance infrastructure to evolve over time without replacing the entire rack-mounted platform.

Planning a Centralized Video-over-Fiber Equipment Room

As surveillance systems expand, equipment rooms often become the central hub for receiving, managing, and distributing video signals from multiple remote locations.

A rackmount chassis helps consolidate compatible video-over-fiber converter modules into a single location, making the equipment room easier to organize and maintain.

A typical centralized installation may include:

• Video-over-fiber converter modules
• Fiber optic patch panels
• Network video recorders (NVRs)
• Video management systems (VMS)
• Ethernet switches
• UPS backup power systems
• Cable management hardware

Each component performs a different function, while the rackmount chassis provides a centralized location for the compatible fiber optic converter modules.

Organizing equipment according to function can simplify future maintenance and system expansion.

Rack Layout and Cable Management

Proper rack organization contributes to the long-term reliability and serviceability of surveillance systems.

As the number of installed video channels increases, cable management becomes increasingly important.

Recommended practices include:

• Clearly labeling every fiber optic connection
• Identifying each converter module
• Separating power and communication cabling where practical
• Maintaining accurate rack documentation
• Providing adequate service loops for fiber cables
• Using horizontal and vertical cable managers
• Keeping patch cords organized and accessible

Well-organized equipment racks reduce installation errors and simplify troubleshooting when future maintenance is required.

Planning Module Capacity

One advantage of the FVC18 chassis is its ability to accommodate different combinations of compatible one-, two-, four-, and eight-channel video and video/data modules.

Before selecting modules, it is helpful to estimate both current and future system requirements.

Consider questions such as:

• How many cameras will be installed initially?
• Will additional cameras be added later?
• Which camera locations require video and data transmission?
• Will separate buildings be connected in the future?
• Is spare chassis capacity desirable for expansion?

Planning for reasonable future growth can help avoid unnecessary equipment replacement as surveillance requirements evolve.

Supporting Video and Video/Data Applications

Not every surveillance installation has identical communication requirements.

Some cameras only require video transmission.

Other installations, particularly those using PTZ (pan-tilt-zoom) cameras, may require both video and control data.

The FVC18 supports compatible video modules as well as video/data modules, allowing systems to be configured according to the communication requirements of each installation.

Selecting the appropriate module type depends on the specific camera equipment and system architecture.

Improving Long-Term Serviceability

Ease of maintenance is an important consideration in larger surveillance systems.

Housing compatible converter modules within a centralized chassis simplifies many routine service tasks.

Examples include:

• Module replacement
• System inspection
• Equipment identification
• Cable verification
• Preventive maintenance

Because the FVC18 supports hot-pluggable modules, compatible converter cards can be replaced without shutting down the entire chassis.

This feature can help reduce maintenance interruptions while allowing other installed modules to remain operational.

Power System Considerations

Power reliability is an important part of surveillance system design.

The FVC18 incorporates dual auto-switching AC power supplies designed to improve overall system reliability.

When planning an installation, additional considerations may include:

• Uninterruptible Power Supplies (UPS)
• Surge protection
• Rack power distribution
• Generator backup (where applicable)
• Proper electrical grounding

These elements work together to support continuous operation of the overall surveillance infrastructure.

Environmental Considerations

Equipment should always be installed within the environmental limits specified by the manufacturer.

According to the FVC18 specifications, the chassis supports:

• Operating temperatures from –35°C to +50°C
• Relative humidity up to 95% non-condensing

Even within these specifications, equipment rooms should provide:

• Adequate airflow
• Proper ventilation
• Clean operating conditions
• Accessible service space

Maintaining a suitable installation environment helps support long-term equipment performance.

Common Planning Mistakes

Proper planning helps ensure that the rackmount chassis is used effectively within the overall surveillance system.

Some common mistakes include:

Choosing Too Little Capacity

Selecting a chassis configuration without considering future expansion may require additional hardware sooner than expected.

Ignoring Rack Organization

Poor cable routing and inadequate labeling can make future maintenance significantly more difficult.

Overlooking Power Planning

Although the chassis provides centralized power for installed modules, the overall rack still requires appropriate power distribution and backup planning.

Using Incompatible Modules

Only compatible converter modules should be installed within the chassis.

Always verify module compatibility before deployment.

Neglecting Documentation

Maintaining current rack layouts, module assignments, and fiber routing documentation simplifies future service and expansion.

Selecting the Right Rackmount Chassis

When evaluating a rackmount solution, consider the following questions:

• How many video channels are required today?
• How much future expansion is anticipated?
• Which converter modules will be installed?
• Will video/data modules be needed?
• Is centralized equipment management preferred?
• Does the installation require continuous operation?
• Is rack space limited?
• How will the equipment room be organized?

Answering these questions helps ensure that the selected chassis supports both current operational requirements and future growth.

Why Centralized Converter Systems Matter

Large surveillance systems often continue expanding for years.

Adding cameras, extending fiber connections, and upgrading monitoring equipment can gradually increase system complexity.

A centralized rackmount chassis provides an organized foundation that allows compatible video-over-fiber converter modules to be managed within a single enclosure.

Instead of maintaining numerous standalone converter units throughout an equipment room, technicians can manage a centralized installation designed for easier servicing and future expansion.

This modular approach can reduce equipment clutter while improving accessibility for routine maintenance and upgrades.

Frequently Asked Questions

Can different module types be installed in the same chassis?

Yes. The FVC18 is designed to accommodate compatible combinations of one-, two-, four-, and eight-channel video modules as well as video/data modules.

Does replacing one module require shutting down the chassis?

No. The installed modules are hot-pluggable, allowing compatible modules to be replaced without powering down the entire chassis.

Does the chassis include its own power supplies?

Yes. The FVC18 incorporates dual auto-switching AC power supplies that support the installed modules.

Can the chassis be expanded later?

Provided empty slots remain available, additional compatible modules can be installed as surveillance requirements grow.

Is the chassis intended for standard equipment racks?

Yes. The FVC18 is designed for installation in a standard 19-inch rackmount environment.

Conclusion

As surveillance systems grow, organizing video-over-fiber infrastructure becomes increasingly important. A centralized rackmount chassis helps simplify installation by consolidating compatible converter modules into a single, organized platform.

The VERSITRON VersiVision FVC18 supports up to eighteen compatible one-, two-, four-, and eight-channel video modules and video/data modules within a standard 19-inch rackmount enclosure. Features including dual auto-switching power supplies, hot-pluggable modules, integrated cooling, and LED status indicators are designed to support reliable operation while simplifying maintenance and future system expansion.

Whether deployed in commercial facilities, transportation systems, utilities, government installations, or campus surveillance environments, a centralized rackmount chassis can improve equipment organization, streamline servicing, and provide a scalable foundation for growing video-over-fiber networks.

By matching the chassis with the appropriate converter modules and planning for future expansion, organizations can build surveillance infrastructures that are easier to maintain, more organized, and better prepared to support long-term operational requirements.
