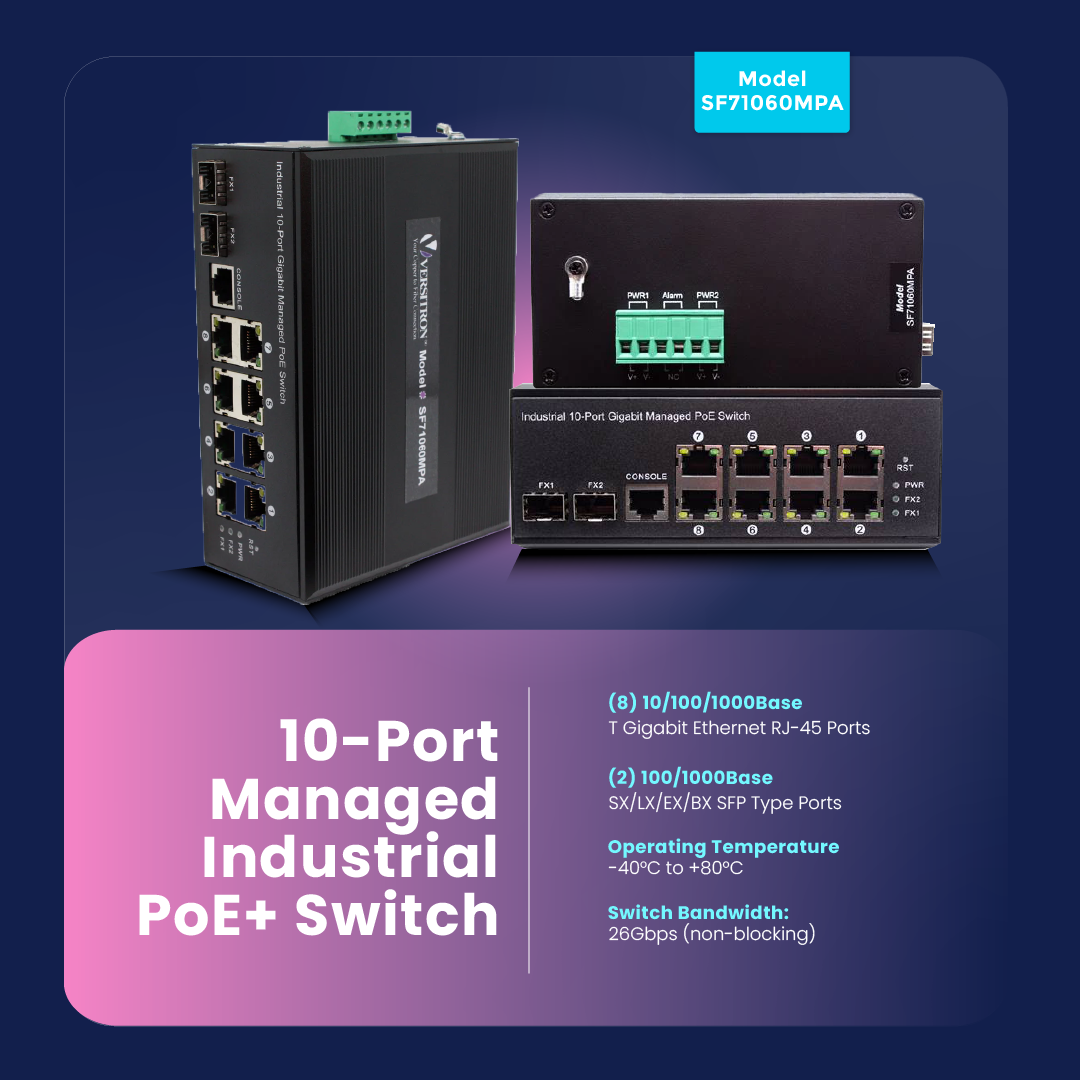

10-Port Managed Industrial PoE+ Switch | 8-RJ45 Ethernet Ports, 2-SFP Fiber Ports

For efficient and reliable connectivity from the network edge device to a backbone switch or server, the PoE/PoE+ managed Gigabit switch is designed to extend existing LANs through two 100/1000Base-SX/LX SFP interfaces using either one or two multimode or singlemode fibers. Full power PoE-at (30W) is applied to all eight ports with no power sharing and added port circuit protection isolates and prevents power interference between ports. This switch is a fully managed Layer 2 switch not only incorporating the industry standard Rapid Spanning Tree Protocol (IEE802.1w RSTP) but also a rapid ring recovery protocol enabling operational network recovery in the event of a network or power system failure. 10 Port Fiber and Ethernet switches are also designed with a redundant power supply to further enhance network reliability and stability. Housed in DIN rail or wall mountable enclosures, the ruggedized poe switch is well suited for harsh environments such as industrial security, system automation applications and ITS.

Typical Applications

• PoE/PoE+ operation of IP Cameras, with pan-tilt-zoom capability
• PoE/PoE+ operation of IP cameras with heated/cooled housings
• PoE/PoE+ operation of transportation-specific/ITS field equipment
• Any networks using Power over Ethernet devices such as IP cameras, intercoms, access control, telephones, variable message signs, etc.

Explore More 10-Port Switches:

• 10-Port Managed Industrial Switch with ST Connectors
• 10-Port Managed Industrial Switch
• 10-Port Managed PoE Switch
• 10-Port Unmanaged Switch
• 10-Port Unmanaged Industrial Switch

• 8-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Ports
• 2-Port 100/1000Base-SX/LX/EX/BX SFP Type Ports
• PoE Compatible: IEEE 802.3af and 802.3at compliant for PoE and PoE Plus
• Non-blocking store-and-forward switching
• RJ45 Port Supports 10/100/1000Mbps‐Full/Half‐duplex, Auto‐negotiation, Auto‐MDI/MDIX
• Prevents Packet Loss w/Back Pressure (Half‐Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full‐Duplex)
• Available for operation in Ring or point-to-point configuration
• Real-time monitoring via Embedded Surveillance Device Management System
• Uses interchangeable SFP for fiber type, distance and connector (Ordered separately).
• Distances up to 100 km with optional SFPs
• Available for operation over single mode or multimode fiber over a variety of link budget
• Available for operation over 1 or 2 fibers
• No in-field optical adjustment required
• Redundant dual power supply inputs 48/52 VDC
• 4KV Ethernet Surge Protection for harsh environment
• -40°C to 80°C (-40°F to 176°F) wide range operating temperature
• Compact, corrosion resistant case attaches to a standard DIN Rails

10-Port Managed Industrial PoE/PoE+ Switch (SF71060MPA) Review

10 Port Managed Industrial PoE+ Switch is used across the following Industries:

Versitron is one of the leading 10 Port Managed Industrial PoE+ Switch manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 10 Port Managed Industrial PoE+ Switch from VERSITRON at a Competitive Price!!
