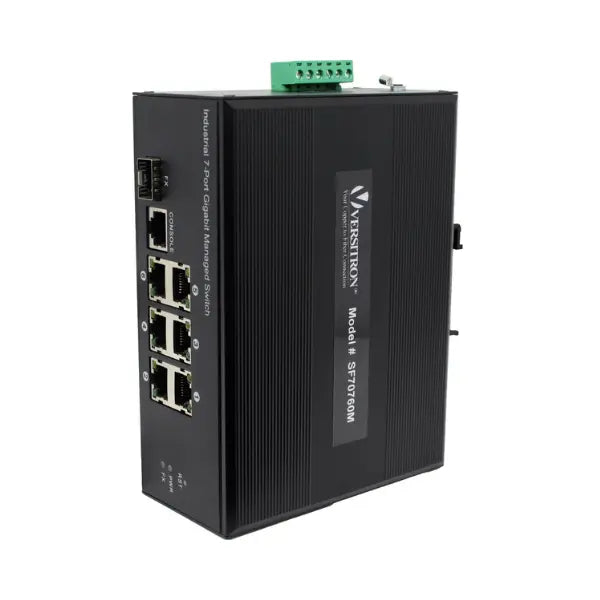

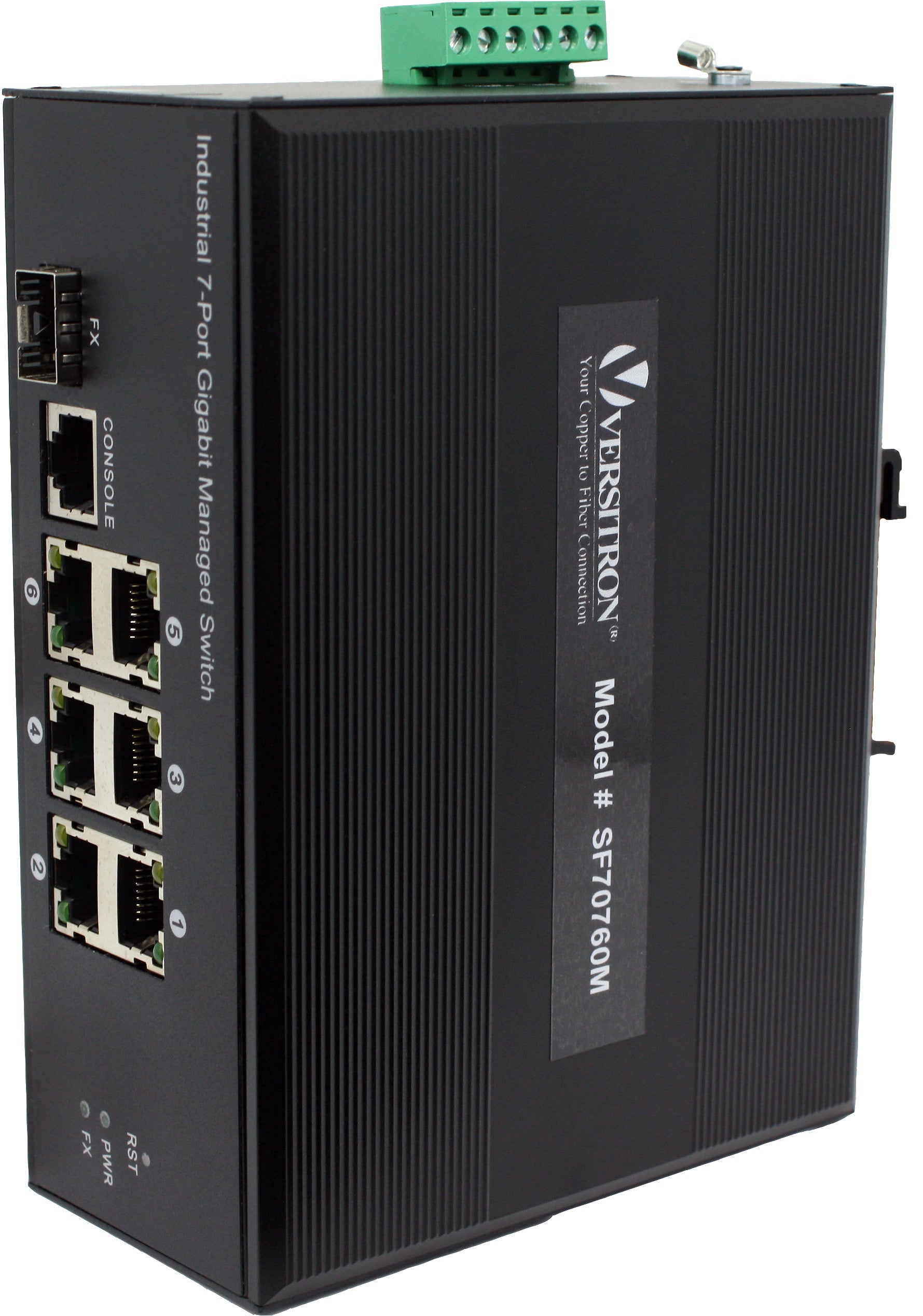

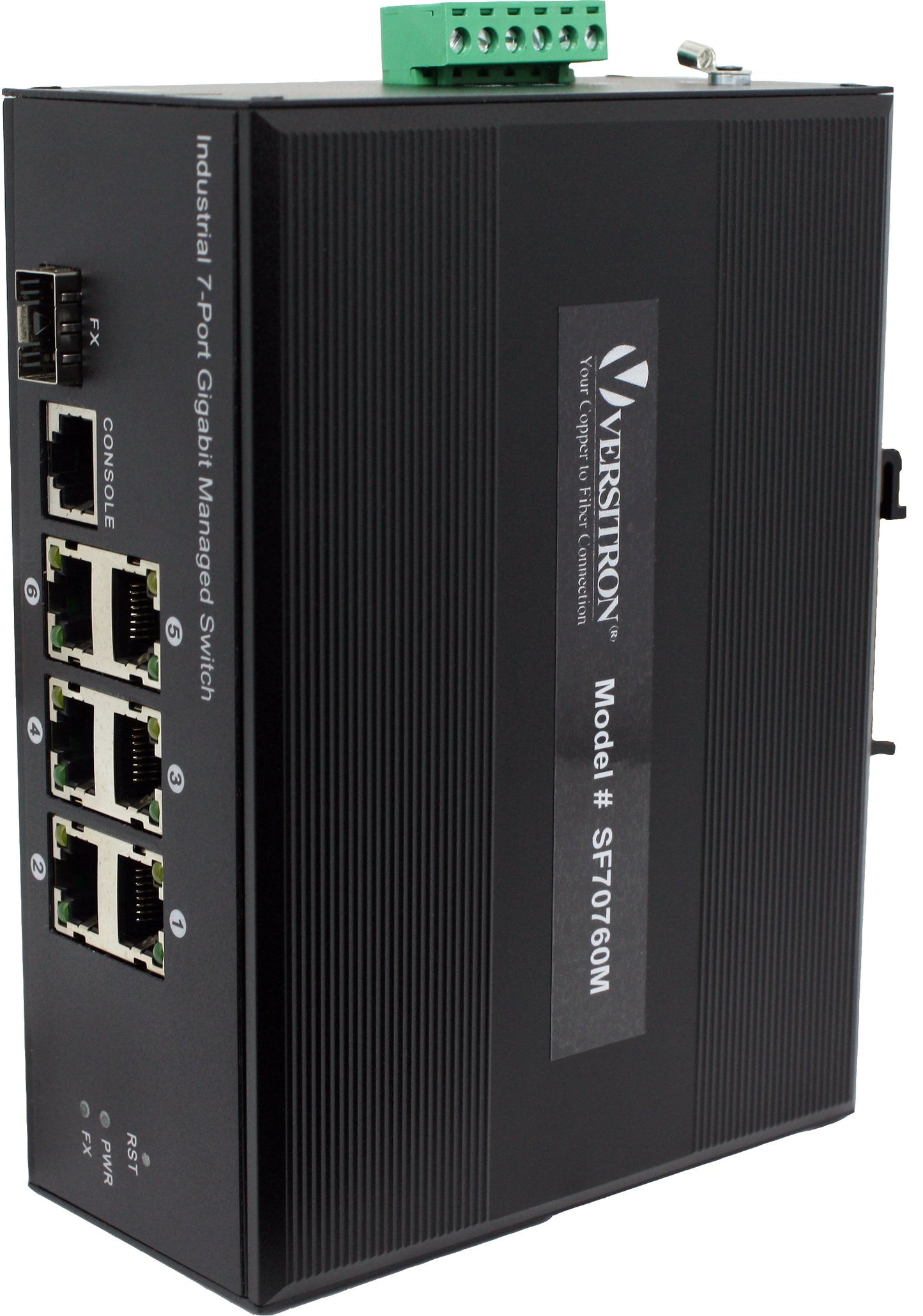

7-Port Managed Industrial Switch | 6-RJ45 Ethernet Ports, 1-SFP Fiber Port

Managed Gigabit Ethernet for Industrial Networks

The SF70760M combines six Gigabit-capable copper Ethernet ports with a flexible 100/1000Mbps SFP fiber interface in a compact industrial switch.

The six RJ-45 ports support 10/100/1000Mbps operation with auto-negotiation and auto-MDI/MDI-X, while the SFP interface supports 100/1000Mbps fiber connectivity using a compatible optical module.

This configuration allows the SF70760M to connect multiple local Ethernet devices while providing a fiber-optic connection to a backbone, remote network segment, or other fiber-connected equipment.

17Gbps Non-Blocking Switching Performance

The SF70760M provides 17Gbps non-blocking switching capacity using a store-and-forward switching architecture.

The switch also supports:

• 8K MAC address table
• Jumbo frames up to 9.6K bytes
• IEEE 802.3x pause-frame flow control for full-duplex operation
• Back-pressure flow control for half-duplex operation
• Auto-negotiation
• Auto-MDI/MDI-X

These capabilities provide efficient traffic forwarding between the switch's copper and fiber interfaces.

Flexible SFP Fiber Connectivity

The SF70760M includes one 100/1000Mbps SFP fiber slot, allowing the switch to connect to multimode or single-mode fiber infrastructure using a compatible SFP module.

VERSITRON's documented SFP options include:

• 100Mbps multimode fiber up to 550 meters
• 100Mbps multimode fiber up to 2 km
• 100Mbps single-mode fiber up to 10 km
• Gigabit multimode fiber up to 550 meters
• Gigabit multimode fiber up to 2 km
• Gigabit single-mode fiber from 10 km through 100 km
• Bi-directional single-mode Gigabit options from 10 km through 80 km
• CWDM and DWDM options

The appropriate SFP should be selected based on the required transmission speed, fiber type, distance, wavelength, and optical link requirements.

Multiple Network Management Options

The SF70760M provides multiple interfaces for configuring and monitoring the network.

Management options include:

• Console
• CLI
• Telnet
• Web management
• SSH/SSL
• SNMP v1, v2c, and v3c

Port-management functions include port enable/disable, auto-negotiation, full- and half-duplex selection, and flow-control configuration.

These capabilities allow network administrators to configure, monitor, and manage the switch according to the requirements of the network.

VLAN Support for Network Segmentation

The SF70760M provides extensive VLAN functionality for organizing and separating network traffic.

Supported VLAN functions include:

• IEEE 802.1Q tag-based VLAN
• Up to 256 VLAN groups
• Up to 4094 VLAN IDs
• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN
• Multiple VLAN Registration (MVR)
• Q-in-Q tunneling
• Access, trunk, and hybrid port configurations

These capabilities provide flexibility for segmenting devices and traffic across industrial Ethernet networks.

Quality of Service and Bandwidth Control

The SF70760M provides eight QoS priority queues and supports traffic classification using IEEE 802.1p and IP DSCP.

The switch also provides ingress and egress rate control for managing available network bandwidth.

These capabilities allow administrators to prioritize selected traffic and manage network resources according to application requirements.

Link Aggregation

The SF70760M supports IEEE 802.3ad LACP and static trunking with up to five aggregation groups.

Link aggregation provides additional flexibility when designing network connections with compatible Ethernet equipment.

Network Redundancy and Spanning Tree Support

The SF70760M supports STP, RSTP, and MSTP for network topology management and loop prevention.

The switch also supports point-to-point and ring configurations, providing options for designing industrial networks with redundant communication paths.

These capabilities are useful in industrial environments where maintaining network connectivity following a link or equipment failure is important.

Port Mirroring and Network Monitoring

The SF70760M supports TX/RX many-to-one port mirroring, allowing traffic from selected ports to be copied to another port for network monitoring and troubleshooting.

Combined with its web, SNMP, Telnet, CLI, and console management interfaces, this provides administrators with greater visibility into network operation.

Multicast Traffic Management

The SF70760M supports IGMP/MLD Snooping versions 1, 2, and 3 with query support.

Multicast management helps control the distribution of multicast traffic across the network and can be useful for applications that transmit shared data streams to multiple receiving devices.

Access Control and Network Security

The SF70760M provides IP-based and MAC-based Access Control Lists (ACLs) with support for up to 256 ACL entries.

These functions provide network administrators with additional tools for controlling network traffic and managing access to connected devices and network resources.

Dual DC Power for Industrial Reliability

The SF70760M is equipped with dual 9–52VDC power inputs with auto-sensing capability.

Dual power inputs provide a redundant power option for installations where maintaining switch operation during a power-source failure is important. The switch has a listed full-load power consumption of only 9 watts.

Built for Harsh Industrial Environments

The SF70760M incorporates several features designed for demanding industrial installations:

• 4KV Ethernet surge protection
• Dual DC power inputs
• IP44 metal enclosure
• Corrosion-resistant construction
• Industrial-rated emission and immunity performance
• DIN-rail mounting
• -40°C to +80°C operating temperature
• 100,000-hour MTBF

The combination of electrical protection, redundant power, rugged construction, and extended temperature operation makes the SF70760M well suited for industrial network environments where standard commercial Ethernet equipment may not be appropriate.

Compact DIN-Rail Design

The SF70760M measures approximately 6.14 × 4.52 × 2.36 inches and is housed in an IP44 metal enclosure designed for DIN-rail installation.

Its compact form factor allows the switch to be installed in industrial control cabinets, equipment enclosures, transportation systems, and other space-conscious network environments.

Typical Applications

The SF70760M is designed for industrial Ethernet applications requiring managed switching, copper-to-fiber connectivity, and ruggedized operation.

Typical applications include:

• Industrial automation
• Factory and manufacturing networks
• Industrial IP communications
• IP surveillance networks
• Security and access-control systems
• Transportation and ITS networks
• Telecommunications
• Industrial control networks
• Fiber-connected remote equipment
• Point-to-point network connections
• Redundant ring network architectures
• Harsh-environment Ethernet networks

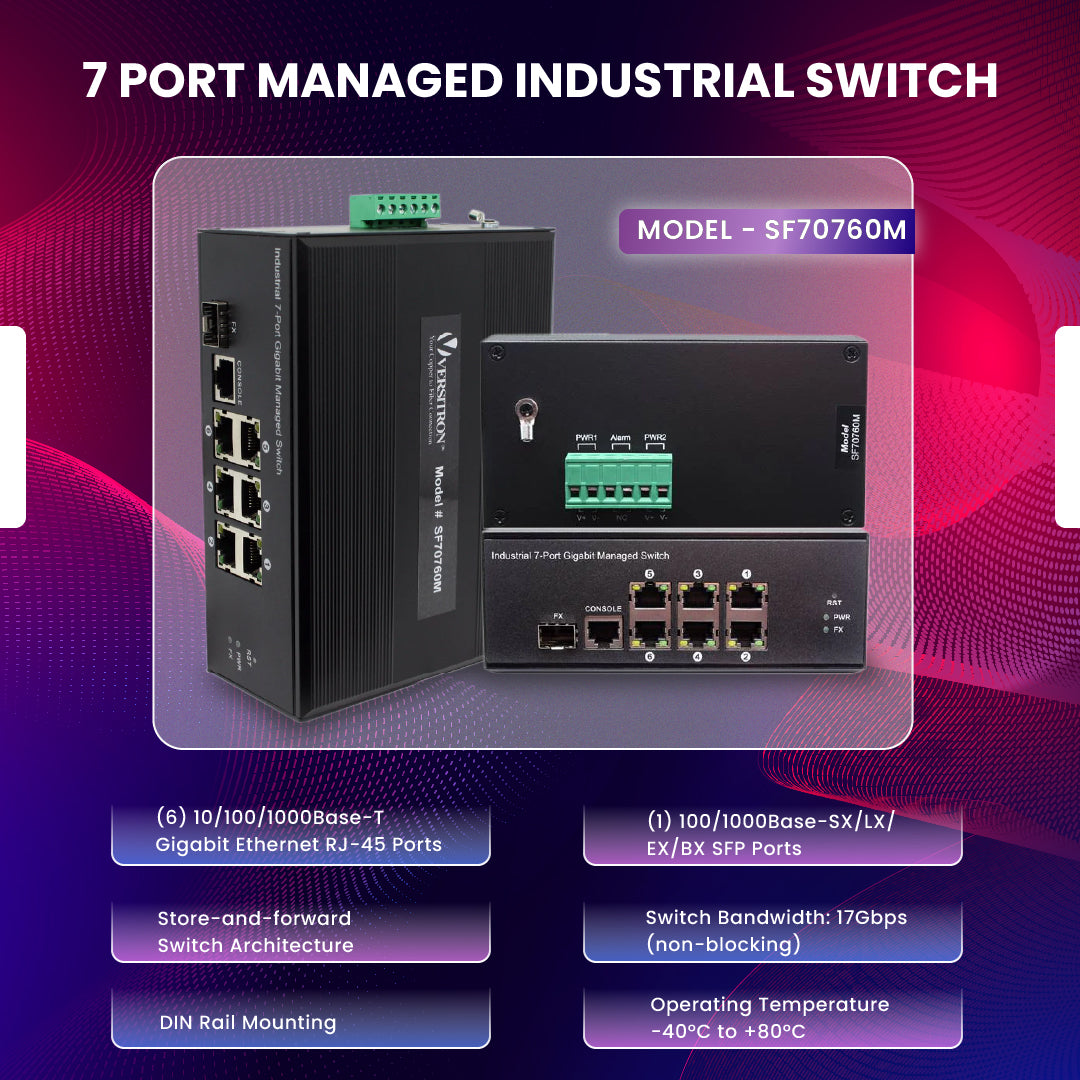

Technical Capabilities

The SF70760M supports:

• 6 × 10/100/1000Mbps RJ-45 ports
• 1 × 100/1000Mbps SFP slot
• 17Gbps non-blocking switching capacity
• Store-and-forward switching
• 8K MAC address table
• 9.6K-byte jumbo frames
• IEEE 802.3x flow control
• Console, CLI, Telnet, Web, SSH/SSL, and SNMP management
• IEEE 802.1Q VLAN
• Up to 256 VLAN groups and 4094 VLAN IDs
• Port-, MAC-, and protocol-based VLAN
• MVR and Q-in-Q tunneling
• LACP and static trunking
• Up to 5 aggregation groups
• 8 QoS priority queues
• IEEE 802.1p and IP DSCP traffic classification
• IGMP/MLD Snooping v1/v2/v3
• Port mirroring
• Ingress/egress bandwidth control
• IP- and MAC-based ACL
• Up to 256 ACL entries
• STP, RSTP, and MSTP
• Point-to-point and ring configurations

Electrical, Mechanical, and Environmental Specifications

Why Choose the VERSITRON SF70760M?

The SF70760M combines managed Gigabit Ethernet switching, flexible SFP fiber connectivity, network redundancy, advanced traffic management, redundant power, and rugged industrial construction in a compact 7-port platform.

Its six Gigabit copper ports provide connectivity for local Ethernet equipment, while the SFP interface provides a flexible connection to multimode or single-mode fiber infrastructure. Layer 2 management capabilities provide additional control over VLANs, QoS, multicast traffic, link aggregation, access control, and network redundancy.

For demanding industrial installations, the combination of dual DC power, 4KV surge protection, an IP44 metal enclosure, DIN-rail mounting, and -40°C to +80°C operation provides the environmental and electrical protection needed for reliable network deployment.

VERSITRON Fiber Optic and Ethernet Solutions Since 1958

Since 1958, VERSITRON has provided fiber optic and Ethernet communication solutions for industrial, telecommunications, surveillance, transportation, and other demanding network applications.

The SF70760M combines that experience with managed Gigabit Ethernet switching, flexible fiber connectivity, network management, and rugged industrial construction.

For pricing, availability, SFP selection, or assistance determining the appropriate configuration for your network, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• 6-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Ports
• 1-Port 100/1000Base-SX/LX/EX/BX SFP Type Ports
• Non-blocking store-and-forward switching
• RJ45 Port Supports 10/100/1000Mbps‐Full/Half‐duplex, Auto‐negotiation, Auto‐MDI/MDIX
• Prevents Packet Loss w/Back Pressure (Half‐Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full‐Duplex)
• Available for operation in Ring or point-to-point configuration
• Real-time monitoring via Embedded Surveillance Device Management System
• Uses interchangeable SFP for fiber type, distance and connector (Ordered separately).
• Distances up to 100 km with optional SFPs
• Available for operation over single mode or multimode fiber over a variety of link budget
• Available for operation over 1 or 2 fibers
• No in-field optical adjustment required
• Redundant dual power supply inputs 48/52 VDC
• 4KV Ethernet Surge Protection for harsh environment
• -40°C to 80°C (-40°F to 176°F) wide range operating temperature
• Compact, corrosion resistant case attaches to a standard DIN Rails
