Technical Specification
Key Features
Applications
Network Ports 8-10/100 Copper Ports (RJ-45) with Auto-Negotiate, Auto-MDI/MDI-X
Network Cables 10Base-T: Cat.3, 4, 5, or higher up to 100 meters
MAC Address Table 1K Entries
Management Support SNMP MIB-II and private MIB, telnet, web-based, event traps
VLAN Port-Based VLAN, 802.1Q Tag-Based VLAN
Qos Port-Based, 802.1p-Based, DSCP-Based, IP Match-Based
LED Indication Per Unit: Power, Management
Relay Output Alarm: Power Failure

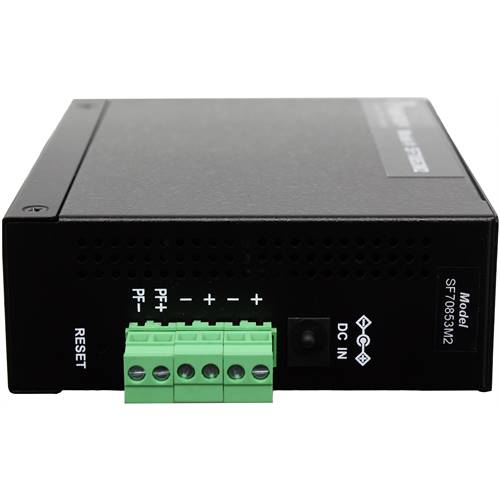

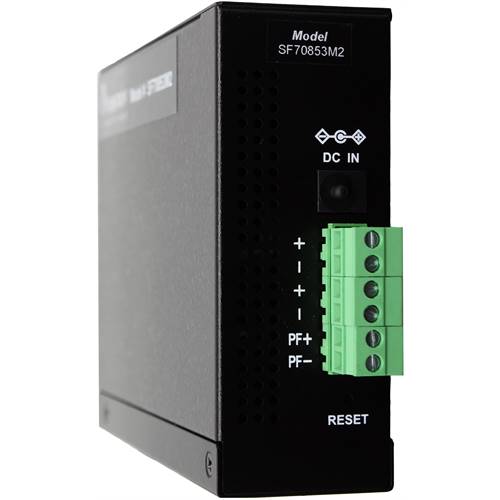

DC Power Input Screw terminal block: 2 pairs of +/- contacts
Power Consumption 7.3W max.
Dimensions 5.51 x 4.17 x 1.57 inches (WxDxH)
Environment Operating Temperature: -20°C ~ +70°C

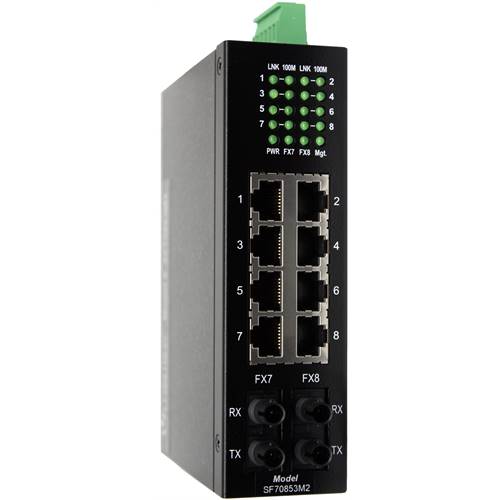

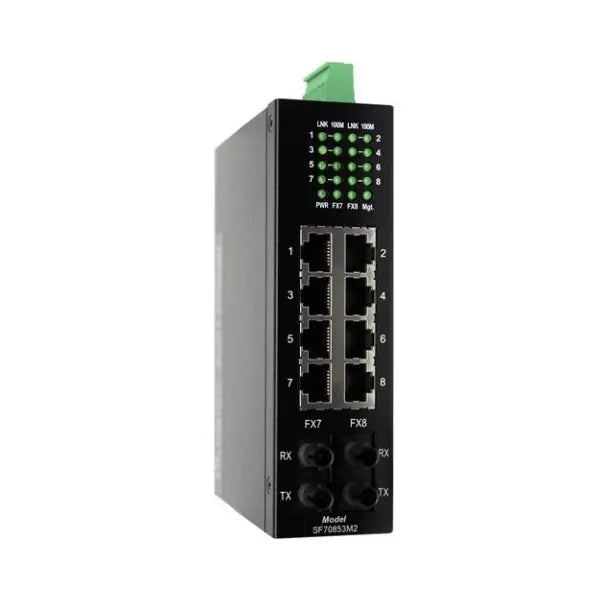

8-10/100Base Ethernet ports with auto-negotiation and auto-MDI/MDI-X
Ports 7 & 8 provide either copper or fiber connectivity
Wire speed store-and-forwarding switching
Supports 802.3x flow control for duplex operation
Supports back-pressure flow control for half-duplex operation
Provides Far End Fault function on the fiber ports
Supports DHCP mode for IP configuration
Provides port-based, 802.1Q tag-based VLAN function
Provides port-based, 802.1Q DSCP QoS function
SNMP, telnet, Web management support
Supports industrial redundant ring configuration
Industrial rated Emission and Immunity performance
Supports DIN rail mounting and Panel mounting
Provides WDT (Watchdog Timer)
10 Port Managed Industrial Switch is used across the following Industries:
Industrial Automation & Manufacturing
Factory floor control cabinets
Robotic assembly lines
Harsh environment production zones
PLC and SCADA system backbones
Industrial sensor and actuator networks
Military & Defense
Tactical communication nodes
Fiber-linked command shelters
Hardened perimeter control stations
Secure VLAN-segmented field networks
Naval dockside switchgear
Transportation & Railways
Trackside control enclosures
Signal light communication cabinets
Railway depot network cabinets
Remote crossing equipment stations
Tunnel and station fiber networking
Utilities & Power Distribution
Power substation SCADA links
Electrical cabinet data aggregation
Renewable energy field cabinets
Water treatment facility control rooms
Utility pole-mounted networking hubs
Construction & Infrastructure
Temporary site telecom panels
Tunnel construction monitoring boxes
Crane and lift network points
Roadway or bridge fiber relay points
Smart infrastructure enclosures
Public Safety & Emergency Response
Fire command network enclosures
Disaster recovery communication kits
Emergency ops center (EOC) fiber uplinks
Highway safety system cabinets
Remote first responder data hubs
Smart Cities & Municipal Infrastructure
Traffic control cabinet backbones
Citywide surveillance switch enclosures
Public alert and siren fiber networks
Smart streetlight network hubs
IoT-based infrastructure nodes
Enterprise & Campus Networks
Building-to-building fiber aggregation
VLAN-segmented IDF closets
Secure access control switch points
Fiber uplinks for warehouse facilities
Executive branch network segregation
Research Labs & Scientific Facilities
EMI-sensitive equipment isolation areas
Cleanroom control cabinets
Lab automation and sensor arrays
Multi-building research data links
Secure VLAN zones for research teams
Maritime & Offshore
Port crane communication systems
Ship-to-shore fiber switchboards
Dockside vessel connectivity hubs
Offshore rig network panels
Naval support yard communications
Healthcare & Medical Facilities
Inter-building fiber backbone for hospitals
Network isolation in surgical clean zones
Medical equipment room switches
Redundant VLAN switches for nurse stations
Emergency room and ICU data distribution
Education & Campus Networks
Fiber aggregation in multi-building school campuses
Network closets in high-EMI lab buildings
IDF switches for engineering or research departments
Secure VLAN separation for admin and student zones
Dormitory and remote facility uplinks
Versitron is one of the leading 10 Port Managed Industrial Switch manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
Buy the Best 10 Port Managed Industrial Switch from VERSITRON at a Competitive Price!!
