RS-530 to Fiber Converter | RS-530 Fiber Optic Modem (Circuit Card Design)

Extend RS-530 Communications Over Fiber

The F282xD Series is a circuit-card fiber optic modem designed to extend RS-530 serial communications over fiber. It provides fully transparent transmission of data, clock, and control signals, allowing RS-530 equipment to communicate across fiber optic links while maintaining the characteristics of the original serial interface.

The F282xD multiplexes control signals together with clock and data signals for transmission to the remote modem. At the remote end, the combined signal is de-multiplexed and applied to the interface.

High-Speed RS-530 Fiber Optic Transmission

The F282xD supports data rates up to 5 Mbps, making it suitable for RS-530 applications requiring substantially higher data rates than the 128 Kbps capability of the F280xD.

The modem supports synchronous, asynchronous, and isochronous transmission in either full-duplex or simplex operation. Terminal timing supports data rates up to 5 Mbps, while source timing supports rates up to 1 Mbps.

Flexible Interface and DCE/DTE Configuration

The F282xD supports multiple serial interface standards, including:

• RS-530
• RS-422
• RS-449
• V.35
• MIL-STD-188-114A

The DCE/DTE configuration is switch selectable, providing flexibility when connecting different types of serial communications equipment. The electrical interface uses a 25-pin female DB25 connector, while the fiber interface uses an LC connector.

Multimode and Singlemode Fiber Options

The F282xD is available in two primary fiber configurations:

• F2822D — RS-530/RS-422/RS-449/V.35/MIL-STD-188-114A fiber optic modem, LC, multimode, 1310 nm, up to 2 km
• F2825D — RS-530/RS-422/RS-449/V.35/MIL-STD-188-114A fiber optic modem, LC, singlemode, 1310 nm, up to 20 km

The datasheet also notes that distances to 120 km are available for applicable configurations. Contact VERSITRON for details on extended-distance requirements.

Four-Channel Data Multiplexer Capability

In addition to operating as a fiber optic modem, the F282xD can be used as a four-channel synchronous/asynchronous data multiplexer.

The datasheet describes the F282xD as having an eight-channel data multiplexer, with four channels in each direction. Control signals, clock, and data can be multiplexed and transmitted over the fiber link before being de-multiplexed at the remote unit.

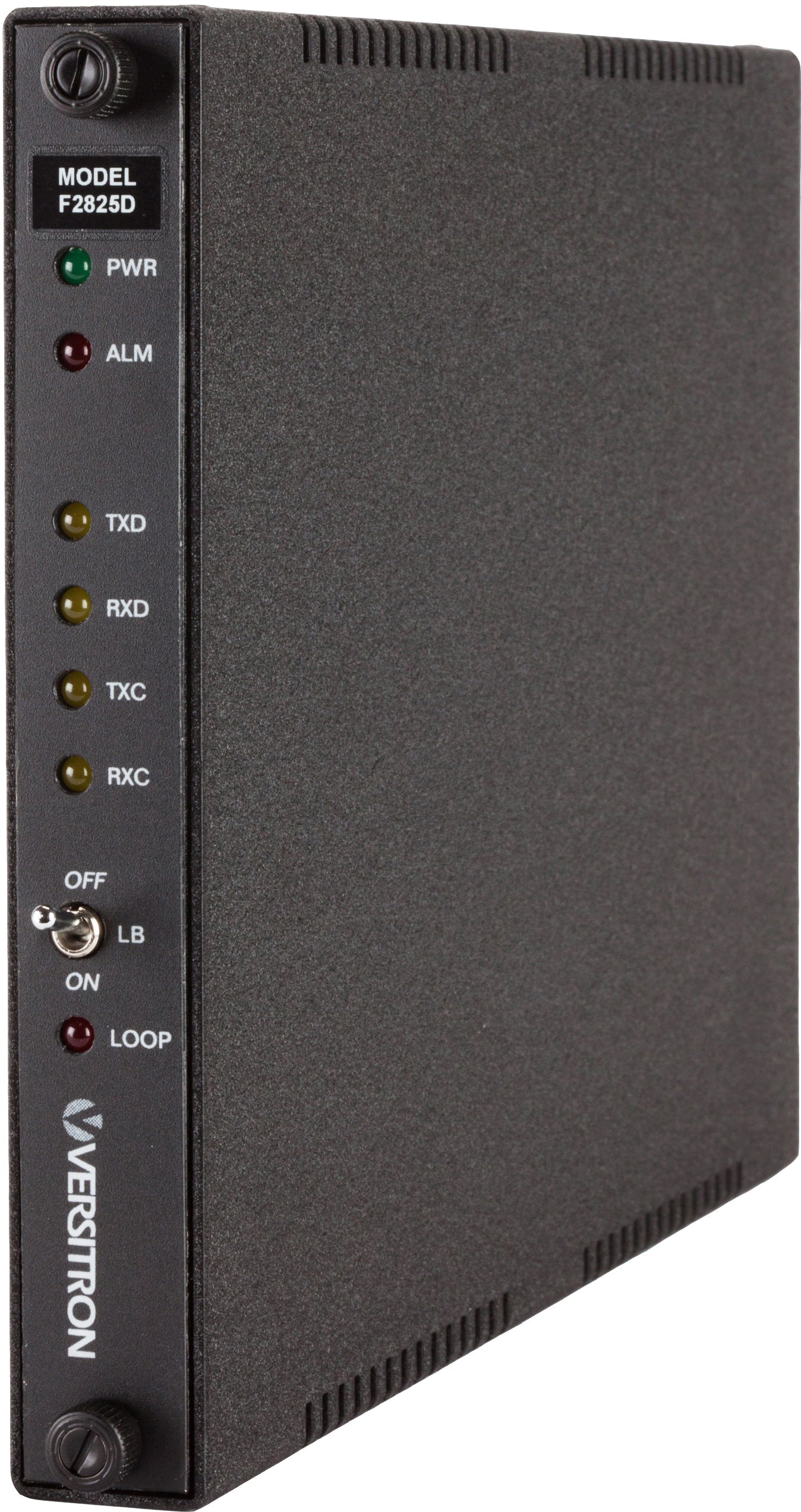

Seven LED Indicators for System Monitoring

The F282xD provides seven indicators for monitoring modem operation and link activity:

• PWR — Power
• ALM — Alarm
• TXD — Transmit Data
• RXD — Receive Data
• TXC — Transmit Clock
• RXC — Receive Clock
• LOOP — Loopback

These indicators provide convenient visibility into power, alarm, data, clock, and loopback status.

Circuit Card Design for Flexible Installation

The F282xD is designed for integration into multiple VERSITRON housing and chassis options. Available configurations include:

• HF-1 — Single Card Enclosure
• HF-2SS — 2-Slot 19-inch Rack-Mount Chassis
• HF-20A — 20-Slot 19-inch Rack-Mount Chassis
• VMX20 — 20-Slot 19-inch Rack-Mount VERSIMUX II Chassis

VERSITRON also offers a redundant power supply/system monitor for the HF-20A and VMX20 chassis.

SFP Fiber Optic Module Technology

The F282xD incorporates SFP fiber optic module technology, providing flexibility in configuring the fiber optic interface for the application. SFP technology is identified by VERSITRON as one of the primary features of the FOM II F282xD Series.

RS-530 Fiber Optic Modem Applications

The F282xD Series is suited for applications requiring reliable, high-speed serial communications over fiber, including:

• Long-distance RS-530 communications
• RS-422 and RS-449 serial communications
• V.35 interface applications
• MIL-STD-188-114A applications
• Data terminal and communications equipment
• Rack-mounted serial communication systems
• Multi-channel serial data multiplexing
• Electrically separated serial communication links
• Systems requiring flexible DCE/DTE configuration

The F282xD can also interface with other VERSITRON FOM II F28xxD Fiber Optic Modems as well as the M62xxD and M82xxD Fiber Optic MicroModems.

Why Choose VERSITRON RS-530 Fiber Optic Modems?

The F282xD combines the flexibility of a circuit-card design with high-speed, transparent RS-530 communication over fiber. Its support for multiple serial standards, switch-selectable DCE/DTE operation, source or terminal timing, multiplexing, SFP technology, and multiple enclosure options makes it adaptable to a wide range of serial communication systems.

For applications where a circuit-card or rack-mounted solution is preferred over a compact standalone MicroModem, the F282xD provides a higher-speed alternative within the VERSITRON fiber optic modem family.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for demanding data and communications applications. The F282xD FOM II Series continues that tradition with a flexible fiber optic modem platform designed for reliable RS-530 and related serial communications.

For assistance selecting the appropriate F282xD model, fiber type, enclosure, interface configuration, or multiplexer application, contact VERSITRON for technical support.

General Specifications

Electrical Interface

Fiber Interface
