4-Channel POTS to Fiber Rackmount Installation Kit | ST, SM

Extend POTS Telephone Service Over Singlemode Fiber

The PK4S-RM POTS-to-fiber converter installation kit provides a practical solution for extending analog telephone communications over singlemode fiber. The system converts the POTS connection for transmission over fiber between locations, allowing telephone service to be extended beyond the limitations of copper cabling.

The PK4S-RM uses singlemode duplex fiber with a distance capability of up to 20 km.

FXO and FXS POTS Connectivity

The PK4S-RM uses an FXO/FXS configuration for connecting POTS telephone equipment across the fiber link.

• FXO: Exchange/PBX side
• FXS: Subscriber/telephone side
• Function: POTS
• Fiber: Singlemode
• Fiber configuration: Duplex

The selector guide lists one FXO and one FXS interface for the PK4S-RM configuration.

Singlemode Fiber Transmission

Singlemode fiber provides the extended reach required for longer-distance POTS applications. The PK4S-RM is specified for up to 20 km of singlemode duplex fiber transmission when the appropriate length of fiber optic cable is used.

All units in the VERSITRON 4-channel POTS converter family use LC optical connectors.

Rack-Mount POTS Fiber Installation

The PK4S-RM is designed for rack-mount installation. The selector guide notes that rack-mount kits include one 2-slot chassis and one standalone enclosure, providing flexibility for centralized POTS-to-fiber installations.

POTS to Fiber Applications

The PK4S-RM can be used for:

• PBX-to-remote telephone connections
• Building-to-building telephone links
• Long-distance POTS extensions
• Centralized telephone equipment installations
• Remote subscriber connections
• Commercial and industrial facilities
• Fiber-based telephone infrastructure

Technical Specifications

These specifications are based on the VERSITRON 4-Channel POTS 2-Wire FXO/FXS to Fiber Converter Installation Kits Selector Guide.

Why Choose the VERSITRON PK4S-RM?

The PK4S-RM combines POTS telephone connectivity, FXO/FXS interfaces, 20 km singlemode fiber transmission, and rack-mount installation in one fiber optic telephone solution. It is suited to installations where POTS service needs to be extended over longer distances and the equipment is best located in a centralized rack.

VERSITRON — Safeguarding Communications Since 1958

VERSITRON has been providing fiber optic communication solutions since 1958. Our product portfolio includes fiber optic solutions for voice, video, data, and network communications.

For assistance selecting the appropriate POTS-to-fiber converter, fiber type, or rack-mount configuration, contact VERSITRON for technical support and application guidance.

Technical Specifications of 4 Channel FXO/FXS to Fiber Multiplexer:

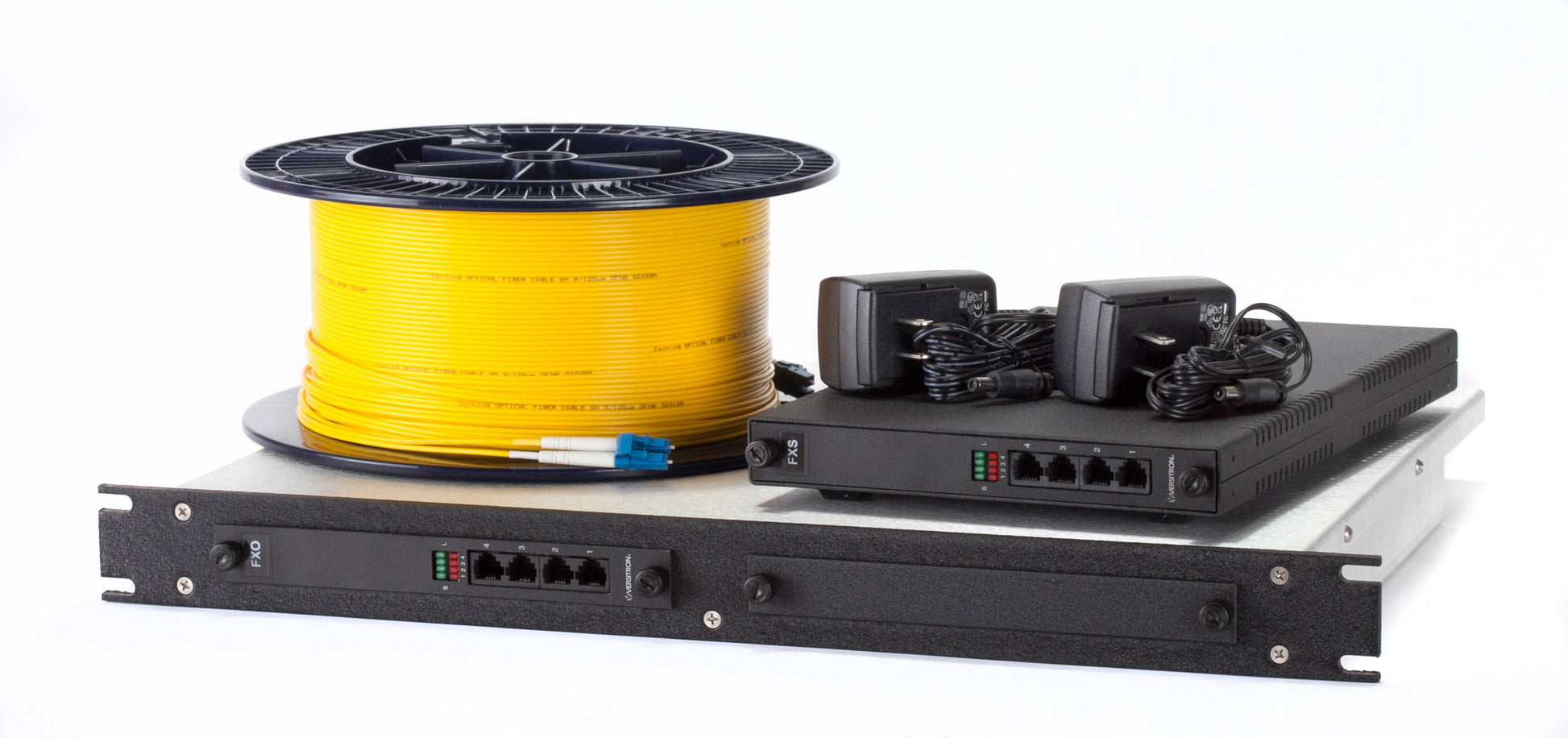

Each Kit Includes:

• FXO Unit
• FXS Unit
• External Power Supplies (90-240VAC)
• 100 Meters (328 ft) of Singlemode Cable - Duplex

As a complete package, you get everything you need in a plug & play solution for your phone-to-fiber requirements and you receive a Lifetime Warranty from a trusted manufacturer since 1958! Contact us for assistance by calling (1-800-537-2296) or opening a chat. We are here to help!

Additional Installation Kits Are Available For:

• 1-Channel Phone
• 1-Channel Phone With RS-485 Data
• 4-Channel Phone Mux
• 8-Channel Phone Mux

4 Channel FXO/FXS to Fiber Multiplexer Installation Kit

• RJ11
• 600 Ohms Impedance
• LED Indicators
• SFP Module Technology
• 300Hz to 3.4KHz
• Rackmount Options Manuals for 2-Wire Products
  (See Bottom of Page)
