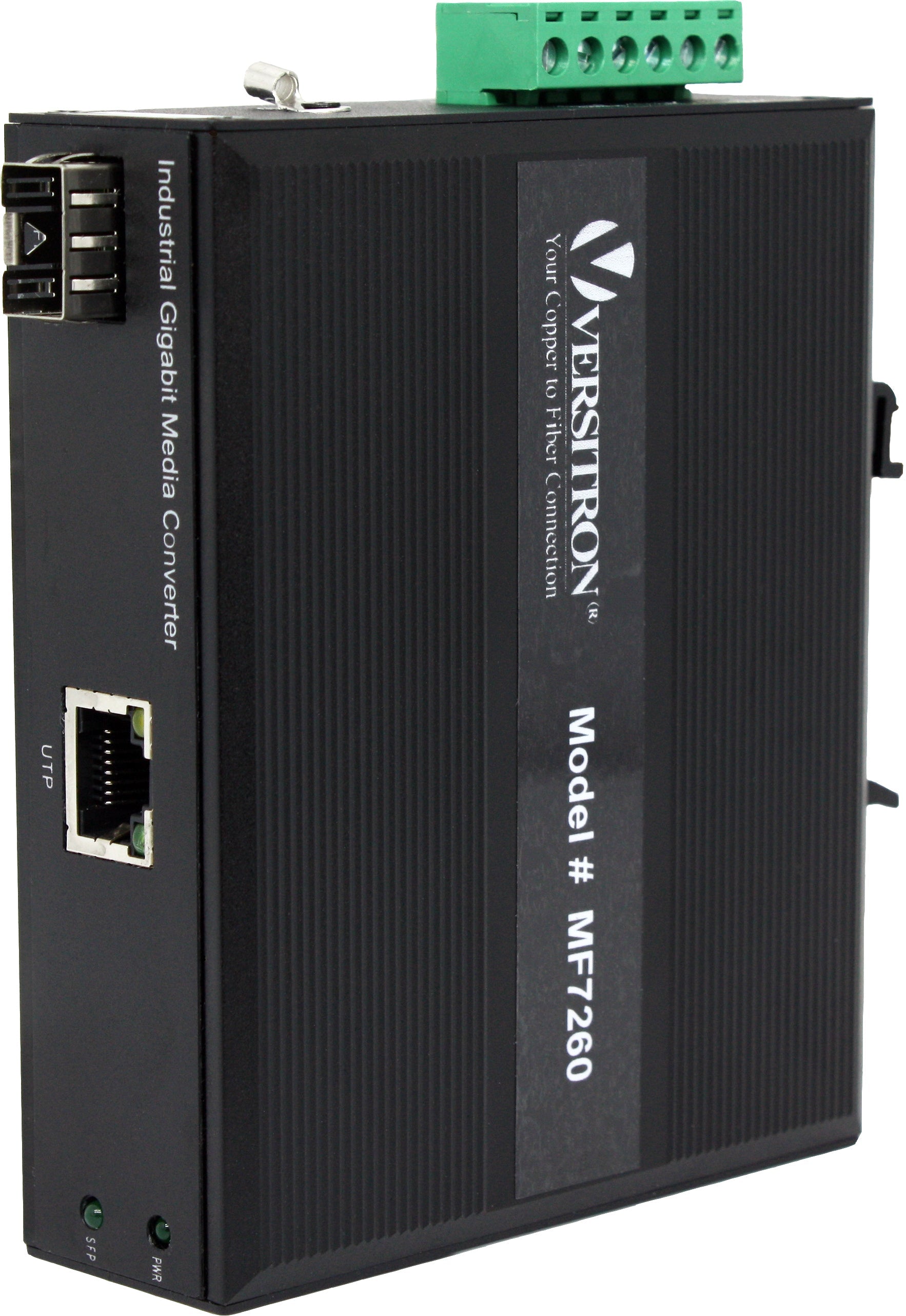

Gigabit Industrial Media Converter | 1-RJ45 Ethernet Port, 1-SFP Fiber Port

Reliable Gigabit Copper-to-Fiber Conversion

The MF7260 Gigabit Industrial Media Converter provides an efficient way to connect copper-based Ethernet equipment to a Gigabit fiber optic network. Its RJ45 port supports 10/100/1000Mbps Ethernet, while the 1000Mbps SFP slot provides flexibility for selecting the appropriate fiber interface.

The converter uses non-blocking store-and-forward switching with a 4Gbps switching capacity, a 4K MAC address table, and support for jumbo frames up to 9.6K bytes. These features provide reliable packet processing for demanding network applications.

The copper Ethernet port supports auto-negotiation and auto MDI/MDI-X, simplifying installation and allowing the converter to automatically adapt to connected Ethernet equipment. Full- and half-duplex operation is supported along with IEEE 802.3x pause-frame flow control and back-pressure.

Flexible SFP Fiber Connectivity

The MF7260 uses a 1000Mbps SFP fiber slot, allowing the fiber interface to be selected based on the requirements of the network. VERSITRON offers compatible SFP modules for multimode, single-mode, and single-fiber applications.

Available SFP configurations include:

• Multimode fiber up to 550 meters
• Multimode fiber up to 2 kilometers
• Single-mode fiber up to 10 kilometers
• Single-mode fiber up to 20 kilometers
• Single-mode fiber up to 40 kilometers
• Single-mode fiber up to 70 kilometers
• Single-mode fiber up to 100 kilometers
• Single-fiber BiDi configurations from 10 to 80 kilometers

CWDM and DWDM modules are also available. SFP modules are sold separately.

Industrial Design for Reliable Network Operation

The MF7260 is engineered for installations where dependable network connectivity is required in demanding environments. Its IP44 metal enclosure provides a rugged housing, while redundant DC power inputs provide additional power redundancy for critical installations.

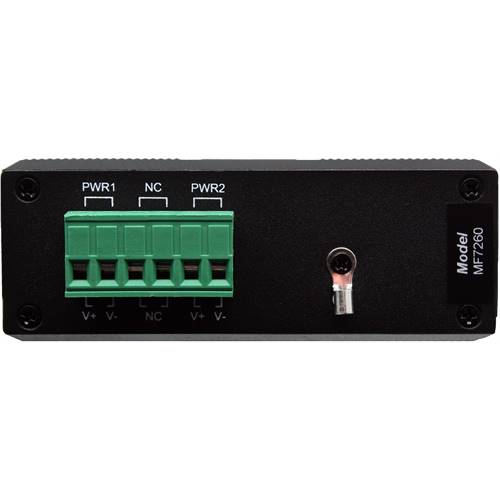

The converter accepts dual 9–52VDC inputs, consumes approximately 4 watts at full load, and supports DIN rail mounting. It is designed to operate from -40°C to +80°C and has an MTBF greater than 100,000 hours.

The MF7260 also incorporates 4KV Ethernet surge protection and industrial-rated emission and immunity performance.

Easy Installation and Network Monitoring

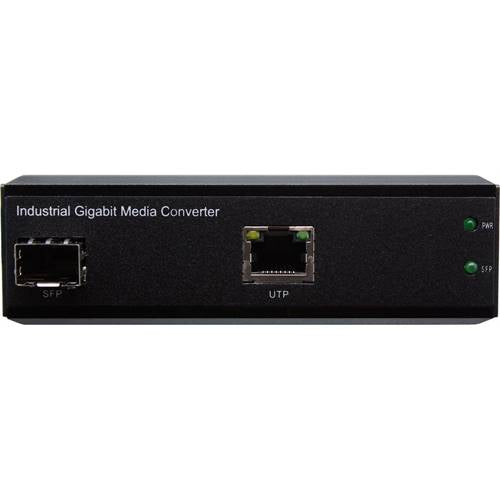

The MF7260 is designed for straightforward installation in industrial network environments. Auto-negotiation and auto MDI/MDI-X simplify copper Ethernet connections, while LED indicators provide local status information for power, copper link/activity, and fiber SFP link/activity.

Its compact industrial enclosure and DIN rail mounting make it well suited for control cabinets, equipment enclosures, and other space-conscious installations.

Typical Applications

• Industrial automation networks
• Industrial security systems
• IP camera and surveillance networks
• Intelligent Transportation Systems (ITS)
• Traffic monitoring and control
• Manufacturing facilities
• Remote Ethernet equipment
• Fiber network extensions
• Building-to-building connectivity
• Utility and energy networks
• Telecommunications infrastructure
• Industrial fiber optic backbones

Available MF7260 SFP Modules

The MF7260 can be configured with a variety of 1000Mbps SFP modules to accommodate different fiber types and transmission distances.

The VERSITRON datasheet identifies the available SFP modules along with their wavelengths, fiber types, transmission distances, and optical specifications.

SFP modules are sold separately.

Why Choose VERSITRON?

The MF7260 Gigabit Industrial Media Converter combines flexible SFP fiber connectivity with the rugged construction needed for industrial networking. Its selectable fiber interface allows network designers to choose the appropriate SFP module for the required fiber type and transmission distance, while redundant power, surge protection, DIN rail mounting, and extended-temperature operation provide the reliability needed for demanding installations.

With support for fiber distances up to 100km, Gigabit Ethernet performance, and a rugged IP44 metal enclosure, the MF7260 provides a flexible solution for extending Ethernet networks over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication and networking solutions for commercial, industrial, government, security, transportation, and telecommunications applications.

Our products are designed with a focus on reliable performance, long-term operation, and practical network integration. The MF7260 reflects that experience by providing dependable copper-to-fiber conversion in a rugged industrial platform with flexible SFP connectivity.

For assistance selecting the correct MF7260 SFP module, fiber type, or transmission distance for your application, contact VERSITRON at 1-800-537-2296.

• 1-Port 10/100/1000Base-T Gigabit Ethernet RJ-45 Port
• 1-Port 1000Base-SX/LX Optical SFP Port
• Non-blocking store-and-forward switching
• RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX
• Prevents Packet Loss w/Back Pressure (Half-Duplex) and IEEE 802.3x PAUSE Frame Flow Control (Full-Duplex)
• Uses interchangeable SFP for fiber type, distance and connector (ordered separately)
• Distances up to 100km with optional SFPs.
• Operation over multimode or singlemode fiber over a variety of link budgets
• No in-field optical adjustment required
• Redundant dual power supply inputs 48/52 VDC
• 4KV Ethernet Surge Protection for harsh environment
• -40°C to 80°C wide range operating temperature
• Compact, corrosion resistant case attaches to a standard DIN Rail
