Multimode to Singlemode Converter - 100/1000Base

SKU:M720DA

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

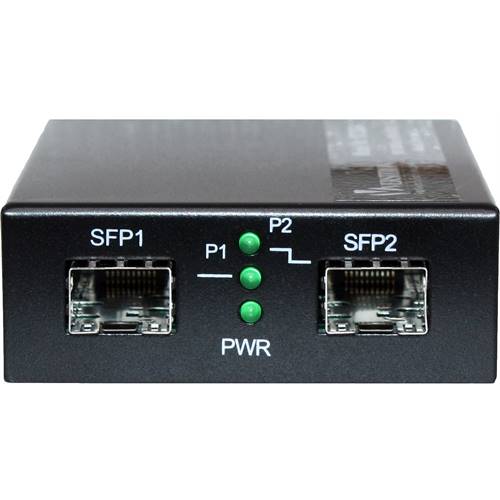

The M720DA multimode to singlemode converter is a reliable solution for fiber media conversion, supporting both Fast Ethernet (100 Mbps) and Gigabit Ethernet (1000 Mbps) connections. It provides flexibility to meet different network speed requirements.
This converter extends network coverage over longer distances by converting between multimode and single-mode fibers, making it ideal for large-scale applications. This SFP-to-SFP media converter is a reliable option for extending network access across campuses, businesses, government buildings, stadiums, and other locations requiring robust connectivity.

***This product is the upgraded version of the M720D.***

Product Highlights:

100/1000Base MM Fiber to/from 100/1000Base SM Fiber
2 SFP Ports, Supports Single-Mode (SM) & Multimode (MM) Fiber
Full Wire Speed Performance
Options for Bi-Directional & CWDM Communication
Low Power Consumption (2.5W)
Approvals: FCC Class A, CE Mark, CISPR 22 Class A
Operating Temperature: 0℃ to 55℃
Desktop, Wall, or Chassis Installation (MCC-14R)

Product Highlights

100/1000Base MM Fiber to/from 100/1000Base SM Fiber
2 SFP Ports, Supports Single-Mode (SM) & Multimode (MM) Fiber
Full Wire Speed Performance
Options for Bi-Directional & CWDM Communication
Low Power Consumption (2.5W)
Approvals: FCC Class A, CE Mark, CISPR 22 Class A
Operating Temperature: 0℃ to 55℃
Desktop, Wall, or Chassis Installation (MCC-14R)

View full details

The M720DA multimode to singlemode converter offers a cost-effective solution for extending long-range fiber connections.

The hot-swappable design of this SFP media converter ensures easy installation and maintenance, even for users with minimal technical experience, allowing seamless communication with other devices. With high-performance data transmission over fiber optic cables, this converter efficiently extends communication distances while maintaining reliable connectivity.

A key advantage of our single to multimode fiber converter is its transparency in the end-to-end fiber link, which simplifies troubleshooting and reduces the need for on-site maintenance, ultimately improving overall network efficiency. The M720DA can be installed in various configurations, including desktop, wall-mounted, DIN Rail (optional), or within a media converter chassis, making it versatile for different setups.

With exceptional longevity, a lifetime warranty, and free unlimited technical support, Versitron's M720DA singlemode to multimode media converter is the smart choice for IT professionals.

Applications of MM to SM Fiber Converter

This fiber-to-fiber media converter is ideal in a scenario where two in-building multimode networks need to be connected via a single-mode fiber link, the M720DA serves as the perfect solution.

For example, Ethernet switches equipped with multimode fiber ports are connected using a pair of M720DA, enabling multimode to single-mode conversion and ensuring reliable connectivity across extended distances.

Additional applications for the MM to SM fiber converter include:

Providing secure, EMI-free connections for government agencies
Extending traffic control or monitoring systems to a central office over long distances
Expanding network connectivity to remote areas in auditoriums, stadiums, or other venues

IEEE Standards

802.3u, 802.3z

Fiber Ports (FX)

2-100/1000Base SFP Slots

Fiber Cable

MM Port: 50/125, 62.5/125 Multimode Fiber

SM Port: 9/125 Singlemode Fiber

LEDs

Power Status

Optical Link Status

Power

Power Input: +5 ~ +12VDC (+/-5%)

Power Consumption: 2.5W max

Dimensions

3.70 x 2.79 x 1.02 inches (94 x 71 x 23mm)

Mounting

Desktop, Wall, Media Converter Chassis

Environment

Operating Temperature: 0°C ~ +55°C

Storage Temperature: -20°C ~ +75°C

Relative Humidity: 5% to 95% non-condensing

Approvals

FCC Class A, CE Mark, CISPR 22 Class A

Provides conversion between Multimode and single mode fiber
Supports 100Mbps & 1000Mbps SFP modules
Full wire-speed performance
Offers SFP flexibility
Options for bi-directional communication
Options for CWDM
Optional DIN rail mounting
Compatible with MCC-14R media converter chassis
LEDs for easy network monitoring
Low power consumption

No configuration is required. This is an auto-sensing device. Once you install a multimode SFP and a singlemode SFP module into the SFP ports, the device will automatically convert the signal.

Yes.

You would just need to verify that you match the network speed and wavelengths accordingly.

For example, if you have a 1000Base Gigabit Singlemode SFP module with a 1310nm wavelength installed into the M720DA, you would need to connect it to another 1000Base Gigabit Singlemode SFP module with a 1310nm wavelength in a device at the other end of the fiber cable.

Yes, a 120VAC to a 5VDC wall brick power supply is provided.

SFP modules are sold separately.

Yes, The M720DA will also act as a repeater so you can input MM and come out MM.

M720DA Datasheet

Multimode to Singlemode Converter - Product Manual

100/1000Base MM to SM Media Converter (M720DA) Review:

M720DA Delivers Versatile Fiber Integration

For the past few months, I've relied on VERSITRON's M720DA Multimode to Singlemode Media Converter. It has not only exceeded my expectations but has also been a worthy investment so far. We are in expansion phase, our team has been considering different types of fibers, and this converter has been the best. What impressed me was its low power consumption, ensuring efficiency without compromising performance. Its full wire-speed performance and SFP flexibility assures versatile performance. The LEDs on the media converter add a practical touch and helps simplify its troubleshooting and maintenance. Our experience with this converter has been amazing! There has been no single instance of weak signal since installation.

John McGowan.
Jan 12, 2024

4.0 out of 5 stars

Multimode to Singlemode Fiber Converters are used across the following industries:

Telecommunications

Central offices
Remote exchanges
Mobile cell towers and base stations
POP (Point of Presence) sites
Regional data centers
Fiber splice and patch panels
Rural telecom huts or shelters
Network edge locations
Underground ducts and conduits
Telecom racks in COs or POPs

Information Technology (IT)

Enterprise data centers
Campus MDFs and IDFs
IT closets in satellite offices
Core and edge switches
Disaster recovery sites
LAN rooms and backbone routes
Cloud service provider interconnects
Network distribution points

Education

University and college campuses
School IT and server rooms
Dormitory buildings
Multimedia labs and lecture halls
Research facility data centers
Classroom AV racks
Security camera poles and control rooms
Stadiums or sports complexes within campuses

Government

Municipal IT data centers
Law enforcement agency buildings
Traffic control centers
Remote field offices
Emergency operations centers (EOCs)
Smart city infrastructure nodes
Government communication bunkers
Public works or service facilities

Healthcare

Hospital campuses
Radiology and imaging departments
Laboratories and diagnostic centers
Satellite clinics or outpatient centers
Data rooms for EHR systems
Surveillance control rooms
Remote monitoring stations
Equipment and automation zones

Transportation

Airport terminals and control towers
Rail stations and track control centers
Traffic light controller cabinets
Metro transit hubs
Port control and logistics centers
ITS node enclosures
Bus depots or tram control offices
Long tunnels or highway overpasses

Utilities

Electrical substations
SCADA system control rooms
Power plants (solar, wind, hydro)
Dam control systems
Water treatment plants
Remote sensing stations
Enclosures near transmission towers
Field deployment cabinets

Manufacturing

Factory floors
Industrial control rooms
Warehouse communication hubs
SCADA and PLC control cabinets
Surveillance camera poles or ceilings
IoT and sensor aggregation points
Harsh environment fiber conduits
Production line control nodes

Finance & Banking

Bank branches
Trading floors and data centers
ATM communication hubs
Backup data vaults
Call center network closets
Disaster recovery facilities
High-frequency trading zones
Legacy building telecom rooms

Retail & Logistics

Distribution centers
Large retail outlets
Cold storage facilities
POS system backend rooms
Warehouse automation zones
Regional logistics hubs
RFID system relay cabinets
Store-to-HQ uplinks

Stadiums & Arenas

Media control rooms
Broadcast booths
LED display controller cabinets
Security command centers
Ticketing and concession POS areas
Facility management rooms
Smart lighting controller areas
Public Wi-Fi distribution nodes

Military & Defense

Command and control centers
Forward operating bases (FOBs)
Mobile shelter deployments
Satellite ground station enclosures
Remote sensor sites
Hardened communications shelters
Secure bunkers or data vaults
Perimeter surveillance control points

Smart Cities

Traffic light control cabinets
Public surveillance camera poles
Smart lighting pole bases
Utility meter communication points
City-wide Wi-Fi AP backhauls
E-kiosk installations
IoT edge node enclosures
City operations control centers

Broadcast & Media

Television studios
Outside broadcast (OB) vans
Event venues and sports stadiums
Remote editing bays
Signal contribution points
Media archive facilities
Production offices
Satellite uplink stations

Aerospace

Aerospace manufacturing plants
Ground control stations
Satellite communication facilities
Research and development labs
Wind tunnels and test centers
Cleanroom network enclosures
Airport hangar communication rooms
Aircraft systems integration labs
Secure telemetry data rooms
Remote radar and tracking station shelters

Oil & Gas Industry

Offshore drilling platform control rooms
Onshore oil and gas field monitoring stations
Pipeline inspection and SCADA enclosures
Refinery network control centers
LNG plant communication shelters
Remote telemetry unit (RTU) cabinets
Hazardous zone communication nodes
Pump station control panels
Compressor station fiber junctions
Seismic data acquisition and transmission rooms

Versitron is one of the leading multimode to singlemode converter manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best Multimode to Singlemode Converter from VERSITRON at a Competitive Price!!

The M720DA multimode to singlemode converter offers a cost-effective solution for extending long-range fiber connections.

With exceptional longevity, a lifetime warranty, and free unlimited technical support, Versitron's M720DA singlemode to multimode media converter is the smart choice for IT professionals.
