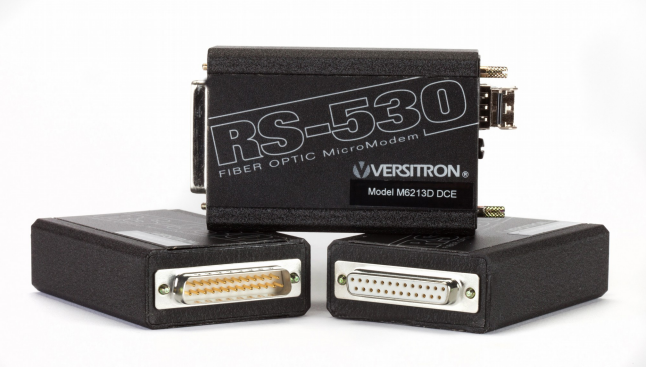

RS 530 to Fiber Converter | RS-530 Fiber Optic MicroModem

Extend RS-530 Communications Over Fiber

The M62xxD Series provides a transparent fiber optic connection for RS-530 equipment requiring reliable communications over extended distances. Data, clock, and control signals are multiplexed for transmission across the fiber link and de-multiplexed at the remote MicroModem.

By replacing a copper connection with fiber optic transmission, the M62xxD provides a practical way to connect RS-530 equipment across remote locations while providing electrical isolation between connected equipment.

Transparent RS-530 Data, Clock and Control Transmission

The M62xxD supports synchronous and asynchronous communication with continuously variable data rates from 1 bps to 5 Mbps for terminal timing and 1 bps to 1 Mbps for source timing. The MicroModem operates in either full-duplex or simplex mode.

Its transparent operation maintains the independent data, clock, and control lines associated with the RS-530 interface. Handshaking is standard on all MicroModem models.

DCE and DTE RS-530 MicroModem Configurations

The M62xxD Series is available in both DCE and DTE configurations to accommodate different equipment interfaces.

• M6213D — DCE, multimode, up to 2 km
• M6223D — DTE, multimode, up to 2 km
• M6215D — DCE, singlemode, up to 20 km
• M6225D — DTE, singlemode, up to 20 km

DCE models use a female DB25 connector, while DTE models use a male DB25 connector. All models use an LC connector for the fiber interface.

Multimode and Singlemode Fiber Options

VERSITRON offers M62xxD MicroModems for both multimode and singlemode fiber installations.

Multimode models provide up to 2 km of transmission distance using 1310 nm fiber optics, while singlemode models provide up to 20 km. The product table in the datasheet specifies an 11 ± 1 dB link budget for the multimode models and 19 ± 1 dB for the singlemode models.

RS-530 Interface and Standards Support

The M62xxD is designed specifically for RS-530 communications and also supports RS-422 and MIL-STD-188-114A (Balanced). The datasheet also identifies support for RS-449 and V.35 with specific adapters, providing additional interface flexibility for compatible equipment.

VERSITRON offers RS-449 and V.35 adapters for the M62xxD Series, including DCE and DTE configurations.

Electrical Isolation for RS-530 Fiber Communications

The M62xxD uses fiber optic transmission to provide electrical isolation between connected equipment. The MicroModem's electrical isolation helps eliminate ground potential rise and provides dielectric isolation, making fiber an effective option for electrically separated RS-530 equipment.

Compact RS-530 Fiber Optic MicroModem

The M62xxD features a compact enclosure measuring approximately 1.0 x 2.4 x 4.5 inches and weighing approximately 0.425 lb. It can be installed directly with data terminal or communications equipment where space is limited.

For larger installations, the MicroModem can also be mounted in a 19-inch rack chassis, with redundant power applications supported by the MicroModem system.

Application Diagram

RS-530 Fiber Optic MicroModem Applications

The M62xxD Series is suited for applications requiring RS-530 communications over fiber, including:

• Long-distance RS-530 serial communications
• Data terminal and communications equipment connections
• Interface extender applications
• DCE-to-DCE modem link applications
• Electrically isolated serial communication links
• Applications requiring protection from ground potential differences
• Space-constrained equipment installations
• Systems using RS-530, RS-422, or MIL-STD-188-114A (Balanced) interfaces

The datasheet also illustrates both interface extender and modem link configurations, as well as a multiplexer configuration for the M62xxD Series.

Why Choose VERSITRON RS-530 Fiber Optic MicroModems?

The M62xxD Series combines transparent RS-530 communication, flexible DCE/DTE configurations, multimode and singlemode fiber options, and electrical isolation in a compact fiber optic MicroModem.

With support for data rates up to 5 Mbps in terminal timing, transmission distances up to 20 km, and additional interface support through adapters, the M62xxD provides a flexible solution for extending RS-530 communications over fiber.

The datasheet also specifies a mean time between failure greater than fourteen years, reflecting the design emphasis on long-term reliability.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for demanding data and communications applications. The M62xxD RS-530 Fiber Optic MicroModem continues that tradition by providing dependable fiber-based connectivity for specialized serial communication systems.

For assistance selecting the correct RS-530 MicroModem configuration, fiber type, DCE/DTE model, or interface adapter, contact VERSITRON for technical support.

General Specifications:

Electrical Interface

• Handshaking standard on all models
• Multimode or Singlemode versions available
• Small Compact Design for limited space installations
• Mean Time Between Failure greater than 14 years
• Fully Transparent Operation with independent data, clock and control lines
• Installation as Modem Links (DCE-DCE) or Interface Extenders (DCE-DTE)
• Optional use of Host Power with M82xxD Series Micromodems
• Electrical Isolation eliminates ground potential rise and provides dielectric isolation
• Standalone or 19” rack mounting with redundant power applications
• Extruded Aluminum Housings for better protection and extended product life
• Standards Conversion for RS-530, RS-422, RS-449, V.35, MIL-188-114A (Balanced)
• Compatible with VERSITRON FOM II series modems
