The VERSITRON AHDTR8A05 is an 8-channel AHD video installation kit designed to transmit 8 channels of 8-bit digitally encoded AHD video along with 1 channel of bi-directional data over singlemode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber optic cable.

The VersiVision platform is designed for high-definition fiber optic video transmission and supports NTSC, PAL, and SECAM camera systems. Plug-and-play operation simplifies installation, while LED indicators provide convenient system status monitoring.

Product Highlights

8-channel AHD video transmission
8-bit digitally encoded video
1 channel of bi-directional data
Singlemode fiber optic transmission
Includes 100 meters of singlemode fiber
ST optical connectors
BNC video connections
RS-485 data interface
RS-232 or RS-422 available upon request
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats
Plug-and-play operation
LED system status indicators
Standalone or rack-mount installation

View full details

8-Channel AHD Video and Bi-Directional Data Over Fiber

The AHDTR8A05 combines AHD video transmission with a bi-directional data channel, providing a fiber optic connection for both video and compatible camera-control data. The installation kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber optic cable.

A typical VersiVision installation places the transmitter at the camera end and the receiver at the monitoring end, with the units connected by a single fiber optic cable.

Digitally Encoded AHD Video Transmission

The AHDTR8A05 supports 8-bit digitally encoded AHD video. The VersiVision platform is compatible with NTSC, PAL, and SECAM camera systems and supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data

The data version provides one bi-directional RS-485 data channel with data rates up to 300 Kbps. RS-232 and RS-422 interfaces are available as optional configurations.

This provides a convenient way to transport compatible camera-control or serial data alongside the AHD video signal over the fiber link.

Singlemode Fiber Optic Transmission

The AHDTR8A05 installation kit includes 100 meters of singlemode fiber optic cable. The VersiVision platform specifies singlemode operation at 1310/1550nm and uses one optical fiber for the link.

Plug-and-Play Fiber Video Installation

VersiVision video transmitters and receivers are designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide immediate system operating-status information. The units can also be installed standalone or in the FVC18 18-slot rack-mount chassis.

AHD Video and Data Applications

The AHDTR8A05 is suited for fiber optic surveillance and monitoring installations requiring multiple AHD video channels and bi-directional camera data, including:

CCTV surveillance systems
Security camera networks
Commercial video monitoring
Industrial surveillance
Remote camera installations
Centralized video monitoring
Fiber optic security systems
Camera systems requiring RS-485 control data

Technical Specifications

Specification	AHDTR8A05
Video	8-Channel AHD
Video Encoding	8-Bit Digitally Encoded
Fiber Type	Singlemode
Fiber Wavelength	1310/1550nm
Number of Fibers	1
Data Interface	RS-485
Data Channels	1 Bi-Directional
Data Rate	Up to 300 Kbps
Optional Data	RS-232 or RS-422
Bit Error Rate	10⁻⁹
Optical Connector	ST
Video Connector	BNC
Data Connector	Screw Terminal Strip
Power Supply	5VDC, 2A
Included Fiber	100 Meters Singlemode
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95%, Non-Condensing

The general data, connector, optical, power, and environmental specifications are from the VersiVision datasheet.

Why Choose the VERSITRON AHDTR8A05?

The AHDTR8A05 provides a complete fiber optic installation solution for transmitting AHD video and bi-directional data over singlemode fiber. With 100 meters of fiber included, RS-485 data support, compatibility with common analog HD video formats, and plug-and-play operation, the kit simplifies fiber-based AHD surveillance installations.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision product family supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

AHD

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

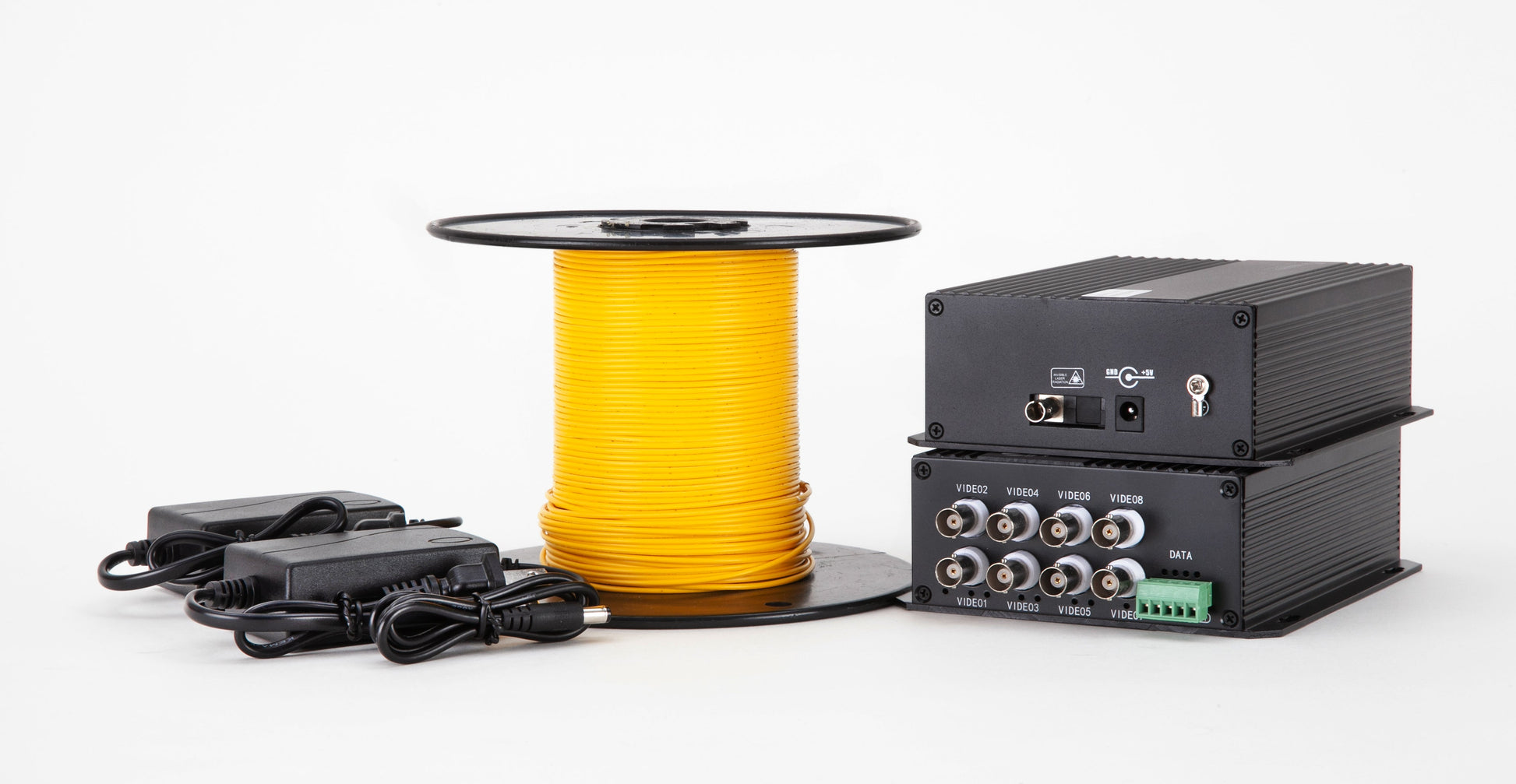

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
