8-Channel AHD Video Installation Kit | ST, MM

8-Channel AHD Video Over Multimode Fiber

The AHDTR8003 provides a fiber optic connection between multiple AHD cameras and a remote monitoring location. The installation kit includes both the transmitter and receiver, power supplies, and 100 meters of multimode fiber optic cable.

VERSITRON's VersiVision platform uses a transmitter at the camera end of the fiber link and a receiver at the monitoring end. Its plug-and-play design eliminates the need for electrical or optical adjustments during installation.

Digitally Encoded AHD Video Transmission

The AHDTR8003 supports 8 channels of 8-bit digitally encoded AHD video. The product listing specifies compatibility with 1280H/30F, 1280H/50F, and 1280/60F video formats, while the VersiVision datasheet additionally identifies 1280H/25F compatibility.

The VersiVision platform is also directly compatible with NTSC, PAL, and SECAM camera systems, making it suitable for a range of analog HD surveillance installations.

Multimode Fiber Optic Installation

The AHDTR8003 is supplied with 100 meters of multimode fiber optic cable, providing the fiber connection required for the included transmitter and receiver.

The VersiVision technical documentation specifies multimode operation at 850/1310nm, with one optical fiber used for the link.

Plug-and-Play Operation

The VersiVision video platform is designed for straightforward installation and operation. No electrical or optical adjustments are required, and LED indicators provide instant monitoring of system operating status. The equipment can be used as standalone units or installed in the FVC18 18-slot chassis.

Video Technical Specifications

The general VersiVision video specifications above are documented in the supplied datasheet.

AHD Video Surveillance Applications

The AHDTR8003 is designed for installations requiring multiple AHD camera signals to be transmitted over fiber optic cable, including:

• CCTV security systems
• Video surveillance systems
• Commercial security installations
• Industrial video monitoring
• Remote camera installations
• Centralized video monitoring
• Long-distance AHD camera links
• Security and monitoring infrastructure

Complete AHD Video Installation Kit

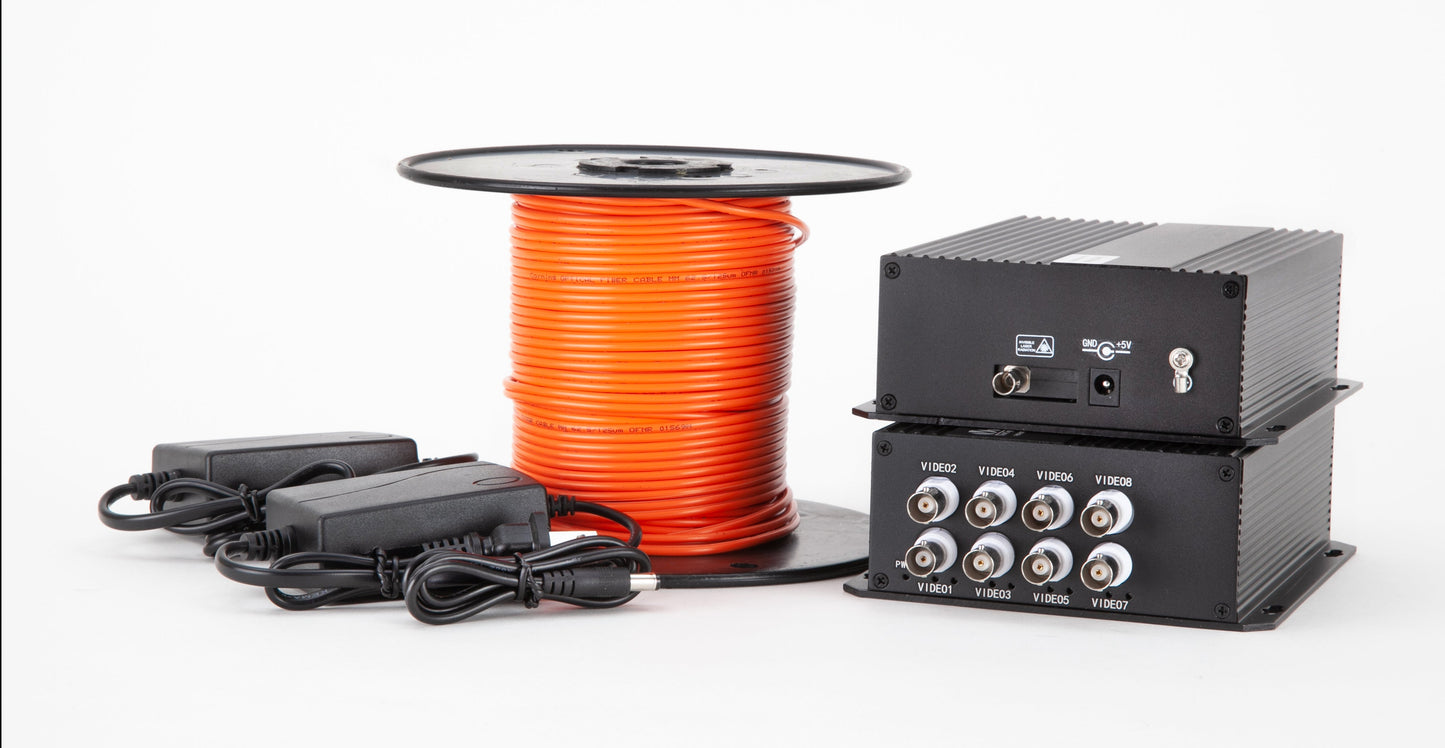

The AHDTR8003 includes the equipment needed to establish the fiber optic video link:

• AHD video transmitter
• AHD video receiver
• Power supplies
• 100 meters of multimode fiber optic cable

This makes the kit a practical option for installations where the camera-side and monitoring equipment need to be connected over fiber rather than conventional copper video cabling.

Why Choose the VERSITRON AHDTR8003?

The AHDTR8003 combines 8-channel AHD video transmission with a complete multimode fiber installation kit. With digitally encoded 8-bit video, support for common analog HD video formats, plug-and-play operation, and included fiber cable, it provides a straightforward solution for extending multiple AHD camera signals over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 8 Channels AHD Video Installation Kit

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
