4-Channel AHD Video Installation Kit | Data, ST, SM

SKU:AHDTR4A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON AHDTR4A05 is a 4-channel AHD video installation kit designed to transmit four channels of digitally encoded AHD video along with 1 channel of bi-directional data over singlemode fiber optic cable. The complete kit includes a transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient solution for extending multiple AHD camera signals and control data over long distances.

The AHDTR4A05 supports 4 channels of 8-bit digitally encoded AHD video and 1 bi-directional RS-485 data channel. The VersiVision specifications support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats, with the 4-channel singlemode configuration supporting transmission distances up to 30 km.

Product Highlights

4-channel AHD video transmission
8-bit digitally encoded video
1 channel of bi-directional RS-485 data
Singlemode fiber optic transmission
Up to 30 km transmission distance
1310/1550nm optical wavelength
ST optical connector
BNC video connectors
Screw terminal data connection
RS-232 or RS-422 available as an option
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

4-Channel AHD Video and Data Over Singlemode Fiber

The AHDTR4A05 provides fiber optic transmission for four AHD video channels and one channel of bi-directional data. It is designed to connect camera-side equipment to a remote monitoring location using a single fiber optic cable.

The VersiVision platform uses a transmitter at the camera end of the link and a receiver at the monitoring end. Its plug-and-play design provides adjustment-free installation and operation, while LED indicators provide system operating status monitoring. The units can also be installed standalone or in the FVC18 18-slot chassis.

Digitally Encoded AHD Video

The AHDTR4A05 supports 4 channels of 8-bit digitally encoded AHD video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data

In addition to video transmission, the AHDTR4A05 supports 1 channel of bi-directional RS-485 data at data rates up to 300 Kbps. RS-232 or RS-422 operation is available as an option, allowing compatible control and data signals to be transmitted alongside the AHD video over fiber.

Singlemode Fiber Transmission

The AHDTR4A05 uses singlemode fiber with a 1310/1550nm wavelength. The VersiVision model specifications list a maximum transmission distance of 30 km for the 4-channel AHD video + bi-directional data singlemode configuration.

Technical Specifications

Specification	AHDTR4A05
Video	4-Channel AHD
Video Encoding	8-Bit Digitally Encoded
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Maximum Distance	30 km
Optical Wavelength	1310/1550nm
Number of Fibers	1
Optical Emitter	Laser Diode
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Data Bit Error Rate	10⁻⁹
Optional Data Interface	RS-232 or RS-422
Optical Connector	ST
Video Connector	BNC
Data Connector	Screw Terminal Strip
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)

The technical specifications above are from the VersiVision datasheet. The 5.98 × 5.12 × 1.13-inch dimensions apply to the 4-channel units.

Complete AHD Video and Data Installation Kit

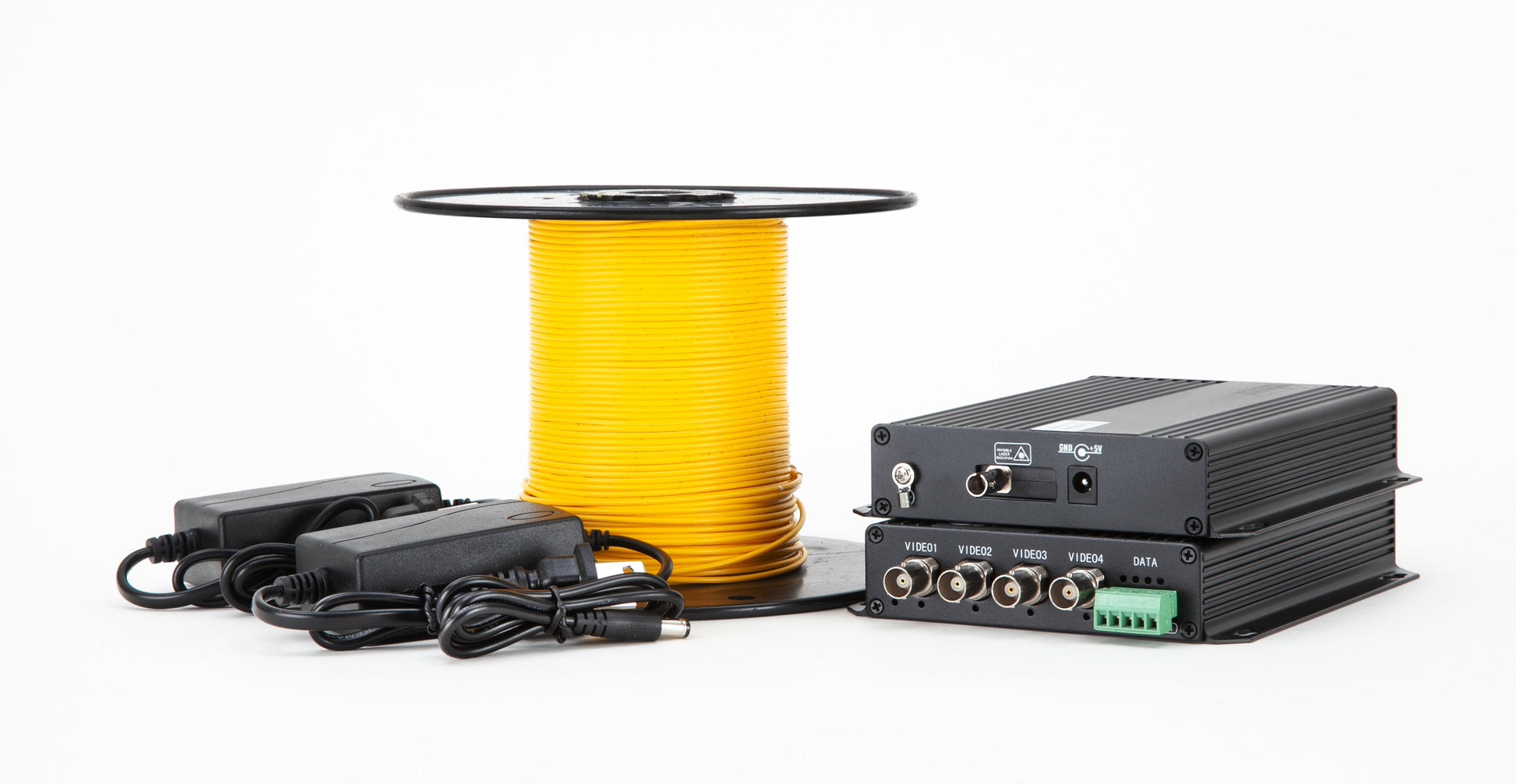

The AHDTR4A05 installation kit includes:

AHD video transmitter
AHD video receiver
Power supplies
100 meters of singlemode fiber optic cable

The included 100-meter fiber cable provides a convenient starting point for installation, while the AHDTR4A05 transmitter and receiver support singlemode fiber links up to 30 km according to the VersiVision model specifications.

Plug-and-Play Fiber Optic Installation

The VersiVision system is designed for straightforward installation without electrical or optical adjustments. LED indicators provide instant system status monitoring, and the equipment can be used as standalone units or installed in the FVC18 chassis.

AHD Video Surveillance and Data Applications

The AHDTR4A05 is suited for applications requiring multiple AHD camera signals and bi-directional data transmission over long-distance singlemode fiber, including:

CCTV security systems
Video surveillance
Commercial security installations
Industrial monitoring
Remote camera installations
Long-distance camera networks
Centralized video monitoring
Camera control and RS-485 data applications

Why Choose the VERSITRON AHDTR4A05?

The AHDTR4A05 combines four-channel AHD video transmission with bi-directional data communication in a complete singlemode fiber optic installation kit. With support for digitally encoded AHD video, RS-485 data, plug-and-play operation, and transmission distances up to 30 km, it provides a practical solution for extending multiple camera signals and control data over long-distance fiber links.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

AHD

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 1 Channels AHD Video Installation Kit

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Data Manual

Triad

4-Channel AHD Video Installation Kit (AHDTR4A05) is used across the following Applications:

Industrial & Manufacturing

Four-channel AHD surveillance for production-area entrances and factory access points
Monitoring equipment rooms and designated manufacturing zones
Singlemode fiber video transmission between separated facility locations
Compatible RS-485 serial data communication for supported monitoring equipment

Transportation & ITS

AHD video monitoring for highway operations buildings and traffic control facilities
Surveillance of railway station entrances and passenger service areas
Transmitting four analog video channels over one singlemode fiber
Supporting compatible serial data communication through the bidirectional data channel

Military & Defense Facilities

Multi-camera AHD surveillance at controlled-access facility entrances
Monitoring command buildings, security checkpoints, and service areas
Single-fiber video transmission across compatible singlemode optical infrastructure
Integration with compatible BNC video equipment and supported serial data interfaces

Smart City & Municipal Surveillance

Connecting AHD cameras at municipal facilities and public service buildings
Monitoring public entrances and designated civic infrastructure access points
Consolidating four camera feeds through one singlemode optical fiber
Supporting compatible RS-485 data communication where required by connected equipment

Public Safety & Emergency Facilities

Four-channel AHD surveillance for police stations and fire service buildings
Monitoring emergency facility entrances and restricted access areas
Extending compatible analog video feeds to a centralized monitoring room
Using BNC video connections and compatible singlemode optical interfaces

Enterprise & Corporate Campuses

Monitoring entrances, reception areas, and controlled office access points
Connecting four AHD video feeds between separated campus locations
Using singlemode fiber for compatible optical video transmission
Integrating with existing analog CCTV equipment where specifications match

Healthcare & Hospital Campuses

Monitoring hospital entrances, administrative offices, and service corridors
Transmitting four compatible AHD camera feeds to security personnel
Connecting remote video locations through a singlemode fiber link
Planning installations within the specified operating temperature and humidity limits

Education & University Facilities

Connecting AHD cameras at campus gates and academic building entrances
Monitoring libraries, administration buildings, and designated access areas
Sending four video channels over one singlemode optical fiber
Supporting compatible serial data connectivity for equipment that requires it

Banking & Financial Security

Monitoring bank entrances, lobby areas, and staff access doors
Consolidating four AHD surveillance channels at a designated security room
Transmitting video over compatible singlemode fiber infrastructure
Connecting compatible BNC-based recording and monitoring equipment

Utilities & Energy Infrastructure

Monitoring utility control-building entrances and equipment-room access points
Transmitting four AHD video feeds to a designated monitoring location
Using singlemode fiber to connect separated surveillance equipment
Supporting compatible bidirectional serial data communication for connected devices

Entertainment & Large Venues

Monitoring stadium entrances, staff access doors, and event service areas
Connecting four AHD camera feeds to venue security equipment
Using one singlemode fiber for the compatible optical video link
Supporting compatible serial data communication where required by the installation

Government & Administrative Complexes

Connecting AHD cameras at government building entrances and reception points
Monitoring staff access routes and designated public service areas
Transmitting four analog video channels over singlemode fiber
Integrating with compatible BNC video systems and supported serial interfaces

Telecommunications Facility Security

Monitoring telecommunications building entrances and equipment-room doors
Transmitting four AHD camera feeds to a security monitoring location
Using ST optical connectors with compatible singlemode fiber cabling
Connecting supported serial data equipment through the screw-terminal interface

Construction & Infrastructure Projects

Monitoring construction site entrances and site administration buildings
Connecting cameras at material storage and equipment access areas
Transmitting four AHD video feeds through a compatible singlemode fiber link
Checking operating conditions against the specified environmental ratings

System Integrators & Fiber CCTV Projects

Integrating four compatible AHD camera channels into a fiber-based surveillance system
Connecting BNC video interfaces through compatible ST singlemode optical equipment
Supporting RS-485, or optional RS-422 and RS-232, where configured and compatible
Designing around the specified video bandwidth, 8-bit resolution, and data rate of up to 300 Kbps
