4-Channel AHD Video Installation Kit | Data, ST, MM
4-Channel AHD Video Installation Kit | Data, ST, MM
SKU:AHDTR4A03
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The AHDTR4A03 supports 4 channels of 8-bit digitally encoded AHD video and 1 bi-directional RS-485 data channel. The VersiVision specifications support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats and provide a maximum multimode transmission distance of 1 km for the 4-channel AHD video + data configuration.
Product Highlights
- 4-channel AHD video transmission
- 8-bit digitally encoded video
- 1 channel of bi-directional RS-485 data
- Multimode fiber optic transmission
- Up to 1 km transmission distance
- 850/1310nm optical wavelength
- ST optical connector
- BNC video connectors
- Screw terminal data connection
- RS-232 or RS-422 available as an option
- Compatible with NTSC, PAL, and SECAM
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- Plug-and-play installation
- No electrical or optical adjustments required
- LED indicators for system status monitoring
- Standalone or rack-mount installation
- Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
4-Channel AHD Video and Data Over Multimode Fiber
The AHDTR4A03 provides fiber optic transmission for four AHD video channels and one channel of bi-directional data. It is designed to connect camera-side equipment to a remote monitoring location using a single fiber optic cable.
The VersiVision platform uses a transmitter at the camera end and a receiver at the monitoring end. Its plug-and-play design provides adjustment-free installation and operation, while LED indicators provide system operating status monitoring. The units can also be installed standalone or in the FVC18 18-slot chassis.
Digitally Encoded AHD Video
The AHDTR4A03 supports 4 channels of 8-bit digitally encoded AHD video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.
Bi-Directional RS-485 Data
In addition to video transmission, the AHDTR4A03 supports 1 channel of bi-directional RS-485 data at data rates up to 300 Kbps. RS-232 or RS-422 operation is available as an option. This allows compatible control or data signals to be transmitted alongside the AHD video over the fiber link.
Multimode Fiber Transmission
The AHDTR4A03 uses multimode fiber with an 850/1310nm wavelength. The VersiVision model table specifies a maximum transmission distance of 1 km for the 4-channel AHD video + bi-directional data multimode configuration.
Technical Specifications
| Specification | AHDTR4A03 |
|---|---|
| Video | 4-Channel AHD |
| Video Encoding | 8-Bit Digitally Encoded |
| Video Input | 0.6–2.0 Vp-p (75 Ohms) |
| Bandwidth | 5 Hz–8 MHz |
| Bit Resolution | 8-Bit |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | < 1% |
| S/N Ratio | 60 dB (Weighted) |
| Fiber Type | Multimode |
| Maximum Distance | 1 km |
| Optical Wavelength | 850/1310nm |
| Number of Fibers | 1 |
| Optical Emitter | Laser Diode |
| Data Interface | RS-485 |
| Data Rate | Up to 300 Kbps |
| Data Channels | 1 Bi-Directional |
| Data Bit Error Rate | 10⁻⁹ |
| Optional Data Interface | RS-232 or RS-422 |
| Optical Connector | ST |
| Video Connector | BNC |
| Data Connector | Screw Terminal Strip |
| Power Supply | 5VDC, 2A |
| Dimensions | 5.98 × 5.12 × 1.13 in. |
| MTBF | >100,000 Hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0% to 95% (Non-Condensing) |
The technical specifications are based on the VersiVision datasheet. The 5.98 × 5.12 × 1.13-inch dimensions apply to the 4-channel units, while the datasheet specifies the general video, data, optical, connector, environmental, and reliability characteristics above.

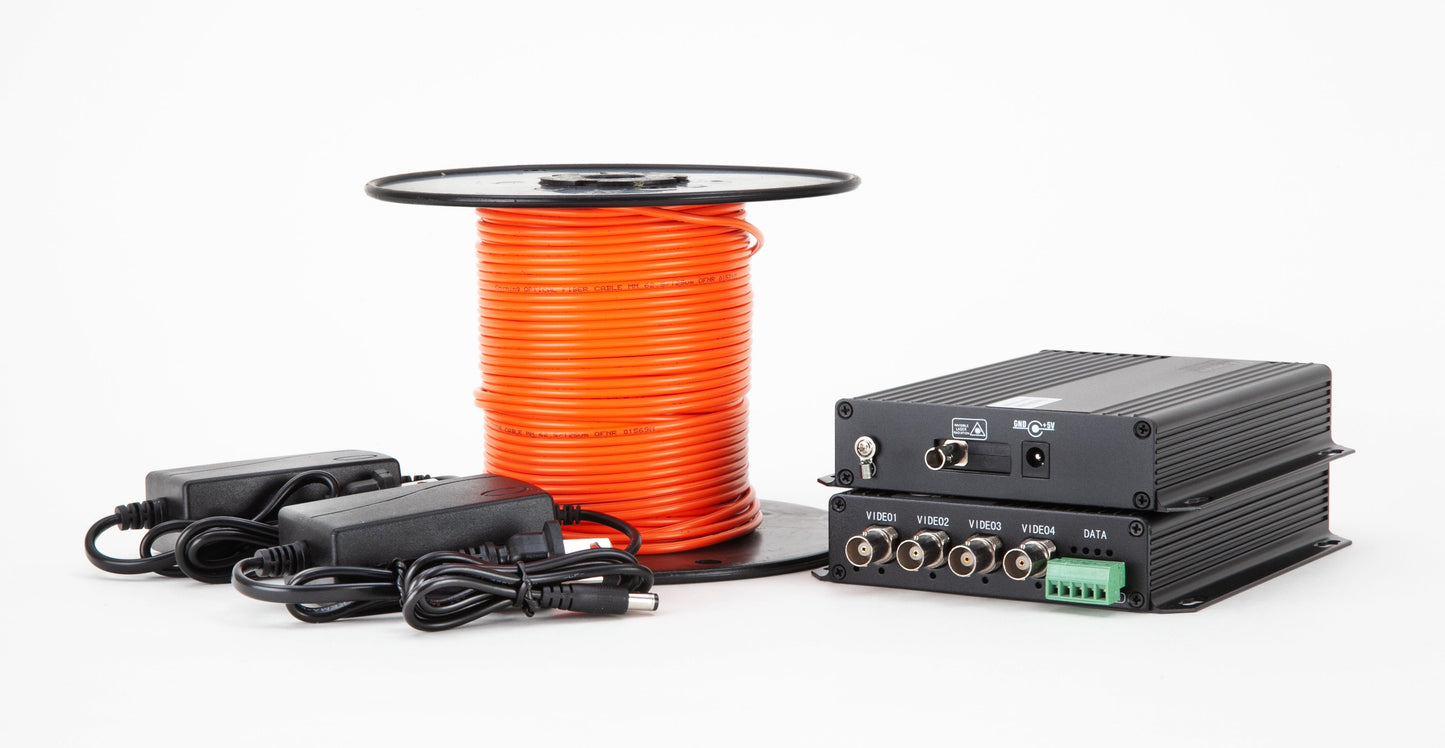

Complete AHD Video and Data Installation Kit
The AHDTR4A03 installation kit includes:
- AHD video transmitter
- AHD video receiver
- Power supplies
- 100 meters of multimode fiber optic cable
The included fiber cable provides a convenient starting point for installation, while the AHDTR4A03 transmitter and receiver support multimode fiber links up to 1 km according to the VersiVision model specifications.
Plug-and-Play Fiber Optic Installation
The VersiVision system is designed for straightforward installation without electrical or optical adjustments. LED indicators provide instant system status monitoring, and the equipment can be used as standalone units or installed in the FVC18 chassis.
AHD Video Surveillance and Data Applications
The AHDTR4A03 is suited for applications requiring multiple AHD camera signals and bidirectional data transmission over multimode fiber, including:
- CCTV security systems
- Video surveillance
- Commercial security installations
- Industrial monitoring
- Remote camera installations
- Centralized video monitoring
- Camera control and RS-485 data applications
- Short-distance fiber optic video networks
Why Choose the VERSITRON AHDTR4A03?
The AHDTR4A03 combines four-channel AHD video transmission with bi-directional data communication in a complete multimode fiber optic installation kit. With support for digitally encoded AHD video, RS-485 data, plug-and-play operation, and transmission distances up to 1 km, it provides a practical solution for extending multiple camera signals and control data over fiber.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
AHD
Input/Output Channels
4
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
850/1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Data Interface
RS-485 (RS-422 or RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
1 Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
Key Features of 4 Channels AHD Video Installation Kit
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
