2-Channel AHD Video Installation Kit | Data, ST, SM

SKU:AHDTR2A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON AHDTR2A05 is a 2-channel AHD video installation kit designed to transmit digitally encoded AHD video and bi-directional data over singlemode fiber optic cable. The complete kit includes a transmitter, receiver, power supplies, and 100 meters of singlemode fiber, providing a convenient fiber optic solution for extending multiple AHD camera signals.

The AHDTR2A05 supports 2 channels of 8-bit digitally encoded AHD video plus 1 channel of bi-directional data. It is compatible with NTSC, PAL, and SECAM camera systems and supports transmission distances up to 30 km over singlemode fiber. The VersiVision product table identifies the corresponding 2-channel AHD data transmitter and receiver models for singlemode fiber with a 30 km maximum distance.

Product Highlights

2-channel AHD video transmission
8-bit digitally encoded video
1 channel of bi-directional data
Singlemode fiber optic transmission
Up to 30 km transmission distance
1310/1550nm optical wavelength
ST optical connector
BNC video connectors
RS-485 data interface
RS-232 or RS-422 available upon request
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
LED indicators for system status monitoring
Standalone or rack-mount installation
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

2-Channel AHD Video and Data Over Singlemode Fiber

The AHDTR2A05 provides a fiber optic connection for two AHD video channels along with one channel of bi-directional data. A transmitter is installed at the camera end of the link and a receiver at the monitoring end, with the video and data signals carried over a single optical fiber.

The VersiVision platform uses a plug-and-play design for adjustment-free installation and operation and supports either standalone installation or rack-mounting in the FVC18 18-slot chassis.

Digitally Encoded AHD Video

The AHDTR2A05 supports 8-bit digitally encoded AHD video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data

In addition to video transmission, the AHDTR2A05 provides one bi-directional data channel using RS-485. The data interface supports rates up to 300 Kbps, while RS-232 or RS-422 can be provided as an option.

30 km Singlemode Fiber Transmission

The AHDTR2A05 uses singlemode fiber with a 1310/1550nm optical wavelength and supports transmission distances up to 30 km. The datasheet identifies AHDT2A05 and AHDR2A05 as the corresponding 2-channel AHD video-plus-data transmitter and receiver models for singlemode fiber.

Technical Specifications

Specification	AHDTR2A05
Video	2-Channel AHD
Video Encoding	8-Bit Digitally Encoded
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Maximum Distance	30 km
Optical Wavelength	1310/1550nm
Number of Fibers	1
Optical Emitter	Laser Diode
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Data Bit Error Rate	10⁻⁹
RS-232 / RS-422	Optional
Optical Connector	ST
Video Connector	BNC
Data Connection	Screw Terminal Strip
Power Supply	5VDC, 2A
Dimensions	5.98 × 5.12 × 1.13 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)

The technical specifications are based on the VersiVision datasheet. The 2-channel units with data use the 5.98 × 5.12 × 1.13-inch enclosure specified for 2-channel video-plus-data models.

Complete AHD Fiber Optic Installation Kit

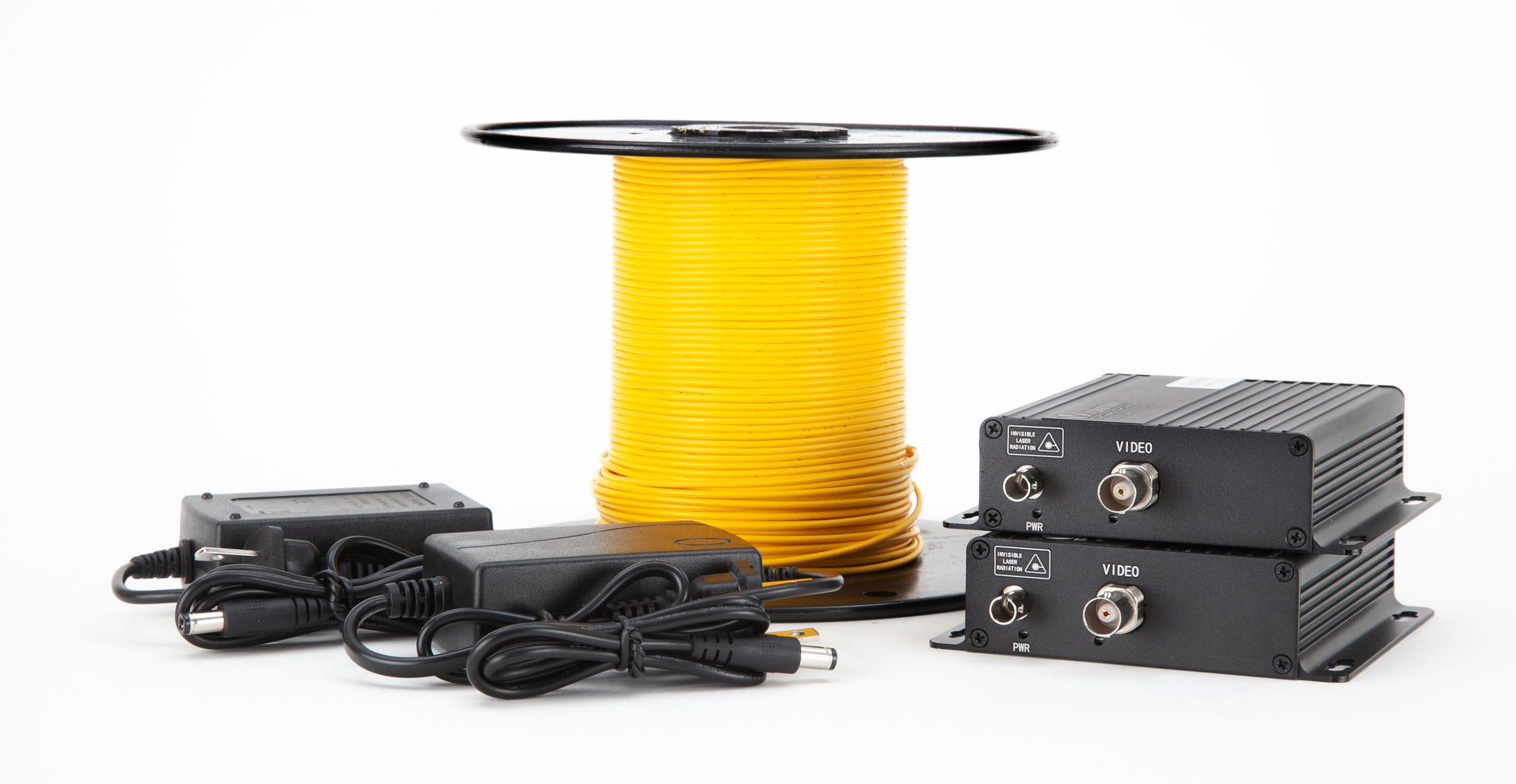

The AHDTR2A05 installation kit includes:

AHD video transmitter
AHD video receiver
Power supplies
100 meters of singlemode fiber optic cable

The included fiber cable provides a convenient starting point for installations while the transmitter and receiver support significantly longer singlemode fiber links when the application requires extended transmission distances.

Plug-and-Play Fiber Optic Installation

The VersiVision system is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate monitoring of system operating status.

AHD Video and Data Applications

The AHDTR2A05 is suited for applications requiring multiple AHD camera signals and bi-directional data communication over long-distance singlemode fiber, including:

CCTV security systems
Video surveillance
Commercial security installations
Industrial monitoring
Transportation monitoring
Remote camera installations
Centralized video monitoring
Long-distance AHD camera connections

Why Choose the VERSITRON AHDTR2A05?

The AHDTR2A05 combines 2-channel AHD video transmission and bi-directional data communication over singlemode fiber in a complete installation kit. With up to 30 km of fiber transmission, RS-485 data support, plug-and-play operation, and standalone or rack-mount installation options, it provides a practical solution for extending AHD surveillance systems over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

AHD

Input/Output Channels

Bandwidth

5 Hz ~ 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

< 1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 2 Channels AHD Video Installation Kit

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.

HD Units Spec

HD Video Data Manual

Triad

2-Channel AHD Video Installation Kit (AHDTR2A05) is used across the following Applications:

AHD Surveillance with Camera Control

Connects two AHD video channels through one singlemode optical fiber
Supports RS-485 communication for compatible camera control systems
Provides one bidirectional data channel alongside video transmission
Uses 1310/1550nm wavelength specifications with ST optical connectivity

PTZ Camera Monitoring Systems

Supports compatible AHD PTZ cameras requiring video and serial data connectivity
Provides an RS-485 interface for supported camera control protocols
Supports optional RS-422 or RS-232 data interfaces
Handles data transmission rates up to 300 Kbps

Multi-Entrance Building Surveillance

Connects two AHD cameras monitoring separate building entrances
Provides two video channels over one singlemode fiber
Supports a bidirectional data connection for compatible surveillance equipment
Uses BNC video connectors and an ST optical connector

Centralized Security Control Rooms

Transmits two AHD camera feeds to compatible monitoring equipment
Supports one bidirectional data channel for compatible control communication
Provides 5 Hz–8 MHz video bandwidth
Specifies a data-channel bit error rate of 10⁻⁹

Singlemode Fiber CCTV Upgrades

Supports fiber connectivity for compatible two-channel AHD surveillance systems
Uses one singlemode optical fiber for the video and data link
Retains BNC connectivity for compatible AHD video equipment
Supports RS-485 with optional RS-422 or RS-232 interfaces

Industrial Process Area Surveillance

Connects two AHD cameras monitoring industrial work areas
Supports compatible serial communication alongside the video channels
Operates in temperatures from -35°C to +65°C
Supports 0% to 95% non-condensing relative humidity

Transportation Terminal Security

Supports two AHD camera feeds at suitable terminals and transport facilities
Provides a singlemode fiber link with 1310/1550nm wavelength specifications
Supports bidirectional data communication with compatible equipment
Provides up to 300 Kbps data transmission

Parking Facility Access Monitoring

Connects two AHD cameras covering parking entrances and exit lanes
Provides two video channels through one optical fiber
Supports RS-485 communication for compatible camera systems
Provides a 60dB weighted signal-to-noise ratio

Perimeter Camera Control Links

Supports two AHD cameras used for facility perimeter observation
Provides a bidirectional data channel for compatible camera control
Uses one singlemode fiber with ST optical termination
Provides 8-bit video resolution for the supported video signal

Warehouse and Loading Bay Surveillance

Connects two AHD cameras covering warehouse and loading areas
Transmits video over a singlemode optical fiber
Supports compatible RS-485 data communication
Provides differential gain below ±1% and differential phase below ±1°

Campus Building Security

Supports two AHD camera feeds for campus buildings and shared facilities
Provides one optical fiber for video and compatible data transmission
Uses BNC video connections for compatible AHD equipment
Supports optional RS-422 or RS-232 serial interfaces

Utility Building Monitoring

Connects two AHD cameras at utility buildings and equipment facilities
Provides singlemode fiber connectivity for the video channels
Supports a bidirectional data channel for compatible devices
Provides a specified MTBF greater than 100,000 hours

Government Facility Surveillance

Supports two AHD video feeds for government building monitoring
Combines video transmission with compatible serial data communication
Provides ST optical and BNC video interfaces
Supports a 5VDC, 2A power supply

Factory Perimeter and Gate Security

Connects two AHD cameras monitoring factory gates and perimeter access points
Supports compatible camera control through the RS-485 data interface
Uses a screw terminal strip for data connections
Supports operating temperatures from -35°C to +65°C

Retail Store and Stockroom Monitoring

Supports two AHD cameras covering retail areas and stockrooms
Provides separate video channels over one singlemode optical fiber
Supports one bidirectional data channel for compatible equipment
Provides 60dB weighted S/N ratio and 8-bit video resolution

Healthcare Facility Security

Connects two AHD cameras in suitable hospital entrances and common areas
Supports fiber-based video connectivity for compatible monitoring equipment
Provides one bidirectional data channel for supported serial communication
Uses BNC video connectors and an ST optical interface

School and University Access Security

Supports two AHD cameras monitoring school entrances and access areas
Provides two video channels over one singlemode fiber
Supports compatible RS-485 camera communication
Provides video bandwidth from 5 Hz to 8 MHz

Critical Infrastructure Video Links

Connects two AHD cameras used at critical facility locations
Provides video and compatible bidirectional data communication
Specifies a 10⁻⁹ bit error rate for the data channel
Supports 0% to 95% non-condensing relative humidity

Remote Building Camera Connections

Connects two AHD camera feeds with compatible remote monitoring equipment
Uses one singlemode fiber for the optical link
Supports 1310/1550nm wavelength specifications
Provides one bidirectional data channel for compatible equipment

Integrated AHD Video and Serial Data Systems

Combines two AHD video channels with one bidirectional data channel
Supports RS-485 and optional RS-422 or RS-232 interfaces
Provides data rates up to 300 Kbps through the data channel
Uses one singlemode fiber with ST optical connectivity
