2-Channel AHD Video and Data Over Multimode Fiber

The AHDTR2A03 provides a fiber optic connection for two AHD video channels along with one channel of bi-directional data. A transmitter is installed at the camera end of the link and a receiver at the monitoring end, with the video and data signals carried over a single optical fiber.

The VersiVision platform uses a plug-and-play design for adjustment-free installation and operation and supports either standalone installation or rack-mounting in the FVC18 18-slot chassis.

Digitally Encoded AHD Video

The AHDTR2A03 supports 8-bit digitally encoded AHD video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data

In addition to video transmission, the AHDTR2A03 provides one bi-directional data channel using RS-485. The data interface supports rates up to 300 Kbps, while RS-232 or RS-422 can be provided as an option.

2 km Multimode Fiber Transmission

The AHDTR2A03 uses multimode fiber with an 850/1310nm wavelength and supports transmission distances up to 2 km. The product model table lists AHDT2A03 and AHDR2A03 as the 2-channel AHD video-plus-data transmitter and receiver models for multimode fiber.

Technical Specifications

The technical specifications above are based on the VersiVision datasheet. The 2-channel video-plus-data units use the larger 5.98 × 5.12 × 1.13-inch enclosure specified for 2-channel units with data.

Complete AHD Fiber Optic Installation Kit

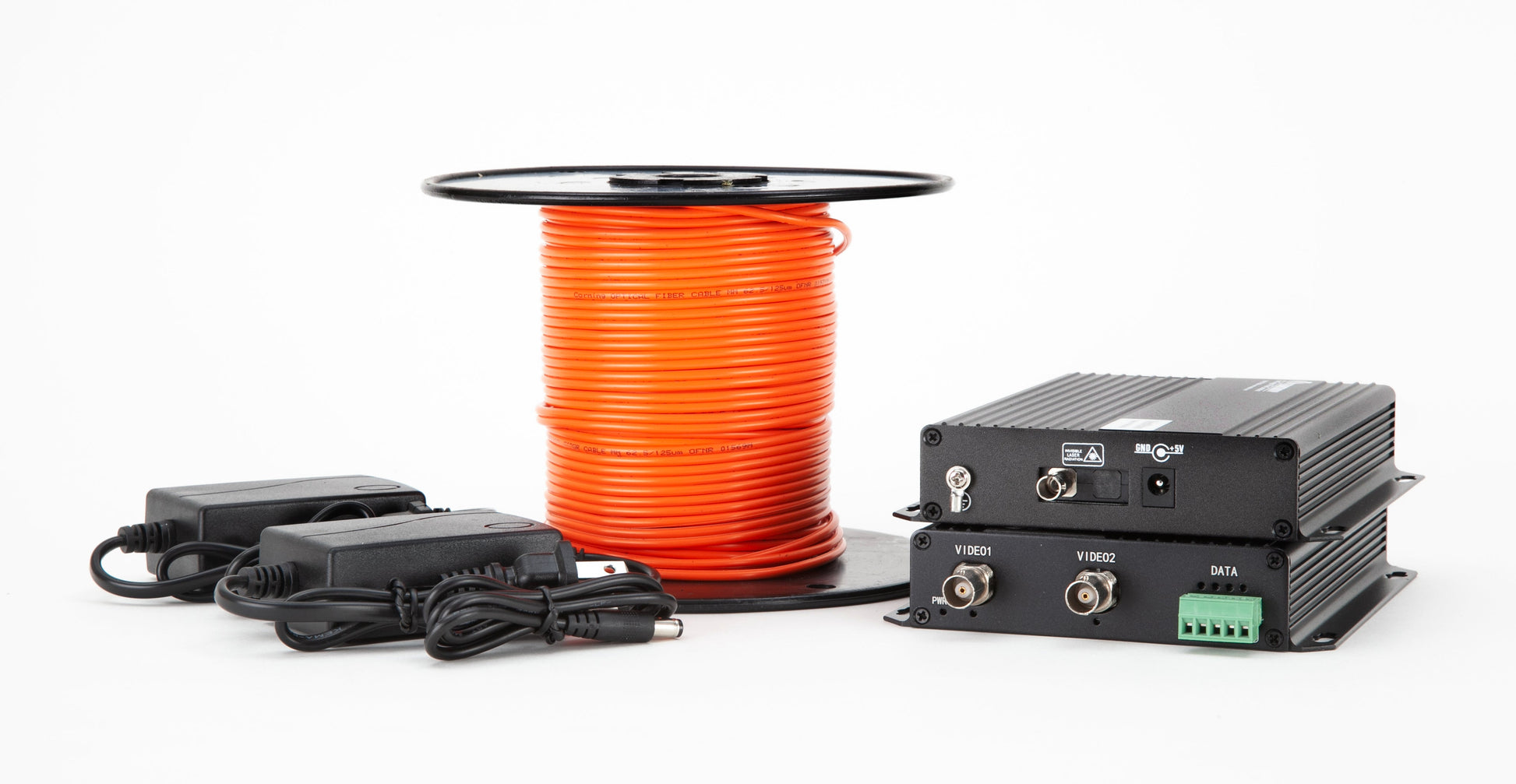

The AHDTR2A03 installation kit includes:

• AHD video transmitter
• AHD video receiver
• Power supplies
• 100 meters of multimode fiber optic cable

This provides a convenient packaged solution for installations requiring both AHD video and control/data communication over fiber.

Plug-and-Play Fiber Optic Installation

The VersiVision system is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate monitoring of system operating status.

AHD Video and Data Applications

The AHDTR2A03 is suited for applications requiring multiple AHD camera signals and bi-directional data communication over multimode fiber, including:

• CCTV security systems
• Video surveillance
• Commercial security installations
• Industrial monitoring
• Transportation monitoring
• Remote camera installations
• Centralized video monitoring
• Long-distance AHD camera connections

Why Choose the VERSITRON AHDTR2A03?

The AHDTR2A03 combines 2-channel AHD video transmission and bi-directional data communication over multimode fiber in a complete installation kit. With up to 2 km of fiber transmission, RS-485 data support, plug-and-play operation, and standalone or rack-mount installation options, it provides a practical solution for extending AHD surveillance systems over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber optic cable.

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 2 Channels AHD Video Installation Kit

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
