1-Channel HDTVI Video Installation Kit | Data, ST, SM
1-Channel HDTVI Video Installation Kit | Data, ST, SM
SKU:HDTVITR1A05
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The HDTVITR1A05 supports 8-bit digitally encoded video plus 1 channel of bidirectional RS-485 data and provides transmission distances up to 30 km over singlemode fiber. It is compatible with NTSC, PAL, and SECAM camera systems and supports RS-232 or RS-422 as optional data interfaces. The singlemode version uses 1310/1550nm optical wavelengths.
Product Highlights
- 1-channel HDTVI video transmission
- 8-bit digitally encoded video
- 1-channel bidirectional data
- RS-485 data interface
- RS-232 or RS-422 available as options
- Up to 30 km over singlemode fiber
- 1310/1550nm singlemode wavelength
- ST optical connector
- Compatible with NTSC, PAL, and SECAM video systems
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- Data rates up to 300 Kbps
- Plug-and-play installation
- LED indicators for system monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis

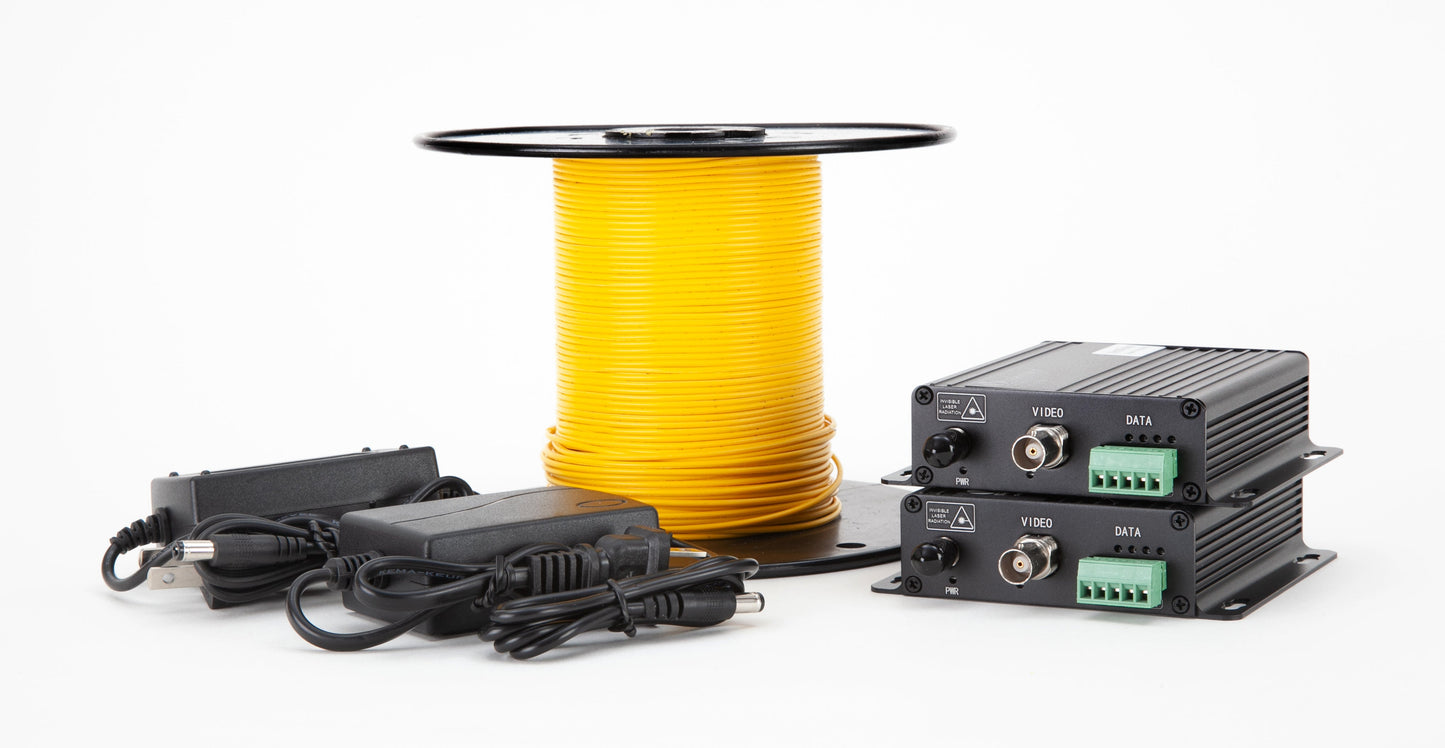

- Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber
1-Channel HDTVI Video and Data Over Singlemode Fiber
The HDTVITR1A05 provides a complete fiber optic solution for extending one channel of HDTVI video along with bidirectional data between a camera location and a monitoring or control location.
The transmitter is installed at the camera end of the link and connects to the receiver at the monitoring end through a single fiber optic cable. The VersiVision platform uses a plug-and-play design for adjustment-free installation and operation, with LED indicators for monitoring system status.
Digitally Encoded HD-TVI Video
The HDTVITR1A05 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.
Bidirectional RS-485 Data
In addition to HDTVI video, the HDTVITR1A05 provides one channel of bidirectional RS-485 data at data rates up to 300 Kbps. RS-232 and RS-422 are available as optional interfaces, making the system suitable for video installations requiring a return data channel.
30 km Singlemode Fiber Transmission
The HDTVITR1A05 uses singlemode fiber and supports transmission distances of up to 30 km. The VersiVision model table identifies the HDTVIT1A05 transmitter and HDTVIR1A05 receiver as the 1-channel HDTVI singlemode versions, with 1310/1550nm optical wavelengths.
Plug-and-Play Fiber Optic Installation
The VersiVision HD video platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide instant system status monitoring.
Technical Specifications
| Specification | HDTVITR1A05 |
|---|---|
| Video | 1-Channel HD-TVI |
| Video Input | 0.6–2.0 Vp-p (75 Ohms) |
| Bandwidth | 5 Hz–8 MHz |
| Bit Resolution | 8-Bit |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | < 1% |
| S/N Ratio | 60 dB (Weighted) |
| Fiber Type | Singlemode |
| Optical Wavelength | 1310/1550nm |
| Maximum Distance | 30 km |
| Number of Fibers | 1 |
| Optical Emitter | Laser Diode |
| Optical Connector | ST |
| Video Connector | BNC |
| Data Interface | RS-485 |
| Data Rate | Up to 300 Kbps |
| Data Channels | 1 Bi-Directional |
| Bit Error Rate | 10⁻⁹ |
| Optional Data | RS-232 or RS-422 |
| Data Contact | Screw Terminal Strip |
| Power Supply | 5VDC, 2A |
| Dimensions | 4.33 × 4.09 × 1.10 in. |
| MTBF | >100,000 Hours |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0% to 95% (Non-Condensing) |
| Installation | Standalone or Rack-Mount |
| Rack-Mount Chassis | FVC18 18-Slot Chassis |
The technical specifications are based on the VersiVision HD-CVI/AHD/HD-TVI datasheet.
Complete HDTVI Video and Data Installation Kit
The HDTVITR1A05 installation kit includes:
- HDTVI transmitter
- HDTVI receiver
- Power supplies
- 100 meters of singlemode fiber optic cable
This provides the primary components needed to establish a 1-channel HDTVI video and bidirectional data fiber link.
Standalone or Rack-Mount Installation
The HDTVITR1A05 can be deployed as a standalone solution or installed in the VERSITRON FVC18 18-slot rack-mount chassis. The VersiVision HD modules are also designed to be hot-pluggable when installed in the FVC18 chassis.
HDTVI Fiber Optic Video Applications
The HDTVITR1A05 is suited for applications requiring long-distance HDTVI video and bidirectional data transmission over singlemode fiber, including:
- Security and surveillance systems
- CCTV monitoring
- PTZ camera systems
- Commercial security installations
- Industrial video monitoring
- Transportation and infrastructure monitoring
- Remote camera installations
- Centralized video monitoring
Why Choose the VERSITRON HDTVITR1A05?
The HDTVITR1A05 combines 1-channel HDTVI video transmission with bidirectional RS-485 data in a complete singlemode fiber installation kit. With support for distances up to 30 km and the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward solution for extending HDTVI camera connections over long-distance fiber links.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber, with both video-only and video-plus-data configurations available.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-TVI
Input/Output Channels
1
Bandwidth
5 Hz ~ 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
< 1%
S/N Ratio
60dB (Weighted)
Wavelength
1310/1550nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Data Interface
RS-485 (RS-422 or RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
1 Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
Key Features of 1 Channel Single Mode Transmitter & Receiver
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
1-Channel HDTVI Video Installation Kit | Data, ST, SM (HDTVITR1A05) is used across the following Applications:
Single-Camera HD-TVI Monitoring
- Supports one HD-TVI video channel for dedicated camera monitoring.
- Provides one bidirectional data channel for compatible equipment.
- 1310/1550nm wavelengths support the specified singlemode fiber configuration.
- ST optical and BNC video connectors match the defined interfaces.
Remote PTZ Camera Systems
- Suitable for compatible camera installations using RS-485 communication.
- One bidirectional data channel supports compatible control communication.
- Data transmission is specified at up to 300 Kbps.
- Screw terminal strip provides the specified data connection interface.
Security Gate Camera Links
- Provides dedicated HD-TVI video connectivity for a gate camera.
- RS-485 supports bidirectional data communication with compatible equipment.
- Singlemode optical transmission uses the specified 1310/1550nm wavelengths.
- Operating temperature from -35°C to +65°C supports varied gate environments.
Building Access Surveillance
- Supports one HD-TVI camera monitoring a building access point.
- One bidirectional data channel is available for compatible RS-485 equipment.
- 60dB weighted S/N ratio supports the specified video performance.
- 8-bit resolution matches the defined HD-TVI video configuration.
Parking Entrance Monitoring
- Connects a dedicated HD-TVI camera at a parking access location.
- RS-485 provides the specified bidirectional data interface.
- One fiber supports the singlemode optical connection.
- 5 Hz to 8 MHz bandwidth supports the HD-TVI video interface.
Industrial Area Surveillance
- Provides HD-TVI video connectivity for a monitored industrial location.
- Compatible RS-485 equipment can use the available data channel.
- Less than 1% differential gain supports the specified video characteristics.
- Less than 1° differential phase supports the defined signal performance.
Utility Site Camera Monitoring
- Supports dedicated HD-TVI camera monitoring at utility locations.
- One bidirectional RS-485 data channel supports compatible equipment.
- 1310/1550nm wavelengths match the specified singlemode configuration.
- Greater than 100,000-hour MTBF supports long-term installation requirements.
Critical Facility Surveillance
- Provides one HD-TVI video channel for a dedicated critical-area camera.
- RS-485 supports compatible bidirectional communication equipment.
- Data transmission supports rates up to 300 Kbps.
- 10⁻⁹ bit error rate is specified for the data channel.
Government Entrance Monitoring
- Suitable for dedicated HD-TVI surveillance at government facility entrances.
- One data channel provides bidirectional communication for compatible equipment.
- ST optical connectivity supports the specified single-fiber installation.
- 60dB weighted S/N ratio supports the defined video transmission quality.
Transportation Access Cameras
- Supports one HD-TVI camera at a transportation access location.
- RS-485 provides one bidirectional data channel for compatible devices.
- Up to 300 Kbps data rate supports the stated communication capability.
- -35°C to +65°C operating temperature supports varied facility conditions.
Campus Security Camera Links
- Provides dedicated HD-TVI connectivity for an individual campus camera.
- Compatible RS-485 equipment can use the bidirectional data channel.
- Screw terminal strip provides the specified data contact method.
- Singlemode fiber uses the specified 1310/1550nm wavelength configuration.
Warehouse Access Monitoring
- Supports an HD-TVI camera positioned at a warehouse entry or access area.
- One bidirectional data channel supports compatible RS-485 equipment.
- BNC video connectivity supports the specified HD-TVI interface.
- MTBF greater than 100,000 hours supports extended installation use.
Facility Perimeter Monitoring
- Suitable for dedicated HD-TVI cameras monitoring facility boundaries.
- RS-485 provides a defined data interface for compatible equipment.
- Operating temperatures from -35°C to +65°C support varied site conditions.
- 0% to 95% non-condensing humidity tolerance supports the specified environment.
Retail Security Camera Installation
- Connects one HD-TVI camera for a dedicated retail security view.
- Compatible RS-485 devices can use the available bidirectional data channel.
- Less than 1% tilt supports the specified video performance.
- 5VDC, 2A power supply meets the stated equipment requirement.
Security Control Room Camera Feeds
- Provides one HD-TVI video channel for a dedicated monitored camera.
- Bidirectional RS-485 data supports compatible remote equipment.
- BNC video connection matches the specified video interface.
- 5 Hz to 8 MHz bandwidth supports the stated HD-TVI signal range.
Remote Building Surveillance
- Connects a single HD-TVI camera for remote building monitoring.
- One optical fiber provides the specified singlemode video connection.
- 1310/1550nm wavelengths match the supplied optical specification.
- 60dB weighted S/N ratio supports the specified video signal quality.
Security Equipment Communication
- Provides one dedicated HD-TVI video channel alongside data connectivity.
- RS-485 supports one bidirectional data channel.
- RS-422 or RS-232 is optionally supported according to the specification.
- Data contact is provided through a screw terminal strip.
Outdoor Camera Installations
- Suitable for single-camera HD-TVI monitoring at outdoor facility locations.
- Operating temperature is specified from -35°C to +65°C.
- Storage temperature is specified from -45°C to +85°C.
- Relative humidity support is 0% to 95% non-condensing.
HD-TVI System Retrofit
- Supports compatible HD-TVI camera installations requiring optical connectivity.
- One bidirectional data channel allows compatible RS-485 equipment integration.
- Singlemode transmission uses 1310/1550nm wavelengths.
- ST optical and BNC video connectors provide the specified interfaces.
Single-Camera Network Expansion
- Adds one HD-TVI video channel to a compatible surveillance installation.
- Provides one bidirectional data channel for compatible equipment.
- Up to 300 Kbps data transmission supports the stated data capability.
- MTBF greater than 100,000 hours supports long-term deployment.
