1-Channel HDTVI Video Installation Kit | Data, ST, MM

SKU:HDTVITR1A03

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDTVITR1A03 is a 1-channel HDTVI video and data installation kit designed to transmit digitally encoded HD-TVI video and bidirectional control data over multimode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of multimode fiber, providing a convenient solution for extending HDTVI camera connections over fiber.

The HDTVITR1A03 supports 8-bit digitally encoded video plus 1 channel of bidirectional RS-485 data. It supports transmission distances up to 2 km over multimode fiber and is compatible with NTSC, PAL, and SECAM camera systems. RS-232 and RS-422 data interfaces are available as options.

Product Highlights

1-channel HDTVI video transmission
8-bit digitally encoded video
1-channel bidirectional data
RS-485 data interface
RS-232 or RS-422 available as options
Multimode fiber transmission up to 2 km
850/1310nm multimode wavelength
ST optical connector
Compatible with NTSC, PAL, and SECAM video systems
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Data rates up to 300 Kbps
Plug-and-play installation
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber

View full details

1-Channel HDTVI Video and Data Over Multimode Fiber

The HDTVITR1A03 provides a complete fiber optic solution for extending one channel of HDTVI video along with bidirectional data between a camera location and a monitoring or control location.

The transmitter is positioned at the camera end of the link and connects to the receiver through a single multimode fiber optic cable. The VersiVision platform is designed for plug-and-play installation without electrical or optical adjustments.

Digitally Encoded HD-TVI Video

The HDTVITR1A03 supports 8-bit digitally encoded HD-TVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bidirectional RS-485 Data

In addition to video transmission, the HDTVITR1A03 provides one channel of bidirectional RS-485 data. The data interface supports rates up to 300 Kbps, with RS-232 and RS-422 available as optional interfaces. This makes the kit suitable for video systems requiring return data between cameras and monitoring or control equipment.

2 km Multimode Fiber Transmission

The HDTVITR1A03 uses multimode fiber with an 850/1310nm wavelength and supports a maximum transmission distance of 2 km. The VersiVision model table identifies the HDTVIT1A03 transmitter and HDTVIR1A03 receiver as the 1-channel HDTVI multimode versions.

Plug-and-Play Installation

The VersiVision HD platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide instant system status monitoring.

Technical Specifications

Specification	HDTVITR1A03
Video	1-Channel HD-TVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bandwidth	5 Hz–8 MHz
Bit Resolution	8-Bit
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Multimode
Optical Wavelength	850/1310nm
Maximum Distance	2 km
Number of Fibers	1
Optical Emitter	Laser Diode
Optical Connector	ST
Video Connector	BNC
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
Optional Data	RS-232 or RS-422
Data Contact	Screw Terminal Strip
Power Supply	5VDC, 2A
Dimensions	4.33 × 4.09 × 1.10 in.
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The technical specifications above are from the VersiVision HD-CVI/AHD/HD-TVI datasheet.

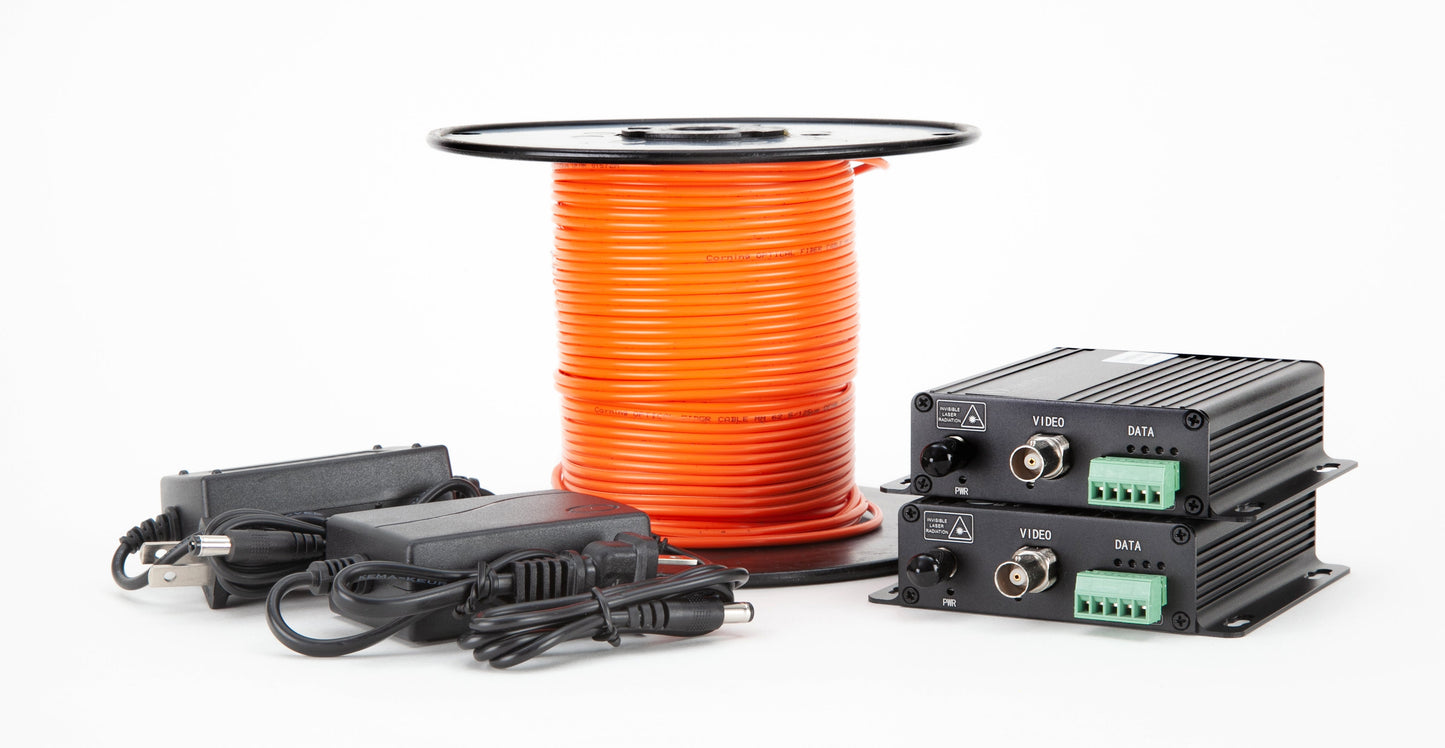

Complete HDTVI Video and Data Installation Kit

The HDTVITR1A03 installation kit includes:

HDTVI transmitter
HDTVI receiver
Power supplies
100 meters of multimode fiber optic cable

This provides the primary components needed to establish a 1-channel HDTVI video and bidirectional data fiber link.

Standalone or Rack-Mount Installation

The HDTVITR1A03 can be deployed as a standalone solution or installed in the VERSITRON FVC18 18-slot rack-mount chassis. The VersiVision HD modules are hot-pluggable when installed in the FVC18 chassis.

HDTVI Fiber Optic Video Applications

The HDTVITR1A03 is suited for applications requiring HDTVI video and bidirectional data transmission over multimode fiber, including:

Security and surveillance systems
CCTV monitoring
PTZ camera systems
Commercial security installations
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized video monitoring

Why Choose the VERSITRON HDTVITR1A03?

The HDTVITR1A03 combines 1-channel HDTVI video transmission with bidirectional RS-485 data in a complete multimode fiber installation kit. With the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward way to extend HDTVI camera connections while maintaining a data channel for camera control and related applications.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision platform supports HD-CVI, AHD, and HD-TVI video transmission over fiber, with both video-only and video-plus-data configurations available.

Technical Specifications:

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-TVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

850/1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 1 Channel Single Mode Transmitter & Receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.

HD Units Spec

HD Video Data Manual

Triad

1-Channel HDTVI Video Installation Kit | Data, ST, MM (HDTVITR1A03) is used across the following Applications:

Single-Camera HDTVI Surveillance

Supports one HD-TVI video channel for dedicated camera monitoring.
Provides an RS-485 data channel for compatible bidirectional communication.
850/1310nm wavelength supports the specified multimode fiber configuration.
BNC video and ST optical connectors provide defined equipment interfaces.

PTZ Camera Installations

Suitable for camera systems using RS-485 communication.
One bidirectional data channel supports compatible control communication.
Data transmission is specified up to 300 Kbps.
Screw terminal connectivity supports the specified data interface.

Security Gate Monitoring

Connects an HD-TVI camera positioned at a facility entrance or gate.
RS-485 provides a dedicated bidirectional data path for compatible equipment.
Single-fiber optical connectivity carries the video installation link.
Operating temperature from -35°C to +65°C supports varied gate environments.

Building Entrance Cameras

Provides dedicated HD-TVI video transmission for an entrance camera.
Compatible RS-485 equipment can use the bidirectional data channel.
60dB weighted S/N ratio supports the specified video transmission quality.
8-bit resolution supports the stated HD-TVI video configuration.

Parking Access Surveillance

Suitable for an HD-TVI camera monitoring a parking entrance or access point.
RS-485 data supports compatible bidirectional communication equipment.
One fiber provides the specified optical connection.
5 Hz to 8 MHz bandwidth supports the HD-TVI video interface.

Warehouse Entry Monitoring

Supports a dedicated HD-TVI camera at a warehouse access location.
One bidirectional data channel can support compatible RS-485 equipment.
ST optical connectivity supports the specified fiber connection.
MTBF greater than 100,000 hours supports long-term deployment.

Industrial Equipment Areas

Provides HD-TVI video connectivity for a monitored industrial area.
RS-485 communication can support compatible equipment requiring bidirectional data.
Less than 1% differential gain supports the specified video performance.
Less than 1° differential phase supports the specified signal characteristics.

Remote Security Camera Links

Connects a single HD-TVI camera through one optical fiber.
Supports one bidirectional data channel alongside the video connection.
850/1310nm wavelengths match the supplied multimode configuration.
ST optical and BNC video connectors simplify the specified connections.

Facility Perimeter Cameras

Suitable for dedicated HD-TVI camera monitoring at facility boundaries.
RS-485 provides a defined data interface for compatible devices.
Operating temperature of -35°C to +65°C supports temperature-variable sites.
0% to 95% non-condensing humidity tolerance supports varied environments.

Transportation Access Points

Supports one HD-TVI camera at a transportation facility access location.
Bidirectional RS-485 data can support compatible connected equipment.
Up to 300 Kbps data rate meets the specified data capability.
5VDC, 2A power supply matches the specified installation requirement.

Government Facility Entrances

Provides dedicated HD-TVI video connectivity for an entrance camera.
RS-485 data supports compatible bidirectional communication.
Bit error rate is specified at 10⁻⁹ for the data channel.
Greater than 100,000-hour MTBF supports long-term installation use.

Campus Access Monitoring

Suitable for individual HD-TVI cameras at campus access locations.
One bidirectional data channel supports compatible RS-485 equipment.
Screw terminal strip provides the specified data contact interface.
Single-fiber optical connectivity supports the installation design.

Retail Security Camera Links

Connects a single HD-TVI camera for a dedicated retail security view.
Compatible RS-485 equipment can use the available data channel.
60dB weighted S/N ratio supports the specified video signal quality.
Less than 1% tilt supports the stated video performance specification.

Utility Facility Monitoring

Provides HD-TVI video connectivity for a dedicated utility camera.
RS-485 supports one bidirectional data channel for compatible equipment.
Operating temperature range covers -35°C to +65°C.
Non-condensing humidity tolerance is specified from 0% to 95%.

Critical Infrastructure Cameras

Supports dedicated HD-TVI video monitoring at critical facility locations.
One RS-485 data channel provides bidirectional communication capability.
Data transmission supports rates up to 300 Kbps.
10⁻⁹ bit error rate is specified for the data channel.

Security Control Room Links

Provides one HD-TVI video channel for a dedicated camera feed.
Bidirectional RS-485 data supports compatible remote equipment.
BNC video connectivity supports the specified HD-TVI interface.
5 Hz to 8 MHz bandwidth supports the stated video transmission range.

Outdoor Facility Surveillance

Suitable for single-camera HD-TVI monitoring at outdoor facility locations.
Operating temperature ranges from -35°C to +65°C.
Storage temperature is specified from -45°C to +85°C.
0% to 95% non-condensing relative humidity is supported.

Camera System Retrofit

Provides HD-TVI video connectivity for compatible camera installations.
RS-485 supports bidirectional data where compatible equipment is used.
Optional RS-422 or RS-232 data interfaces are supported by the specification.
ST optical and BNC video connections support the defined installation interfaces.

Remote Building Monitoring

Connects a dedicated HD-TVI camera for remote building observation.
One optical fiber provides the specified video transmission connection.
850/1310nm wavelength specification supports the multimode configuration.
High S/N performance supports the specified 60dB weighted ratio.

Single-Camera Surveillance Expansion

Adds one HD-TVI video channel to a compatible surveillance installation.
Provides one bidirectional data channel for compatible RS-485 equipment.
Up to 300 Kbps data rate supports the specified communication capability.
MTBF greater than 100,000 hours supports long-term system deployment.

Versitron is one of the leading (HDTVITR1A03) 1-Channel HDTVI Video Installation Kit | Data, ST, MM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 1-Channel HDTVI Video Installation Kit | Data, ST, MM with Data over Multimode Fiber from VERSITRON at a Competitive Price!
