8-Channel HDCVI Video Installation Kit | Data, ST, SM

SKU:HDCVITR8A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDCVITR8A05 is an 8-channel HD-CVI video installation kit designed to transmit digitally encoded HD-CVI video and bi-directional data over singlemode fiber optic cable. The complete installation kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber optic cable, providing a convenient fiber optic solution for connecting multiple HD-CVI cameras to remote monitoring equipment.

The VersiVision HD platform supports 8-bit digitally encoded video, compatibility with NTSC, PAL, and SECAM camera systems, and 1-channel bi-directional RS-485 data. RS-232 and RS-422 data interfaces are available upon request. Plug-and-play operation eliminates the need for electrical or optical adjustments, while LED indicators provide system status monitoring.

Product Highlights

8-channel HD-CVI video transmission
8-bit digitally encoded video
Singlemode fiber optic transmission
ST optical connectors
1-channel bi-directional RS-485 data
Data rates up to 300 Kbps
RS-232 and RS-422 available upon request
Compatible with NTSC, PAL, and SECAM video systems
Supports 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

8-Channel HD-CVI Video and Data Over Singlemode Fiber

The HDCVITR8A05 provides a complete fiber optic installation solution for transmitting eight channels of HD-CVI video along with one channel of bi-directional data. The transmitter is positioned at the camera end of the fiber link, while the receiver is installed at the monitoring location.

VERSITRON's VersiVision HD technology uses digitally encoded video transmission over a single optical fiber, providing a practical way to extend HD-CVI camera connections beyond the limitations of conventional copper video cabling. The datasheet specifies singlemode operation at 1310/1550nm for the VersiVision HD platform.

Digitally Encoded HD-CVI Video

The VersiVision HD platform supports 8-bit digitally encoded video and is designed for HD-CVI, AHD, and HD-TVI video systems. The equipment is directly compatible with NTSC, PAL, and SECAM camera systems.

The optimized optical modules support video formats including 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F.

Bi-Directional RS-485 Data

The HDCVITR8A05 also supports 1 channel of bi-directional data. The standard data interface is RS-485 with data rates up to 300 Kbps. RS-232 and RS-422 interfaces are available as optional configurations.

This makes the video-and-data configuration useful for camera systems that require return data, including applications where control information needs to travel between the camera location and monitoring equipment.

Plug-and-Play Fiber Optic Installation

The VersiVision HD platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and LED indicators provide immediate system operating-status information.

Technical Specifications

Specification	HDCVITR8A05
Video	8-Channel HD-CVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bit Resolution	8-Bit
Bandwidth	5 Hz–8 MHz
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Singlemode
Optical Wavelength	1310/1550nm
Number of Fibers	1
Optical Connector	ST
Video Connector	BNC
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
RS-232 / RS-422	Optional
Power Supply	5VDC, 2A
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The technical specifications above are taken from the VersiVision HD datasheet.

Complete HD-CVI Installation Kit

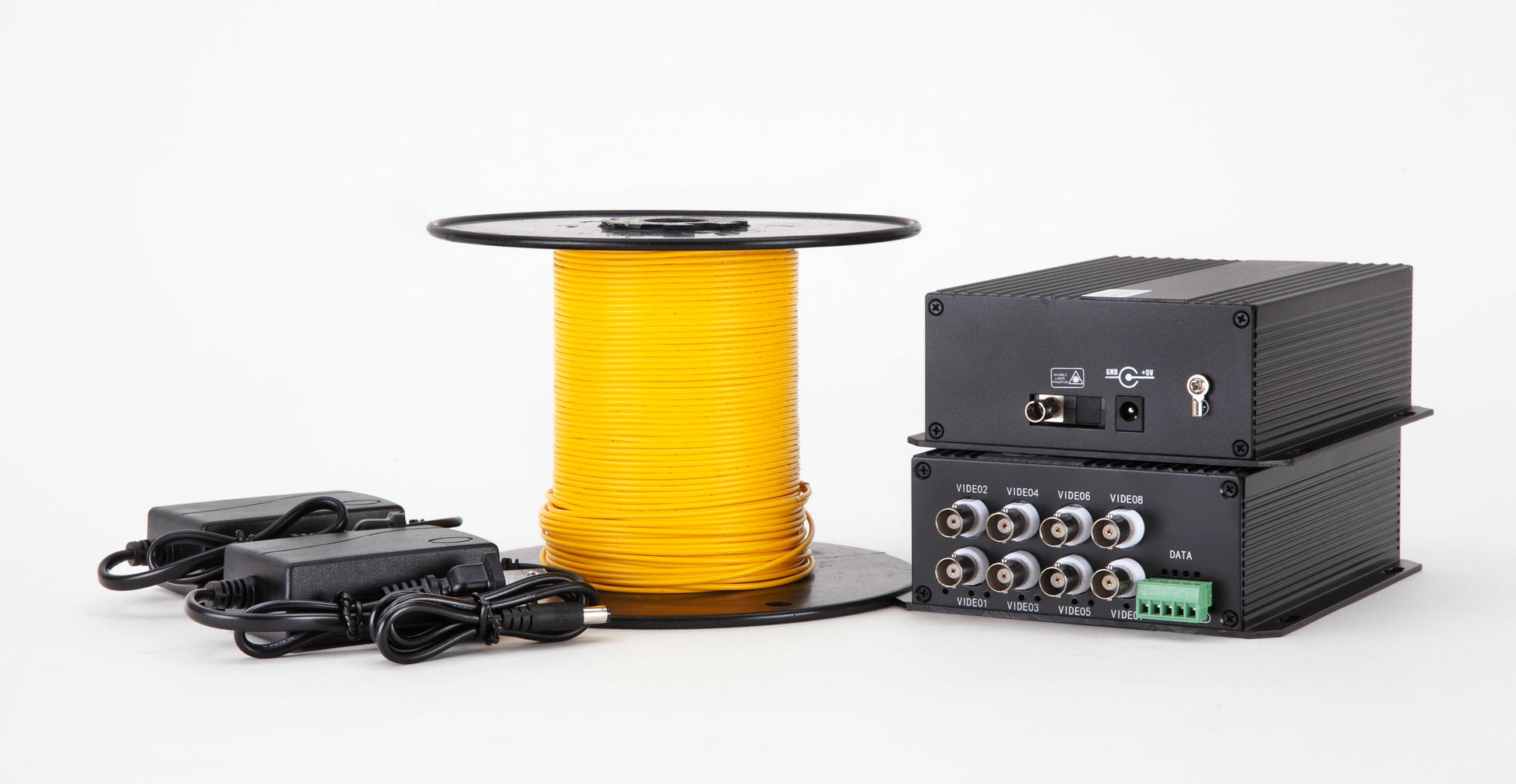

The HDCVITR8A05 includes the components needed to establish a singlemode fiber optic HD-CVI video and data connection:

8-channel HD-CVI transmitter
8-channel HD-CVI receiver
Power supplies
100 meters of singlemode fiber optic cable

Standalone or Rack-Mount Installation

VersiVision HD equipment can be deployed as standalone units or installed in the FVC18 18-slot rack-mount chassis. The datasheet identifies the VersiVision modules as hot-pluggable when installed in the FVC18 chassis.

HD-CVI Video and Data Applications

The HDCVITR8A05 is suited for applications requiring multiple HD-CVI camera channels and return data over fiber, including:

Security and surveillance systems
CCTV monitoring
PTZ camera installations
Commercial security systems
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized video monitoring

Why Choose the VERSITRON HDCVITR8A05?

The HDCVITR8A05 combines 8-channel HD-CVI video transmission with bi-directional RS-485 data in a complete singlemode fiber optic installation kit. With the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward solution for extending multi-channel HD-CVI video and camera data over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision product family provides fiber optic transmission solutions for HD-CVI, AHD, and HD-TVI video systems.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-CVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 8 channel single mode ST transmitter & Receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Data Manual

Triad

8-Channel HDCVI Video Installation Kit | Data, ST, SM (HDCVITR8A05) is used across the following Applications:

Centralized Multi-Camera Security

Supports eight HD-CVI video channels through one singlemode fiber.
Consolidates multiple camera feeds at a central monitoring location.
Provides one bidirectional data channel alongside the video signals.
Suitable for security installations with a high number of connected cameras.

Large Campus Surveillance

Connects multiple HD-CVI cameras across separate campus areas.
Eight channels support a larger camera count on one optical link.
Uses 1310/1550nm singlemode fiber connectivity.
Suitable for centralized monitoring of distributed campus security cameras.

Multi-Building CCTV Integration

Supports eight HD-CVI feeds from cameras installed across multiple buildings.
Uses one fiber for the optical video connection.
Provides RS-485 communication for compatible equipment.
Suitable for integrating camera feeds into a centralized surveillance system.

Airport Security Monitoring

Supports multiple HD-CVI cameras across compatible airport security areas.
Eight video channels accommodate several monitored locations.
Provides optional RS-422 or RS-232 data interface support.
Suitable for centralized monitoring of camera feeds in transportation facilities.

Railway Facility Surveillance

Connects multiple HD-CVI cameras at compatible railway facilities.
Consolidates up to eight video channels over one singlemode fiber.
Supports one bidirectional data channel at up to 300 Kbps.
Suitable for centralized surveillance of multiple railway areas.

Highway and Roadside Monitoring

Supports multiple HD-CVI cameras at compatible roadside monitoring locations.
Eight channels provide capacity for several camera viewpoints.
Uses ST optical connectivity for the specified fiber installation.
Suitable for centralized video monitoring of controlled road facilities.

Large Warehouse Security

Provides eight HD-CVI channels for warehouse camera coverage.
Supports separate video feeds for storage and operational areas.
Singlemode fiber provides the specified optical connection.
Suitable for centralized surveillance of large warehouse facilities.

Distribution Center Monitoring

Connects cameras covering loading, receiving, storage, and access areas.
Eight channels accommodate multiple HD-CVI surveillance positions.
Supports RS-485 communication for compatible installations.
Suitable for centralized security monitoring in distribution facilities.

Industrial Plant Surveillance

Supports multiple HD-CVI cameras across industrial plant areas.
Operates from -35°C to +65°C within the specified operating range.
Supports 0% to 95% non-condensing relative humidity.
Suitable for compatible industrial video monitoring installations.

Manufacturing Floor Monitoring

Provides eight video channels for monitoring separate production areas.
Supports 5 Hz–8 MHz bandwidth for the HD-CVI video interface.
Provides a 60dB weighted S/N ratio for the specified video signal.
Suitable for centralized monitoring of compatible manufacturing facilities.

Utility Facility Security

Connects multiple HD-CVI cameras at compatible utility facilities.
Eight channels support surveillance of several facility locations.
Provides one bidirectional data channel for compatible equipment.
Suitable for centralized security video monitoring at utility sites.

Substation Video Monitoring

Supports multiple HD-CVI camera feeds for compatible substation surveillance.
Singlemode fiber provides the optical connection using 1310/1550nm wavelengths.
Provides RS-485 data connectivity for compatible equipment.
Suitable for centralized monitoring of substation security cameras.

Government Campus Security

Supports eight HD-CVI camera channels across government facility areas.
Consolidates multiple camera feeds onto one optical fiber.
Provides optional RS-422 or RS-232 connectivity where supported.
Suitable for centralized government campus surveillance systems.

Stadium Perimeter Surveillance

Supports multiple HD-CVI cameras positioned around compatible venue areas.
Eight channels provide capacity for high-density camera installations.
Uses one singlemode fiber for the optical video connection.
Suitable for centralized surveillance of stadium perimeter areas.

Hotel Property Monitoring

Connects HD-CVI cameras covering entrances, parking, and common areas.
Eight channels allow multiple surveillance zones to be monitored together.
Supports 8-bit video transmission through the HD-CVI interface.
Suitable for centralized security monitoring of larger hotel properties.

Hospital Security Camera Networks

Supports multiple HD-CVI cameras across compatible hospital areas.
Eight channels provide connectivity for several monitored locations.
Uses one singlemode fiber for the optical video link.
Suitable for centralized security monitoring across large healthcare facilities.

Critical Infrastructure CCTV

Provides eight HD-CVI video channels for compatible critical facilities.
Offers an MTBF greater than 100,000 hours.
Supports a specified 10⁻⁹ bit error rate for the data channel.
Suitable for video and data connectivity in critical infrastructure surveillance systems.

Multi-Zone Facility Monitoring

Provides eight channels for cameras assigned to different security zones.
Consolidates multiple HD-CVI signals through one fiber.
Maintains differential gain below ±1% and differential phase below ±1°.
Suitable for centralized monitoring of multiple facility zones.

High-Density CCTV Expansion

Adds eight HD-CVI video channels to compatible surveillance architectures.
Provides one bidirectional data channel alongside the video connection.
Supports data transmission up to 300 Kbps.
Suitable for expanding surveillance systems requiring multiple video feeds on one fiber.

Environmentally Demanding Camera Sites

Supports eight HD-CVI channels for compatible camera installations.
Operates from -35°C to +65°C within the specified range.
Supports 0% to 95% non-condensing relative humidity.
Suitable for multi-camera sites operating within the specified environmental conditions.
