8-Channel HDCVI Video Installation Kit | Data, ST, MM

SKU:HDCVITR8A03

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDCVITR8A03 is an 8-channel HD-CVI video installation kit designed to transmit digitally encoded HD-CVI video and bi-directional data over multimode fiber optic cable. The complete kit includes the transmitter, receiver, power supplies, and 100 meters of multimode fiber optic cable, providing a convenient solution for extending multi-channel HD-CVI camera connections over fiber.

The VersiVision HD platform supports 8-bit digitally encoded video, NTSC, PAL, and SECAM camera systems, and 1-channel bi-directional RS-485 data. RS-232 and RS-422 data are available upon request. Plug-and-play operation eliminates the need for electrical or optical adjustments, while LED indicators provide immediate system status monitoring.

Product Highlights

8-channel HD-CVI video transmission
8-bit digitally encoded video
Multimode fiber optic transmission
ST optical connectors
1-channel bi-directional RS-485 data
Data rates up to 300 Kbps
RS-232 and RS-422 available upon request
Compatible with NTSC, PAL, and SECAM video systems
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber

View full details

8-Channel HD-CVI Video and Data Over Multimode Fiber

The HDCVITR8A03 provides a complete fiber optic installation solution for transmitting eight channels of HD-CVI video along with one channel of bi-directional data. The transmitter is installed at the camera end of the fiber link, while the receiver is installed at the monitoring location.

VERSITRON's VersiVision HD technology uses digitally encoded video transmission over a single optical fiber. This provides a practical way to extend HD-CVI camera connections over fiber while maintaining compatibility with standard NTSC, PAL, and SECAM video systems.

Digitally Encoded HD-CVI Video

The VersiVision HD platform provides 8-bit digitally encoded video transmission and supports HD-CVI, AHD, and HD-TVI video technologies. The equipment is directly compatible with NTSC, PAL, and SECAM camera systems.

The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.

Bi-Directional RS-485 Data

In addition to HD-CVI video, the HDCVITR8A03 supports 1 channel of bi-directional data. The standard data interface is RS-485, with data rates up to 300 Kbps. RS-232 and RS-422 interfaces are available as optional configurations.

This capability makes the video-and-data configuration suitable for camera installations requiring return data, including PTZ camera applications.

Plug-and-Play Fiber Optic Installation

The VersiVision HD platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide immediate system operating-status information.

Technical Specifications

Specification	HDCVITR8A03
Video	8-Channel HD-CVI
Video Input	0.6–2.0 Vp-p (75 Ohms)
Bit Resolution	8-Bit
Bandwidth	5 Hz–8 MHz
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60 dB (Weighted)
Fiber Type	Multimode
Optical Wavelength	850/1310nm
Number of Fibers	1
Optical Connector	ST
Video Connector	BNC
Data Interface	RS-485
Data Rate	Up to 300 Kbps
Data Channels	1 Bi-Directional
Bit Error Rate	10⁻⁹
RS-232 / RS-422	Optional
Power Supply	5VDC, 2A
MTBF	>100,000 Hours
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0% to 95% (Non-Condensing)
Installation	Standalone or Rack-Mount
Rack-Mount Chassis	FVC18 18-Slot Chassis

The electrical, optical, data, connector, power, environmental, and reliability specifications are from the VersiVision HD datasheet.

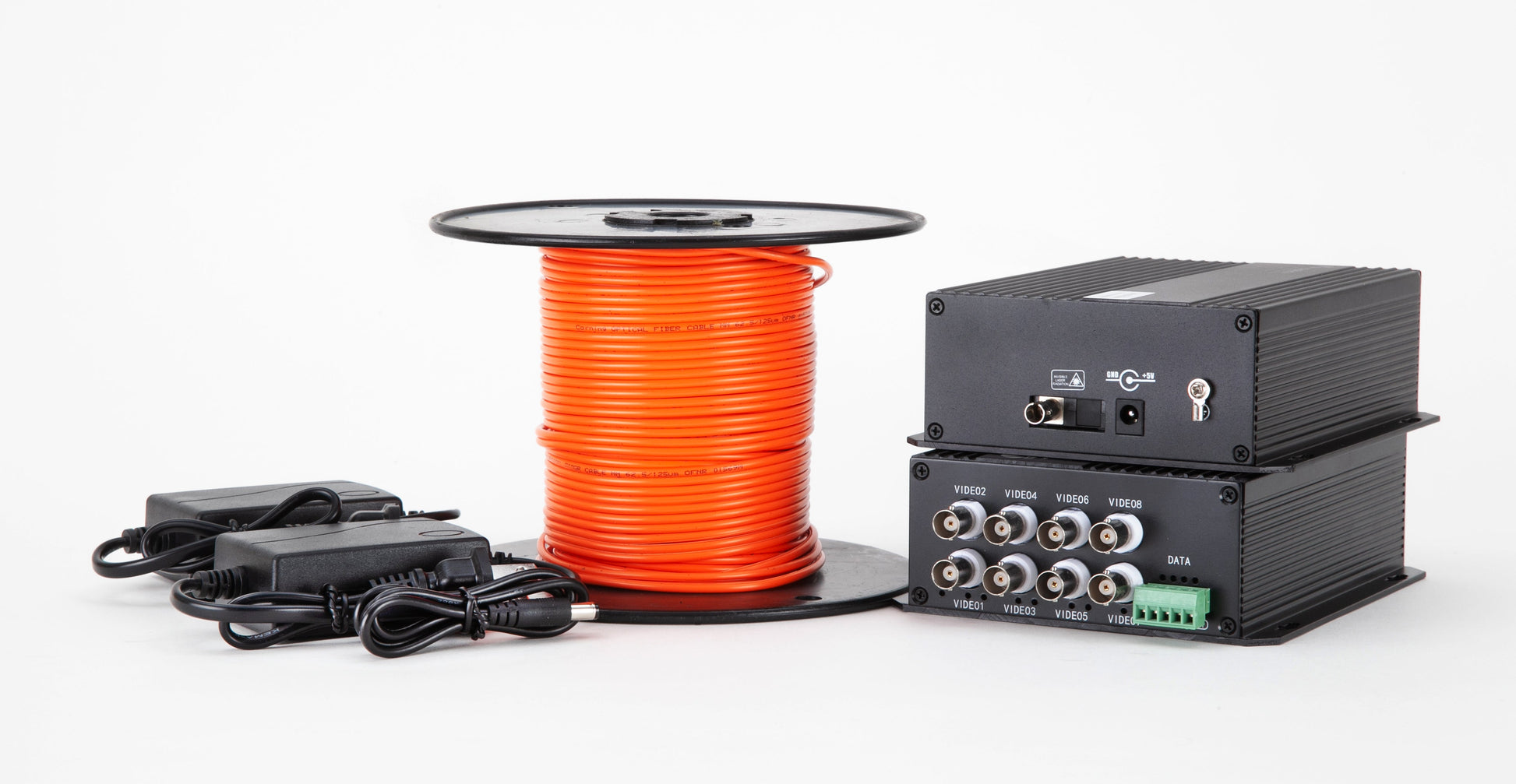

Complete HD-CVI Installation Kit

The HDCVITR8A03 installation kit includes:

8-channel HD-CVI transmitter
8-channel HD-CVI receiver
Power supplies
100 meters of multimode fiber optic cable

This provides the primary components needed to establish a multi-channel HD-CVI fiber optic link.

Standalone or Rack-Mount Installation

VersiVision HD equipment can be deployed as standalone units or installed in the FVC18 18-slot rack-mount chassis. The datasheet also identifies the VersiVision modules as hot-pluggable when installed in the FVC18 chassis.

HD-CVI Video and Data Applications

The HDCVITR8A03 is suited for applications requiring multiple HD-CVI camera channels and return data over multimode fiber, including:

Security and surveillance systems
CCTV monitoring
PTZ camera installations
Commercial security systems
Industrial video monitoring
Transportation and infrastructure monitoring
Remote camera installations
Centralized video monitoring

Why Choose the VERSITRON HDCVITR8A03?

The HDCVITR8A03 combines multi-channel HD-CVI video transmission with bi-directional RS-485 data in a complete multimode fiber optic installation kit. With the transmitter, receiver, power supplies, and 100 meters of fiber included, it provides a straightforward solution for extending HD-CVI video and camera data over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision product family provides fiber optic transmission solutions for HD-CVI, AHD, and HD-TVI video systems.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-CVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

850/1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of Single-mode ST 8 Channel Transmitter & Receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Data Manual

Triad

8-Channel HDCVI Video Installation Kit | Data, ST, MM (HDCVITR8A03) is used across the following Applications:

Multi-Camera Security Command Centers

Supports eight HD-CVI video channels from multiple surveillance cameras.
Consolidates several camera feeds onto one optical fiber.
Provides one bidirectional data channel alongside the video signals.
Suitable for centralized security monitoring environments with multiple camera feeds.

Large Parking Facility Surveillance

Provides eight video channels for separate parking surveillance positions.
Allows multiple HD-CVI cameras to share one fiber connection.
Supports RS-485 communication for compatible camera installations.
Suitable for centralized monitoring of larger parking areas.

Airport and Transit Camera Networks

Connects multiple HD-CVI cameras used across transportation facilities.
Eight channels accommodate several monitored areas from one fiber link.
Supports optional RS-422 or RS-232 data interfaces.
Suitable for centralized video monitoring of transportation environments.

Multi-Area Campus Security

Supports eight HD-CVI camera locations across a campus installation.
Uses one multimode fiber for the optical connection.
Provides a bidirectional data channel for compatible equipment.
Suitable for consolidating video from multiple campus security areas.

Distribution and Logistics Centers

Connects cameras monitoring loading, storage, and access areas.
Eight video channels provide greater camera capacity from one fiber link.
BNC interfaces support compatible HD-CVI video equipment.
Suitable for centralized surveillance of logistics facilities.

Industrial Production Monitoring

Supports multiple HD-CVI cameras across production and operational areas.
Operates from -35°C to +65°C within the specified temperature range.
Provides RS-485 data connectivity for compatible installations.
Suitable for centralized industrial video monitoring systems.

Perimeter Security Camera Aggregation

Connects multiple HD-CVI cameras positioned around a facility perimeter.
Eight channels accommodate numerous surveillance viewpoints.
One fiber carries the connected video signals.
Suitable for consolidating perimeter camera feeds at a monitoring location.

Multi-Entrance Security Monitoring

Supports HD-CVI cameras covering multiple building entrances and access points.
Eight channels allow several entry areas to be monitored together.
Provides one bidirectional RS-485 data channel.
Suitable for centralized monitoring of multi-entrance facilities.

Warehouse Aisle Surveillance

Provides eight HD-CVI channels for multiple warehouse surveillance zones.
Supports camera coverage across separate aisles and operational areas.
Uses one multimode fiber for the optical connection.
Suitable for centralized warehouse video monitoring.

Manufacturing Facility Security

Supports multiple HD-CVI cameras across manufacturing areas.
Provides 5 Hz–8 MHz bandwidth for the specified video interface.
Maintains differential gain below ±1% and differential phase below ±1°.
Suitable for multi-camera security monitoring within manufacturing facilities.

Government Building Surveillance

Supports eight HD-CVI camera feeds for government facility monitoring.
Provides ST optical connectivity through one fiber.
Includes RS-485 with optional RS-422 or RS-232 support.
Suitable for centralized surveillance of multiple government facility areas.

Utility Facility Camera Systems

Connects multiple HD-CVI cameras used for utility facility monitoring.
Eight channels support surveillance of several facility zones.
Supports operation across the specified -35°C to +65°C range.
Suitable for compatible utility security video installations.

Stadium and Venue Surveillance

Provides eight HD-CVI video channels for venue security cameras.
Supports multiple surveillance positions through one fiber connection.
60dB weighted S/N ratio supports the specified video interface.
Suitable for centralized monitoring of large venue security areas.

Hospital Facility Monitoring

Supports multiple HD-CVI cameras across compatible hospital areas.
Eight channels allow several monitored locations to share one optical link.
Provides 8-bit video transmission through the HD-CVI interface.
Suitable for centralized facility security monitoring.

Hotel and Hospitality Security

Connects HD-CVI cameras covering entrances, corridors, and other monitored areas.
Eight channels support a larger number of surveillance viewpoints.
Uses a single multimode fiber for the optical connection.
Suitable for centralized security camera monitoring in hospitality facilities.

Data Center Facility Surveillance

Supports multiple HD-CVI cameras for compatible facility security monitoring.
Provides eight video channels through one optical fiber.
Offers RS-485 communication for compatible equipment requirements.
Suitable for centralized monitoring of controlled facility areas.

Critical Infrastructure Monitoring

Supports eight HD-CVI camera feeds for critical facility surveillance.
Provides an MTBF greater than 100,000 hours.
Supports a specified 10⁻⁹ bit error rate for the data channel.
Suitable for video and data connectivity in compatible critical infrastructure installations.

Multi-Building Security Networks

Provides eight HD-CVI channels for cameras distributed across facility buildings.
Consolidates the video connection through one optical fiber.
Supports 850/1310nm optical operation as specified.
Suitable for centralized monitoring of multiple compatible buildings.

High-Density CCTV Deployments

Provides eight video channels in a single HD-CVI installation kit.
Reduces the need for separate optical links for each connected video channel.
Supports one bidirectional data channel at up to 300 Kbps.
Suitable for surveillance deployments requiring multiple video feeds over one fiber.

Temperature-Variable Surveillance Sites

Supports four? no, eight HD-CVI video channels for compatible surveillance systems.
Operates from -35°C to +65°C within the specified operating range.
Supports 0% to 95% non-condensing relative humidity.
Suitable for installations requiring multi-channel video connectivity within these environmental limits.
