8-Channel HDCVI Video Installation Kit | ST, MM

8-Channel HD-CVI Video Over Multimode Fiber

The HDCVITR8003 provides a complete fiber optic installation solution for transmitting eight channels of HD-CVI video between cameras and monitoring equipment. Using multimode fiber allows the video signals to be transported over a fiber optic connection while avoiding the electrical interference associated with copper-based video cabling.

A typical VersiVision installation places the transmitter at the camera end of the link and the receiver at the monitoring end, connected by a single fiber optic cable.

Digitally Encoded HD-CVI Video

VERSITRON's VersiVision HD platform provides 8-bit digitally encoded video transmission and supports HD-CVI, AHD, and HD-TVI video formats. The equipment is directly compatible with NTSC, PAL, and SECAM camera systems.

Multimode Fiber and ST Connectivity

The HDCVITR8003 uses multimode fiber with ST optical connectors. The VersiVision technical specifications identify 850/1310nm as the multimode optical wavelength.

Plug-and-Play Installation

The VersiVision HD platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, and integrated LED indicators provide immediate system operating-status information.

Technical Specifications

These specifications come from the VersiVision HD technical specifications in the supplied datasheet.

Complete HD-CVI Installation Kit

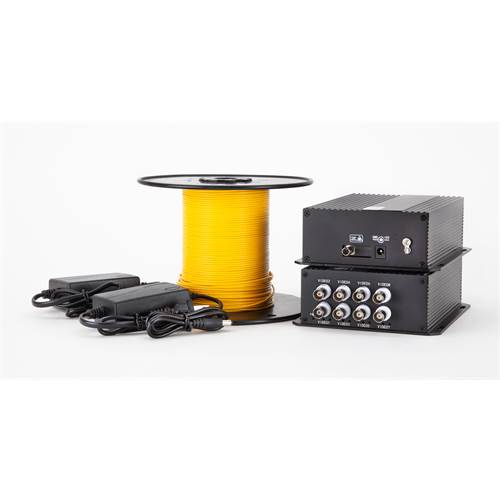

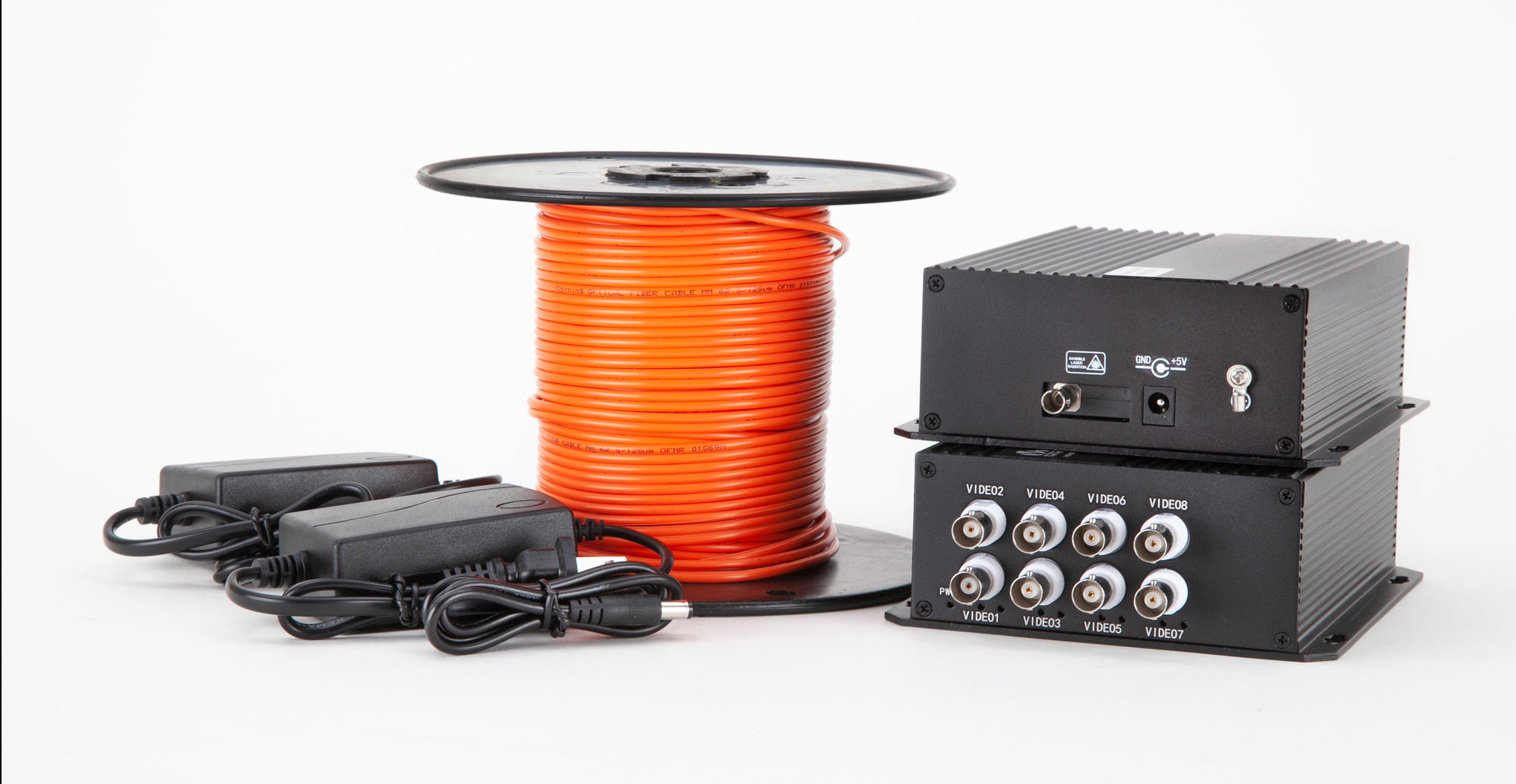

The HDCVITR8003 installation kit includes the primary components needed for a multimode fiber optic HD-CVI connection:

• 8-channel HD-CVI transmitter
• 8-channel HD-CVI receiver
• Power supplies
• 100 meters of multimode fiber optic cable

Standalone or Rack-Mount Installation

VersiVision HD equipment is available for standalone installation or rack-mount deployment using the FVC18 18-slot chassis. The datasheet also specifies that VersiVision modules are hot-pluggable when installed in the FVC18 chassis.

HD-CVI Video Applications

The HDCVITR8003 can be used for fiber optic video transmission in applications such as:

• Security and surveillance systems
• CCTV monitoring
• Commercial security installations
• Industrial video monitoring
• Transportation and infrastructure monitoring
• Remote camera installations
• Centralized video monitoring

Why Choose the VERSITRON HDCVITR8003?

The HDCVITR8003 provides a complete 8-channel HD-CVI fiber optic installation solution with the transmitter, receiver, power supplies, and fiber cable included. Its digitally encoded video transmission, multimode fiber connectivity, ST connectors, and adjustment-free operation make it suitable for applications requiring multiple HD-CVI video channels over fiber.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has developed fiber optic communication solutions for video, data, and networking applications. The VersiVision product family provides fiber optic transmission solutions for HD-CVI, AHD, and HD-TVI video systems.

All of the VersiVision HD installation kits are available for standalone applications and include: 8 Channel Transmitter, 8 Channel Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 8 Channel HDCVI Video Transmitter & Receiver

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
