4-Channel HDCVI Video Installation Kit | Data, ST, SM

SKU:HDCVITR4A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDCVITR4A05 is a complete 4-channel HD-CVI video and data installation kit designed to transmit four channels of 8-bit digitally encoded HD-CVI video plus one channel of bi-directional data over a singlemode optical fiber. The kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber optic cable, providing a convenient solution for extending HD-CVI camera signals and control data over long distances.

The HDCVITR4A05 supports RS-485 bi-directional data, with RS-232 and RS-422 available as options. It is compatible with NTSC, PAL, and SECAM camera systems and supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats. The singlemode configuration supports transmission distances of up to 30 km.

Product Highlights

4-channel HD-CVI video transmission
8-bit digitally encoded video
1-channel bi-directional RS-485 data
Singlemode fiber transmission up to 30 km
Single-fiber optical transmission
ST optical connectors
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
RS-232 and RS-422 available as options
Plug-and-play, adjustment-free installation
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

4-Channel HD-CVI Video and Data Over Singlemode Fiber

The HDCVITR4A05 combines four-channel HD-CVI video transmission with a bi-directional data channel over a single singlemode optical fiber. A typical installation places the transmitter at the camera location and the receiver at the monitoring or control location. This allows HD-CVI video and camera control data to be extended well beyond the normal limitations of copper cabling.

The VERSITRON product model table identifies the HDCVIT4A05 transmitter and HDCVIR4A05 receiver as 4-channel HD-CVI video + bi-directional data units using ST simplex singlemode fiber with a maximum distance of 30 km.

8-Bit Digitally Encoded HD-CVI Video

The VersiVision HD platform provides 8-bit digitally encoded video transmission and supports HD-CVI, AHD, and HD-TVI video technologies. The optimized optical modules are compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats and support NTSC, PAL, and SECAM camera systems.

Bi-Directional RS-485 Data

The HDCVITR4A05 provides one bi-directional RS-485 data channel with data rates up to 300 Kbps. RS-232 and RS-422 interfaces are available as optional configurations. This makes the kit suitable for video systems that require return data for camera control and other compatible equipment.

30 km Singlemode Fiber Transmission

The singlemode HDCVITR4A05 configuration supports transmission distances up to 30 km. The transmitter and receiver communicate over one optical fiber, providing a long-distance fiber link between the camera and monitoring locations.

Plug-and-Play Installation

The VersiVision HD-CVI platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide immediate system operating-status information.

ST Fiber Optic Connectivity

The HDCVITR4A05 uses ST optical connectors for the fiber connection and BNC connectors for video. The datasheet also notes that ST-SC adapters are available for applications using SC fiber connectors.

Complete HD-CVI Installation Kit

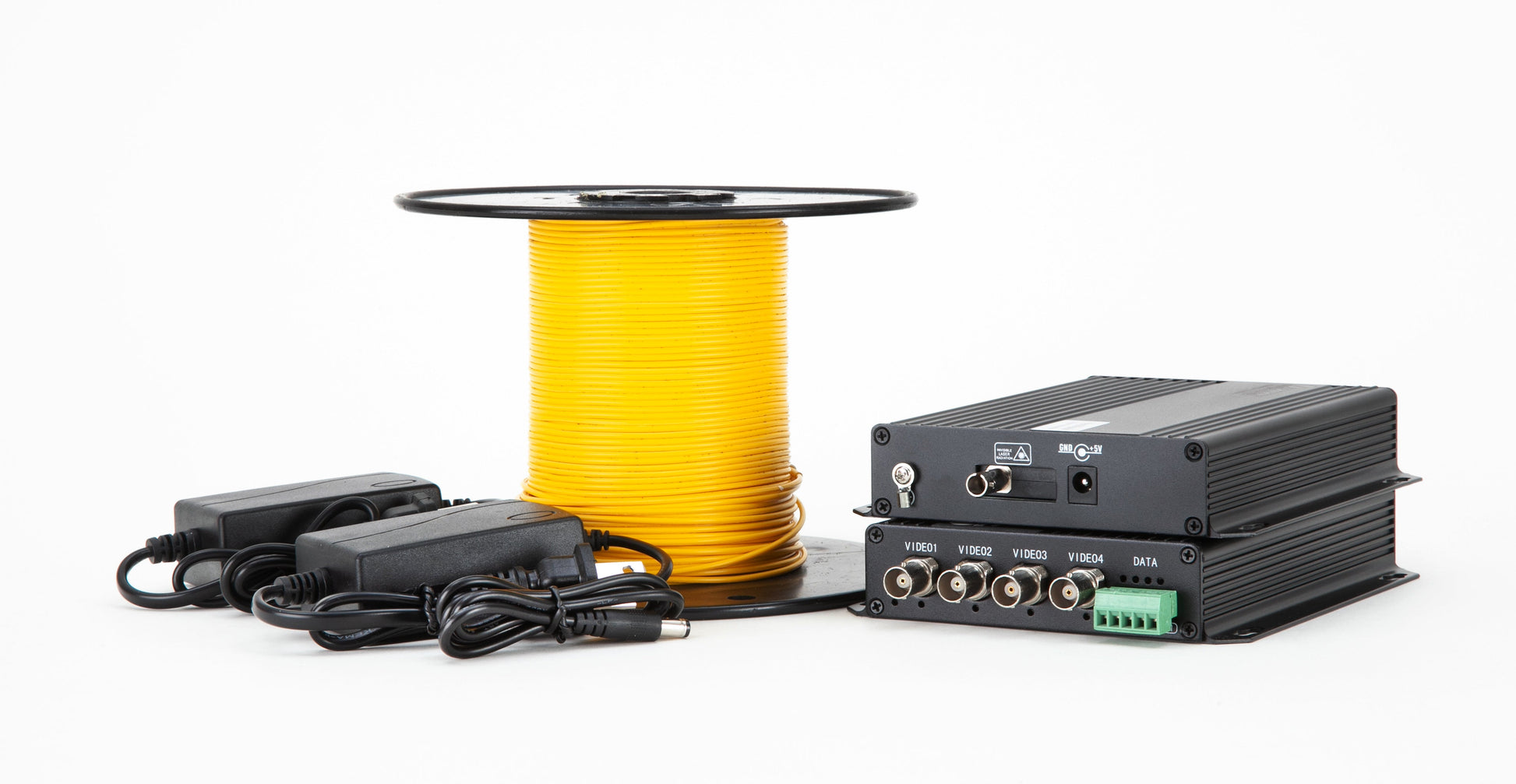

The HDCVITR4A05 provides the major components needed to establish a four-channel HD-CVI fiber link:

4-channel HD-CVI transmitter
4-channel HD-CVI receiver
Power supplies
100 meters of singlemode fiber optic cable

Standalone or Rack-Mount Installation

The VersiVision HD-CVI equipment can be deployed as standalone units or installed in the FVC18 18-slot chassis. The HD modules are hot-pluggable into the FVC18 chassis for convenient system installation and maintenance.

Applications

The HDCVITR4A05 is suited for applications requiring multiple HD-CVI cameras and long-distance fiber connectivity, including:

Security and Surveillance
PTZ Camera Systems
CCTV Monitoring
Perimeter Security
Transportation Monitoring
Industrial Video Systems
Commercial Security
Remote Video Monitoring

Technical Specifications

Specification	HDCVITR4A05
Video Standard	HD-CVI
Video Channels	4
Bit Resolution	8-Bit
Fiber Type	Singlemode
Wavelength	1310/1550nm
Number of Fibers	1
Maximum Distance	30 km
Data Interface	RS-485
Data Channels	1 bi-directional
Data Rate	Up to 300 Kbps
Optical Connector	ST
Video Connector	BNC
Data Connector	Screw terminal strip
Video Bandwidth	5 Hz–8 MHz
S/N Ratio	60 dB, weighted
Power Supply	5VDC, 2A
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0–95%, non-condensing
MTBF	>100,000 hours

Why Choose the VERSITRON HDCVITR4A05?

The HDCVITR4A05 combines four-channel HD-CVI video, bi-directional RS-485 data, and long-distance singlemode fiber transmission in a complete installation kit. Its ST fiber connectivity, adjustment-free installation, LED status monitoring, broad video-system compatibility, and FVC18 rack-mount compatibility make it a practical solution for professional HD-CVI video and data networks.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD product family supports HD-CVI, AHD, and HD-TVI video transmission in 1-, 2-, and 4-channel configurations, with multimode and singlemode fiber options.

For assistance selecting the appropriate HD-CVI fiber optic transmitter, receiver, or installation kit, contact VERSITRON for technical support.
