The HDCVITR4A03 supports RS-485 bi-directional data, with RS-232 and RS-422 available as options. It is compatible with NTSC, PAL, and SECAM camera systems and supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats. The multimode configuration supports transmission distances up to 1 km.
Product Highlights
- 4-channel HD-CVI video transmission
- 8-bit digitally encoded video
- 1-channel bi-directional RS-485 data
- Multimode fiber transmission up to 1 km
- Single-fiber optical transmission
- ST optical connectors
- Compatible with NTSC, PAL, and SECAM
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- RS-232 and RS-422 available as options
- Plug-and-play, adjustment-free installation
- LED indicators for system status monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
4-Channel HD-CVI Video and Data Over Multimode Fiber
The HDCVITR4A03 combines four channels of HD-CVI video with a bi-directional data channel over a single multimode optical fiber. A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring location. This provides a practical way to extend multiple HD-CVI camera signals and control data beyond the normal limitations of copper cabling.
The VERSITRON product model table identifies the HDCVIT4A03 transmitter and HDCVIR4A03 receiver as 4-channel HD-CVI video + bi-directional data units using ST simplex multimode fiber with a maximum distance of 1 km.
8-Bit Digitally Encoded HD-CVI Video
The VersiVision HD platform provides 8-bit digitally encoded video transmission and supports HD-CVI, AHD, and HD-TVI video technologies. The optimized optical modules are compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats and support NTSC, PAL, and SECAM camera systems.
Bi-Directional RS-485 Data
The HDCVITR4A03 provides one bi-directional RS-485 data channel with data rates up to 300 Kbps. RS-232 and RS-422 interfaces are available as optional configurations, providing flexibility for compatible camera control and other data applications.
Multimode Fiber Transmission Up to 1 km
The HDCVITR4A03 uses multimode optical fiber for HD-CVI video and data transmission over distances up to 1 km. The transmitter and receiver communicate over one optical fiber, providing a fiber-based connection between the camera and monitoring locations.
Plug-and-Play Installation
The VersiVision HD-CVI platform is designed for adjustment-free installation and operation. No electrical or optical adjustments are required, while integrated LED indicators provide immediate system operating-status information.
ST Fiber Optic Connectivity
The HDCVITR4A03 uses ST optical connectors for the fiber connection and BNC connectors for video. The datasheet also identifies the data connection as a screw terminal strip and notes that ST-SC adapters are available for applications using SC fiber connectors.
Complete HD-CVI Installation Kit

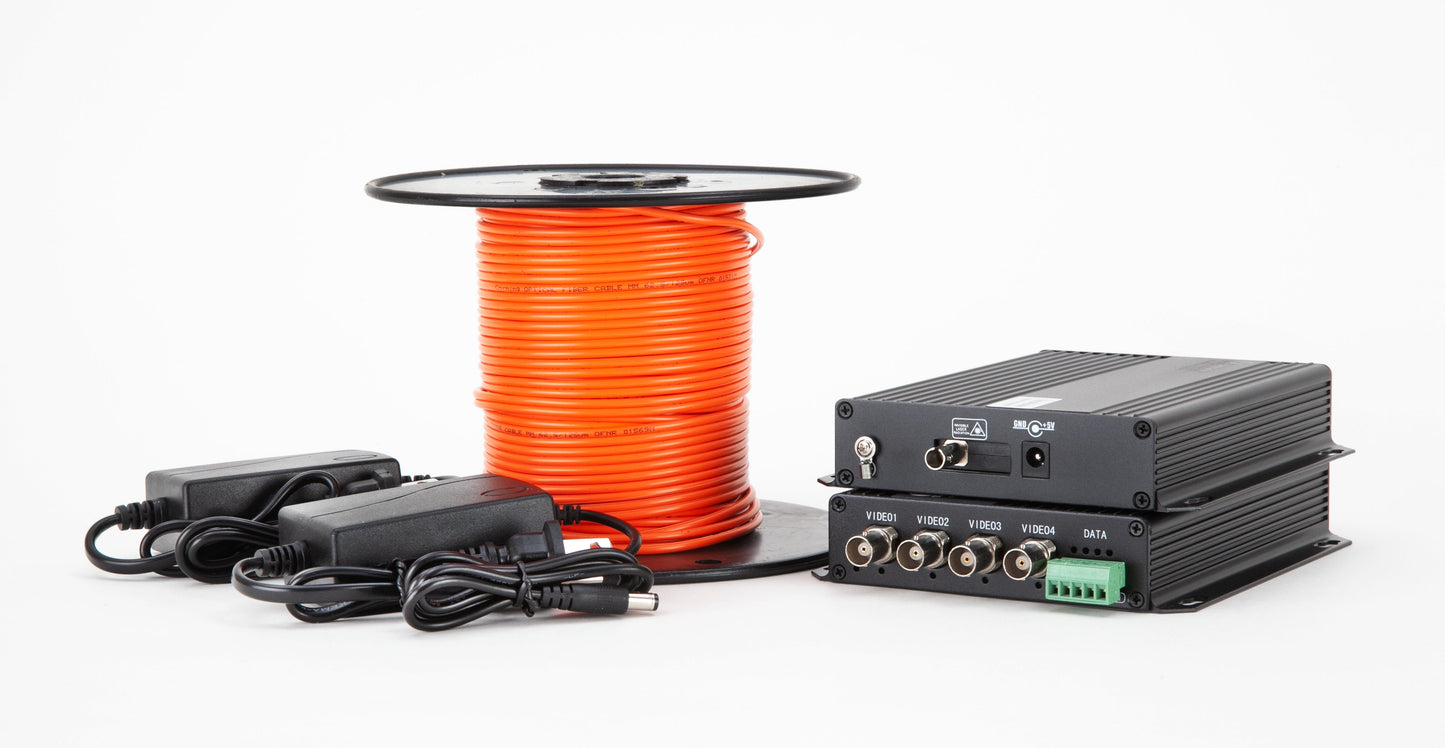

The HDCVITR4A03 includes the primary components needed to establish a four-channel HD-CVI fiber link:
- 4-channel HD-CVI transmitter
- 4-channel HD-CVI receiver
- Power supplies
- 100 meters of multimode fiber optic cable
Standalone or Rack-Mount Installation
VersiVision HD-CVI equipment can be deployed as standalone units or installed in the FVC18 18-slot chassis. The HD modules are hot-pluggable into the FVC18 chassis, allowing convenient installation and maintenance.
Applications
The HDCVITR4A03 is suited for applications requiring multiple HD-CVI cameras and fiber connectivity, including:
- Security and Surveillance
- PTZ Camera Systems
- CCTV Monitoring
- Perimeter Security
- Industrial Video Monitoring
- Commercial Security
- Transportation Monitoring
- Remote Video Monitoring
Technical Specifications
| Specification | HDCVITR4A03 |
|---|---|
| Video Standard | HD-CVI |
| Video Channels | 4 |
| Bit Resolution | 8-Bit |
| Fiber Type | Multimode |
| Wavelength | 850/1310nm |
| Number of Fibers | 1 |
| Maximum Distance | 1 km |
| Data Interface | RS-485 |
| Data Channels | 1 bi-directional |
| Data Rate | Up to 300 Kbps |
| Optical Connector | ST |
| Video Connector | BNC |
| Data Connector | Screw terminal strip |
| Video Bandwidth | 5 Hz–8 MHz |
| S/N Ratio | 60 dB, weighted |
| Power Supply | 5VDC, 2A |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| MTBF | >100,000 hours |
Why Choose the VERSITRON HDCVITR4A03?
The HDCVITR4A03 combines four-channel HD-CVI video, bi-directional RS-485 data, and multimode fiber transmission in a complete installation kit. Its ST fiber connectivity, adjustment-free installation, LED status monitoring, broad video-system compatibility, and FVC18 rack-mount compatibility provide a practical solution for professional HD-CVI video and data systems.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD product family supports HD-CVI, AHD, and HD-TVI video transmission in multiple channel configurations, with multimode and singlemode fiber options.
For assistance selecting the appropriate HD-CVI fiber optic transmitter, receiver, or installation kit, contact VERSITRON for technical support.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-CVI
Input/Output Channels
4
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
850/1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Data Interface
RS-485 (RS-422 or RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
1 Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
Key Features of Multimode ST Bi-directional Transmitter & Receiver
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
4-Channel HDCVI Video Installation Kit | Data, ST, MM (HDCVITR4A03) is used across the following Applications:
Four-Camera HD-CVI Surveillance
- Connects four HD-CVI cameras through a single multimode fiber link
- Provides one bidirectional data channel for compatible camera communication
- Uses 850/1310nm optical wavelength support
- Provides BNC video and ST optical interfaces
Multi-Camera PTZ Surveillance
- Supports four HD-CVI video channels for compatible PTZ camera installations
- Provides RS-485 communication for compatible camera control systems
- Supports optional RS-422 or RS-232 data interfaces
- Provides data transmission rates up to 300 Kbps
Security Control Room Monitoring
- Connects four HD-CVI camera feeds to centralized monitoring equipment
- Combines four video channels with one bidirectional data channel
- Provides 5 Hz–8 MHz bandwidth for each video channel
- Supports a 10⁻⁹ bit error rate for the data channel
Commercial Building Surveillance
- Supports four HD-CVI cameras covering different areas of a commercial building
- Provides dedicated video channels through one multimode optical fiber
- Uses ST optical connectivity and BNC video connections
- Provides 8-bit video signal resolution
Campus Security Monitoring
- Connects four HD-CVI cameras for campus surveillance locations
- Provides one bidirectional data path for compatible camera equipment
- Uses one multimode fiber with 850/1310nm wavelength support
- Supports 60dB weighted S/N ratio for the video signal
Parking Facility Camera Systems
- Provides four HD-CVI video channels for parking area cameras
- Supports compatible RS-485 communication for supported camera systems
- Uses a single multimode optical fiber for the connection
- Provides a screw terminal strip for the data interface
Warehouse Surveillance Systems
- Connects four HD-CVI cameras across warehouse monitoring areas
- Provides four dedicated video channels over one fiber
- Supports one bidirectional data channel alongside video
- Operates from -35°C to +65°C
Industrial Facility Monitoring
- Supports four HD-CVI cameras for industrial surveillance zones
- Provides RS-485 data communication for compatible equipment
- Supports 0% to 95% non-condensing relative humidity
- Provides 60dB weighted S/N ratio for video transmission
Factory Floor Camera Networks
- Connects four HD-CVI cameras for factory floor monitoring
- Provides one bidirectional data channel for compatible devices
- Maintains differential gain below ±1%
- Provides differential phase below ±1° and tilt below 1%
Facility Perimeter Surveillance
- Supports four HD-CVI cameras positioned around a monitored perimeter
- Combines multiple video channels with one bidirectional data channel
- Uses one multimode fiber for optical connectivity
- Supports 8-bit video signal resolution
Security Gate Monitoring
- Connects four HD-CVI cameras covering security gate areas
- Supports RS-485 communication for compatible camera equipment
- Uses ST optical connectivity over one multimode fiber
- Provides screw terminal connectivity for the data interface
Transportation Facility Surveillance
- Supports four HD-CVI cameras at transportation facilities
- Provides one bidirectional data channel for compatible systems
- Supports data rates up to 300 Kbps
- Uses 850/1310nm multimode optical transmission
Critical Facility Security Monitoring
- Provides four HD-CVI video channels for critical facility surveillance
- Supports compatible bidirectional data communication
- Provides a 10⁻⁹ bit error rate for the data channel
- Provides an MTBF greater than 100,000 hours
Remote Building Camera Links
- Connects four HD-CVI cameras serving different areas of a facility
- Transmits the video channels through one multimode fiber
- Provides one bidirectional data channel for compatible equipment
- Uses BNC video and ST optical connections
Government Facility CCTV
- Supports four HD-CVI cameras for government facility surveillance
- Provides one bidirectional data channel for compatible camera systems
- Uses one multimode fiber for the optical video and data connection
- Supports 5VDC, 2A power requirements
Outdoor Surveillance Installations
- Supports four HD-CVI cameras in suitable outdoor surveillance locations
- Provides video and bidirectional data transmission through one fiber
- Supports operating temperatures from -35°C to +65°C
- Supports storage temperatures from -45°C to +85°C
CCTV System Expansion
- Adds four HD-CVI video channels to compatible surveillance installations
- Provides one shared bidirectional data channel for supported equipment
- Uses ST optical connectivity for the multimode fiber link
- Supports optional RS-422 or RS-232 communication interfaces
Fiber-Based CCTV Retrofit
- Supports upgrades of compatible four-channel HD-CVI video installations
- Provides multimode fiber connectivity using one optical fiber
- Maintains BNC connectivity for HD-CVI video equipment
- Provides a bidirectional data channel for compatible systems
Multi-Zone Security Monitoring
- Connects four HD-CVI cameras assigned to separate surveillance zones
- Provides four video channels through one multimode fiber
- Supports one bidirectional data channel for compatible equipment
- Provides 60dB weighted S/N ratio and 8-bit video resolution
High-Reliability Video Links
- Provides four HD-CVI video channels for continuous surveillance installations
- Supports one bidirectional data channel with a 10⁻⁹ bit error rate
- Provides an MTBF greater than 100,000 hours
- Uses ST optical connectivity over one multimode fiber
Versitron is one of the leading (HDCVITR4A03) 4-Channel HDCVI Video Installation Kit | Data, ST, MM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
Buy the Best 4-Channel HDCVI Video Installation Kit | Data, ST, MM with Data over Multimode Fiber from VERSITRON at a Competitive Price!
