4-Channel HDCVI Video Installation Kit | ST, SM

4-Channel HD-CVI Video Over Singlemode Fiber

The HDCVITR4005 provides four-channel HD-CVI video transmission over a single singlemode fiber optic connection. A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring end, allowing multiple HD-CVI camera signals to be transmitted over extended distances.

The VersiVision product model table identifies the HDCVIT4005 transmitter and HDCVIR4005 receiver as 4-channel HD-CVI units using ST simplex singlemode fiber with a maximum distance of 30 km.

8-Bit Digitally Encoded HD-CVI Video

The VersiVision HD platform provides 8-bit digitally encoded video transmission and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.

30 km Singlemode Fiber Transmission

For long-distance HD-CVI applications, the HDCVITR4005 uses singlemode fiber and supports transmission distances up to 30 km. The transmitter and receiver use a single optical fiber for the video link.

Plug-and-Play Installation

The HDCVITR4005 is designed for straightforward installation without electrical or optical adjustments. LED indicators provide immediate system operating-status information.

ST Fiber Optic Connectivity

The HDCVITR4005 uses ST optical connectors and a BNC interface for video. ST-SC adapters are also available for applications using SC fiber connectors.

Complete HD-CVI Installation Kit

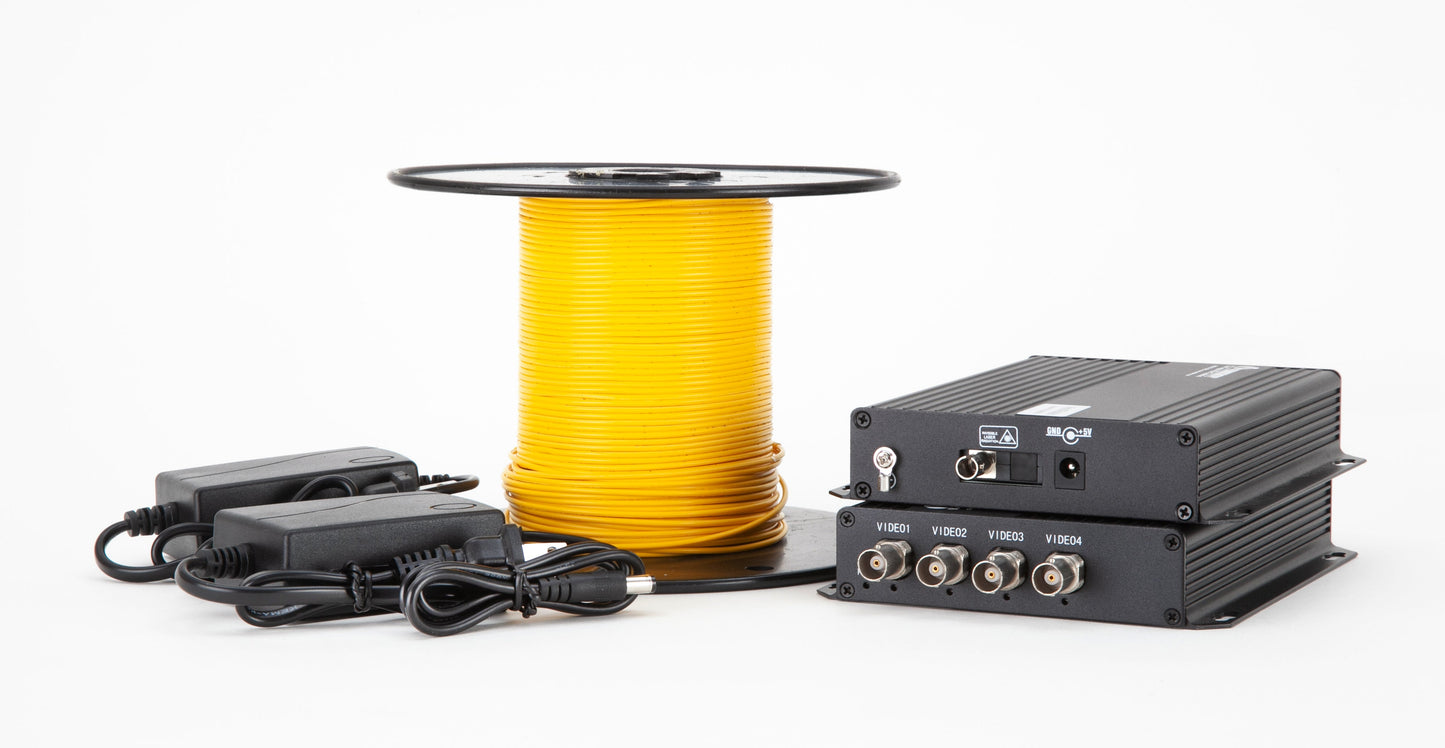

The HDCVITR4005 includes everything needed for a basic four-channel HD-CVI fiber link:

• 4-channel HD-CVI transmitter
• 4-channel HD-CVI receiver
• Power supplies
• 100 meters of singlemode fiber optic cable

Standalone or Rack-Mount Installation

VersiVision HD-CVI equipment can be deployed as standalone units or installed in the FVC18 18-slot rackmount chassis. The HD-CVI modules are hot-pluggable into the FVC18 chassis.

Applications

The HDCVITR4005 is suited for applications requiring multiple HD-CVI camera signals over long-distance singlemode fiber, including:

• Security and Surveillance
• CCTV Camera Systems
• Perimeter Security
• Remote Video Monitoring
• Transportation Monitoring
• Industrial Video Systems
• Commercial Security
• Facility Monitoring

Technical Specifications

Why Choose the VERSITRON HDCVITR4005?

The HDCVITR4005 combines four-channel HD-CVI video transmission with long-distance singlemode fiber connectivity in a complete installation package. Its ST fiber interface, plug-and-play design, LED status monitoring, compatibility with common video standards, and support for the FVC18 chassis make it well suited for professional HD video over fiber installations.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI family offers 1-, 2-, and 4-channel configurations with multimode and singlemode fiber options for different video transmission requirements.

For help selecting the appropriate HD-CVI fiber optic transmitter, receiver, or installation kit, contact VERSITRON for technical support.

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

Key Features of 4 Channels Single-mode ST HDCVI Video Transmitter & Receiver

• 8-Bit Uncompressed Video Transmission
• Digitally Encoded
• NTSC, PAL, SECAM Video Compatible
• Simplex or Full Duplex Data
• WDM Technology for Higher Reliability
• Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
