4-Channel HDCVI Video Installation Kit | ST, MM
4-Channel HDCVI Video Installation Kit | ST, MM
SKU:HDCVITR4003
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The HDCVITR4003 supports NTSC, PAL, and SECAM camera systems and is compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats. The multimode version supports transmission distances up to 1 km.
Product Highlights
- 4-channel HD-CVI video transmission
- 8-bit digitally encoded video
- Multimode fiber transmission up to 1 km
- ST optical connectors
- Single-fiber optical transmission
- Compatible with NTSC, PAL, and SECAM
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- Plug-and-play, adjustment-free installation
- LED indicators for system status monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Complete installation kit includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
4-Channel HD-CVI Video Over Multimode Fiber
The HDCVITR4003 provides four-channel HD-CVI video transmission over a single multimode fiber optic connection. A typical installation places the transmitter at the camera end and the receiver at the monitoring end, allowing multiple camera signals to be extended beyond the limitations of conventional copper video cabling.
The VERSITRON product model table identifies the HDCVIT4003 transmitter and HDCVIR4003 receiver as 4-channel HD-CVI video units using ST simplex multimode fiber with a maximum distance of 1 km.
8-Bit Digitally Encoded HD-CVI Video
The VersiVision HD platform supports 8-bit digitally encoded HD-CVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. Optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.
1 km Multimode Fiber Transmission
The HDCVITR4003 is designed for multimode fiber transmission up to 1 km. The product documentation specifically lists the 4-channel HD-CVI multimode transmitter and receiver models with ST simplex fiber and a 1 km maximum distance.
Plug-and-Play Installation
The VersiVision HD-CVI platform uses a plug-and-play design that requires no electrical or optical adjustments. LED indicators provide immediate status information for monitoring system operation.
ST Fiber Optic Connectivity
The HDCVITR4003 uses ST optical connectors for the fiber connection. The system uses BNC video connections, while ST-SC adapters are available for applications using SC fiber connectors.
Complete 4-Channel HD-CVI Installation Kit

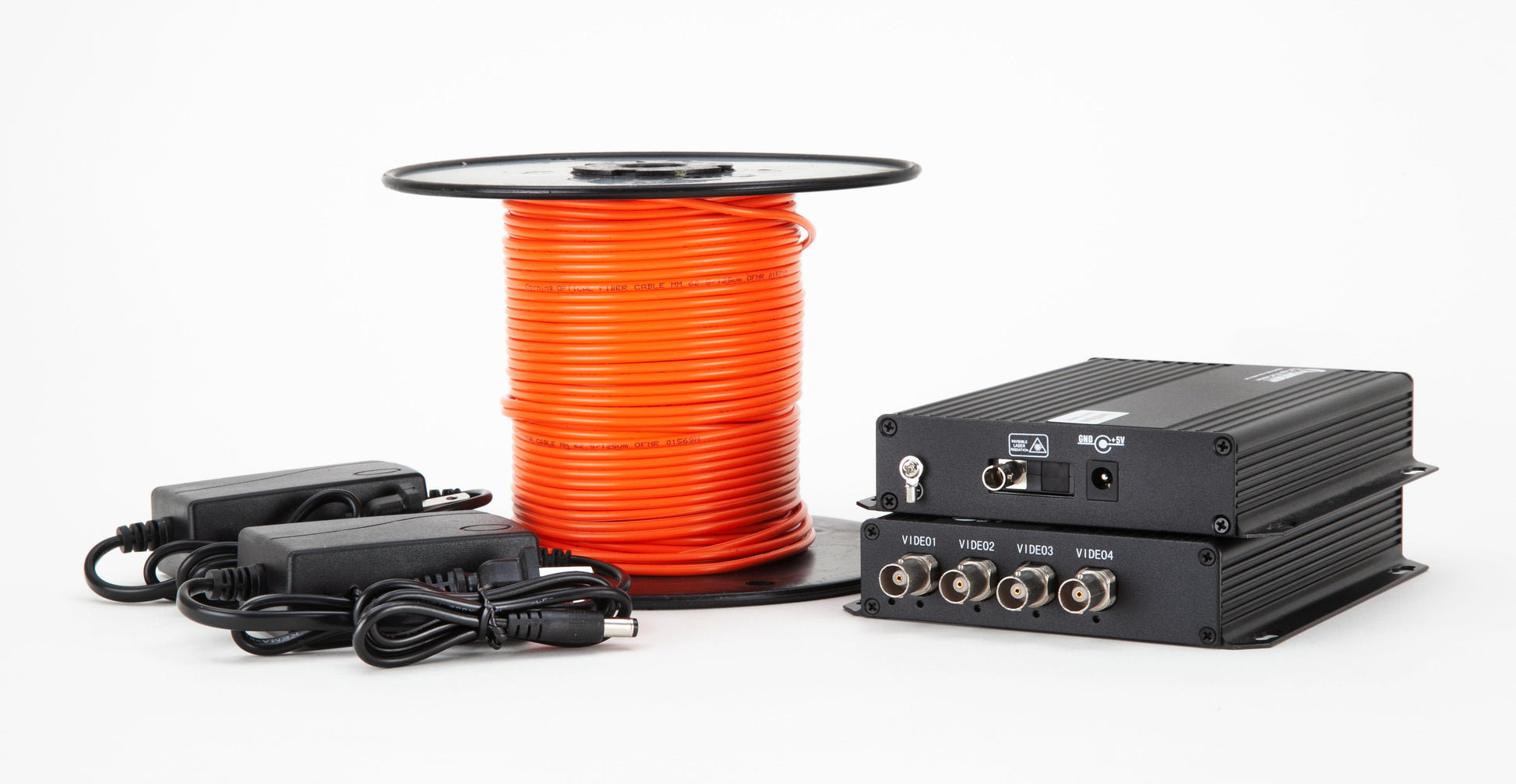

The HDCVITR4003 installation kit includes:
- 4-channel HD-CVI transmitter
- 4-channel HD-CVI receiver
- Power supplies
- 100 meters of multimode fiber cable
This complete package simplifies deployment of a four-camera HD-CVI fiber optic link.
Standalone or Rack-Mount Installation
VersiVision HD-CVI equipment is available for standalone installation or rack-mount deployment using the FVC18 18-slot chassis. The HD-CVI platform is also hot-pluggable into the FVC18 chassis.
Applications
The HDCVITR4003 is suited for applications requiring multiple HD-CVI camera signals over multimode fiber, including:
- Security and Surveillance
- CCTV Camera Systems
- Facility Monitoring
- Transportation Monitoring
- Industrial Video Systems
- Perimeter Security
- Remote Video Monitoring
- Commercial and Institutional Security
Technical Specifications
| Specification | HDCVITR4003 |
|---|---|
| Video Standard | HD-CVI |
| Video Channels | 4 |
| Bit Resolution | 8-Bit |
| Fiber Type | Multimode |
| Wavelength | 850/1310nm |
| Number of Fibers | 1 |
| Maximum Distance | 1 km |
| Optical Connector | ST |
| Video Connector | BNC |
| Video Bandwidth | 5 Hz–8 MHz |
| Video Input | 0.6–2.0 Vpk-pk, 75 Ohms |
| S/N Ratio | 60 dB, weighted |
| Power Supply | 5VDC, 2A |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| MTBF | >100,000 hours |
Why Choose the VERSITRON HDCVITR4003?
The HDCVITR4003 provides a complete, straightforward solution for extending four HD-CVI video channels over multimode fiber. With ST connectivity, plug-and-play installation, LED status monitoring, compatibility with common video standards, and support for the FVC18 rackmount chassis, it is designed for reliable fiber optic video deployment.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI product family includes multiple channel configurations and multimode or singlemode fiber options for different video transmission requirements.
For assistance selecting the appropriate HD-CVI video transmitter, receiver, or installation kit, contact VERSITRON for technical support.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-CVI
Input/Output Channels
4
Bandwidth
5 Hz ~ 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
< 1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Key Features of 4 Channels AHD Video Installation Kit
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI
