The VERSITRON VersiVision HDCVITR2A05 is a complete 2-channel HD-CVI video installation kit designed to transmit two channels of 8-bit digitally encoded HD-CVI video plus one channel of bi-directional data over a single singlemode optical fiber. The kit includes the transmitter, receiver, power supplies, and 100 meters of singlemode fiber cable, providing a convenient solution for extending HD-CVI video and control data between cameras and monitoring equipment.

The HDCVITR2A05 supports NTSC, PAL, and SECAM camera systems and uses optimized optical modules for reliable HD video transmission. Singlemode fiber supports transmission distances up to 30 km, while RS-485 is standard for the bi-directional data channel, with RS-232 and RS-422 available as options.

Product Highlights

2-channel HD-CVI video transmission
8-bit digitally encoded video
1-channel bi-directional data
RS-485 data interface
RS-232 or RS-422 available upon request
Singlemode fiber transmission up to 30 km
ST optical connectors
Single-fiber optical transmission
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play, adjustment-free installation
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Complete installation kit includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

2-Channel HD-CVI Video and Data Over Singlemode Fiber

The HDCVITR2A05 combines two channels of HD-CVI video with one channel of bi-directional data, allowing video and control information to be transmitted over a single singlemode fiber optic link. A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring location.

The product documentation identifies the HDCVIT2A05 transmitter and HDCVIR2A05 receiver as 2-channel HD-CVI video + bi-directional data units using singlemode fiber, ST connectors, and a maximum distance of 30 km.

HD-CVI Video With Bi-Directional Data

In addition to two HD-CVI video channels, the HDCVITR2A05 supports one bi-directional data channel. RS-485 is the standard data interface, with a data rate of up to 300 Kbps. RS-232 and RS-422 are available as optional interfaces.

This configuration is useful for camera systems where video transmission and return control data need to share the same fiber connection.

8-Bit Digitally Encoded HD Video

The VersiVision HD platform supports 8-bit digitally encoded HD-CVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.

30 km Singlemode Fiber Transmission

The HDCVITR2A05 uses singlemode fiber for transmission distances up to 30 km. The product model table specifies 1310/1550nm operation for the HDCVIT2A05/HDCVIR2A05 singlemode video-and-data models.

Plug-and-Play Installation

The VersiVision HD-CVI platform features a plug-and-play design that requires no electrical or optical adjustments. LED indicators provide immediate status information for monitoring system operation.

ST Fiber Optic Connectivity

The HDCVITR2A05 uses ST optical connectors and BNC video connections. ST-SC adapters are available for applications using SC fiber connectors.

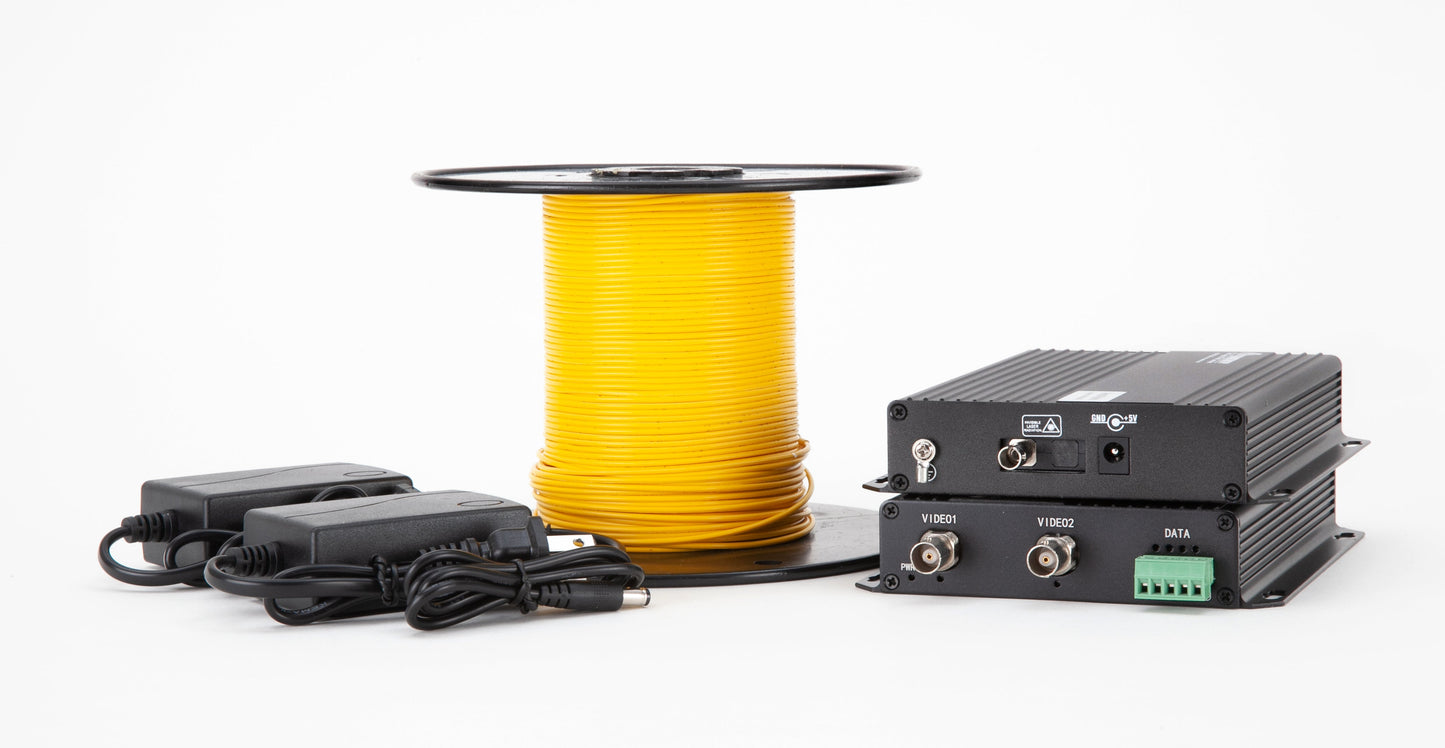

Complete 2-Channel HD-CVI Installation Kit

The HDCVITR2A05 installation kit includes:

2-channel HD-CVI transmitter
2-channel HD-CVI receiver
Power supplies
100 meters of singlemode fiber cable

This provides the primary components needed to establish a 2-channel HD-CVI fiber optic link with bi-directional data.

Standalone or Rack-Mount Installation

VersiVision HD-CVI equipment can be deployed as standalone units or installed in the FVC18 18-slot chassis for rack-mounted systems. The HD-CVI platform is also hot-pluggable into the FVC18 chassis.

Applications

The HDCVITR2A05 is suited for applications requiring multiple HD-CVI video channels and return data over long-distance singlemode fiber, including:

Security and Surveillance
PTZ Camera Systems
CCTV Monitoring
Transportation Monitoring
Industrial Video Systems
Remote Video Monitoring
Facility and Perimeter Security
Government and Institutional Monitoring

Technical Specifications

Specification	HDCVITR2A05
Video Standard	HD-CVI
Video Channels	2
Bit Resolution	8-Bit
Data Channels	1 Bi-Directional
Standard Data Interface	RS-485
Data Rate	Up to 300 Kbps
Fiber Type	Singlemode
Wavelength	1310/1550nm
Number of Fibers	1
Maximum Distance	30 km
Optical Connector	ST
Video Connector	BNC
Data Connector	Screw Terminal Strip
Optional Data	RS-232 or RS-422
Power Supply	5VDC, 2A
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0–95%, non-condensing
MTBF	>100,000 hours

Why Choose the VERSITRON HDCVITR2A05?

The HDCVITR2A05 provides a complete solution for extending two HD-CVI video channels and bi-directional data over singlemode fiber. With transmission distances up to 30 km, ST fiber connectivity, plug-and-play installation, LED status monitoring, and compatibility with the FVC18 rackmount chassis, it provides a straightforward way to integrate long-distance fiber connectivity into HD-CVI camera systems.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI product family includes configurations for different channel counts, fiber types, transmission distances, and data requirements.

For assistance selecting the appropriate HD-CVI video transmitter, receiver, or installation kit, contact VERSITRON for technical support.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-CVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

Key Features of 2 Channels HDCVI Video Transmitter & Receiver

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.

HD Units Spec

HD Video Data Manual

Triad

2-Channel HDCVI Video Installation Kit | Data, ST, SM (HDCVITR2A05) is used across the following Applications:

Dual-Channel HD-CVI Surveillance

Connects two HD-CVI video channels through a single optical fiber
Supports one bidirectional data channel for compatible surveillance equipment
Uses singlemode fiber with 1310/1550nm wavelength support
Provides BNC video and ST optical interfaces

PTZ Camera Control Systems

Supports compatible HD-CVI cameras requiring video and control communication
Provides RS-485 data connectivity for compatible PTZ camera systems
Supports optional RS-422 or RS-232 data interfaces
Provides data transmission rates up to 300 Kbps

Security Control Room Links

Connects two HD-CVI camera feeds to centralized monitoring equipment
Combines two video channels with one bidirectional data channel
Supports 5 Hz–8 MHz video bandwidth
Provides a 10⁻⁹ bit error rate for the data channel

Campus Security Camera Networks

Supports two HD-CVI cameras for dedicated campus surveillance locations
Uses one singlemode fiber for the optical video and data connection
Provides one bidirectional data path for compatible camera equipment
Uses ST optical and BNC video connections

Building Access Surveillance

Connects two HD-CVI cameras positioned at building entrances and access areas
Supports RS-485 communication for compatible surveillance equipment
Provides 1310/1550nm singlemode fiber connectivity
Uses a screw terminal strip for the data connection

Parking Facility Monitoring

Provides two HD-CVI video channels for parking surveillance cameras
Supports bidirectional data communication with compatible camera equipment
Uses one singlemode optical fiber for the connection
Supports 60dB weighted S/N ratio for the video signal

Perimeter Security Camera Links

Supports two HD-CVI cameras used for perimeter surveillance
Provides video transmission and one bidirectional data channel
Uses 1310/1550nm wavelength support over singlemode fiber
Provides 8-bit video signal resolution

Industrial Facility Surveillance

Connects two HD-CVI cameras for industrial monitoring areas
Supports RS-485 data communication alongside the video channels
Operates from -35°C to +65°C
Supports 0% to 95% non-condensing relative humidity

Warehouse Camera Systems

Provides two dedicated HD-CVI video connections for warehouse cameras
Transmits video and compatible data through one singlemode fiber
Supports up to 300 Kbps data transmission
Provides BNC connections for HD-CVI video equipment

Factory Floor Monitoring

Supports two HD-CVI video channels for factory surveillance
Provides one bidirectional data channel for compatible equipment
Maintains differential gain below ±1%
Provides differential phase below ±1° and tilt below 1%

Security Gate Monitoring

Connects two HD-CVI cameras used at security gates
Provides compatible RS-485 communication for supported camera equipment
Uses singlemode fiber with ST optical termination
Provides screw terminal connectivity for the data interface

Transportation Surveillance

Supports two HD-CVI cameras at transportation facilities
Provides one bidirectional data channel for compatible equipment
Uses a single singlemode fiber for optical connectivity
Supports 1310/1550nm optical wavelengths

Critical Facility Video Links

Provides two HD-CVI channels for critical facility surveillance
Supports bidirectional data communication through the optical connection
Provides a 10⁻⁹ bit error rate for the data channel
Provides an MTBF greater than 100,000 hours

Remote Camera Monitoring

Connects two HD-CVI cameras with remote monitoring equipment
Uses one singlemode fiber for the video and data transmission path
Provides one bidirectional data channel alongside two video channels
Supports 1310/1550nm optical transmission

CCTV System Expansion

Adds two HD-CVI video channels to compatible surveillance installations
Supports one bidirectional data channel for compatible devices
Provides singlemode fiber connectivity through an ST optical interface
Supports optional RS-422 or RS-232 communication interfaces

Fiber-Based CCTV Retrofit

Supports conversion of compatible two-channel HD-CVI links to fiber connectivity
Uses one singlemode optical fiber for the installation
Maintains video connectivity through BNC interfaces
Provides a bidirectional data channel for compatible equipment

Government Facility Surveillance

Supports two HD-CVI surveillance cameras at government facilities
Provides compatible bidirectional data communication
Uses 1310/1550nm singlemode fiber connectivity
Supports 5VDC, 2A power supply requirements

Outdoor Camera Installations

Supports two HD-CVI cameras in suitable outdoor surveillance installations
Provides video and bidirectional data transmission over one fiber
Supports operating temperatures from -35°C to +65°C
Supports 0% to 95% non-condensing relative humidity

Multi-Zone Surveillance Systems

Connects two HD-CVI cameras assigned to separate monitoring zones
Provides two video channels and one bidirectional data channel
Uses singlemode fiber with ST optical connectivity
Provides 60dB weighted S/N ratio and 8-bit video resolution

High-Reliability Security Links

Supports two HD-CVI video channels for continuous surveillance installations
Provides one bidirectional data channel with a 10⁻⁹ bit error rate
Provides an MTBF greater than 100,000 hours
Supports singlemode fiber connectivity through an ST optical connector
