The HDCVITR2A03 supports NTSC, PAL, and SECAM camera systems and uses optimized optical modules for reliable HD video transmission. Multimode fiber supports transmission distances up to 2 km, while RS-485 is standard for the bi-directional data channel, with RS-232 and RS-422 available as options.
Product Highlights
- 2-channel HD-CVI video transmission
- 8-bit digitally encoded video
- 1-channel bi-directional data
- RS-485 data interface
- RS-232 or RS-422 available upon request
- Multimode fiber transmission up to 2 km
- ST optical connectors
- Single-fiber optical transmission
- Compatible with NTSC, PAL, and SECAM
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- Plug-and-play, adjustment-free installation
- LED indicators for system status monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Complete installation kit includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
2-Channel HD-CVI Video and Data Over Multimode Fiber
The HDCVITR2A03 combines two channels of HD-CVI video with one channel of bi-directional data, allowing both video and control information to be transmitted over a single multimode fiber optic link. A typical installation places the transmitter at the camera end and the receiver at the monitoring location.
The VERSITRON product model table identifies the HDCVIT2A03 transmitter and HDCVIR2A03 receiver as 2-channel HD-CVI video + bi-directional data units using multimode fiber, ST connectors, and a maximum distance of 2 km.
HD-CVI Video With Bi-Directional Data
In addition to two HD-CVI video channels, the HDCVITR2A03 supports one bi-directional data channel. RS-485 is the standard data interface, with a data rate of up to 300 Kbps. RS-232 and RS-422 are available as optional interfaces.
This makes the kit suitable for camera installations where video transmission and return control data need to share the same fiber connection.
8-Bit Digitally Encoded HD Video
The VersiVision HD platform supports 8-bit digitally encoded HD-CVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The optimized optical modules support 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.
2 km Multimode Fiber Transmission
The HDCVITR2A03 uses multimode fiber for transmission distances up to 2 km. The product documentation identifies the HDCVIT2A03 and HDCVIR2A03 as 2-channel multimode HD-CVI units with ST simplex optical connections.
Plug-and-Play Installation
The VersiVision HD-CVI platform features a plug-and-play design that requires no electrical or optical adjustments. LED indicators provide immediate status information to help monitor system operation.
ST Fiber Optic Connectivity
The HDCVITR2A03 uses ST optical connectors and BNC video connections. ST-SC adapters are also available for applications using SC fiber connectors.
Complete 2-Channel HD-CVI Installation Kit

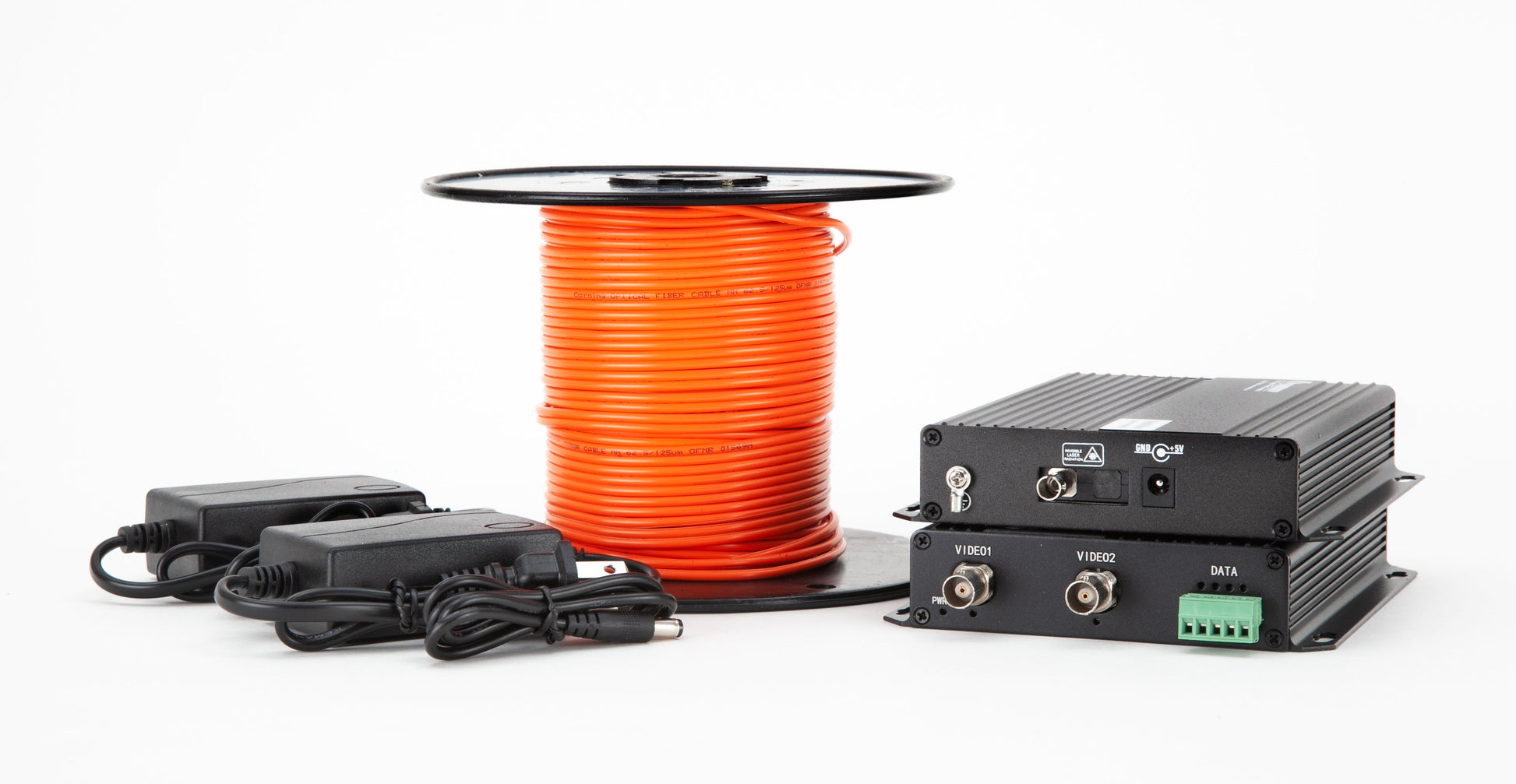

The HDCVITR2A03 installation kit includes:
- 2-channel HD-CVI transmitter
- 2-channel HD-CVI receiver
- Power supplies
- 100 meters of multimode fiber cable
This provides the primary components needed to establish a 2-channel HD-CVI fiber optic link with bi-directional data.
Standalone or Rack-Mount Installation
VersiVision HD-CVI equipment can be deployed as standalone units or installed in the FVC18 18-slot chassis for rack-mounted systems. The HD-CVI platform is also hot-pluggable into the FVC18 chassis.
Applications
The HDCVITR2A03 is designed for applications requiring multiple HD-CVI video channels and return data over fiber, including:
- Security and Surveillance
- PTZ Camera Systems
- CCTV Monitoring
- Transportation Monitoring
- Industrial Video Systems
- Remote Video Monitoring
- Facility and Perimeter Security
- Government and Institutional Monitoring
Technical Specifications
| Specification | HDCVITR2A03 |
|---|---|
| Video Standard | HD-CVI |
| Video Channels | 2 |
| Bit Resolution | 8-Bit |
| Data Channels | 1 Bi-Directional |
| Standard Data Interface | RS-485 |
| Data Rate | Up to 300 Kbps |
| Fiber Type | Multimode |
| Wavelength | 850/1310nm |
| Number of Fibers | 1 |
| Maximum Distance | 2 km |
| Optical Connector | ST |
| Video Connector | BNC |
| Data Connector | Screw Terminal Strip |
| Optional Data | RS-232 or RS-422 |
| Power Supply | 5VDC, 2A |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| MTBF | >100,000 hours |
Why Choose the VERSITRON HDCVITR2A03?
The HDCVITR2A03 combines two channels of HD-CVI video with bi-directional data in a complete multimode fiber installation kit. Its 2 km transmission capability, ST fiber interface, plug-and-play operation, LED status monitoring, and compatibility with the FVC18 rackmount chassis make it a practical solution for extending HD-CVI camera systems over fiber.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI product family provides fiber-based transmission for HD-CVI, AHD, and HD-TVI video systems, with configurations for different channel counts, fiber types, distances, and data requirements.
For assistance selecting the appropriate HD-CVI video transmitter, receiver, or installation kit, contact VERSITRON for technical support.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-CVI
Input/Output Channels
2
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
850/1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Data Interface
RS-485 (RS-422 or RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
1 Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
Key Features of 2 Channels HDCVI Video Installation Kit
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
2-Channel HDCVI Video Installation Kit | Data, ST, MM (HDCVITR2A03) is used across the following Applications:
Multi-Camera HD-CVI Surveillance
- Connects two HD-CVI video channels through a single fiber link
- Supports one bidirectional data channel for compatible camera communication
- Uses multimode fiber with 850/1310nm wavelength support
- Provides BNC video and ST optical interfaces
PTZ Camera Surveillance Systems
- Supports HD-CVI video connections for compatible PTZ surveillance cameras
- Provides RS-485 data communication for compatible camera control
- Supports RS-422 or RS-232 as optional data interfaces
- Provides data transmission up to 300 Kbps
Dual-Camera Security Monitoring
- Provides two independent HD-CVI video channels for camera monitoring
- Transmits the video channels through one multimode optical fiber
- Provides one bidirectional data channel for compatible equipment
- Uses an ST optical connector for fiber connectivity
Security Control Room Systems
- Connects two HD-CVI camera feeds to centralized monitoring equipment
- Supports bidirectional data communication alongside video transmission
- Provides up to 300 Kbps data transmission
- Supports a 10⁻⁹ bit error rate for the data channel
Building Entrance Surveillance
- Supports two HD-CVI cameras positioned at building entrances
- Provides one optical fiber for the combined video and data connection
- Supports RS-485 communication for compatible surveillance equipment
- Uses BNC connectors for the HD-CVI video connections
Parking Security Camera Systems
- Connects two HD-CVI cameras used for parking area surveillance
- Provides bidirectional data communication for compatible camera equipment
- Uses multimode fiber with 850/1310nm optical transmission
- Supports operation from -35°C to +65°C
Campus Security Monitoring
- Supports paired HD-CVI camera connections across campus security areas
- Combines two video channels and one bidirectional data channel
- Uses a single multimode fiber for optical connectivity
- Provides ST fiber and BNC video interfaces
Industrial Camera Monitoring
- Provides two HD-CVI video channels for industrial surveillance areas
- Supports RS-485 communication for compatible camera systems
- Operates across a -35°C to +65°C temperature range
- Supports 0% to 95% non-condensing relative humidity
Warehouse Surveillance Networks
- Connects two HD-CVI cameras for warehouse monitoring applications
- Uses one multimode fiber to carry the optical connection
- Provides one bidirectional data channel for compatible devices
- Supports 5 Hz–8 MHz video bandwidth
Factory Floor Video Systems
- Supports two HD-CVI camera feeds for factory floor monitoring
- Provides compatible RS-485 data communication alongside video
- Maintains less than 1% differential gain and differential phase below 1°
- Provides 60dB weighted S/N ratio for the video signal
Security Gate Camera Links
- Connects two HD-CVI cameras used at security gates and access points
- Supports one bidirectional data channel for compatible camera communication
- Provides ST optical connectivity over one multimode fiber
- Uses screw terminal strip connectivity for the data interface
Perimeter Surveillance Systems
- Supports two HD-CVI cameras for perimeter monitoring locations
- Combines video transmission with bidirectional data communication
- Supports RS-485 with optional RS-422 or RS-232 interfaces
- Provides 8-bit video signal resolution
Transportation Facility Monitoring
- Supports two HD-CVI camera connections at transportation facilities
- Provides one shared bidirectional data channel for compatible equipment
- Supports data rates up to 300 Kbps
- Uses one multimode optical fiber with ST termination
Critical Facility Surveillance
- Provides two dedicated HD-CVI video channels for critical facility monitoring
- Supports bidirectional data communication through the same optical connection
- Provides a bit error rate of 10⁻⁹ for the data channel
- Provides an MTBF greater than 100,000 hours
Remote Camera Monitoring
- Connects two HD-CVI cameras to remote monitoring equipment
- Transmits two video channels over a single multimode fiber
- Provides one bidirectional data channel for compatible devices
- Supports 1310nm optical transmission over the fiber link
CCTV System Expansion
- Adds two HD-CVI video channels to compatible surveillance installations
- Provides one optical fiber for the video and data connection
- Supports RS-485 communication for compatible equipment
- Uses BNC video connections for HD-CVI devices
Video Surveillance Retrofit Projects
- Supports upgrading compatible two-channel HD-CVI surveillance links
- Provides multimode fiber connectivity using an ST optical connector
- Maintains one bidirectional data channel for compatible systems
- Supports optional RS-422 or RS-232 data interfaces
Government Facility Camera Systems
- Supports two HD-CVI surveillance cameras at government facilities
- Provides compatible bidirectional data communication for camera equipment
- Uses one multimode fiber for the optical connection
- Supports a 5VDC, 2A power supply
Outdoor Surveillance Installations
- Supports two HD-CVI camera connections for suitable outdoor installations
- Provides video and bidirectional data transmission through one optical fiber
- Supports operating temperatures from -35°C to +65°C
- Supports storage temperatures from -45°C to +85°C
Multi-Zone Security Monitoring
- Connects two HD-CVI cameras assigned to separate surveillance zones
- Provides two video channels through one multimode fiber connection
- Supports one bidirectional data channel for compatible equipment
- Provides 60dB weighted S/N ratio and 8-bit video resolution
