2-Channel HDCVI Video Installation Kit | ST, SM

SKU:HDCVITR2005

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDCVITR2005 is a complete 2-channel HD-CVI video installation kit designed to transmit two channels of 8-bit digitally encoded HD-CVI video over a single singlemode optical fiber. The kit includes a 2-channel transmitter, 2-channel receiver, power supplies, and 100 meters of singlemode fiber cable, providing a convenient solution for extending HD-CVI camera signals over long distances.

The HDCVITR2005 supports NTSC, PAL, and SECAM video systems and features plug-and-play, adjustment-free installation. With ST optical connectors, LED status indicators, and singlemode transmission up to 30 km, it provides a reliable fiber optic solution for professional video monitoring applications.

Product Highlights

2-channel HD-CVI video transmission
8-bit digitally encoded video
Singlemode fiber transmission up to 30 km
ST optical connectors
Single-fiber optical transmission
Compatible with NTSC, PAL, and SECAM
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Plug-and-play, adjustment-free installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Singlemode 1310/1550nm optical technology
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Complete installation kit includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

2-Channel HD-CVI Video Over Singlemode Fiber

The HDCVITR2005 provides two channels of HD-CVI video transmission over a single singlemode optical fiber. A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring location, allowing HD-CVI video signals to be extended far beyond the normal limitations of copper cabling.

According to the VERSITRON product model table, the HDCVIT2005 transmitter and HDCVIR2005 receiver are 2-channel singlemode HD-CVI units with a maximum transmission distance of 30 km.

8-Bit Digitally Encoded HD-CVI Video

The HDCVITR2005 supports 8-bit digitally encoded HD-CVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The VersiVision HD platform supports optimized optical modules compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F.

30 km Singlemode Fiber Transmission

For applications requiring extended transmission distances, the HDCVITR2005 uses singlemode fiber and supports distances of up to 30 km. The datasheet identifies singlemode operation within the 1310/1550nm wavelength configuration and one optical fiber for the link.

Plug-and-Play Fiber Optic Video Installation

The VersiVision HD-CVI platform uses a plug-and-play design for adjustment-free installation and operation. No electrical or optical adjustments are required, while LED indicators provide immediate system operating-status information.

This simplifies deployment when extending HD-CVI cameras between remote locations and centralized monitoring equipment.

ST Fiber Optic Connections

The HDCVITR2005 uses ST optical connectors for the fiber connection and BNC video connections. ST-SC adapters are available for installations using SC fiber connectors.

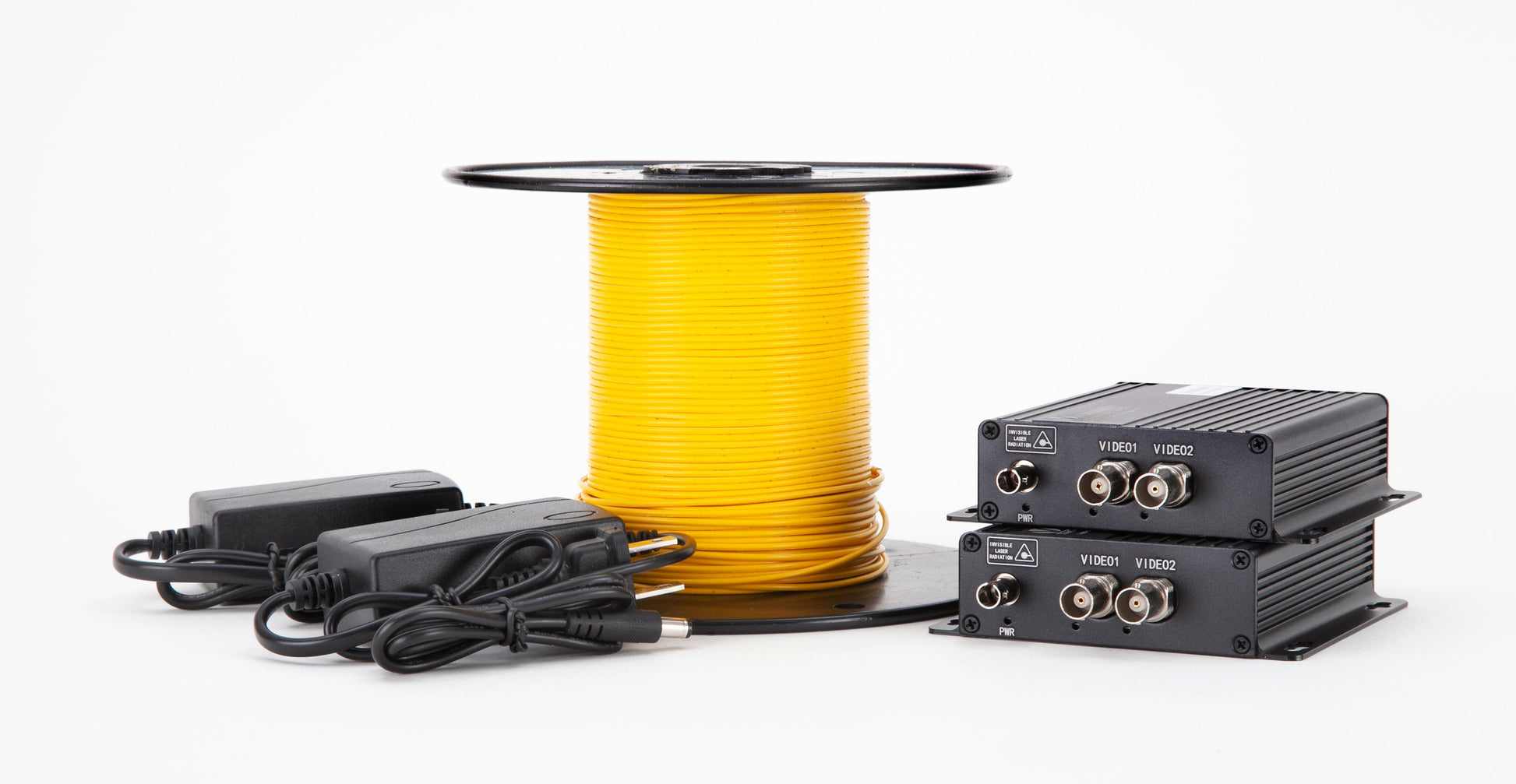

Complete 2-Channel HD-CVI Installation Kit

The HDCVITR2005 includes the primary components required for a 2-channel HD-CVI fiber optic link:

2-channel HD-CVI transmitter
2-channel HD-CVI receiver
Power supplies
100 meters of singlemode fiber cable

Standalone or Rack-Mount Installation

VersiVision HD-CVI equipment can be used in standalone installations or installed in the FVC18 18-slot chassis for rack-mounted systems. The HD-CVI platform is also designed to be hot-pluggable into the FVC18 chassis.

Applications

The HDCVITR2005 is suited for applications requiring multiple HD-CVI camera signals to be transmitted over extended distances, including:

Security and Surveillance
CCTV Monitoring Systems
Multi-Camera Security Installations
Transportation Monitoring
Industrial Video Systems
Facility and Perimeter Monitoring
Government and Institutional Security
Remote Video Monitoring

Technical Specifications

Specification	HDCVITR2005
Video Standard	HD-CVI
Video Channels	2
Bit Resolution	8-Bit
Fiber Type	Singlemode
Wavelength	1310/1550nm
Number of Fibers	1
Maximum Distance	30 km
Optical Connector	ST
Video Connector	BNC
Video Input	0.6–2.0V pk-pk, 75 Ohms
Bandwidth	5 Hz–8 MHz
Differential Gain	< ±1%
Differential Phase	< ±1°
Tilt	< 1%
S/N Ratio	60dB (Weighted)
Power Supply	5VDC, 2A
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0–95%, non-condensing
MTBF	>100,000 hours

Why Choose the VERSITRON HDCVITR2005?

The HDCVITR2005 combines 2-channel HD-CVI video transmission with a complete singlemode fiber installation kit. Its 30 km transmission capability, ST optical interface, plug-and-play design, LED status indicators, and FVC18 chassis compatibility make it well suited for professional HD-CVI video links requiring extended fiber distances.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI series extends that experience into high-definition video transmission for security, surveillance, monitoring, and other professional video applications.

For assistance selecting the appropriate HD-CVI video transmitter, receiver, or fiber optic installation kit, contact VERSITRON for technical support.

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-CVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

All of the VersiVision HD installation kits are available for standalone applications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI

HD Units Spec

HD Video Only Manual

Triad

2-Channel HDCVI Video Installation Kit | ST, SM (HDCVITR2005) is used across the following Applications:

Dual-Camera HD-CVI Surveillance

Connects two HD-CVI cameras through a single singlemode fiber link
Provides two dedicated video channels for surveillance monitoring
Uses 1310nm optical transmission over one fiber
Provides BNC video and ST optical interfaces

Building Entrance Video Monitoring

Supports two HD-CVI cameras positioned at building entrances
Provides separate video channels for entrance monitoring
Uses one singlemode fiber for the optical connection
Supports 5 Hz–8 MHz video bandwidth

Parking Facility Surveillance

Connects two HD-CVI cameras for dedicated parking surveillance
Provides two video channels through one optical fiber
Uses 1310nm singlemode fiber transmission
Provides 60dB weighted S/N ratio for the video signal

Campus Security Camera Links

Supports two HD-CVI cameras at selected campus monitoring points
Provides dedicated video transmission for each camera channel
Uses ST optical connectivity over singlemode fiber
Provides 8-bit video signal resolution

Warehouse Surveillance

Connects two HD-CVI cameras for warehouse monitoring areas
Provides two video channels over one singlemode optical fiber
Uses BNC connectors for HD-CVI video equipment
Supports less than 1% video signal tilt

Industrial Facility Video Monitoring

Provides two HD-CVI video channels for industrial surveillance
Uses one singlemode fiber for the optical video connection
Supports operation from -35°C to +65°C
Supports 0% to 95% non-condensing relative humidity

Factory Floor Camera Systems

Supports two HD-CVI cameras for factory floor monitoring
Provides separate video channels for two surveillance points
Maintains differential gain below ±1%
Provides differential phase below ±1°

Security Control Room Monitoring

Connects two HD-CVI camera feeds to centralized monitoring equipment
Provides two dedicated video channels for security operators
Uses one singlemode fiber with a 1310nm wavelength
Provides 60dB weighted S/N performance

Perimeter Camera Surveillance

Supports two HD-CVI cameras used for facility perimeter monitoring
Provides two independent video channels through one fiber
Uses ST optical connectivity for singlemode fiber
Supports 8-bit video resolution

Security Gate Camera Systems

Connects two HD-CVI cameras positioned around security gate areas
Provides dedicated video channels for gate surveillance
Uses one singlemode optical fiber for the link
Provides BNC video connectivity for compatible HD-CVI equipment

Transportation Facility Surveillance

Supports two HD-CVI cameras for transportation facility monitoring
Provides two video channels through a single optical fiber
Uses 1310nm singlemode optical transmission
Supports a 5 Hz–8 MHz video bandwidth

Critical Facility Video Monitoring

Provides two HD-CVI channels for critical facility surveillance
Uses one singlemode fiber for the video connection
Provides an MTBF greater than 100,000 hours
Supports 5VDC, 2A power requirements

Remote Building Surveillance

Connects two HD-CVI cameras positioned in separate building areas
Provides two video channels over one singlemode fiber
Uses a 1310nm optical wavelength
Provides ST optical and BNC video interfaces

Government Facility CCTV

Supports two HD-CVI cameras for government facility surveillance
Provides dedicated video transmission for two monitoring points
Uses singlemode fiber with ST optical connectivity
Supports operation across -35°C to +65°C

Outdoor Security Camera Links

Supports two HD-CVI cameras in suitable outdoor surveillance installations
Provides two video channels through one singlemode fiber
Supports operating temperatures from -35°C to +65°C
Supports storage temperatures from -45°C to +85°C

CCTV System Expansion

Adds two HD-CVI video channels to compatible surveillance systems
Uses one singlemode optical fiber for the combined video link
Provides BNC connectivity for the video equipment
Supports 1310nm optical transmission through an ST connector

Fiber-Based CCTV Retrofit

Supports upgrades of compatible two-channel HD-CVI video installations
Provides singlemode fiber connectivity using one optical fiber
Maintains BNC video connectivity for HD-CVI equipment
Supports less than 1% tilt in the video signal

Multi-Zone Surveillance

Connects two HD-CVI cameras assigned to separate monitoring zones
Provides two independent video channels for zone coverage
Uses 1310nm singlemode transmission over one fiber
Provides 60dB weighted S/N ratio for video performance

Access Area Monitoring

Supports two HD-CVI cameras covering controlled access areas
Provides separate video channels for entrance and access monitoring
Uses ST optical connectivity with singlemode fiber
Supports 8-bit video signal resolution

High-Reliability Video Links

Provides two HD-CVI video channels for continuous surveillance installations
Uses one singlemode optical fiber for the video connection
Provides an MTBF greater than 100,000 hours
