2-Channel HDCVI Video Installation Kit | ST, MM
2-Channel HDCVI Video Installation Kit | ST, MM
SKU:HDCVITR2003
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
The HDCVITR2003 supports NTSC, PAL, and SECAM video systems and is designed for adjustment-free, plug-and-play installation. With ST optical connectors, LED status indicators, and multimode transmission up to 2 km, it provides a straightforward fiber optic solution for multi-camera video monitoring applications.
Product Highlights
- 2-channel HD-CVI video transmission
- 8-bit digitally encoded video
- Multimode fiber transmission up to 2 km
- ST optical connectors
- Single-fiber optical transmission
- Compatible with NTSC, PAL, and SECAM
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
- Plug-and-play, adjustment-free installation
- No electrical or optical adjustments required
- LED indicators for system status monitoring
- 1310nm optical transmission
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Complete installation kit includes transmitter, receiver, power supplies, and 100 meters of multimode fiber
2-Channel HD-CVI Video Over Multimode Fiber
The HDCVITR2003 provides two channels of HD-CVI video transmission over a single multimode optical fiber. A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring location, allowing HD-CVI camera signals to be extended over fiber.
The product model table in the VERSITRON datasheet identifies the HDCVIT2003 transmitter and HDCVIR2003 receiver as 2-channel multimode HD-CVI units with a maximum distance of 2 km.
8-Bit Digitally Encoded HD-CVI Video
The HDCVITR2003 supports 8-bit digitally encoded HD-CVI video and is directly compatible with NTSC, PAL, and SECAM camera systems. The VersiVision HD platform supports optimized optical modules compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.
Multimode Fiber Transmission Up to 2 km
This installation kit is designed for multimode fiber and provides transmission distances of up to 2 km. The multimode configuration uses 1310nm optical transmission, with one fiber used for the optical link.
Reliable, Adjustment-Free Installation
The VersiVision HD-CVI platform features a plug-and-play design, allowing installation and operation without electrical or optical adjustments. LED indicators provide immediate visibility into the operating status of the system.
This makes the HDCVITR2003 suitable for installations where straightforward deployment and reliable video transmission are important.
ST Fiber Optic Connections
The HDCVITR2003 uses ST optical connectors for the fiber connection and BNC connectors for the video interface. ST-SC adapters are also available for applications using SC fiber connectors.

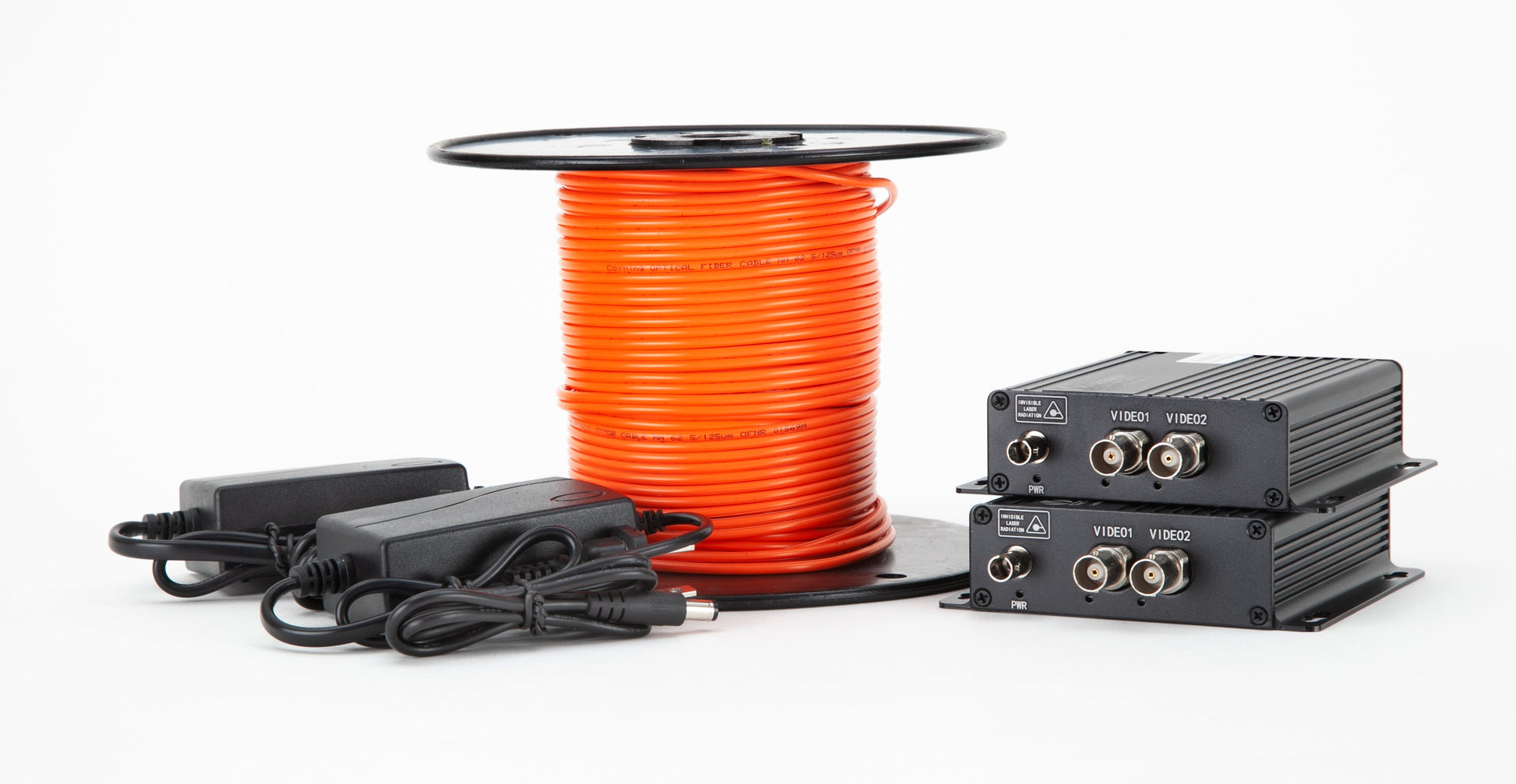

Complete 2-Channel HD-CVI Installation Kit
The HDCVITR2003 provides the primary components needed to establish a 2-channel HD-CVI fiber optic link:
- 2-channel HD-CVI transmitter
- 2-channel HD-CVI receiver
- Power supplies
- 100 meters of multimode fiber cable
Standalone or Rack-Mount Installation
VersiVision HD-CVI equipment can be deployed as standalone units or installed in the FVC18 18-slot chassis for rack-mounted systems. The HD-CVI platform is designed to be hot-pluggable into the FVC18 chassis.
Applications
The HDCVITR2003 is suited for applications requiring multiple HD-CVI camera signals to be extended over multimode fiber, including:
- Security and Surveillance
- CCTV Monitoring Systems
- Multi-Camera Security Installations
- Transportation Monitoring
- Industrial Video Systems
- Facility and Perimeter Monitoring
- Government and Institutional Security
- Remote Video Monitoring
Technical Specifications
| Specification | HDCVITR2003 |
|---|---|
| Video Standard | HD-CVI |
| Video Channels | 2 |
| Bit Resolution | 8-Bit |
| Fiber Type | Multimode |
| Wavelength | 1310nm |
| Number of Fibers | 1 |
| Maximum Distance | 2 km |
| Optical Connector | ST |
| Video Connector | BNC |
| Video Input | 0.6–2.0V pk-pk, 75 Ohms |
| Bandwidth | 5 Hz–8 MHz |
| Differential Gain | < ±1% |
| Differential Phase | < ±1° |
| Tilt | < 1% |
| S/N Ratio | 60dB (Weighted) |
| Power Supply | 5VDC, 2A |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| MTBF | >100,000 hours |
Why Choose the VERSITRON HDCVITR2003?
The HDCVITR2003 combines two-channel HD-CVI video transmission with the convenience of a complete fiber optic installation kit. Its multimode fiber interface supports distances up to 2 km, while plug-and-play operation, ST connectors, LED status indicators, and FVC18 chassis compatibility simplify installation and system integration.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI series extends that experience into high-definition video transmission for security, monitoring, and other professional video applications.
For assistance selecting the appropriate HD-CVI video transmitter, receiver, or fiber optic installation kit, contact VERSITRON for technical support.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-CVI
Input/Output Channels
2
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310/1550nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
Data Interface
RS-485 (RS-422 or RS-232 Optional)
Data Rate
Up to 300 Kbps
Data Channels
1 Bi-Directional
Bit Error Rate
10⁻⁹
Data Contact
Screw Terminal Strip
All of the VersiVision HD installation kits are available for standaloneapplications and include: Transmitter, Receiver, Power Supplies & 100 meters of fiber. Please give us a call (1-800-537-2296) or open a chat with any questions. We look forward to discussing your application with you!
Key Features of 2 Channels HDCVI Video Transmitter & Receiver
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable)
- Simultaneous Transmission of Video and Data
- VersiVision Chassis, HD-SDI, HDMI
2-Channel HDCVI Video Installation Kit | ST, MM (HDCVITR2003) is used across the following Applications:
Dual-Camera HD-CVI Surveillance
- Connects two HD-CVI cameras through a single optical fiber link
- Provides one bidirectional data channel for compatible camera communication
- Uses multimode fiber with 1310/1550nm wavelength support
- Provides BNC video and ST optical interfaces
PTZ Camera Monitoring
- Supports two HD-CVI video channels for compatible PTZ camera installations
- Provides RS-485 communication for compatible camera control systems
- Supports optional RS-422 or RS-232 data interfaces
- Provides data transmission up to 300 Kbps
Parking Area Surveillance
- Supports two HD-CVI cameras for parking area monitoring
- Combines two video channels with one bidirectional data channel
- Uses one multimode optical fiber for the connection
- Provides 60dB weighted S/N ratio for the video signal
Security Gate Monitoring
- Connects two HD-CVI cameras positioned at security gates
- Supports RS-485 communication for compatible surveillance equipment
- Uses ST optical connectivity over one multimode fiber
- Provides a screw terminal strip for the data interface
Building Entrance Surveillance
- Provides two dedicated HD-CVI video channels for entrance cameras
- Supports one bidirectional data channel alongside video transmission
- Uses BNC connections for HD-CVI video equipment
- Supports 5 Hz–8 MHz video bandwidth
Campus Security Monitoring
- Supports two HD-CVI cameras at selected campus monitoring points
- Transmits video and compatible data through one multimode fiber
- Provides 8-bit video signal resolution
- Uses ST optical and BNC video interfaces
Warehouse Camera Systems
- Connects two HD-CVI cameras for warehouse surveillance
- Provides one bidirectional data path for compatible camera equipment
- Supports data rates up to 300 Kbps
- Uses one multimode fiber for the optical connection
Industrial Facility Monitoring
- Provides two HD-CVI video channels for industrial surveillance areas
- Supports RS-485 communication alongside the video channels
- Operates from -35°C to +65°C
- Supports 0% to 95% non-condensing relative humidity
Factory Floor Surveillance
- Connects two HD-CVI cameras for factory floor monitoring
- Provides one bidirectional data channel for compatible equipment
- Supports differential gain below ±1%
- Provides differential phase below ±1° and tilt below 1%
Perimeter Security Systems
- Supports two HD-CVI cameras for perimeter surveillance locations
- Combines video transmission with bidirectional data communication
- Uses 1310/1550nm multimode fiber connectivity
- Provides 8-bit video signal resolution
Security Control Room Links
- Connects two HD-CVI camera feeds to centralized monitoring equipment
- Provides two video channels and one bidirectional data channel
- Supports a 10⁻⁹ bit error rate for the data channel
- Provides 60dB weighted S/N ratio for video transmission
Transportation Facility Surveillance
- Supports two HD-CVI cameras for transportation facility monitoring
- Provides one bidirectional data channel for compatible equipment
- Uses one multimode optical fiber with ST termination
- Supports data transmission up to 300 Kbps
Critical Facility Video Monitoring
- Provides two HD-CVI video channels for critical facility surveillance
- Supports bidirectional data communication through the optical connection
- Provides a 10⁻⁹ bit error rate for the data channel
- Provides an MTBF greater than 100,000 hours
Remote Camera Links
- Connects two HD-CVI cameras with compatible remote monitoring equipment
- Uses one multimode fiber for the video and data connection
- Provides one bidirectional data channel alongside two video channels
- Supports 1310/1550nm optical wavelength operation
CCTV System Expansion
- Adds two HD-CVI video channels to compatible surveillance installations
- Provides one bidirectional data channel for supported equipment
- Uses ST optical connectivity for the multimode fiber link
- Supports optional RS-422 or RS-232 communication interfaces
Fiber-Based CCTV Retrofit
- Supports upgrades of compatible two-channel HD-CVI video links
- Provides multimode fiber connectivity through an ST optical connector
- Maintains BNC connectivity for HD-CVI video equipment
- Provides a bidirectional data channel for compatible systems
Government Facility Surveillance
- Supports two HD-CVI cameras for government facility monitoring
- Provides compatible bidirectional data communication
- Uses one multimode optical fiber for the video and data link
- Supports a 5VDC, 2A power supply
Outdoor Security Camera Systems
- Supports two HD-CVI cameras in suitable outdoor surveillance installations
- Provides video and bidirectional data transmission through one fiber
- Supports operating temperatures from -35°C to +65°C
- Supports storage temperatures from -45°C to +85°C
Access Area Monitoring
- Connects two HD-CVI cameras covering controlled access areas
- Supports one bidirectional data channel for compatible camera equipment
- Provides 1310/1550nm optical transmission over multimode fiber
- Uses a screw terminal strip for the data connection
Multi-Zone Surveillance
- Connects two HD-CVI cameras assigned to separate monitoring zones
- Provides two video channels through one multimode optical fiber
- Supports one bidirectional data channel for compatible devices
- Provides 8-bit video resolution and 60dB weighted S/N ratio
Versitron is one of the leading (HDCVITR2003) 2-Channel HDCVI Video Installation Kit | ST, MM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!
Buy the Best 2-Channel HDCVI Video Installation Kit | ST, MM with Data over Multimode Fiber from VERSITRON at a Competitive Price!
