1-Channel HDCVI Video Installation Kit | Data, ST, SM

SKU:HDCVITR1A05

Free Ground Shipping For Online Store Orders
Free Unlimited Support
Lifetime Warranty

The VERSITRON VersiVision HDCVITR1A05 is a complete 1-channel HD-CVI video and data installation kit designed to transmit digitally encoded HD-CVI video and bi-directional serial data over a single singlemode optical fiber. The kit includes a video transmitter, receiver, power supplies, and 100 meters of singlemode fiber cable, providing a convenient solution for connecting HD-CVI cameras to remote monitoring and control equipment.

Supporting 8-bit HD-CVI video and one channel of bi-directional RS-485 data, the HDCVITR1A05 is compatible with NTSC, PAL, and SECAM camera systems and supports 1280H video formats. Plug-and-play installation, ST optical connectors, and LED status indicators make the system easy to deploy and monitor. The singlemode configuration supports transmission distances of up to 30 km.

Product Highlights

1-channel HD-CVI video transmission
1-channel bi-directional RS-485 data
8-bit digitally encoded video
Singlemode fiber transmission up to 30 km
ST optical connectors
Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F
Compatible with NTSC, PAL, and SECAM
RS-232 or RS-422 available as an option
Data rates up to 300 Kbps
Single-fiber optical transmission
Plug-and-play installation
No electrical or optical adjustments required
LED indicators for system status monitoring
Standalone or rack-mount installation
Compatible with the FVC18 18-slot chassis
Complete kit includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber

View full details

1-Channel HD-CVI Video and Data Over Singlemode Fiber

The HDCVITR1A05 combines HD-CVI video transmission with a bi-directional data channel, allowing both video and camera control data to travel over a single singlemode fiber optic link. A typical installation places the transmitter at the camera end of the link and the receiver at the monitoring or control location.

This configuration is well suited for PTZ camera systems and other applications where video equipment requires a return data path for remote control.

8-Bit HD-CVI Video Transmission

The HDCVITR1A05 supports 8-bit digitally encoded HD-CVI video and is compatible with NTSC, PAL, and SECAM camera systems. The VersiVision HD platform supports optimized optical modules compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F formats.

The video interface supports one channel with a bandwidth of 5 Hz–8 MHz and an 8-bit resolution.

Bi-Directional RS-485 Data

In addition to HD-CVI video, the HDCVITR1A05 supports one channel of bi-directional RS-485 data at data rates up to 300 Kbps. RS-232 and RS-422 are available as optional interfaces.

The bi-directional data channel provides a fiber-based path for camera control and other compatible serial communication applications.

Singlemode Fiber Transmission Up to 30 km

The HDCVITR1A05 uses a single singlemode optical fiber and supports transmission distances of up to 30 km. The product model table in the datasheet identifies the HDCVIT1A05 transmitter and HDCVIR1A05 receiver as 30 km singlemode configurations.

The singlemode configuration uses 1310/1550nm wavelength technology.

Plug-and-Play Installation

The VersiVision HD-CVI platform is designed for plug-and-play, adjustment-free installation. No electrical or optical adjustments are required, while LED indicators provide instant visibility into system operating status.

ST Fiber Connections

The HDCVITR1A05 uses ST optical connectors, BNC video connections, and a screw terminal strip for the data interface. ST-SC adapters are available for applications using SC fiber connectors.

Complete HD-CVI Video and Data Installation Kit

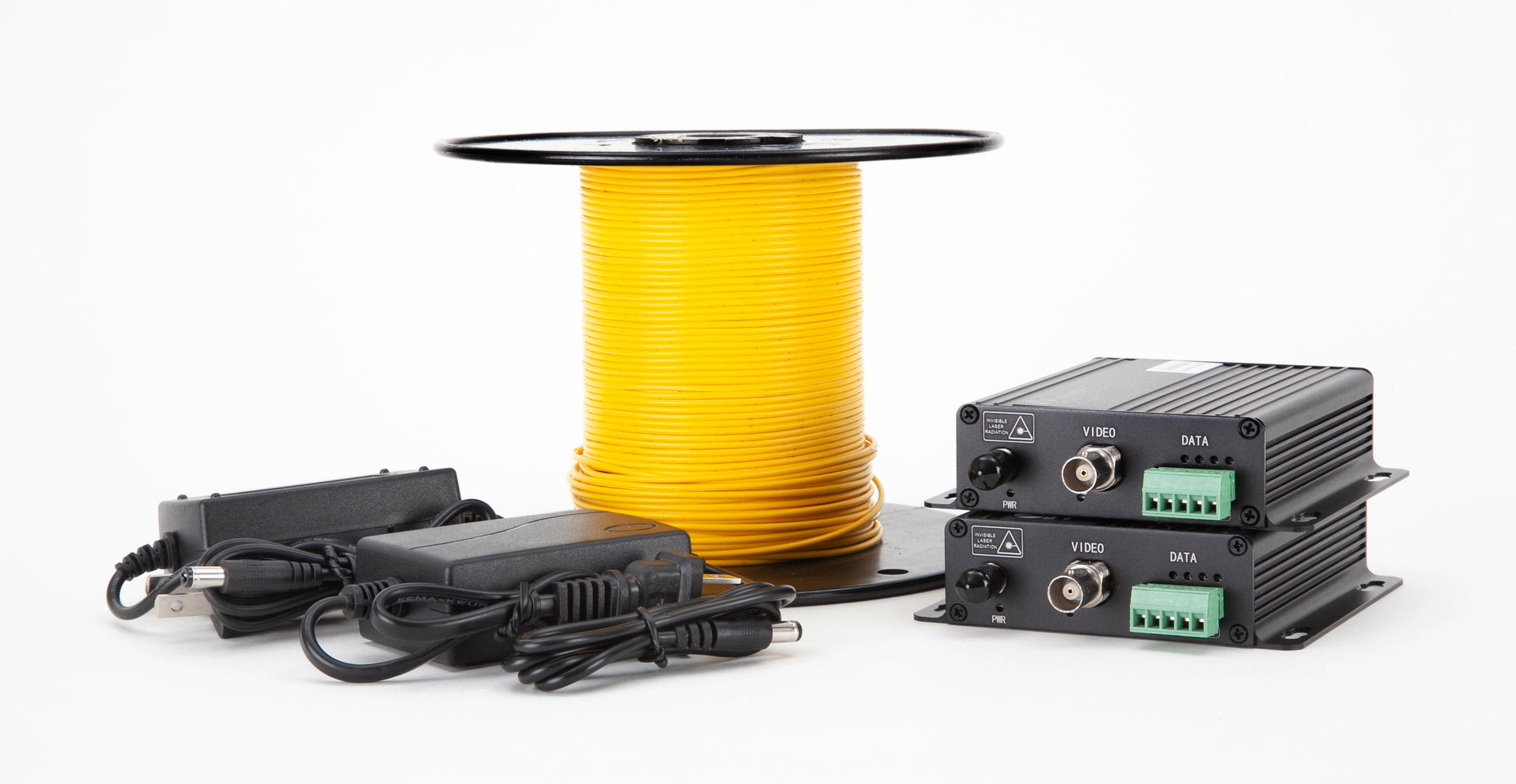

The HDCVITR1A05 installation kit includes the primary components needed to establish an HD-CVI video and data fiber link:

1-channel HD-CVI transmitter
1-channel HD-CVI receiver
Power supplies
100 meters of singlemode fiber cable
Bi-directional RS-485 data capability

Standalone or Rack-Mount Installation

VersiVision HD-CVI equipment can be installed as standalone units or integrated into the FVC18 18-slot chassis for rack-mounted installations. The HD-CVI platform is also designed to be hot-pluggable into the FVC18 chassis.

Applications

The HDCVITR1A05 is designed for applications requiring HD-CVI video and bi-directional data transmission over singlemode fiber, including:

PTZ Camera Systems
Security and Surveillance
Remote CCTV Monitoring
Transportation and Infrastructure Monitoring
Industrial Video Systems
Government and Institutional Security
Remote Camera Control
Fiber Optic Video Networks

Technical Specifications

Specification	HDCVITR1A05
Video	HD-CVI
Video Channels	1
Bit Resolution	8-Bit
Video Input	0.6–2.0V pk-pk, 75 Ohms
Bandwidth	5 Hz–8 MHz
Fiber Type	Singlemode
Wavelength	1310/1550nm
Number of Fibers	1
Maximum Distance	30 km
Data Interface	RS-485
Data Channels	1 Bi-Directional
Data Rate	Up to 300 Kbps
Optional Data	RS-232 or RS-422
Optical Connector	ST
Video Connector	BNC
Data Connector	Screw Terminal Strip
Power Supply	5VDC, 2A
Operating Temperature	-35°C to +65°C
Storage Temperature	-45°C to +85°C
Relative Humidity	0–95%, non-condensing
MTBF	>100,000 hours

Why Choose the VERSITRON HDCVITR1A05?

The HDCVITR1A05 provides a complete solution for extending HD-CVI video and camera control data over singlemode fiber. With transmission distances up to 30 km, bi-directional RS-485 data, support for multiple HD video formats, plug-and-play installation, and compatibility with the FVC18 chassis, it provides a practical fiber optic solution for long-distance video monitoring and control.

VERSITRON — Safeguarding Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI series extends that experience into high-definition video transmission, providing fiber optic connectivity for surveillance, monitoring, and camera control systems.

For assistance selecting the right HD-CVI video and data fiber optic transmitter, receiver, or installation kit, contact VERSITRON for technical support.

Technical Specifications:

Video Input

0.6 ~ 2.0 Volt pk-pk (75 Ohms)

Video Interface

HD-CVI

Input/Output Channels

Bandwidth

5 Hz – 8 MHz

Bit Resolution

8-Bit

Differential Gain

<±1%

Differential Phase

<±1°

Tilt

<1%

S/N Ratio

60dB (Weighted)

Wavelength

1310/1550nm

Number of Fibers

Optical Connector

Video Connector

BNC

Power Supply

5VDC, 2A

MTBF

>100,000 Hours

Operating Temperature

-35°C to +65°C

Storage Temperature

-45°C to +85°C

Relative Humidity

0% to 95% (non-condensing)

Data Interface

RS-485 (RS-422 or RS-232 Optional)

Data Rate

Up to 300 Kbps

Data Channels

1 Bi-Directional

Bit Error Rate

10⁻⁹

Data Contact

Screw Terminal Strip

Key Features of 1 Channels HDCVI Video Installation Kit

8-Bit Uncompressed Video Transmission
Digitally Encoded
NTSC, PAL, SECAM Video Compatible
Simplex or Full Duplex Data
WDM Technology for Higher Reliability
Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.

HD Units Spec

HD Video Data Manual

Triad

1-Channel HDCVI Video Installation Kit | Data, ST, SM (HDCVITR1A05) is used across the following Applications:

HD-CVI Security Camera Systems

Connection of one HD-CVI camera through a singlemode fiber optic link
Single-channel HD-CVI video transmission over singlemode fiber
Fiber-based connectivity between remote cameras and monitoring equipment
BNC video interfacing for compatible HD-CVI equipment

Commercial CCTV Surveillance

HD-CVI camera connectivity for commercial surveillance installations
Singlemode fiber transmission for individual remote camera locations
ST optical connectivity for compatible singlemode fiber infrastructure
Bidirectional data communication for compatible surveillance equipment

Industrial Video Surveillance

HD-CVI video connectivity for industrial monitoring locations
Singlemode fiber connection using one optical fiber
RS-485 data communication for compatible surveillance equipment
Operation across a -35°C to +65°C temperature range

Transportation Surveillance

HD-CVI camera connectivity for transportation monitoring locations
Singlemode fiber links between field cameras and monitoring equipment
One video channel for individual surveillance points
Bidirectional data communication for compatible devices

Parking Lot Security

Connection of HD-CVI cameras used for parking area surveillance
Singlemode fiber transmission between cameras and monitoring equipment
ST optical connection for compatible singlemode fiber installations
RS-485 communication for compatible surveillance equipment

Campus Security Monitoring

HD-CVI camera connectivity for campus security locations
Singlemode fiber links between remote cameras and monitoring systems
Single-channel video transmission for individual camera points
ST optical connectivity for compatible fiber infrastructure

Building Perimeter Surveillance

HD-CVI camera connectivity for building perimeter monitoring
Video transmission through one singlemode optical fiber
Fiber-based connection between remote cameras and video equipment
Bidirectional data communication for compatible surveillance devices

Warehouse Security Systems

HD-CVI camera connections for warehouse surveillance systems
Singlemode fiber connectivity for remote camera locations
Operation across a -35°C to +65°C temperature range
Combined video and compatible data communication

Factory Floor Monitoring

HD-CVI video connectivity for factory surveillance cameras
Singlemode fiber transmission using one optical fiber
RS-485 data communication for compatible equipment
Suitable for industrial monitoring environments within the specified temperature range

Security Control Rooms

Connection of remote HD-CVI cameras to centralized monitoring equipment
Single-channel video transmission through singlemode fiber
8-bit video transmission with a 60dB weighted S/N ratio
Bidirectional data communication for compatible surveillance equipment

Remote CCTV Monitoring

Singlemode fiber connectivity for HD-CVI cameras located away from monitoring equipment
One-fiber optical connection between compatible video units
Video bandwidth from 5 Hz to 8 MHz
One bidirectional data channel supporting data rates up to 300 Kbps

Security Gate Monitoring

HD-CVI camera connectivity for facility entrances and security gates
Singlemode fiber connection for compatible camera systems
RS-485 data communication for compatible surveillance equipment
BNC video interface for HD-CVI equipment connectivity

Outdoor Security Installations

HD-CVI video connectivity for suitable outdoor surveillance locations
Operation from -35°C to +65°C for supported installation conditions
Singlemode fiber connection between remote cameras and video equipment
Support for 0% to 95% relative humidity without condensation

Critical Facility Surveillance

HD-CVI camera connectivity for monitoring critical facility areas
Single-channel video transmission over singlemode fiber
Bidirectional data communication for compatible surveillance equipment
1310/1550nm optical wavelengths with an ST optical connector

Perimeter Security Monitoring

HD-CVI camera connectivity for facility boundary monitoring
Singlemode fiber optic link for remote surveillance camera locations
One HD-CVI video channel with a BNC interface
One bidirectional data channel for compatible RS-485 applications

Industrial Facility Security

HD-CVI video connectivity for industrial security cameras
One optical fiber for singlemode video transmission
Differential gain below ±1% and differential phase below ±1°
Compatible data communication at rates up to 300 Kbps

Video Surveillance Retrofit Projects

Singlemode fiber connectivity for compatible HD-CVI surveillance equipment
BNC video interfaces for compatible HD-CVI equipment
ST optical connectors for singlemode fiber infrastructure
One video channel with one bidirectional data channel

Remote Camera Control Applications

Connection of compatible HD-CVI cameras to remote monitoring equipment
One bidirectional data channel for compatible RS-485 communication
Data rates up to 300 Kbps for supported communication requirements
Combined HD-CVI video and compatible data connectivity over singlemode fiber

Fiber-Based CCTV Infrastructure

Optical interface between HD-CVI equipment and singlemode fiber infrastructure
One-fiber connectivity using 1310/1550nm optical wavelengths
ST optical connector for compatible singlemode fiber installations
Dedicated single-channel HD-CVI video transmission

Security System Expansion

Addition of compatible HD-CVI camera connections to fiber-based surveillance systems
One video channel for an individual camera connection
One bidirectional data channel for compatible surveillance communication
Singlemode fiber connectivity for suitable HD-CVI system expansion projects

Versitron is one of the leading (HDCVITR1A05) 1-Channel HDCVI Video Installation Kit | Data, ST, SM manufacturing companies in the USA (based in Delaware). If your industry or installation location isn't listed above, feel free to reach out to us!

Buy the Best 1-Channel HDCVI Video Installation Kit | Data, ST, SM with Data over Singlemode Fiber from VERSITRON at a Competitive Price!
