1-Channel HDCVI Video Installation Kit | ST, SM
1-Channel HDCVI Video Installation Kit | ST, SM
SKU:HDCVITR1005
-
Free Ground Shipping For Online Store Orders
-
Free Unlimited Support
-
Lifetime Warranty
Couldn't load pickup availability
Supporting 8-bit HD-CVI video and compatible with NTSC, PAL, and SECAM camera systems, the HDCVITR1005 provides reliable video transmission over distances up to 30 km using singlemode fiber. Plug-and-play operation, ST optical connectors, and LED status indicators simplify installation and system monitoring.
Product Highlights
- 1-channel HD-CVI video transmission
- 8-bit digitally encoded video
- Singlemode fiber transmission up to 30 km
- ST optical connectors
- Compatible with NTSC, PAL, and SECAM
- Supports 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats
- Single-fiber optical transmission
- Plug-and-play installation
- No electrical or optical adjustments required
- LED indicators for system status monitoring
- Standalone or rack-mount installation
- Compatible with the FVC18 18-slot chassis
- Complete kit includes transmitter, receiver, power supplies, and 100 meters of singlemode fiber
1-Channel HD-CVI Video Over Singlemode Fiber
The HDCVITR1005 provides a practical solution for extending HD-CVI camera signals over long-distance fiber optic links. The transmitter is installed at the camera end of the connection and sends the video signal over a singlemode optical fiber to the receiver at the monitoring or control location.
Using singlemode fiber allows the HDCVITR1005 to support transmission distances of up to 30 km, making it suitable for applications where cameras are located far from monitoring equipment.
8-Bit HD-CVI Video Transmission
The HDCVITR1005 supports 8-bit digitally encoded HD-CVI video. The VersiVision HD video platform is designed around optimized optical modules compatible with 1280H/25F, 1280H/30F, 1280H/50F, and 1280H/60F video formats.
The system is also directly compatible with NTSC, PAL, and SECAM camera systems.
Up to 30 km Over Singlemode Fiber
The HDCVITR1005 uses singlemode fiber with a 1310/1550nm optical wavelength configuration and supports transmission distances of up to 30 km. The VERSITRON model table identifies the HDCVIT1005 transmitter and HDCVIR1005 receiver as the corresponding 1-channel HD-CVI singlemode units.
Plug-and-Play Installation
The VersiVision HD-CVI platform is designed for plug-and-play installation, with no electrical or optical adjustments required. LED indicators provide instant visibility into system operating status.
This makes the HDCVITR1005 straightforward to deploy in both new installations and applications where existing HD-CVI cameras need to be extended over fiber.
ST Fiber Connections
The HDCVITR1005 uses ST optical connectors and BNC video connections. The datasheet specifies ST for the optical interface and BNC for the video interface. ST-SC adapters are also available for installations using SC fiber connectors.

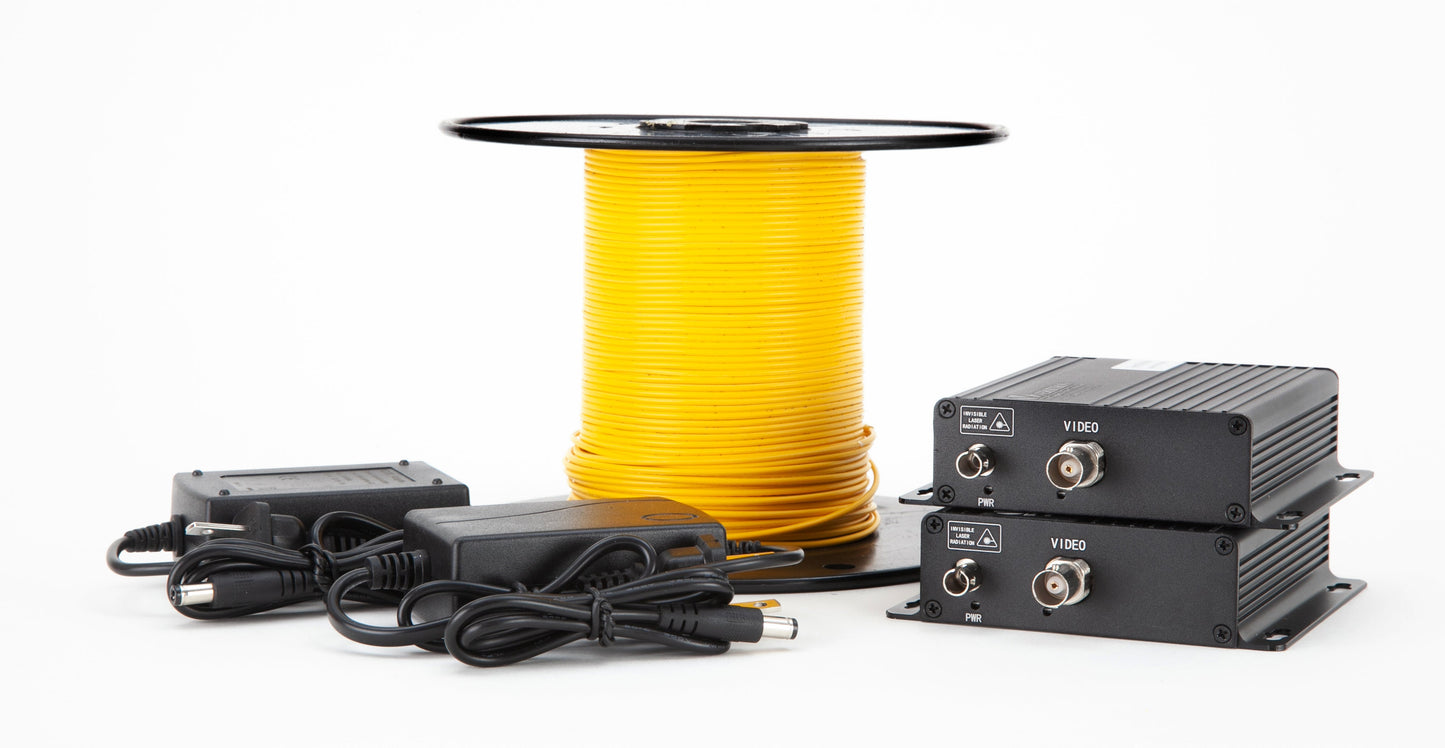

Complete HD-CVI Fiber Installation Kit
The HDCVITR1005 provides the primary components needed to establish a fiber optic HD-CVI connection:
- 1-channel HD-CVI transmitter
- 1-channel HD-CVI receiver
- 5VDC power supplies
- 100 meters of singlemode fiber cable
This packaged approach simplifies installation by providing the transmitter, receiver, power, and fiber cable together.
Standalone or Rack-Mount Installation
The VersiVision HD-CVI units can be deployed as standalone equipment or installed in the FVC18 18-slot chassis for centralized rack-mounted systems. The HD video platform is designed to be hot-pluggable into the FVC18 chassis.
Applications
The HDCVITR1005 is suited for HD-CVI video transmission over long-distance singlemode fiber in applications such as:
- Security and surveillance
- Remote CCTV camera monitoring
- Transportation and infrastructure monitoring
- Industrial facilities
- Commercial security systems
- Government and institutional facilities
- Remote control rooms
- Large campuses and distributed facilities
- Long-distance fiber optic video networks
Technical Specifications
| Specification | HDCVITR1005 |
|---|---|
| Video | HD-CVI |
| Video Channels | 1 |
| Bit Resolution | 8-Bit |
| Video Input | 0.6–2.0V pk-pk, 75 Ohms |
| Bandwidth | 5 Hz–8 MHz |
| Fiber Type | Singlemode |
| Wavelength | 1310/1550nm |
| Number of Fibers | 1 |
| Maximum Distance | 30 km |
| Optical Connector | ST |
| Video Connector | BNC |
| Power Supply | 5VDC, 2A |
| Operating Temperature | -35°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Relative Humidity | 0–95%, non-condensing |
| MTBF | >100,000 hours |
Why Choose the VERSITRON HDCVITR1005?
The HDCVITR1005 combines HD-CVI video transmission with long-distance singlemode fiber connectivity in a complete installation kit. With support for transmission distances up to 30 km, plug-and-play installation, ST fiber connections, and compatibility with multiple video standards, it provides a straightforward way to connect remote HD-CVI cameras to monitoring equipment.
VERSITRON — Safeguarding Communications Since 1958
Since 1958, VERSITRON has provided fiber optic communication solutions for video, data, and networking applications. The VersiVision HD-CVI series extends that experience into high-definition video transmission, providing fiber optic connectivity for professional surveillance and monitoring systems.
For help selecting the right HD-CVI fiber optic transmitter, receiver, or installation kit, contact VERSITRON for technical assistance.
Video Input
0.6 ~ 2.0 Volt pk-pk (75 Ohms)
Video Interface
HD-CVI
Input/Output Channels
1
Bandwidth
5 Hz – 8 MHz
Bit Resolution
8-Bit
Differential Gain
<±1%
Differential Phase
<±1°
Tilt
<1%
S/N Ratio
60dB (Weighted)
Wavelength
1310nm
Number of Fibers
1
Optical Connector
ST
Video Connector
BNC
Power Supply
5VDC, 2A
MTBF
>100,000 Hours
Operating Temperature
-35°C to +65°C
Storage Temperature
-45°C to +85°C
Relative Humidity
0% to 95% (non-condensing)
- 8-Bit Uncompressed Video Transmission
- Digitally Encoded
- NTSC, PAL, SECAM Video Compatible
- Simplex or Full Duplex Data
- WDM Technology for Higher Reliability
- Standalone or Rackmount into FVC18 Chassis (Hot Pluggable) Simultaneous Transmission of Video and Data VersiVision Chassis, HD-SDI, HDMI.
1-Channel HDCVI Video Installation Kit | ST, SM (HDCVITR1005) is used across the following Applications:
HD-CVI Security Camera Links
- Connects a single HD-CVI camera to compatible video monitoring equipment
- Provides one dedicated HD-CVI video channel for surveillance applications
- Uses singlemode fiber with a 1310nm optical wavelength
- Provides BNC video and ST optical connections
Single-Channel CCTV Fiber Upgrades
- Supports migration of an HD-CVI video link from copper to singlemode fiber
- Maintains one video input/output channel for individual camera connections
- Uses one optical fiber for the video transmission path
- Fits installations requiring ST fiber termination and BNC video connectivity
Building Entrance Surveillance
- Supports dedicated HD-CVI video links for building entrance cameras
- Connects surveillance video through a singlemode fiber infrastructure
- Provides 5 Hz–8 MHz bandwidth for the video channel
- Supports installations operating from -35°C to +65°C
Parking Area Camera Monitoring
- Provides a fiber-based connection for a single HD-CVI parking camera
- Uses a 1310nm wavelength over one singlemode optical fiber
- Connects the camera-side video equipment through BNC interfaces
- Supports video transmission with a 60dB weighted S/N ratio
Facility Perimeter Surveillance
- Supports dedicated HD-CVI cameras used for perimeter monitoring
- Provides one video channel without requiring a separate data channel
- Uses ST optical connectivity for the singlemode fiber link
- Supports operation across a -35°C to +65°C temperature range
Warehouse Security Cameras
- Connects individual HD-CVI cameras used for warehouse surveillance
- Provides single-channel video transmission over singlemode fiber
- Supports 8-bit video signal resolution
- Uses standard BNC video connectivity at the video interface
Industrial Facility Video Monitoring
- Supports HD-CVI camera connections within industrial monitoring areas
- Provides a dedicated one-channel video path over singlemode fiber
- Operates from -35°C to +65°C for temperature-variable installations
- Supports 0% to 95% non-condensing relative humidity
Security Control Room Video Links
- Connects an individual HD-CVI camera feed to a security monitoring location
- Provides one dedicated video input/output channel
- Supports a 5 Hz–8 MHz video bandwidth
- Uses singlemode fiber with ST optical connectors
Campus Surveillance Systems
- Supports HD-CVI cameras positioned around campus facilities
- Provides single-channel video connectivity using singlemode fiber
- Supports camera video through BNC interfaces
- Provides less than 1% tilt for the video signal
Remote Building Camera Links
- Provides a dedicated HD-CVI video connection for separate building locations
- Uses one singlemode optical fiber for the video path
- Supports 1310nm optical transmission
- Provides ST optical and BNC video interfaces for system integration
Transportation Facility Surveillance
- Supports individual HD-CVI cameras used at transportation facilities
- Provides one video channel for dedicated camera monitoring
- Supports singlemode fiber connectivity with a 1310nm wavelength
- Maintains video signal performance with less than 1% differential gain
Security Gate Monitoring
- Connects an HD-CVI camera installed at a security gate
- Provides one dedicated video channel for gate surveillance
- Uses one singlemode fiber with an ST optical connector
- Provides BNC connectivity for the HD-CVI video interface
Critical Facility Camera Monitoring
- Supports dedicated HD-CVI video feeds for critical facility surveillance
- Provides 60dB weighted S/N performance for the video signal
- Uses singlemode fiber for the optical connection
- Provides an MTBF of more than 100,000 hours
Outdoor Security Camera Installations
- Supports HD-CVI cameras used in outdoor surveillance installations
- Provides one video channel over a singlemode fiber connection
- Supports operation from -35°C to +65°C
- Supports storage temperatures from -45°C to +85°C
CCTV System Retrofit Projects
- Supports replacement of existing individual HD-CVI video transmission links
- Provides singlemode fiber connectivity for the upgraded video path
- Uses BNC video connections for HD-CVI equipment integration
- Uses ST optical connectivity for the fiber infrastructure
Manufacturing Facility Surveillance
- Provides dedicated HD-CVI camera links for manufacturing areas
- Supports one video input/output channel per installation
- Provides 5 Hz–8 MHz bandwidth for the video signal
- Supports operation in environments with 0% to 95% non-condensing humidity
Access Point Video Monitoring
- Connects individual HD-CVI cameras positioned at controlled access points
- Provides a dedicated single-channel video connection
- Uses 1310nm singlemode fiber transmission
- Supports BNC video and ST optical interfaces
Security Perimeter Camera Upgrades
- Provides a fiber-based HD-CVI connection for individual perimeter cameras
- Uses one singlemode fiber for each video link
- Supports less than 1° differential phase for the video signal
- Provides 8-bit video signal resolution
Remote CCTV Video Monitoring
- Supports dedicated HD-CVI video connections between camera and monitoring equipment
- Provides one video channel over singlemode fiber
- Uses a 1310nm optical wavelength with one optical fiber
- Supports a 5VDC, 2A power supply
Government Facility Surveillance
- Supports individual HD-CVI surveillance cameras at government facilities
- Provides a dedicated single-channel video transmission path
- Uses ST-terminated singlemode fiber connectivity
- Supports stable video transmission with less than 1% differential gain
