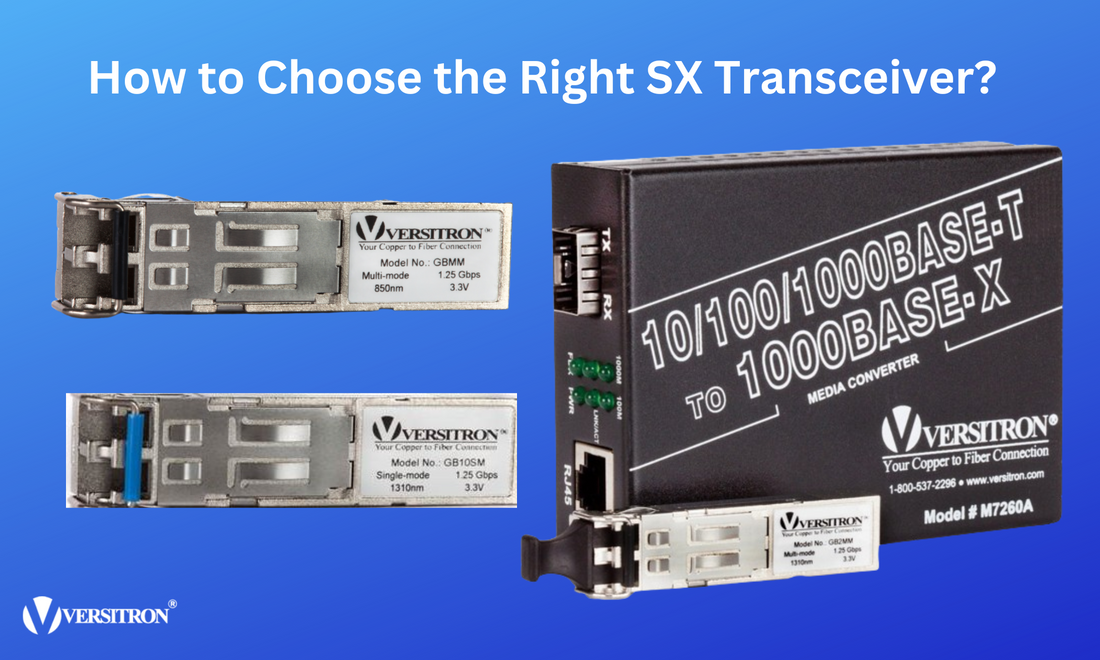

How to Choose the Right SX Transceiver for Your Network Infrastructure

Selecting the right optical transceiver is an important step in building a reliable Ethernet network. The transceiver must match the network equipment, fiber type, transmission distance, and required data rate. Choosing an incompatible module can prevent a link from establishing or cause connectivity and performance problems.

One common option for short-distance fiber connections is the 1000BASE-SX SFP transceiver. Designed for Gigabit Ethernet over multimode fiber, it is frequently used to connect switches, servers, and other network devices within the same building or facility.

This guide explains how SX transceivers work, where they are used, and what to consider when selecting one for your network infrastructure.

Understanding SX Transceivers

SX is a designation associated with short-wavelength optical transmission in Gigabit Ethernet. A 1000BASE-SX transceiver transmits and receives optical signals at approximately 850 nanometers (nm) over multimode fiber.

Multimode fiber has a relatively large core that supports multiple propagation modes. It is commonly used for short-distance connections within buildings, wiring closets, server rooms, and data centers.

A 1000BASE-SX transceiver typically supports a transmission rate of 1 gigabit per second (Gbps). Its maximum supported distance depends on the type and performance characteristics of the multimode fiber.

SX transceivers are commonly available in the Small Form-Factor Pluggable (SFP) form factor. An SFP module can be inserted into a compatible switch, router, or other networking device, allowing the equipment to use a fiber-optic interface.

Before choosing a transceiver, it is important to distinguish between the optical standard and the physical module format:

• 1000BASE-SX: The Gigabit Ethernet optical standard.
• SFP: The pluggable transceiver form factor.
• 850 nm: The nominal operating wavelength used by 1000BASE-SX.
• Multimode fiber: The fiber type used by 1000BASE-SX.

These terms describe different aspects of the connection, and all must be considered when selecting a compatible module.

What Is a 1000BASE-SX SFP Transceiver?

A 1000BASE-SX SFP transceiver provides a fiber-optic connection for Gigabit Ethernet equipment. It converts electrical signals from the host device into optical signals for transmission and converts received optical signals back into electrical signals.

This allows Ethernet traffic to travel over fiber instead of a copper Ethernet cable.

Typical applications include:

• Connecting Ethernet switches within a building
• Linking servers to fiber-capable switches
• Connecting network equipment in adjacent telecommunications rooms
• Extending connectivity across a facility using multimode fiber
• Supporting fiber uplinks in enterprise LANs

A standard duplex 1000BASE-SX connection normally uses two optical fiber strands: one for transmission and one for reception.

The transceiver's connector type must also match the installed cabling. Many SFP modules use duplex LC connectors, but the exact connector should always be verified in the product specifications.

How Far Can an SX Transceiver Transmit?

Transmission distance is one of the most important factors when choosing an SX transceiver. The supported reach depends on the multimode fiber's core size and bandwidth, as well as the optical specifications of the transceiver and the condition of the installed link.

Common reference distances for 1000BASE-SX include:

These are common reference values, not a substitute for the specifications of the actual transceiver and installed cabling. The applicable fiber bandwidth, link-loss budget, connectors, splices, and installation conditions must all be considered.

If a connection must span a longer distance than the selected SX module supports, a different optical solution may be necessary. Depending on the equipment and application, alternatives may include a suitable single-mode transceiver or another fiber-optic Ethernet standard designed for the required reach.

Do not select a transceiver based on distance alone. Confirm the optical standard, supported fiber type, wavelength, and link budget before deployment.

Why SX Transceivers Are Useful for Network Infrastructure

1000BASE-SX transceivers remain useful for Gigabit Ethernet links where multimode fiber is already installed and the required distance falls within the supported range.

1. Short-distance fiber connectivity

SX transceivers are well suited to connections between switches, servers, and other devices within a building or facility. They provide an alternative to copper uplinks where fiber is preferred or already available.

2. Multimode fiber compatibility

Multimode fiber is widely used for building and data-center cabling. Using a compatible SX transceiver can allow organizations to use their existing multimode fiber infrastructure instead of replacing it with a different medium.

Compatibility still needs to be verified. The fiber type, supported distance, connector, and optical specifications must match the transceiver.

3. Cost-effective Gigabit Ethernet links

For suitable short-distance connections, 1000BASE-SX can be a practical choice when the network requires Gigabit Ethernet rather than a higher data rate.

Total cost should include not only the transceiver but also fiber cabling, connectors, installation, maintenance, and compatibility with the network equipment.

4. Fiber uplinks for switches and servers

Fiber uplinks can connect switches across equipment rooms and provide connections between servers and network infrastructure. The appropriate SX transceiver can support these links when the equipment and fiber meet the required specifications.

5. Resistance to electromagnetic interference

Fiber transmits data using light rather than electrical signals, making the optical link immune to electromagnetic interference along the fiber itself. This can be valuable in environments where electrical noise affects copper cabling.

Fiber also provides electrical isolation between connected endpoints, although the overall installation may still require appropriate grounding and surge protection for other connected equipment.

Factors to Consider When Selecting an SX Transceiver

Choosing the right transceiver requires more than matching the connector or selecting the lowest-cost module. Review the following factors before purchasing.

1. Compatibility with network equipment

Not every transceiver works with every switch or router. Some equipment vendors maintain compatibility requirements or lists of approved modules.

Verify that the module is supported by the host device and that it matches the required Ethernet standard, port type, and operating specifications. Also check whether the host requires a particular module coding or firmware compatibility.

A physically compatible SFP module is not necessarily a functionally compatible one.

2. Required data rate

A 1000BASE-SX transceiver is designed for 1 Gbps Gigabit Ethernet. It should not be confused with 10 Gigabit Ethernet SR transceivers or higher-speed optical modules.

Although SX, SR, and other optical designations are associated with short-distance optical links, they refer to different standards and are not interchangeable simply because they use similar wavelengths or fiber types.

If your network requires 10 Gbps, 25 Gbps, or another higher data rate, choose a transceiver designed for that specific Ethernet standard and supported by the host equipment.

3. Transmission distance

Measure or determine the actual fiber route between the two devices, including any patch panels and intermediate connections.

Confirm that the selected module supports the required reach over the installed fiber type. If the route exceeds the transceiver's supported distance, choose a suitable alternative rather than assuming that all multimode fiber supports the same reach.

4. Fiber type

1000BASE-SX is designed for multimode fiber. Single-mode fiber is generally used with optical standards and transceivers specifically designed for single-mode operation.

Common fiber types include:

• OM1: Older multimode fiber commonly associated with a 62.5 µm core.
• OM2: 50 µm multimode fiber used in some legacy and existing installations.
• OM3: Laser-optimized multimode fiber widely used for higher-bandwidth optical applications.
• OM4:Laser-optimized multimode fiber with higher specified modal bandwidth than OM3.

The fiber category affects the supported distance. Check the fiber's specifications and the transceiver manufacturer's distance limits before making a selection.

5. Connector type and cabling

The connector on the transceiver must match the patch cord or be connected through suitable compatible cabling.

Many 1000BASE-SX SFP modules use duplex LC connectors. The installed fiber must also have the correct type of termination and polarity for the intended connection.

Inspect and clean optical connectors using appropriate procedures before installation. Dirty or damaged connectors can increase optical loss and cause intermittent connectivity.

6. Optical link budget

The optical link budget helps determine whether the transmitted signal will reach the receiving transceiver with sufficient power.

The calculation should account for fiber attenuation, connector loss, splice loss where applicable, and other losses along the route. The resulting receive power must fall within the receiver's specified operating range.

A link that is too lossy may fail to establish or operate reliably. Conversely, optical power must also remain within the receiver's maximum input limit.

For typical SX installations, follow the transceiver's published transmit-power, receiver-sensitivity, and maximum-receive-power specifications.

7. Operating temperature

The required temperature range depends on where the equipment will be installed.

A transceiver operating inside a climate-controlled server room may have different requirements from one installed in an industrial cabinet or exposed equipment enclosure.

Review the module's rated operating temperature and the host equipment's requirements. If the network operates in a demanding environment, select a module rated for the expected conditions.

8. Reliability and product quality

Transceiver reliability depends on design, manufacturing quality, compatibility, and operating conditions.

When evaluating suppliers, review product specifications, warranty terms, technical support, and compatibility documentation. Confirm that the module meets the requirements of the intended application rather than relying solely on price or a general claim of compatibility.

9. Power consumption

Transceiver power consumption contributes to the overall power and thermal requirements of the host device. Although individual SFP modules generally use relatively little power, the combined impact can matter in high-density equipment.

Check the module's power specifications and ensure that the host device supports the required module type.

10. Future network requirements

Consider whether the connection will continue to require 1 Gbps or may need a higher data rate in the future.

If the application is expected to grow, evaluate the capabilities of the installed fiber, host equipment, and available upgrade options. An SX module may be appropriate for a current Gigabit Ethernet link, while a future upgrade could require a different transceiver standard.

Future-proofing should be based on realistic bandwidth and distance requirements rather than assuming that a single transceiver will support every future network speed.

Common Challenges When Choosing SX Transceivers

Changing standards and technologies

Optical transceiver standards evolve as network bandwidth requirements increase. A module appropriate for a Gigabit Ethernet link may not support a later 10 Gigabit Ethernet or higher-speed connection.

How to address it: Confirm the required Ethernet standard and review the host equipment's supported transceiver options before purchasing. Evaluate higher-speed alternatives if the network's requirements justify them.

Budget constraints

Lower-cost modules may appear attractive, but the purchase price does not tell the whole story. An incompatible transceiver can cause delays, troubleshooting costs, and replacement expenses.

How to address it: Compare total deployment costs, verify compatibility, and prioritize modules that meet the actual optical and environmental requirements of the network.

Interoperability issues

Even when two modules use the same general optical standard, differences in host compatibility, connector type, or specifications can create deployment problems.

How to address it: Verify both ends of the link. Confirm that the transceivers are compatible with their respective host devices and that their optical characteristics match the fiber route.

Environmental conditions

Temperature, dust, vibration, and other environmental factors can affect equipment operation. Optical connectors are also sensitive to contamination.

How to address it: Select modules with suitable operating-temperature ratings, protect equipment from environmental hazards, and follow proper connector inspection and cleaning procedures.

Uncertain future requirements

A network upgrade may require a different optical standard or data rate than the one currently deployed.

How to address it: Document current requirements and anticipated changes. When planning a future upgrade, evaluate fiber capacity, host-device support, and the appropriate transceiver standards together.

SX vs. Other Optical Transceivers

SX is not the right choice for every fiber connection. Understanding the distinction between common optical designations helps avoid purchasing the wrong module.

These categories are not interchangeable. The correct choice depends on the required speed, fiber infrastructure, transmission distance, and host-device compatibility.

Conclusion

Choosing the right SX transceiver starts with understanding the requirements of the network connection. For 1 Gbps Gigabit Ethernet links over compatible multimode fiber, a 1000BASE-SX SFP transceiver can provide a practical solution for connecting switches, servers, and other network equipment.

Before purchasing, verify host compatibility, data rate, fiber type, transmission distance, connector type, optical link budget, and operating temperature. These checks help reduce installation problems and support reliable network performance.

When the required speed or distance exceeds the capabilities of 1000BASE-SX, evaluate the appropriate alternative optical standard rather than assuming that every short-reach transceiver supports the same applications.

By matching the transceiver to the complete network link—not just the connector—network administrators can make informed decisions and build fiber-optic infrastructure that meets their performance and reliability requirements.
