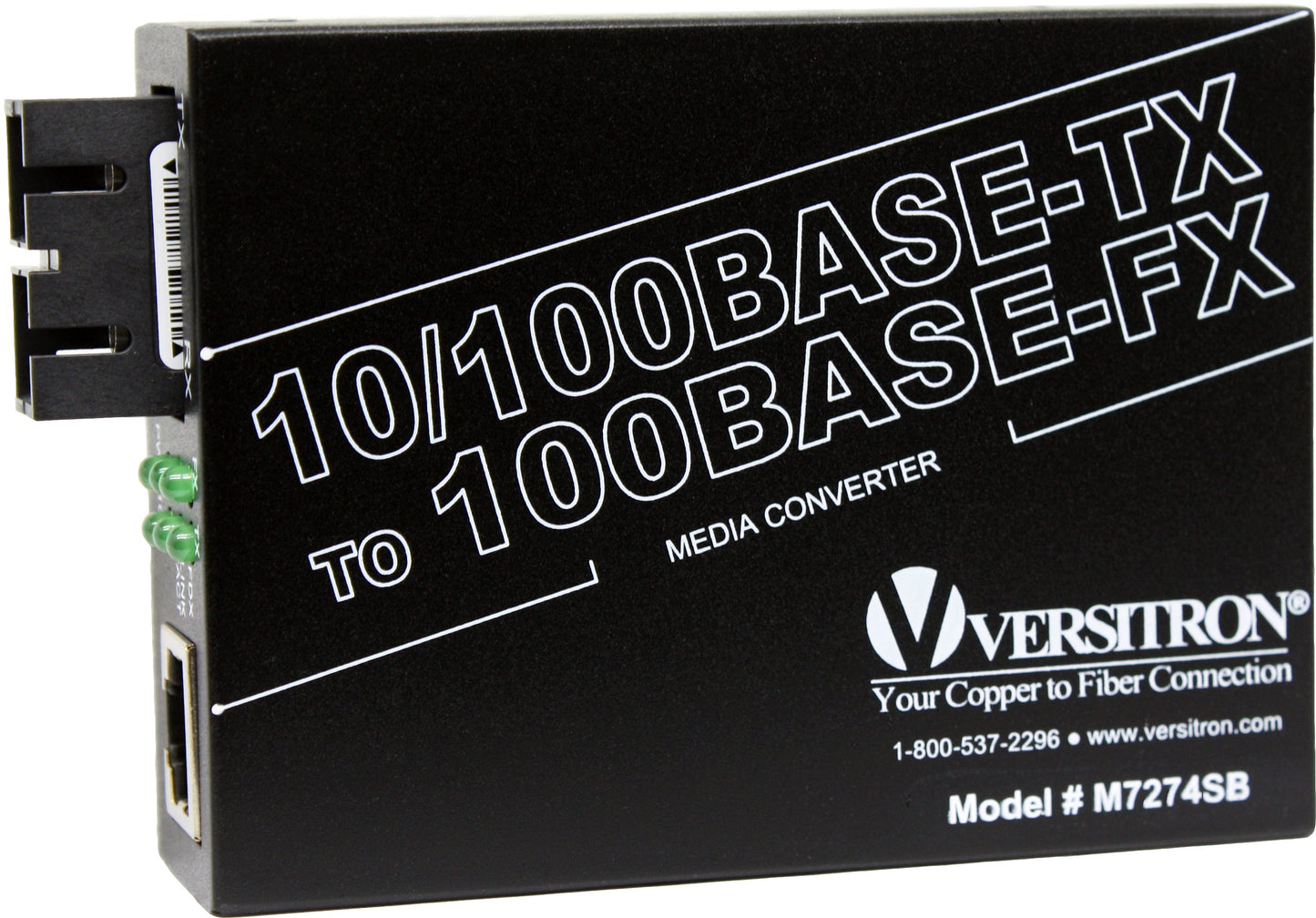

10/100TX-FX Media Converter | 1-RJ45 Ethernet Port, 1-SC Fiber Port, MM

Extend 10/100 Ethernet Networks Over Multimode Fiber

The M7274SB provides a simple way to add fiber optic connectivity to an existing 10/100Mbps Ethernet network. The converter accepts a 10/100Base-TX connection through its RJ45 copper port and converts the Ethernet signal to 100Base-FX multimode fiber.

The copper interface supports Cat5 UTP cable distances up to 100 meters, while the fiber interface extends network connectivity up to 2 kilometers over multimode fiber. This makes the M7274SB useful for connecting network segments that exceed the practical distance limitations of copper Ethernet.

SC Multimode Fiber Connectivity

The M7274SB uses an SC fiber connector and 1310nm optical wavelength for 100Base-FX transmission over multimode fiber.

The converter supports both 50/125µm and 62.5/125µm multimode fiber, providing compatibility with commonly deployed multimode fiber infrastructure.

The VERSITRON datasheet specifies a 2 km maximum transmission distance for the M7274SB, with transmit power of -14 to -9dBm and receiver sensitivity of -34dBm.

Automatic Ethernet Configuration

The shielded RJ45 copper port supports 10Mbps and 100Mbps Ethernet with both full- and half-duplex operation.

Auto-negotiation automatically determines the appropriate speed and duplex configuration for the connected Ethernet device. Auto-MDI/MDI-X detection simplifies installation by automatically accommodating the connected cable configuration.

For installations requiring manual configuration, the M7274SB also provides forced speed and duplex settings.

Link Fault Pass-Through and Far End Fault Detection

The M7274SB incorporates Link Fault Pass-Through and Far End Fault detection to help identify problems across the copper and fiber portions of the network connection.

LED indicators provide immediate status information for the converter and connected interfaces, including:

• Power status
• Copper link/activity
• Copper speed
• Copper duplex status
• Fiber link/activity
• Fiber signal detection

This provides technicians with a convenient way to check link status during installation and troubleshooting.

Reliable Copper-to-Fiber Conversion

The M7274SB uses store-and-forward technology and incorporates a 1M RAM data buffer and watchdog timer to support reliable operation.

The watchdog timer is designed to reset the converter in the event of a system failure, helping maintain continuous operation without requiring manual intervention.

Store-and-forward operation supports packet sizes up to 1600 bytes, while smart-forward operation at 100-to-100Mbps has no packet-size limitation according to the datasheet.

DIP Switch Configuration

The M7274SB includes DIP switches that allow selected operating parameters to be configured manually.

Available settings include:

• Copper operating mode
• Duplex
• Speed
• Link Fault Pass-Through
• Auto Status Report

This provides additional flexibility when integrating the converter into existing network infrastructure.

Standalone or Chassis Installation

The compact M7274SB can be deployed as a standalone media converter or installed in VERSITRON’s optional MCC-14R 14-slot chassis.

The converter also supports optional DIN rail mounting, providing flexibility for equipment rooms, network cabinets, and other space-constrained installations.

The MCC-14R provides a centralized installation option for multiple media converters and incorporates redundant power. The chassis is shown on page 2 of the M727xSB datasheet.

Compact, Low-Power Design

The M7274SB operates from +5 to 12VDC, 1A and consumes less than 5W.

Its compact enclosure measures 3.70 × 2.79 × 1.02 inches, allowing it to be installed where available equipment space is limited.

The specified operating temperature range is -10°C to +55°C, with a storage temperature range of -40°C to +70°C and 5% to 90% non-condensing humidity.

Typical Applications

The M7274SB is well suited for Ethernet networks that require 10/100Mbps copper connectivity to be extended over multimode fiber with SC termination.

Typical applications include:

• Extended Ethernet networks
• Building-to-building connectivity
• Campus networks
• IP surveillance and security networks
• Access control and intercom systems
• Commercial Ethernet networks
• Telecommunications infrastructure
• Fiber-to-the-desk applications
• Remote office connectivity
• Networks using existing SC multimode fiber

Technical Specifications

Specifications are based on the VERSITRON M727xSB datasheet.

VERSITRON Fiber Optic Communications Since 1958

Since 1958, VERSITRON has provided fiber optic communication solutions for commercial, industrial, government, security, and telecommunications applications.

The M7274SB provides a straightforward way to convert 10/100Base-TX copper Ethernet to 100Base-FX multimode fiber, extending network connectivity up to 2 km while providing automatic configuration, fiber fault detection, flexible installation options, and low-power operation.

For product selection, network integration assistance, or technical support, contact VERSITRON at sales@versitron.com or 1-800-537-2296.

• Auto-Negotiation and Auto MDI/MDI-X Detection: Effortlessly detects cable types (MDI/MDI-X) and network speeds (10/100 Mbps), eliminating manual configuration and ensuring seamless connectivity.
• Full Wire Speed Conversion: Delivers high-throughput performance, enabling smooth and efficient communication between copper and fiber networks.
• 128Kb RAM Data Buffer: Provides reliable data storage and ensures smooth transmission even during heavy network loads, maintaining consistent performance.
• Link Fault Pass-Through Function: Instantly alerts connected devices to link failures, enabling quick troubleshooting and minimizing downtime.
• Watchdog Timer: Automatically resets the device during system failures, guaranteeing reliable, continuous operation in demanding environments.
• Flexible Installation Options: Supports standalone use or integration with the MCC-14R chassis, offering adaptability to various deployment scenarios.
• Far End Fault Functionality: Enhances fault detection by identifying issues on the remote end of fiber links, enabling real-time monitoring and faster resolution.
• Optional DIN Rail Mounting: Facilitates secure, space-saving installation in industrial settings, ensuring efficient use of available space.
• USB Power Port: Provides added convenience for powering the device in environments without standard AC power sources, increasing deployment flexibility.
• Eco-Friendly Low Power Consumption: Reduces operational costs and environmental impact, making it a sustainable choice for modern installations.
